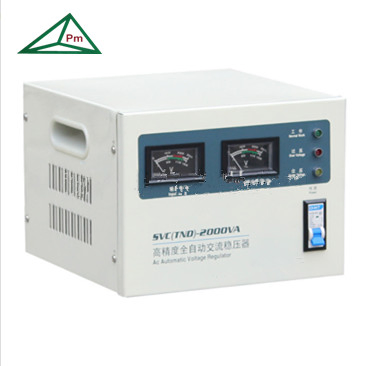

SVC 2000W Automatic Electric Voltage Stabilizer Regulator Specification
Introduction of products.PM series single-phase high-precision automatic AC voltage regulator consists of contact auto-connected voltage regulator, servo motor, automatic control circuit, etc. When the power grid voltage is unstable or the load changes, the automatic sampling control circuit sends o......
Send Inquiry
Product Description
Introduction of products.

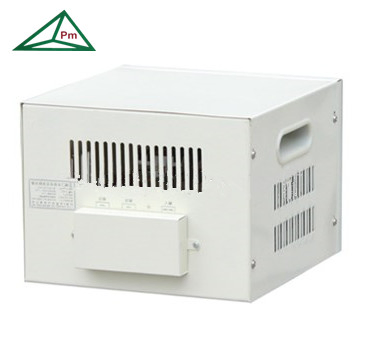

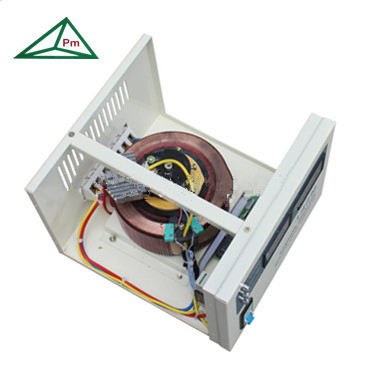

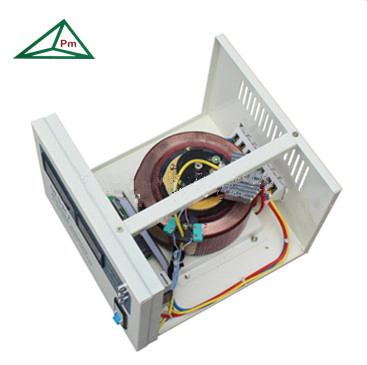

PM series single-phase high-precision automatic AC voltage regulator consists of contact auto-connected voltage regulator, servo motor, automatic control circuit, etc. When the power grid voltage is unstable or the load changes, the automatic sampling control circuit sends out The signal drives the servo motor to adjust the position of the carbon brush of the auto-regulator, so that the output voltage is adjusted to the rated value and reaches a stable state.This product has the characteristics of undistorted waveform, reliable performance, long-term operation, etc., with delay, over Pressure, undervoltage protection, etc. It can be widely used in any place where electricity is needed for stable voltage, and it is an ideal regulated power supply to ensure normal operation of your electrical equipment.Technical parameters
| Input voltage | 150V-250V | |||
| Output voltage | 220V/110V(0.5kVA-3kVA) 220V(5kVA-30kVA) | |||
| Voltage regulation accuracy | Phase voltage 220V±3% 110V±6% | |||
| frequency | 50Hz/60Hz | |||
| Overvoltage protection | 246V±4% | |||
| Adjust the time | <1 second (when input voltage changes by 10%) | |||
| Ambient temperature | -10ºC~+40ºC | |||
| Temperature rise | <60ºC | |||
| Waveform distortion | No additional waveform distortion | |||
| Load power factor | 0.8 | |||
| Dielectric strength | 1500V/1min | |||
| Insulation resistance | >2MΩ | |||
| Outer size/Packaging | |||||
| Model/Specifications | Size (cm) | Package (cm) | Package Quantity (piece) | Gross Weight (kg) | |
| PM-1005 | 19 × 17 × 13.5 | 44 × 24.5 × 35 | 4 | 15 | |
| PM-101 | 22 × 20.2 × 16 | 49 × 28.5 × 40 | 4 | 20 | |
| PM-101.5 | 22 × 20.2 × 16 | 49 × 28.5 × 40 | 4 | 26 | |
| PM-102 | 24.5 × 25.8 × 19.5 | 60.5 × 35 × 25.5 | 2 | 17 | |
| PM-103 | 23.5 × 29 × 23 | 61.5 × 38.5 × 29 | 2 | 23 | |
| PM-105 | 23 × 31.5 × 27.5 | 39.5 × 32 × 35 | 1 | 13 | |
| PM-110 (ultra-low pressure) | 31 × 34.5 × 53.5 | 45 × 42.5 × 62 | 1 | 33 | |
| PM-110K | 31 × 34.5 × 53.5 | 45 × 42.5 × 62 | 1 | 36 | |
| PM-115K | 28 × 38 × 77 | 49 × 40 × 86.5 | 1 | 52 | |
| PM-120K | 32.5 × 38 × 77.5 | 49 × 44.5 × 88.5 | 1 | 59 | |
| PM-130K | 37.5 × 41.5 × 78.5 | 53 × 49 × 88.5 | 1 | 74 | |
