1500va Home Used Single Phase AVR Automatic Voltage Stabilizer 220V/110V
TND Series Single-phase High-precision Full Automatic AC Voltage StabilizerSpecificationProduct model TND - 1KTND - 1.5KTND - 2KTND - 3KTND - 5KTND - 7KTND - 10KTND - 15KTND - 20KTND - 30KPower 1000VA1500VA2000VA3000VA5000VA7000VA10000VA15000VA20000VA30000VAOutputvoltageVoltage stabilizing precision......
Send Inquiry
Product Description
| TND Series Single-phase High-precision Full Automatic AC Voltage Stabilizer | |||||||||||
| Specification | |||||||||||

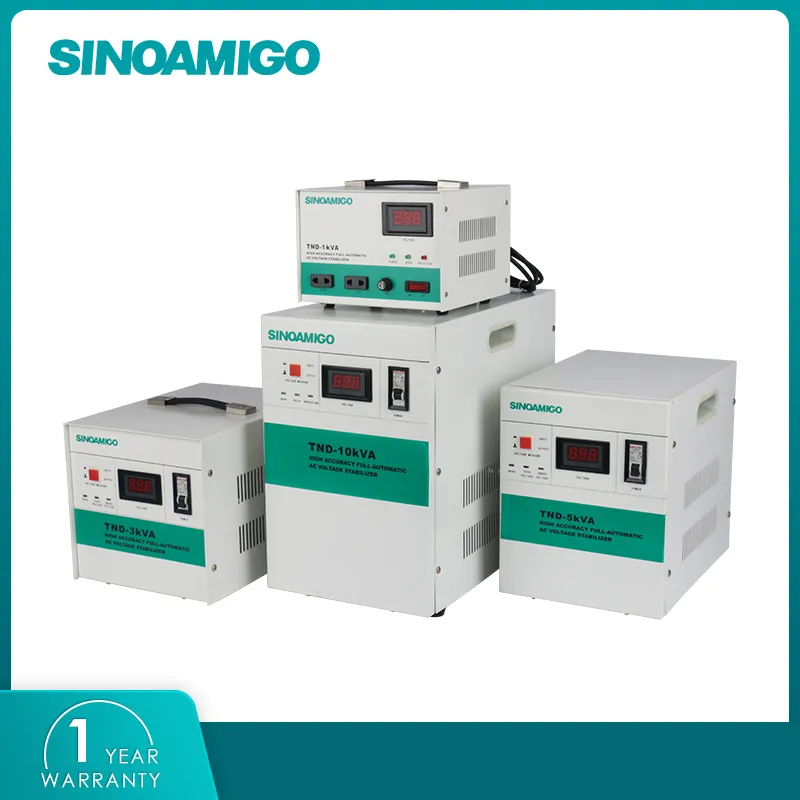

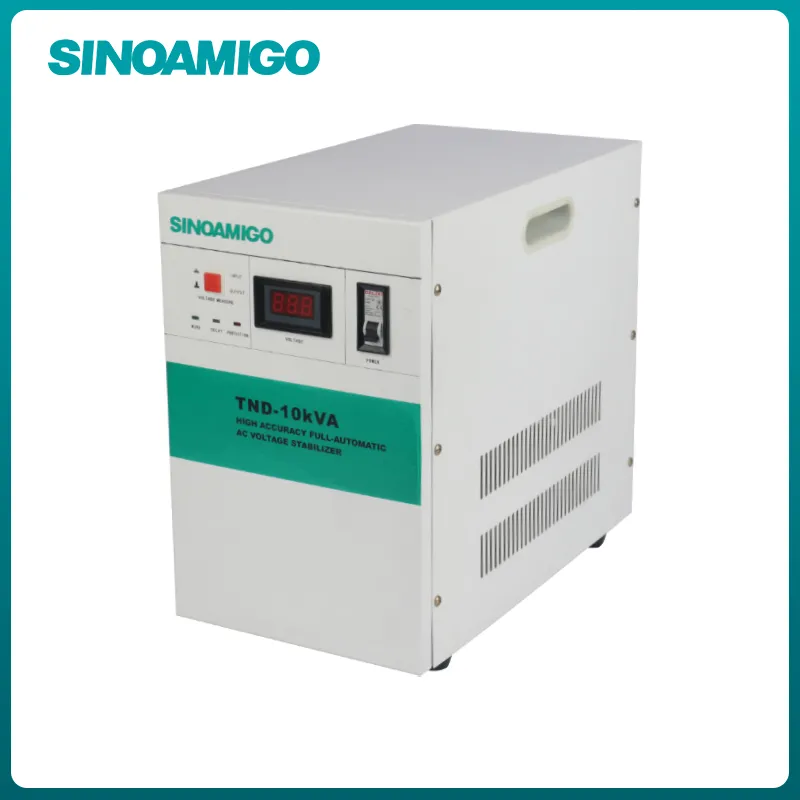

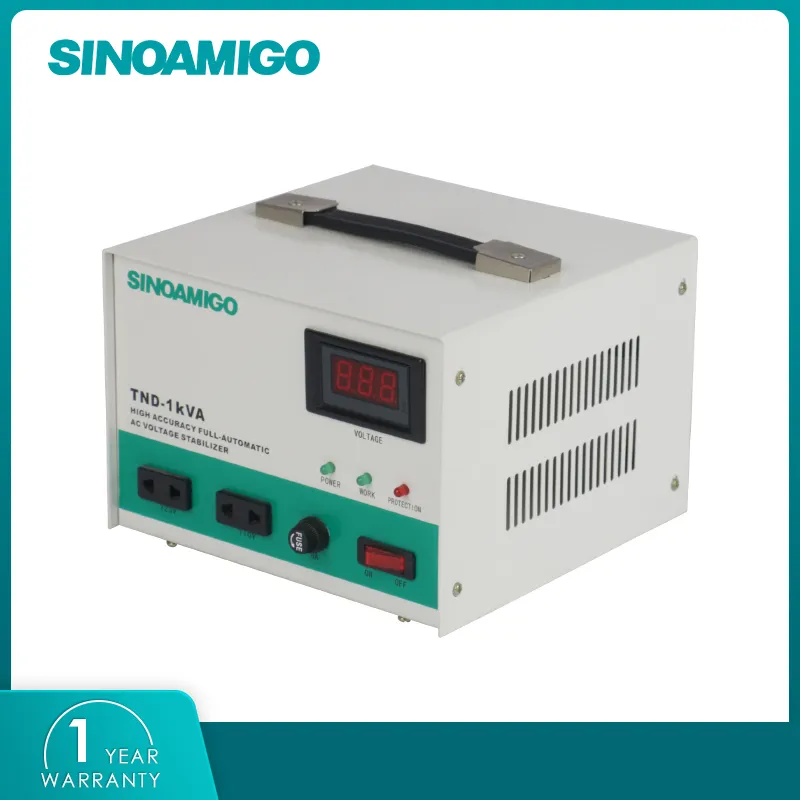

| Product model | TND - 1K | TND - 1.5K | TND - 2K | TND - 3K | TND - 5K | TND - 7K | TND - 10K | TND - 15K | TND - 20K | TND - 30K | |
| Power | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | 7000VA | 10000VA | 15000VA | 20000VA | 30000VA | |
| Output voltage | Voltage stabilizing precision | 220V±4% / 110V±4% | |||||||||

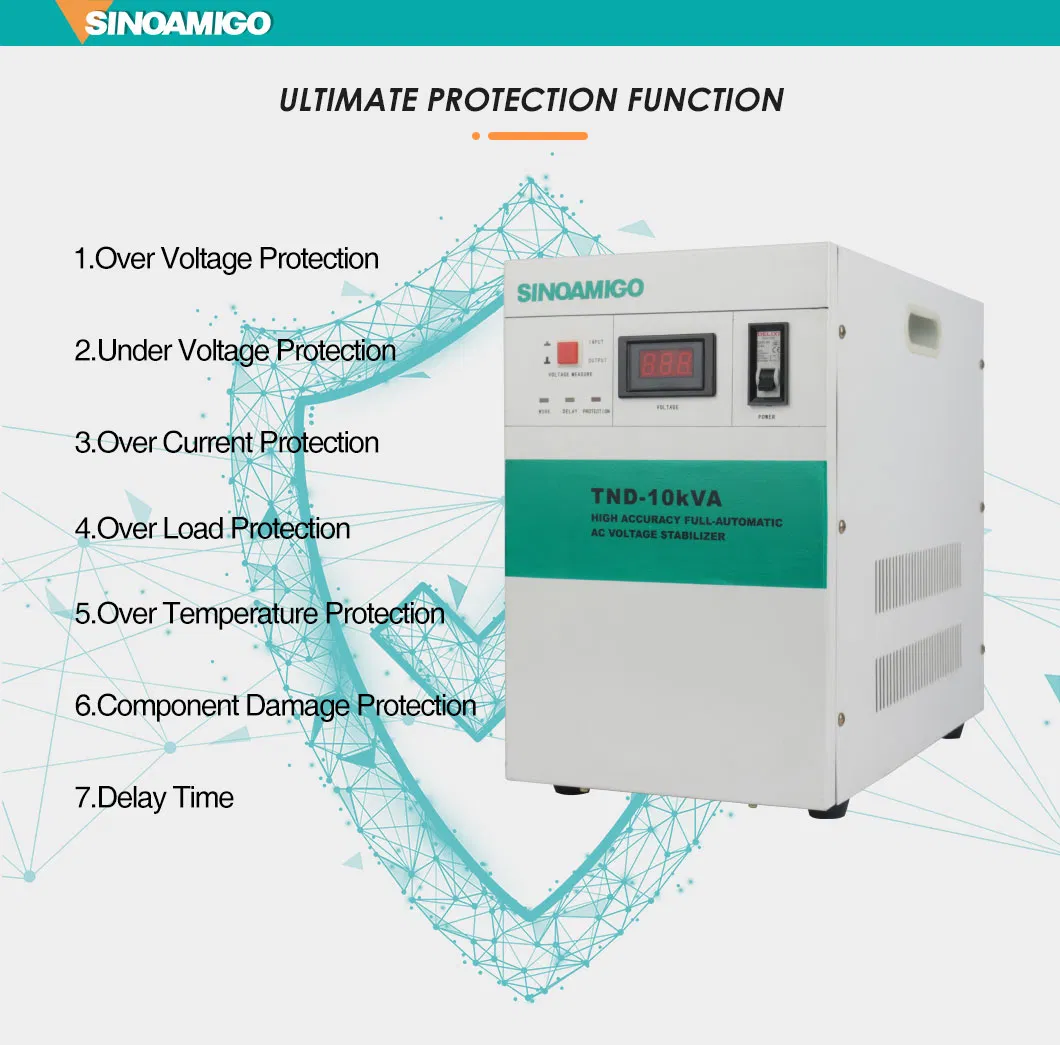

| Under voltage protection | 180V±4(No setting for standard products)Available for customization | ||||||||||
| Over voltage protection | 267V | ||||||||||

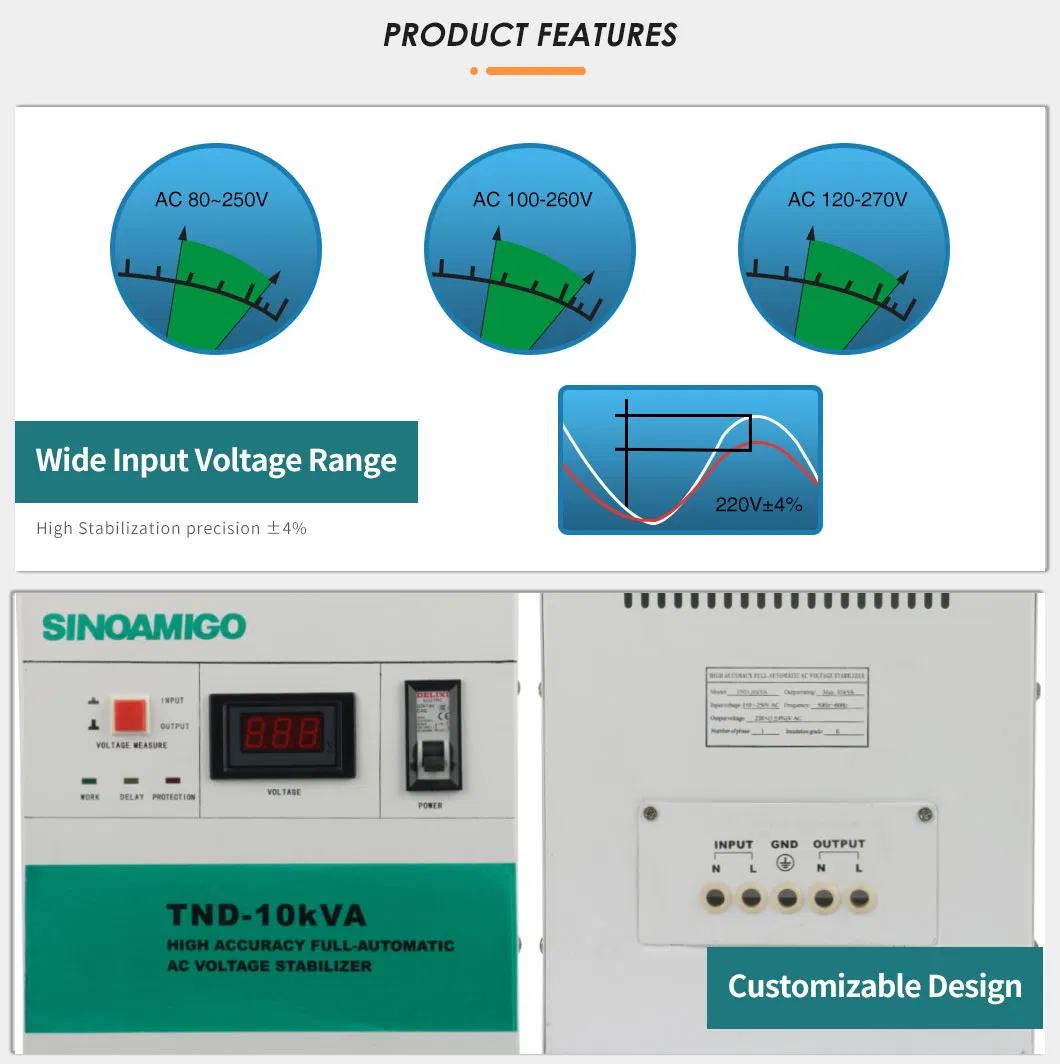

| Input voltage | 180-264V / 100-260V / 80-250V / 120-270V | ||||||||||
| Voltage regulating speed | <1s(In case of 10% change of input voltage) | ||||||||||
| Temperature rise | <75K | ||||||||||
| Frepuency | 50/60Hz | ||||||||||
| Insulation class | E | ||||||||||
| Insulation resistance | ≥5MΩ | ||||||||||
| Delay time | 5±2Min(No setting for standard products)Available for customization | ||||||||||
| Wishstanding voltage | 1500V/min | ||||||||||
| Efficiency | >90% | ||||||||||
| Largest rated current | 4.5A | 6.8A | 9.1A | 13.6A | 22.7A | 31.8A | 45.5A | 68A | 90.9A | 136A | |
