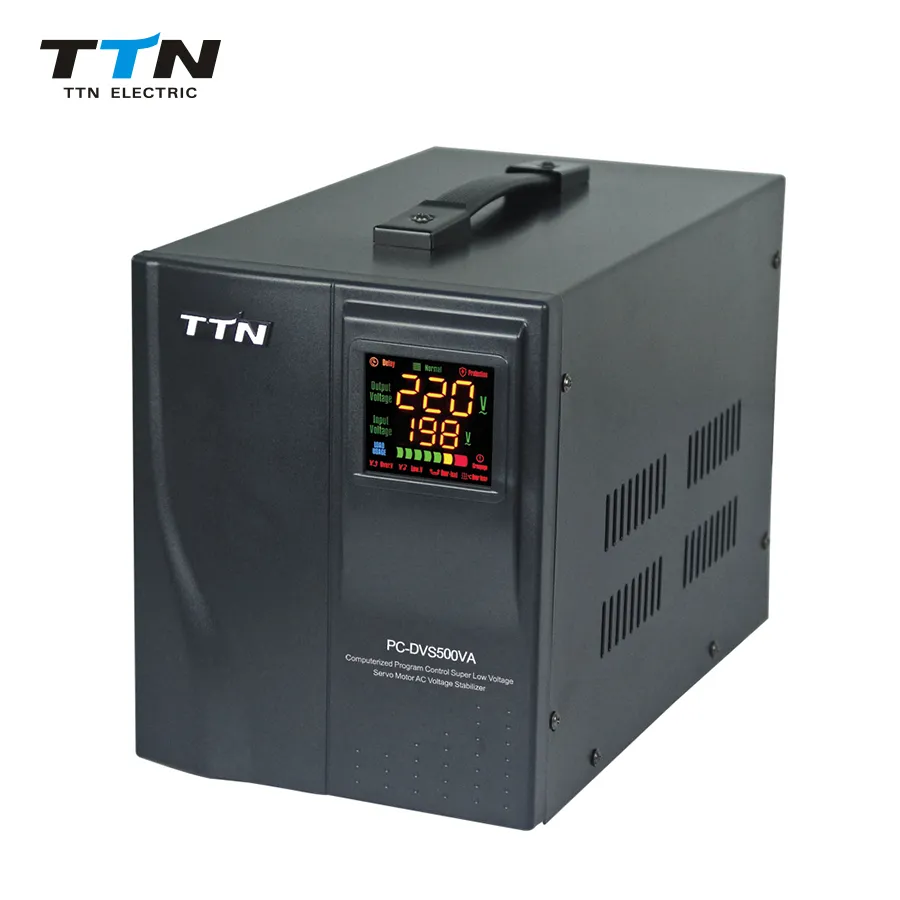

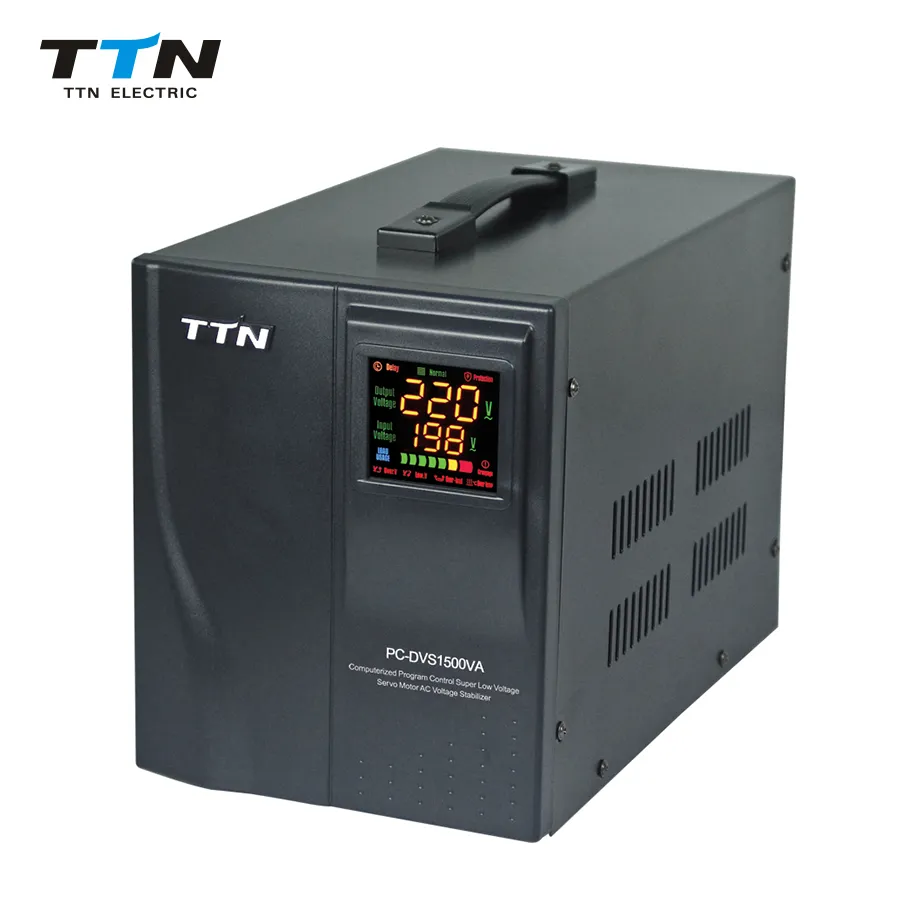

PC-Dvs1500va AC Automatic Voltage Stabilizer Servo Motor Control Power Protection

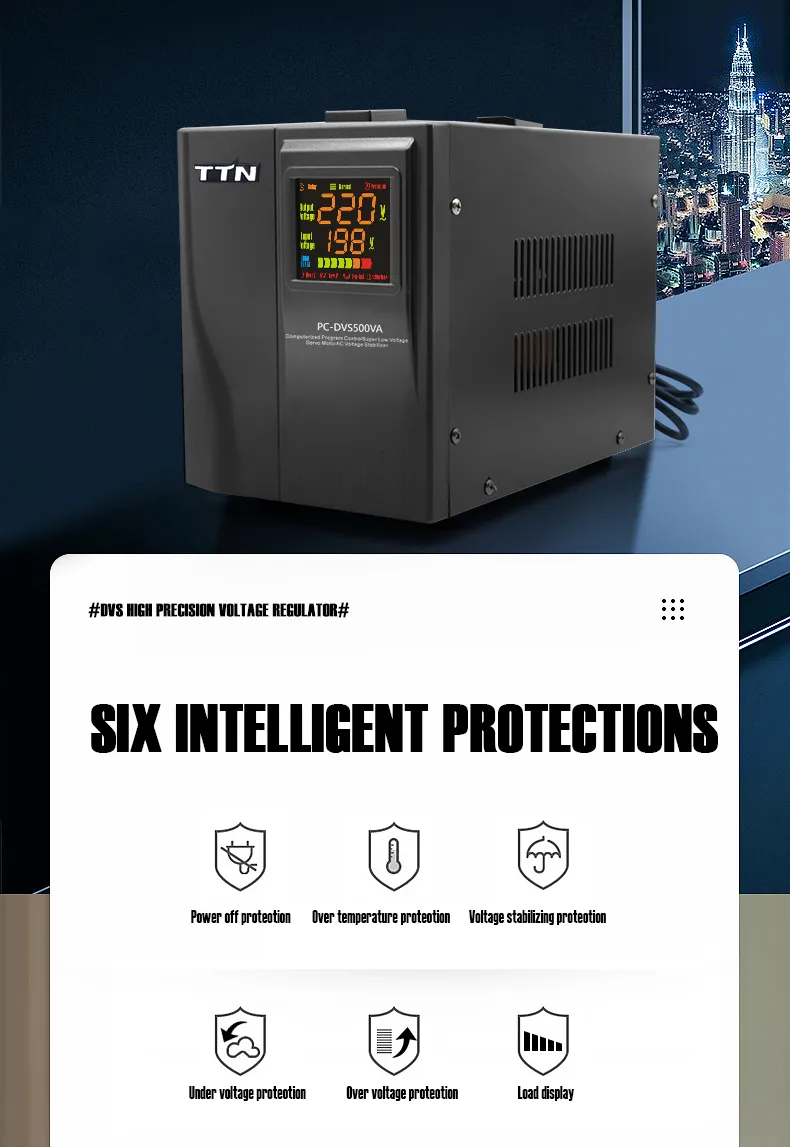

Advantages:1.AC Automatic Voltage Stabilizer2.LED Display:Display various protection data3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect4.Wide input voltage range5.Efficiency more than 90%6.No additional waveform disto......
Send Inquiry
Product Description
Advantages:
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
Specifications:

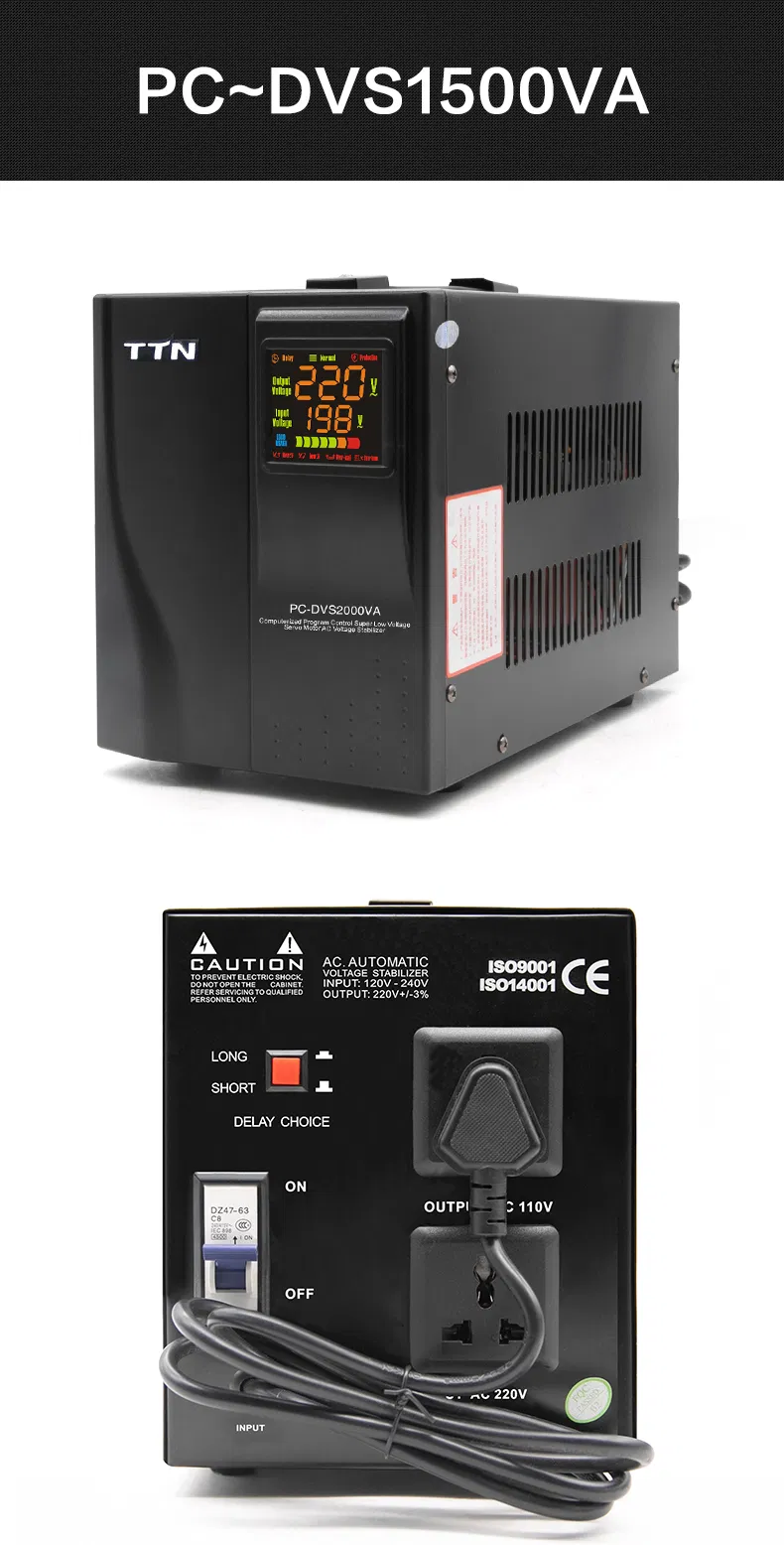

1.Model:PC-DVS 1500VA

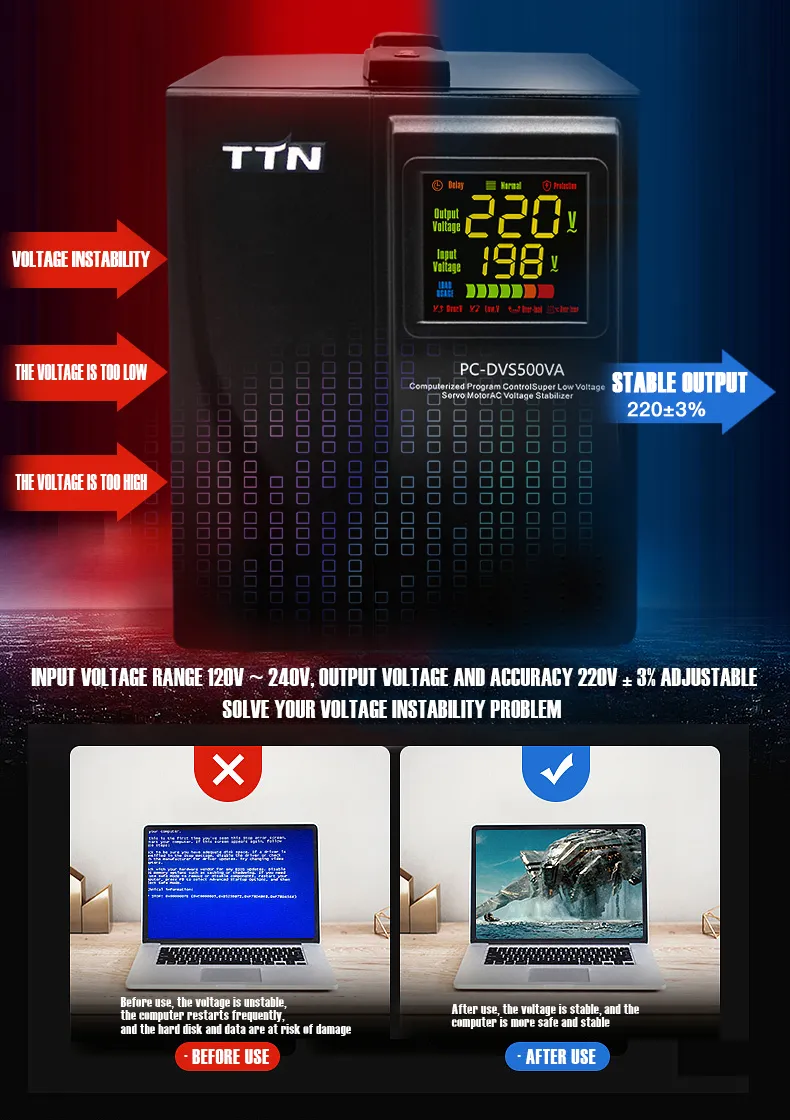

2.Input Voltage:AC150V-260V;AC120V-240V
3.Output Voltage:220v±3% adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:39.6*35.3*46.7cm
7.G.W.:25.24kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
Specifications:
1.Model:PC-DVS 1500VA
2.Input Voltage:AC150V-260V;AC120V-240V
3.Output Voltage:220v±3% adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:39.6*35.3*46.7cm
7.G.W.:25.24kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment

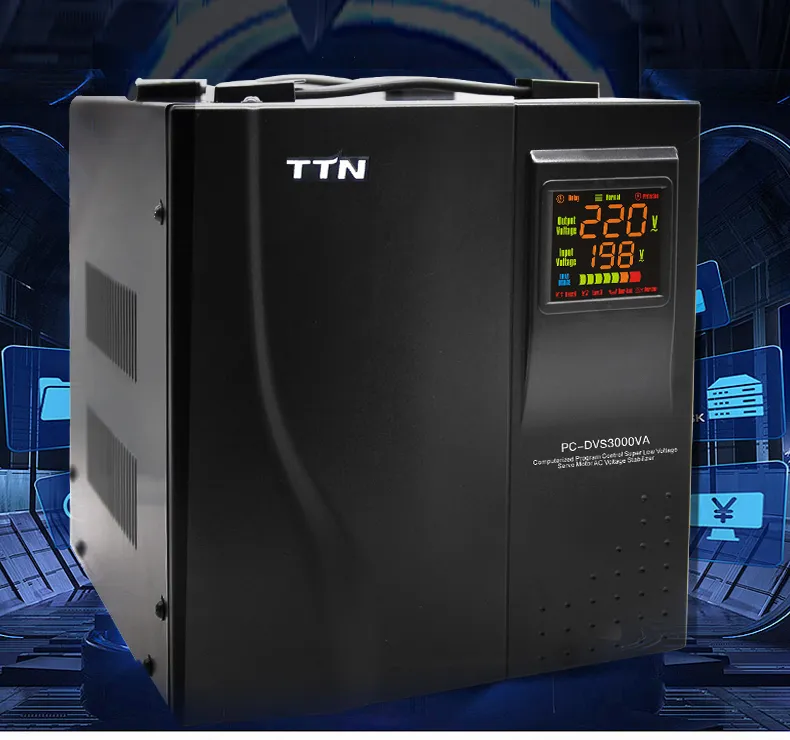

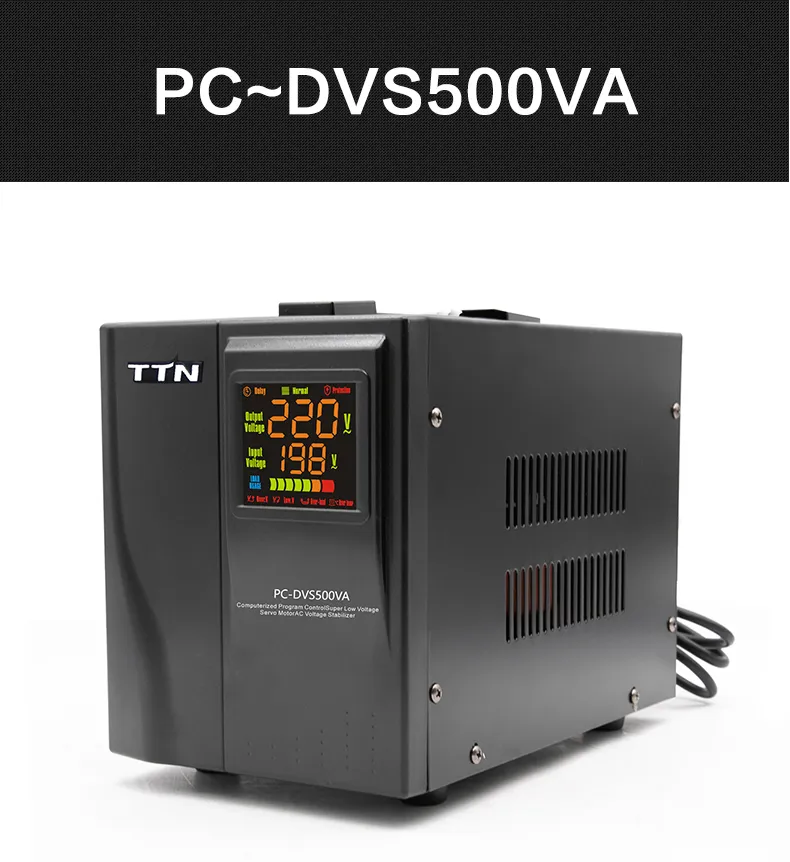

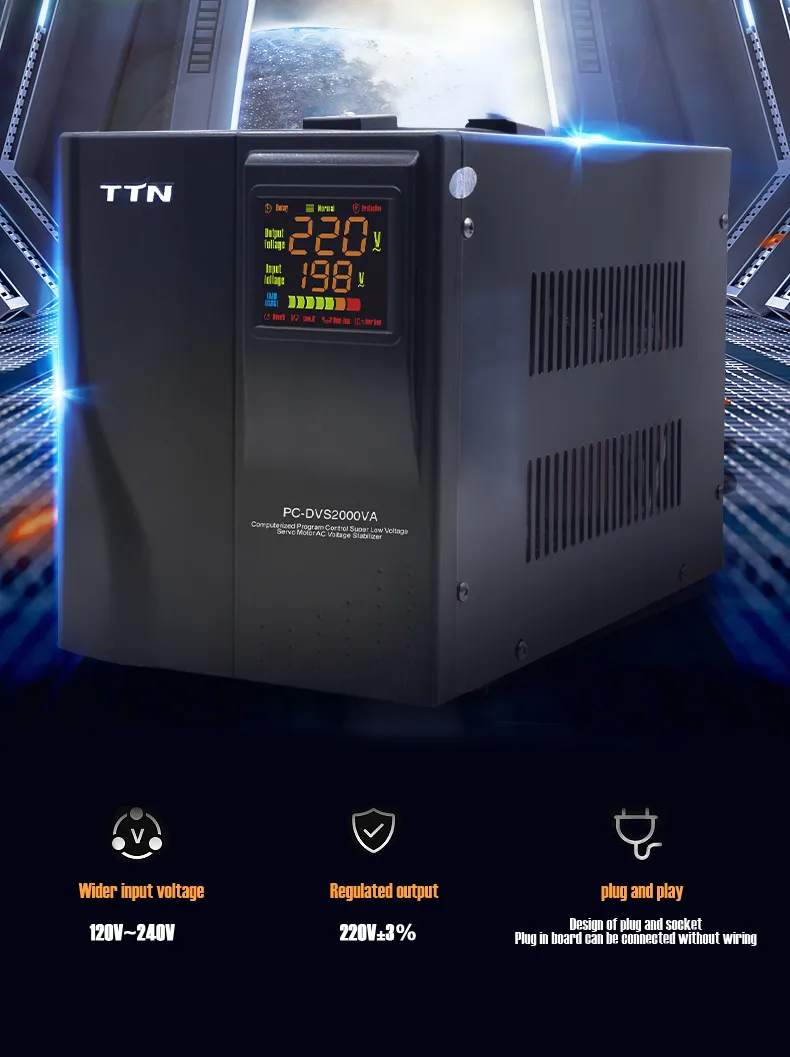

| MODEL | PC- DVS500VA | PC-DVS1000VA | PC-DVS1500VA | PC-DVS2000VA | PC-DVS3000VA | PC-DVS5000VA | PC-DVS8000VA | PC-DVS10000VA |

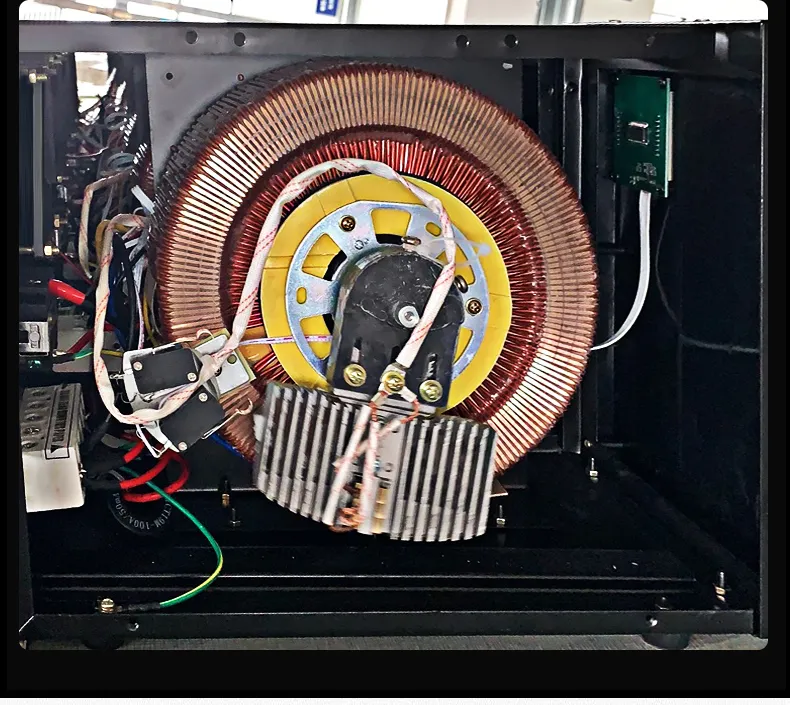

| TECHNOLOGY | Servo Motor Control System+Micro computer ptogramed control | |||||||
LED DISPLAY | Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | ||||||
Protection | Over voltage | Output Voltage≥243±4V | ||||||
| Low Voltage | Output Voltage≤188±4v | |||||||
| Over Loading | More than 120% | |||||||
| Over Temperture | 120ºC±10ºC | |||||||

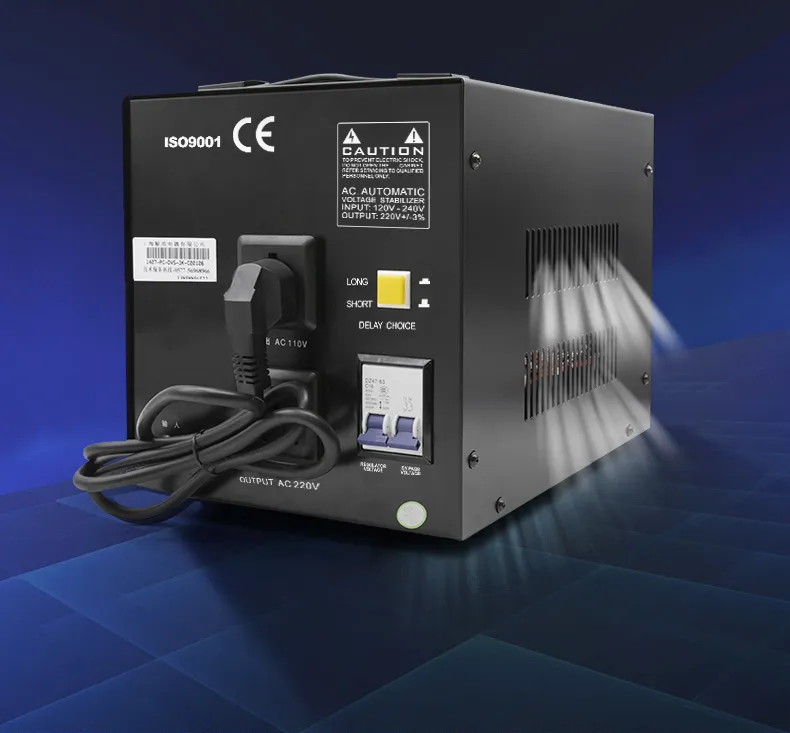

| Delay Time | Long time(255 seconds)/Short time(5 seconds) | |||||||
| Circuit Breaker | Regulator/Bypass | |||||||
| Language | English/Russian/Chinese | |||||||
| INPUT VOLTAGE | AC150V-AC260V;120V-240V | |||||||
| OUTPUT VOLTAGE | 220V±3% adjustable | |||||||
| FREQUENCY | 50HZ/60HZ | |||||||
| PHASE | Single Phase | |||||||
| EFFICIENCY | ≥90% | |||||||
| AMBIENT TEMPERATURE | -15ºC-45ºC | |||||||
| RELATIVE HUMIDITY | <95% | |||||||
| WAVEFORM DISTORTION | No additional wave from distortion | |||||||
| INSULATING RESISTANCE | Normally more than 2MΩ | |||||||
| SPECIFICATIONS | ||||||||
| POWER | 500VA | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | 8000VA | 10000VA |
| PACKING SIZE(CM) | 35.8*30.3*42.3 | 39.6*35.3*46.7 | 39.6*35.3*46.7 | 39.6*35.3*46.7 | 38.6*27.7*29.8 | 41.2*26.2*32.1 | 44.2*30.4*37.1 | 44.2*30.4*37.1 |
| PACKING(pcs) | 4 | 4 | 4 | 4 | 1 | 1 | 1 | 1 |
| G.M(kgs) | 17.02 | 22.25 | 25.24 | 29.25 | 15.45 | 19.15 | 25.15 | 29.25 |
