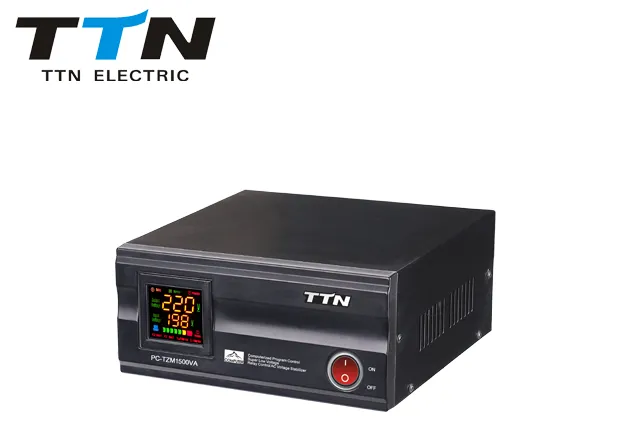

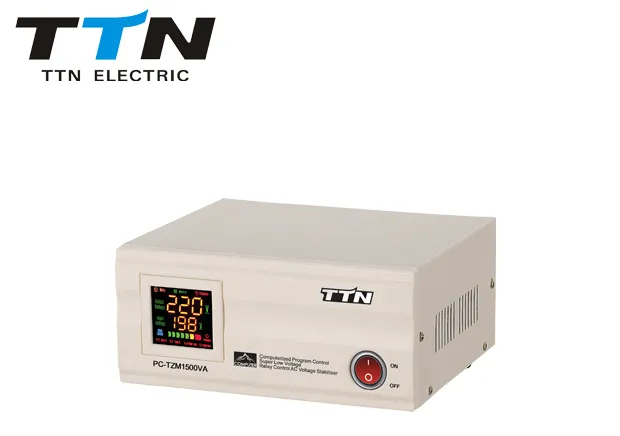

LED Display Relay Control AC Automatic Voltage Stabilizer PC-Tzm1500va
Advantages:1.AC Automatic Voltage Stabilizer2.LED Display:Display various protection data3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect4.Wide input voltage range5.Efficiency more than 90%6.No additional waveform disto......
Send Inquiry
Product Description
Advantages:
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
7.CE,ISO certificates
Specifications:
1.Model:PC-TZM 1500VA
2.Input Voltage:150-270V;135-270V;105-270V;80-270V
3.Output Voltage:220v±10%,adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:47.5*28.5*41.5cm
7.G.W.:21.85kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
7.CE,ISO certificates
Specifications:
1.Model:PC-TZM 1500VA
2.Input Voltage:150-270V;135-270V;105-270V;80-270V
3.Output Voltage:220v±10%,adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:47.5*28.5*41.5cm
7.G.W.:21.85kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
| MODEL | PC-TZM500VA | PC-TZM800VA | PC-TZM1000VA | PC-TZM1500VA | PC-TZM2000VA |
| TECHNOLOGY | Relay Control System+Micro computer programed control | ||||
LED DISPLAY | Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | |||
Protection | Over Voltage | Output Voltage≥243±4V | |||
| Low Voltage | Output Voltage≤188±4v | ||||
| Over Loading | More than 120% | ||||
| Over Temperture | 120ºC±10ºC | ||||
| Delay Time | Long time(255 seconds)/Short time(5 seconds) | ||||
| Circuit Breaker | Regulator/Bypass | ||||
| Language | English/Russian/Chinese | ||||
| INPUT VOLTAGE | AC150V-270V(A Type);AC135V-270V(B Type);AC105V-270V(C Type);AC80V-270V(D Type) | ||||
| OUTPUT VOLTAGE | 220V±10% ,adjustable | ||||
| FREQUENCY | 50HZ/60HZ | ||||
| PHASE | Single Phase | ||||
| EFFICIENCY | ≥90% | ||||
| AMBIENT TEMPERATURE | -15ºC-45ºC | ||||
| RELATIVE HUMIDITY | <95% | ||||
| WAVEFORM DISTORTION | No additional wave from distortion | ||||
| INSULATING RESISTANCE | Normally more than 2MΩ | ||||
| SPECIFICATIONS | |||||
| POWER | 500VA | 800VA | 1000VA | 1500VA | 2000VA |
| PACKING SIZE(CM) | 47.5*28.5*41.5 | 47.5*28.5*41.5 | 47.5*28.5*41.5 | 47.5*28.5*41.5 | 47.5*28.5*41.5 |
| PACKING(pcs) | 6 | 6 | 6 | 6 | 6 |
| G.M(kgs) | 17.00 | 18.66 | 20.56 | 21.85 | 27.35 |
