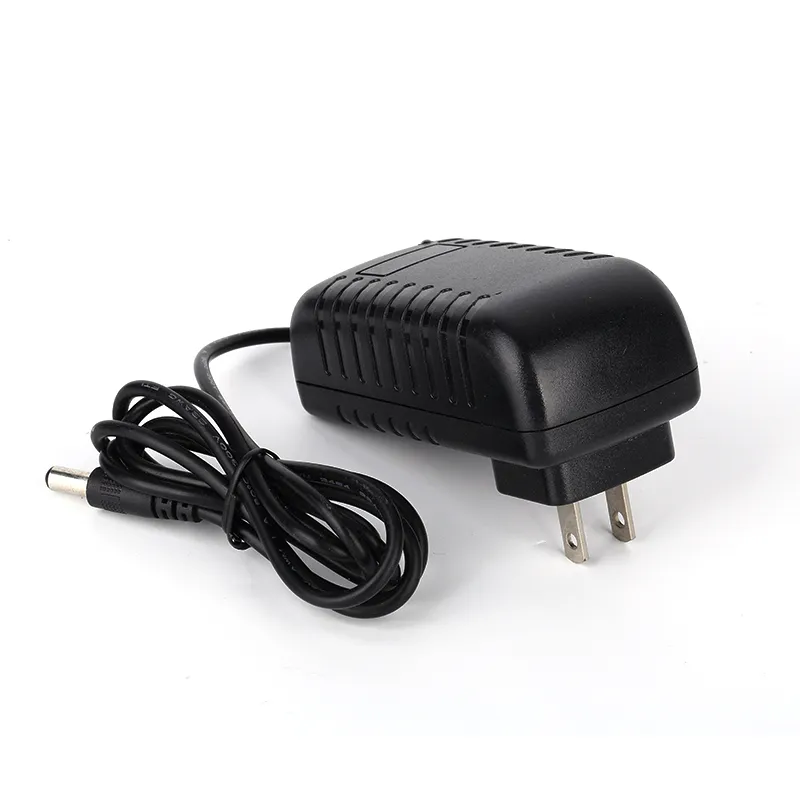

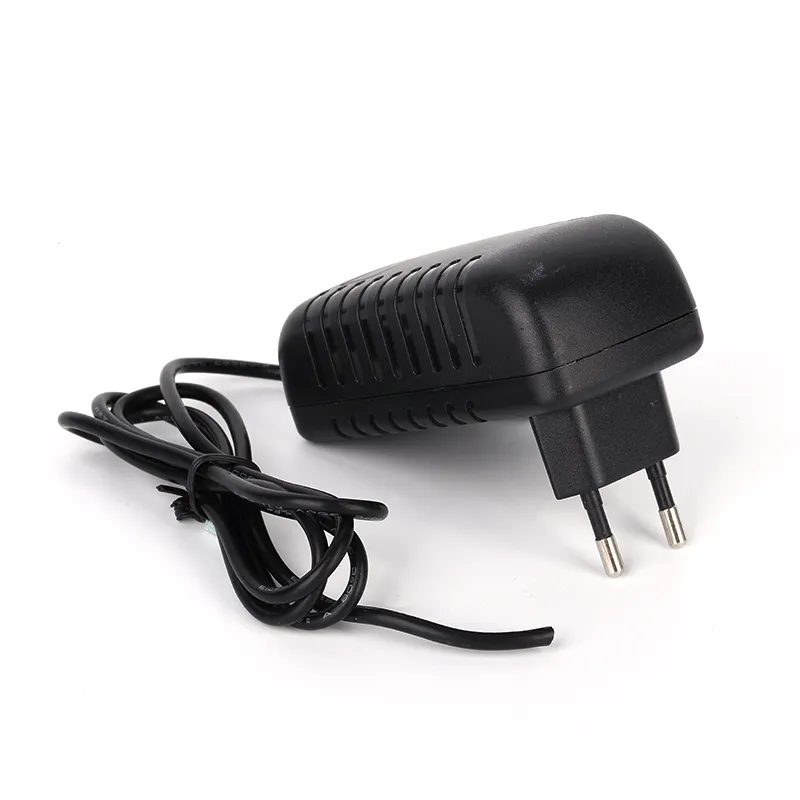

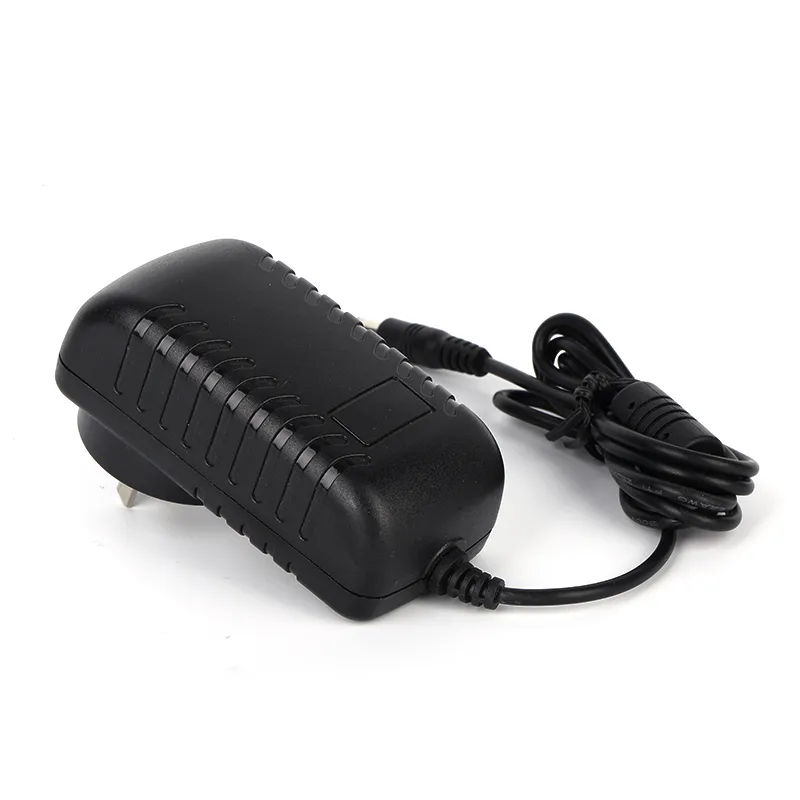

wall enclosure 24W 24V 1A power adapter
wall enclosure 24w 24v 1a power adapter(1)High efficiency, High reliability, Long life time(2)Approved CE RoHS FCC certification(3)Warranty: Two years(4)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.(5) Real power, high reliabl......
Send Inquiry
Product Description
(1)High efficiency, High reliability, Long life time
(2)Approved CE RoHS FCC certification
(3)Warranty: Two years
(4)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.
(5) Real power, high reliablity, long life
IEC320-C14, IEC320-C6 and IEC-C8 AC inlet optional
OEM/ODM welcome (special voltage & dc connector & logo & package).
(6)Suit for: Laptop adapter, LED, LCD, CCTV camera, Motor, Computer, etc.
| Part. No. | PC-240010 |
| AC Input | 100~240V AC 50/60Hz Max:90~264V AC 47/63Hz |
| DC Voltage | 24V |
| Rate Current | 1A |
| Current Range | 0~1A |
| Rate Power | 24W |
| Material | ABS |
| Certification | Approved CE RoHS FCC C-TICK certification |
| Voltage Tolerance | ±5% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Efficiency | >85% |
| Short Circuit Protection | Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%~150% |
| Over Voltage Protection | 115%~135% |
| Operating Temperature | -10ºC~50ºC(±10ºC) |
| Relative Humidity | 20%~90% RH |
| Storage Temperature | -40ºC~80ºC(±10ºC) |
| DC Connector | 5.5*2.1mm or 5.5*2.5mm(Customized available) |
| DC Cable | 0.9M,1.2M, 1.5M(Customized available) |

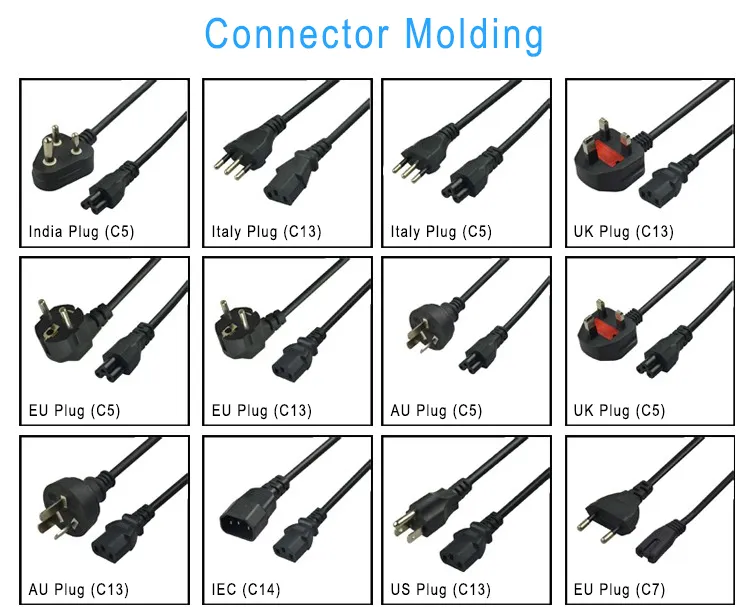

| AC Cable | 1.2m ac cable with USA/UK/EU/AU/India Plugs(Customized available) |
Product show:
