Home > Products > Power Adaptor > UL Ce TUV Test 12V 5A Black Desktop Type AC DC Power Adapter with Ce RoHS FCC UL Approval

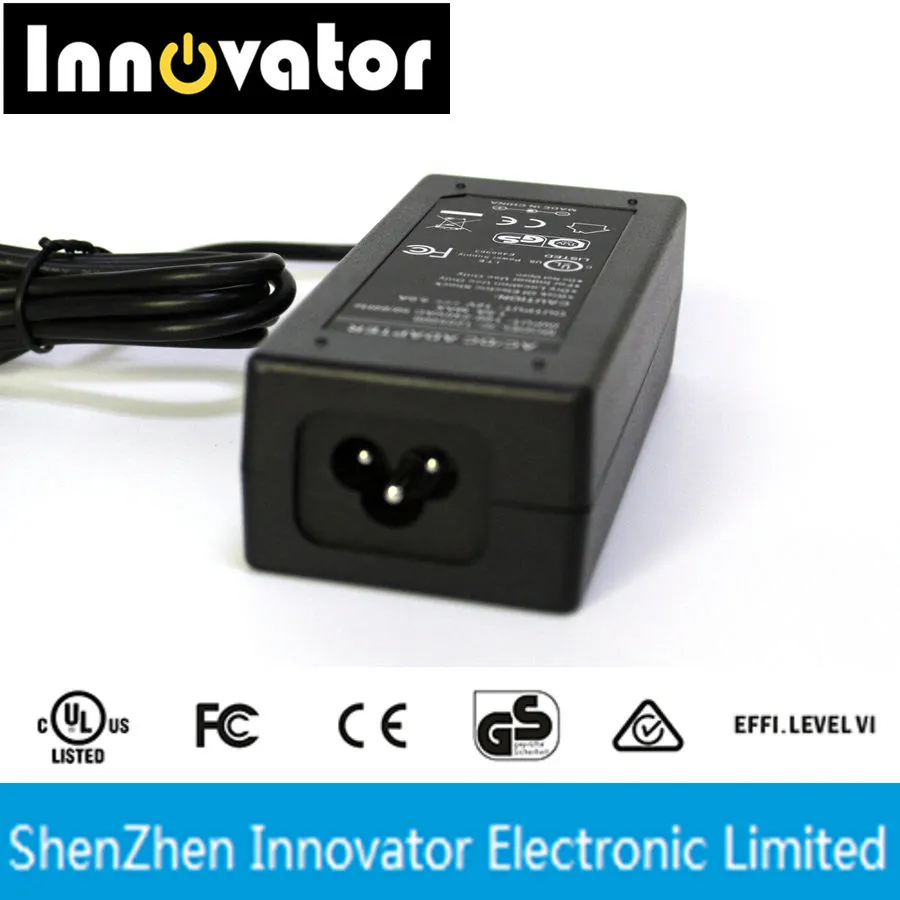

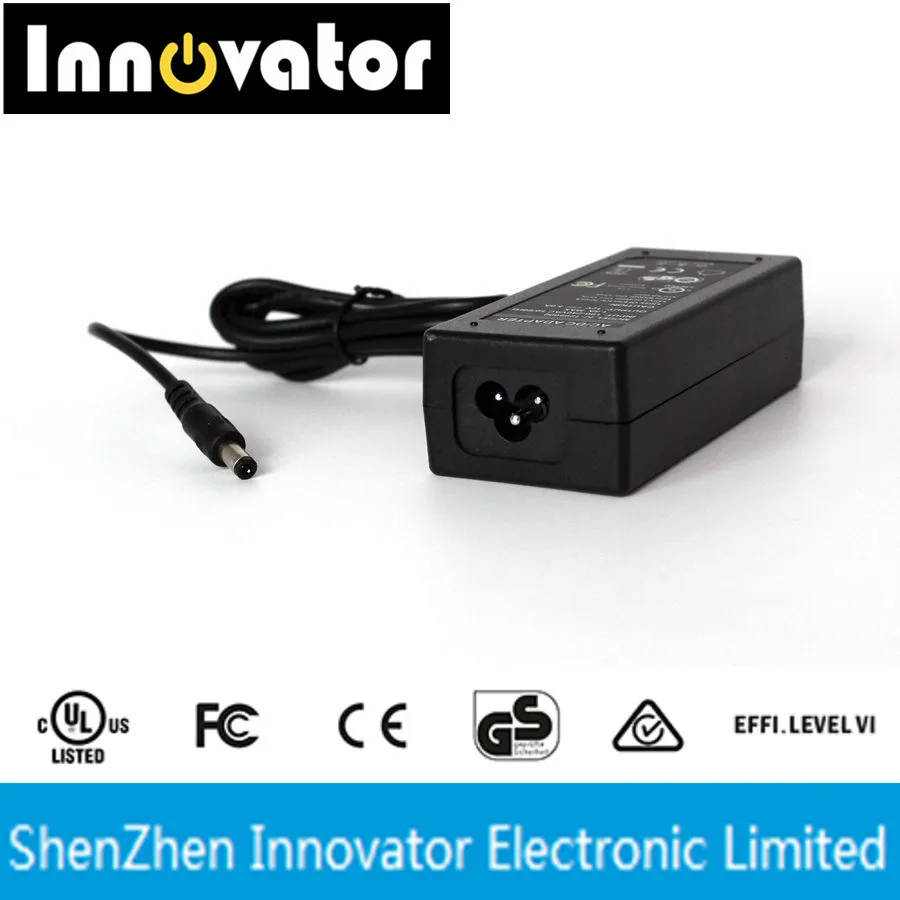

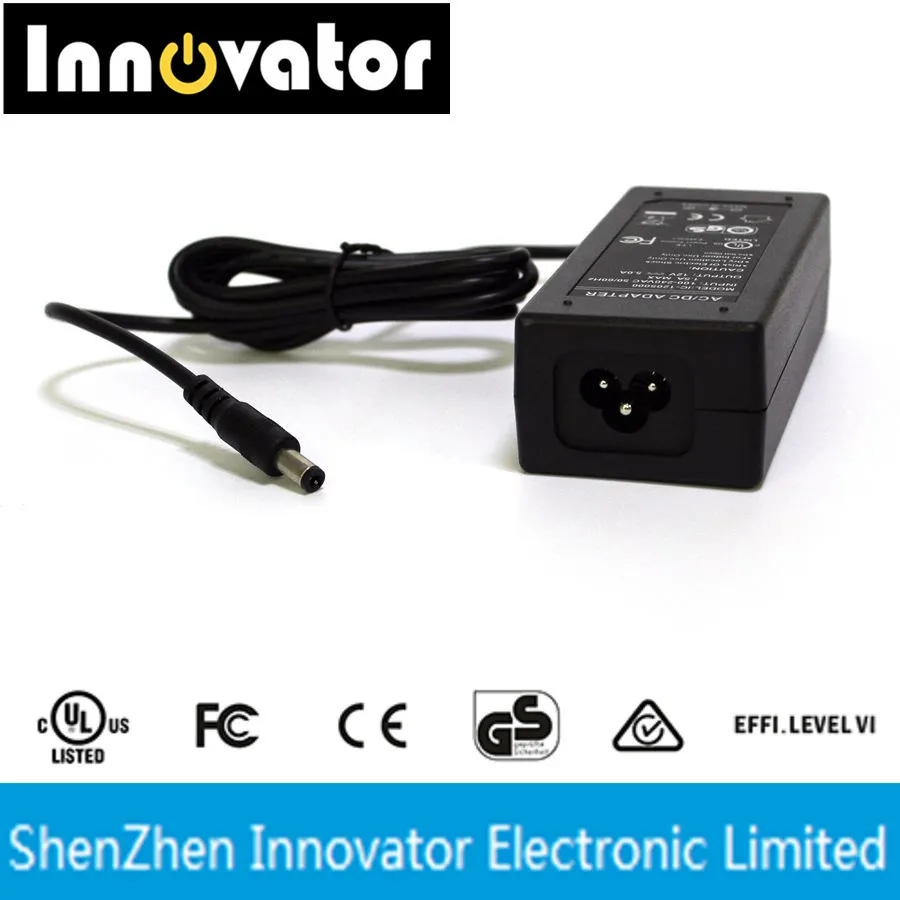

UL Ce TUV Test 12V 5A Black Desktop Type AC DC Power Adapter with Ce RoHS FCC UL Approval
Product Description:Features:1.Built-in EMI filter2.100% full load burn-in test3.Low output ripple and noise4.Protection:Over load/Over voltage/Short circuit5.High efficiency,High reliability,Long lifetime Specifications60W 12V 5A desktop type power supplyModel No.IC-1205000DC cord1.2m / 1.5m / 1.8m......
Send Inquiry
Product Description
Product Description:
Features:
1.Built-in EMI filter
2.100% full load burn-in test
3.Low output ripple and noise
4.Protection:Over load/Over voltage/Short circuit
5.High efficiency,High reliability,Long lifetime
Shenzhen Innovator Electronic Limited was found in the year 2015, since then, we are focusing only on producing Power supply/Adapter/ Charger/LED rainproof power supply/LED ultra thin light box power supply relative products and become as one of the major power supply products manufacturers in China. LED Power Supply, adapter, charger, These products are widely used in all kinds of LED strip, CCTV camera, STB, Audio, Telecommunication, UAV and Intelligent robot etc., and wall lights in large shopping malls or hotels, billboards, glowing fonts. Both the low watt or large watt power supply products are available for customers to provide them more options. With our strict quality control system and efficient production process, we can do our best in terms of good quality and price!
Our Advantages
As a manufacturer, we have the ability to produce competitive products because we just concentrate on doing one thing at a time. With every passing year, we are manufacturing better power supply related products as compared to the previous goods. Some of the factors that keeps us ahead from the competitors is innovation, stable raw material supply chain, superb producing flow & quality control system, talented workforce etc. Due to all this, we are able to maintain consistency in the quality along with cost minimization. In addition, we have provided laptop adapter products in various specifications, so that our clients can find the right model within our product range. We stick to the principle of"quality first, service first, continuous improvement and innovation to meet customers" for the management and "zero defect, zero complaints"as the quality objective.
Application of Products
With quality being of utmost priority, our company leaves no stone unturned when it comes to providing its patrons with the best of LED power supply, Power adapter and other similar goods.Giving you a great deal of convenience. The various aspects in which our products are used include- -- Billboards --LED Lighting --Display screen --Printer --CCTV camera --Laptop --Audio -- Telecommunication --STB -- Intelligent robot
Fore more information, please contact us at any time.
FAQ:
Q1: WAHT'S YOUR MOQ:
A1: Usually MOQ is 500-1000pcs, we also can accept trail order to support new customers.
Free samples are also provided
Q2: WHAT'S YOUR WARRANTY?
A2: 2-3 years warranty.
Q3: HOW ABOUT THE LEADING TIME?
A3: For samples, leading time is 3-5 working days.
For mass cargo, leading time will be 15-20 working days.
Features:
1.Built-in EMI filter
2.100% full load burn-in test
3.Low output ripple and noise
4.Protection:Over load/Over voltage/Short circuit
5.High efficiency,High reliability,Long lifetime
| Specifications | |
| 60W 12V 5A desktop type power supply | |
| Model No. | IC-1205000 |
| DC cord | 1.2m / 1.5m / 1.8m |
| DC jack | USB, 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin |

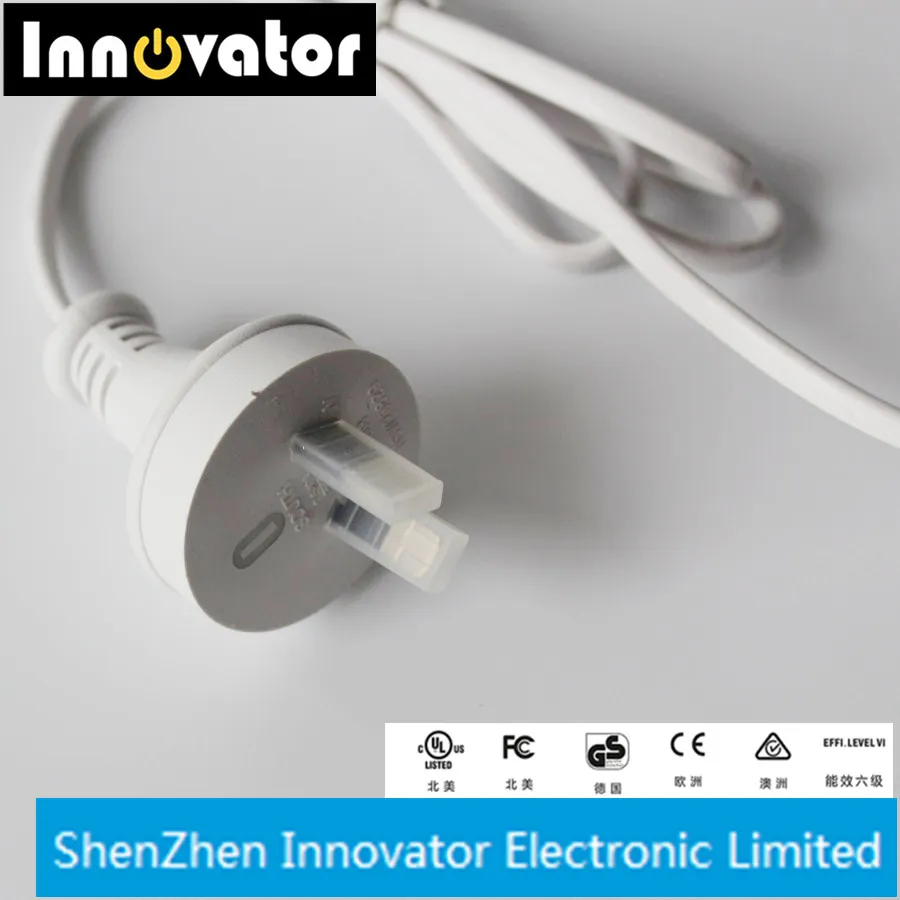

| AC plug | US UK AU EU KR IN etc |
| Input | |
| Input current | 1.5AMax |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47/63Hz |
| Output | |
| Output Voltage Range | 12V |
| Output Current Range | 5A |
| Output Power | 60W Max |
| Environment | |
| Operating Temperature | 0°C ~40°C |
| Protection | |
| Over Load Protection | Yes |
| Over Current Protection | Yes |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Certificates | |
| CE, ROHS, FCC, SAA, TUV&GS, UL, Erp V CEC RoHS | |
| Terms and Conditions | |
| Unload standly power | 0.1W Min |
| AC leakage Current | 0.25mA Max |
| DIELECTRIC STRENGTH Hi-Pot | 3000Vac/5mA/5s |
| Insulation resistance | 10MΩMin at 500V DC |
| Surge | 2KV |
| SAFETY STANDARD | UL60950,IEC60950,UL60065 |
| EMC STANDARD | EN55020/EN55024 |
| MOQ | 500-1000pcs |
| Warranty | 12months |
| Delivery date | 18 days for mass production, 3-5 days for samples |
| Payment | T/T , L/C ,Paypal |
| Trade terms | FOB Shenzhen |

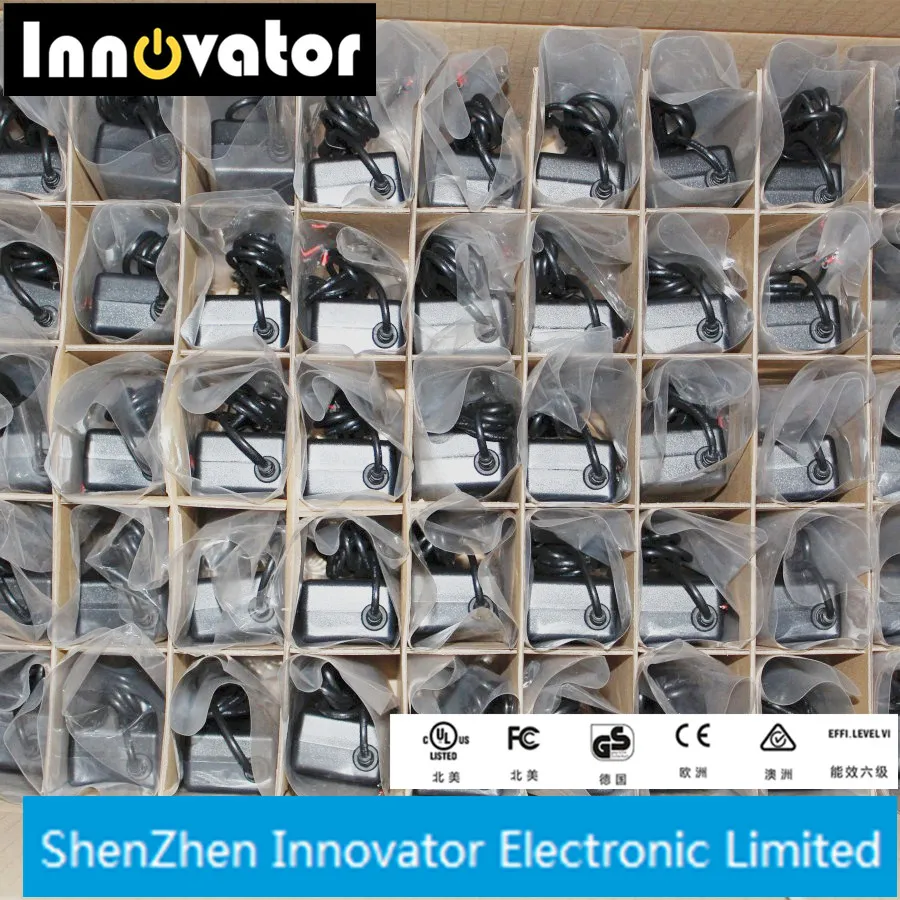

| Package | |
| PE bag + inner box+ Carton | |
| Warranty | |
| Warranty | 1 year |
Shenzhen Innovator Electronic Limited was found in the year 2015, since then, we are focusing only on producing Power supply/Adapter/ Charger/LED rainproof power supply/LED ultra thin light box power supply relative products and become as one of the major power supply products manufacturers in China. LED Power Supply, adapter, charger, These products are widely used in all kinds of LED strip, CCTV camera, STB, Audio, Telecommunication, UAV and Intelligent robot etc., and wall lights in large shopping malls or hotels, billboards, glowing fonts. Both the low watt or large watt power supply products are available for customers to provide them more options. With our strict quality control system and efficient production process, we can do our best in terms of good quality and price!
Our Advantages
As a manufacturer, we have the ability to produce competitive products because we just concentrate on doing one thing at a time. With every passing year, we are manufacturing better power supply related products as compared to the previous goods. Some of the factors that keeps us ahead from the competitors is innovation, stable raw material supply chain, superb producing flow & quality control system, talented workforce etc. Due to all this, we are able to maintain consistency in the quality along with cost minimization. In addition, we have provided laptop adapter products in various specifications, so that our clients can find the right model within our product range. We stick to the principle of"quality first, service first, continuous improvement and innovation to meet customers" for the management and "zero defect, zero complaints"as the quality objective.
Application of Products
With quality being of utmost priority, our company leaves no stone unturned when it comes to providing its patrons with the best of LED power supply, Power adapter and other similar goods.Giving you a great deal of convenience. The various aspects in which our products are used include- -- Billboards --LED Lighting --Display screen --Printer --CCTV camera --Laptop --Audio -- Telecommunication --STB -- Intelligent robot
Fore more information, please contact us at any time.
FAQ:
Q1: WAHT'S YOUR MOQ:
A1: Usually MOQ is 500-1000pcs, we also can accept trail order to support new customers.
Free samples are also provided
Q2: WHAT'S YOUR WARRANTY?
A2: 2-3 years warranty.
Q3: HOW ABOUT THE LEADING TIME?
A3: For samples, leading time is 3-5 working days.
For mass cargo, leading time will be 15-20 working days.
