OEM/ODM/EMS 24W /5V/12V/18V/24V/36V 5V2a/10W AC to DC 100-240VAC Universal Power Adapters for Medical Devices

Product Description

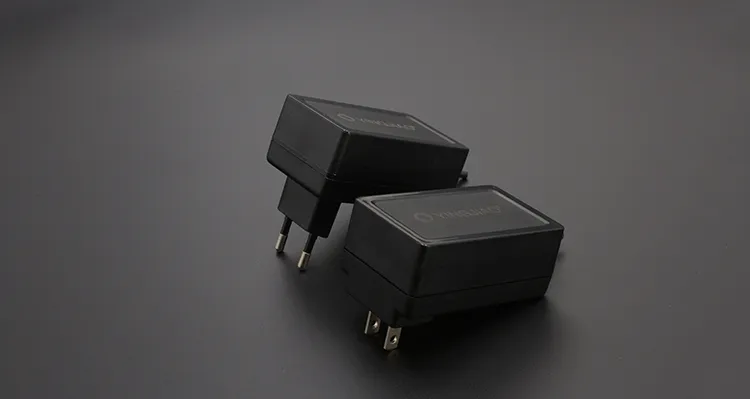

12-20w EU Plug Power Adaptor

Features:
Universal Input: 100-240V AC 50/60Hz
Safety: TUV/GS/CE compliance
RoHS Compliance
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 ~ +40 degrees centigrade
Storage Temperature: -40 ~+70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 76mm (L)*43mm (W)*31mm (H)
N. W.: 65g
AC Input Plug: European 2 round pin
Output plug: Optional

OEM/ODM/EMS 24W/5V/12V/18V/24V/36V 5V2a/10W AC to DC 100-240VAC Universal Power Adapters for Medical Devices

OEM/ODM/EMS 24W/5V/12V/18V/24V/36V 5V2a/10W AC to DC 100-240VAC Universal Power Adapters for Medical Devices

DATA:

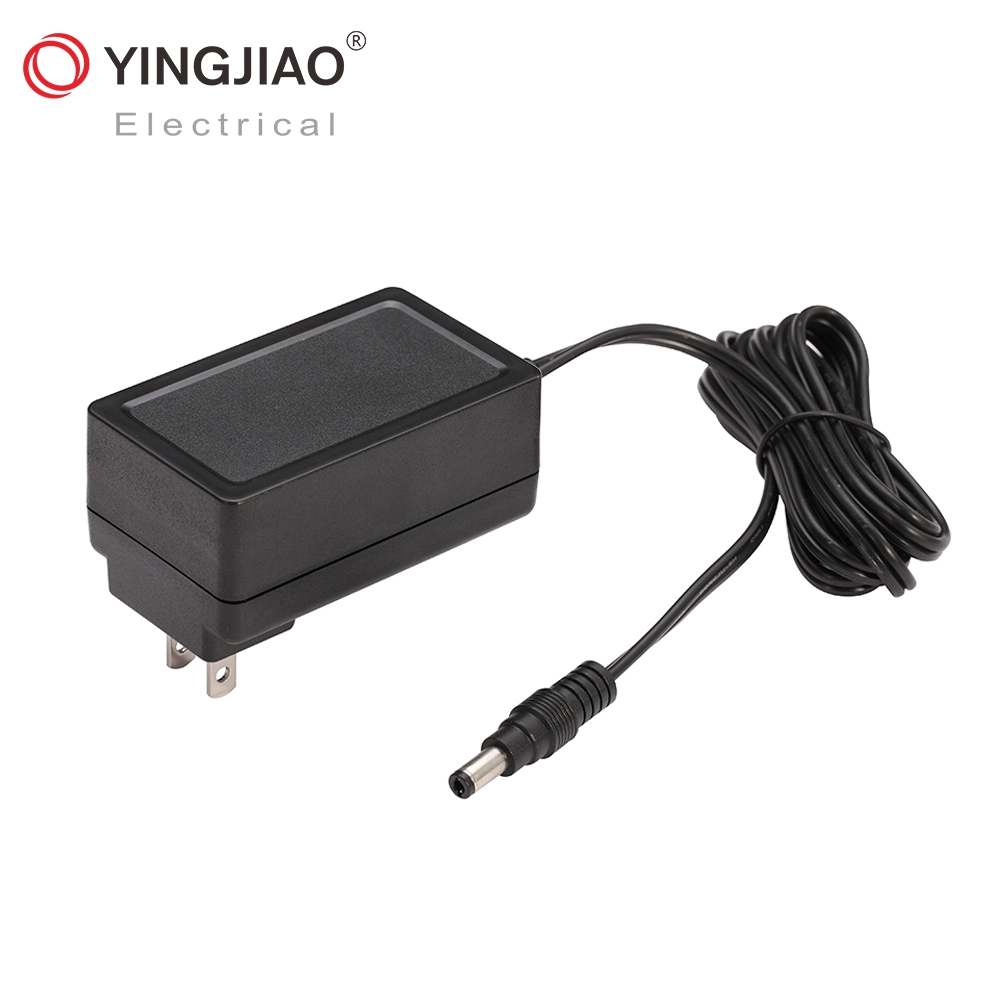

Switching power adapter
Model:	YS18A
Power:	24W max.
Input:	100-240VAC 50/60Hz
Output Voltage:	5-36V
Output Current:	0.1-3A
Input current:	0.5A max.
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	25mA Max. at 264VAC input
Energy Efficiency Level VI :	CoC 5 / DoE 6 / CEC VI
No Load Power Consumption :	<0.075W
Protections:	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	AU 2pin
Certificates and approvals:	UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESDTest:EN 61000-4-2 RSTest:EN 61000-4-3 EFTTest:EN 61000-4-4 Surge Test:EN 61000-4-5 CSTest:EN 61000-4-6 MFTest:EN 61000-4-8 DIPTest:EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25ºC ambient
Life:	3-5 years alternative
Dimension:	764332mm
Weight:	120g
Packing:	100PCS/CTN,52.53131mm

Details:

Model:	YS18-0503000	YS18-0902500	YS18-1202000	YS18-1801200	YS18-2401000	YS18-3600600
DC Voltage:	5V	9V	12V	18V	24V	36V
Rated Current:	3A	2.5A	2A	1.2A	1A	0.6A
Current Range:	0-3A	0-2.5A	0-2A	0-1.0A	0-1A	0-0.6A
Rated Power:	15W	22.5W	24W	21.6W	24W	21.6W
Ripple & Noise(max.):	50mVp-p	90mVp-p	120mVp-p	180mVp-p	240mVp-p	300mVp-p
Voltage Tolerance:	±5%	±5%	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%	±5%	±5%
Efficiency:	81.84%	86.52%	86.80%	86.33%	86.80%	86.33%
Setup,Rise,Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.
