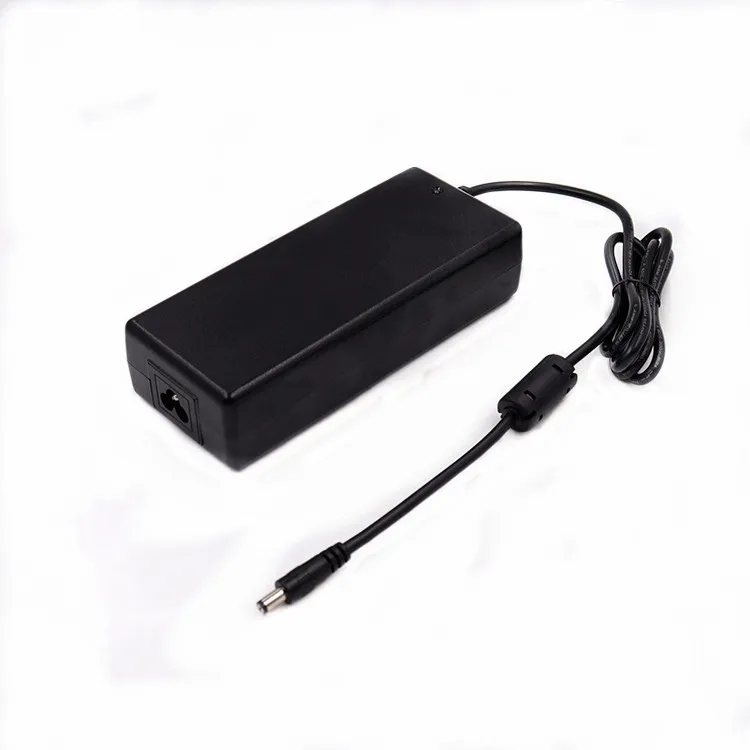

Level 6 Energy Efficiency 24V 7A 168W Battrey Charger/AC Adapter/Power Supply for LED Strip
1.Product description: Rated Input:100-240VAC 50/60Hz Max:90-275VAC 47/63HzRated Output:24VDC±5%Rated Current:7ARated Power:168WRipple & Noise:<120mVShort Circuit Protection: Interval disconnection, quick recovery.Work Temperature:20ºC-45ºC, Humidity:30%-85%Stora......
Send Inquiry
Product Description
| Rated Input: | 100-240VAC 50/60Hz Max:90-275VAC 47/63Hz |
| Rated Output: | 24VDC±5% |
| Rated Current: | 7A |
| Rated Power: | 168W |
| Ripple & Noise: | <120mV |
| Short Circuit Protection: | Interval disconnection, quick recovery. |
| Work Temperature: | 20ºC-45ºC, Humidity:30%-85% |
| Storage Temperature: | Temperture:0ºC-75ºC, Humidity:0%-95%; |
| Voltage Test: | Input to output::3KV AC, input to ground: KV AC |
| Insulation Resistance: | 100 ohms |
| Cooling Method: | Nature cooling |
| Dimension: | Ask customer service for detailed specifications. |

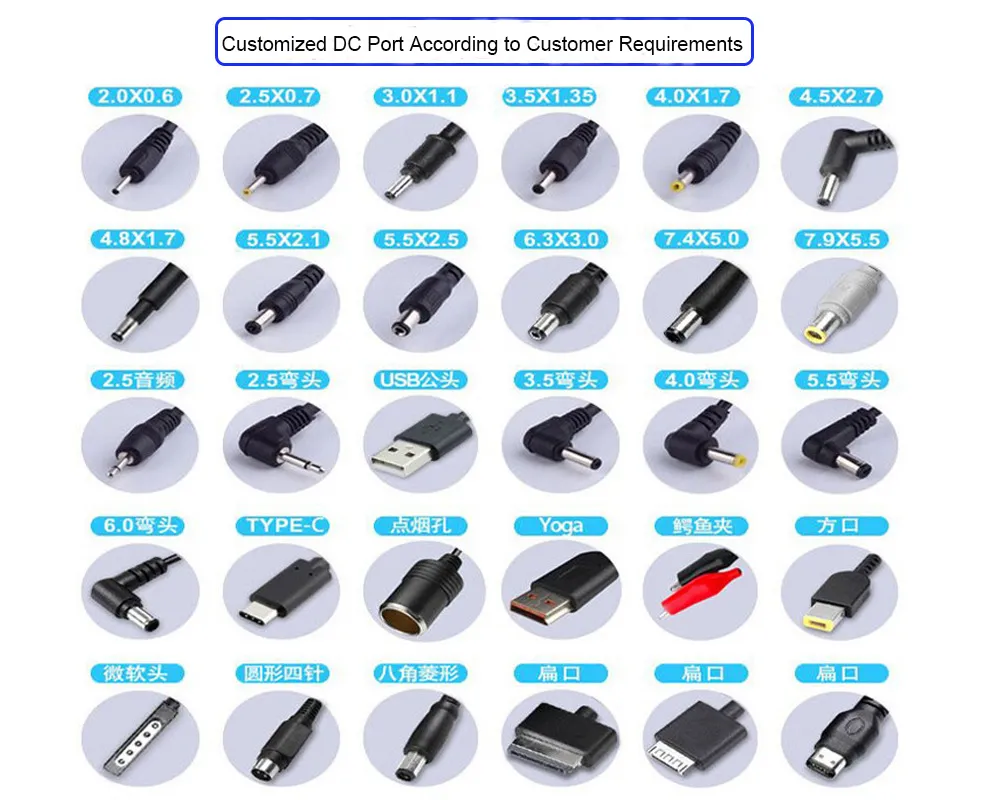

| DC Connector: | 2.5*0.7/3.5*1.35/4.0*1.7/5.5*2.1/5.5*2.5/MicroUSB/others |
| DC Cable: | 1.2M/1.5M/customized |
| Protection Function: | SCP,OLP,IVP,OTP |
| Packing: | PE bag/ white box/color box/customized |
| Dimension | 172*72*42mm |
| Quality Guarantee: | 2~3 years |
| Safety Certifications: | CE/UL/FCC/SAA/KC/PSE/TUV/ROHS/GS/CB |
| Common Output Voltage: | 3V 4.2v 5v 6v 7.5V 8.4V 9V 12v 12.6v 15v 18v 24v 36v 42v ...... |
| Common Output Current: | 0.5A 0.8A 1A 1.2A 1.5A 1.8A 2A 2.5A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 15A 20A...... |
2.Product Adantage:
(1). Good safety performance, high reliability, safety in accordance with the application for safety certification standards and procedures
(2). All the original electronic components are used, and the circuit board has the functions of over voltage, over current and short circuit protection
(3). Ultra-low no-load and standby energy consumption, in line with the energy conservation standards of various countries
(4). Good anti-interference performance, built-in anti-electromagnetic interference filter
(5). The insulation performance of the primary stage is good, and the high-frequency transformer is 100% vacuum impregnated
(6). Full load high temperature burner, 100% aging test
(7). With functions of short circuit, overload and overvoltage protection (automatic recovery)
(8). All materials are environmental friendly
(9). Large use of SMD, compact structure, small size and fine appearance
(10). Adopt the design of high temperature resistant and flame retardant shell and its ultrasonic welding method to make it more safe and reliable

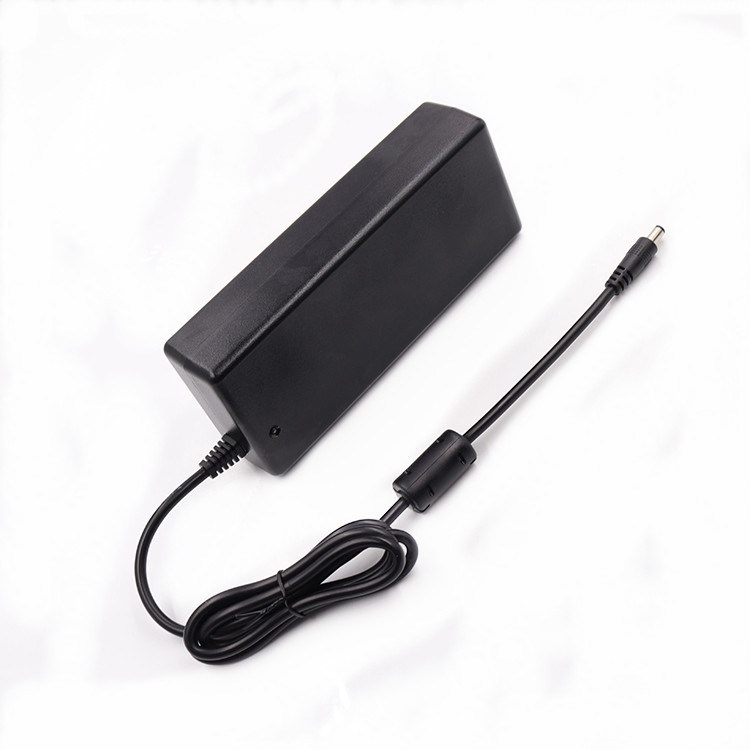

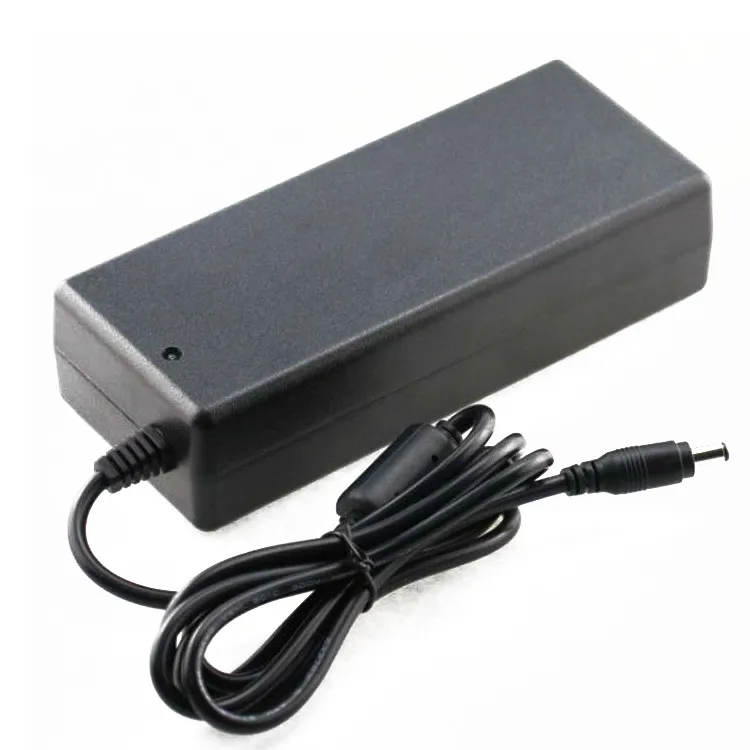

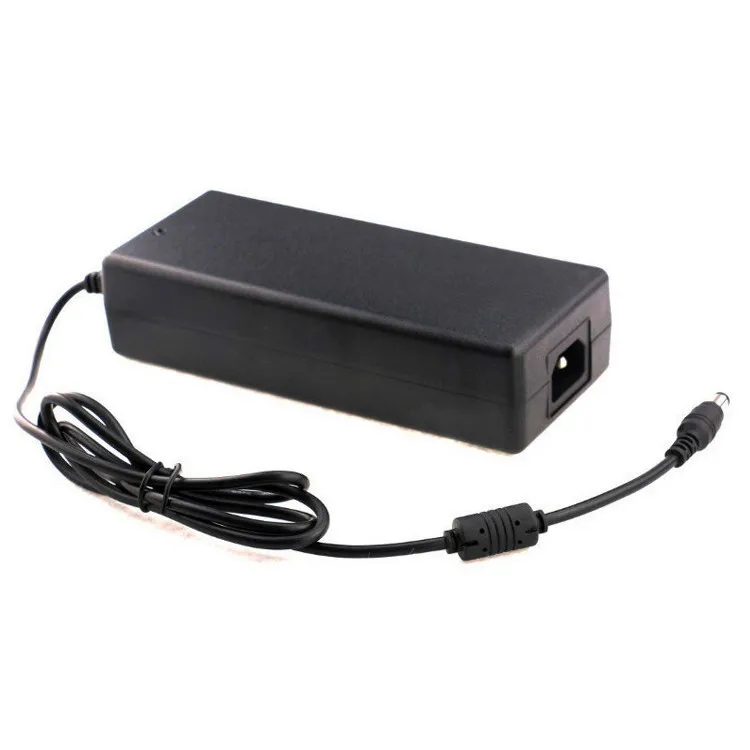

3.Product Pictures:
4.Company Profile:
Dongguan City Pengcheng Electronics was founded in year 2013, factory located in Shijie Town, Dongguan City. Our Company specialize in developing and manufacturing adapter, switching power supply, LED driver, set-top box, router, Bluetooth products…etc. Products widely used in communication, lighting, home appliances, medical treatment, toys and other fields.

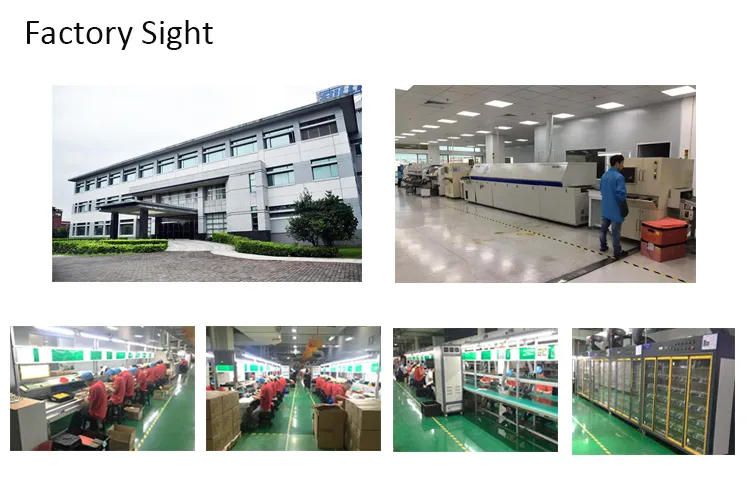

We have 4 SMT lines(AI/RI), and 4 full lines for DIP, assembly and packing, factory staffed 220 skilled workers, daily capacity 50K PCS.
We set up the quality department, consisting of quality assurance, quality audit, QE, IQC, IPQC, and OQC. Meanwhile, both our R&D team and PE/IE/ME/QE engineers are more than 10 years experiences in this field.
We offer OEM&ODM& customized service for domestic and foreign market. All models are confirms to the certificates of CCC,CQC,CE,UL,FCC,CSA…etc.
Welcome to visit our factory or call us at any time!
FAQ:
1 :What's the best price?
We can negotiate the price based on the quality and your requirements for the product,we can do custom design to meet your needs .
2 :What 's your MOQ?
Our MOQ is 1000pcs per lot per ,but we can accept small trial order the first time .
2 :How about the Lead time?3Sample L/T : 3-7 Days
Bulk production: 20-25 days normally ,any urgent requirement we can negotiate case by case.
4:How about your product quality and quality warranty?
Our standard proudct is high quality deisign which completely meet safety and EMC test. and Almost all of the standard designs we abtained the certificates such as UL FCC CE GS KC PSE SAA RCM CCC etc We can advise 24 months quality warranty except the cheap design which request by customers.
5: What's your company's y advantage?
1)We have our own SMT & AI workshops , and mature automatic production lines, which support the factory ouputs high quality and consistency prouducts efficiently .
2) We can advise very competitive price for our customers especial for big order based on the 1) .
3)We has perfect management system such as CRM(sales dept), PDM(engineer dept.) ,ERP &AO( factory) to keep our activities and operations correct that we can advise excellent service and quality support to our customers.
