Factory Price 24W 36W AC DC Adapter 3V 5V 9V 12V 15V 24V 36V 48V 0.5A 1A 1.2A 1.5A 2A 2.5A 3A 4A 5A AC/DC Power Supply Power Charger
Factory Price 36W AC DC Adapter 24V 1.5A AC/DC Power Supply Power ChargerSpecifications: Safety Approvals Input Voltage Range 100~240VacVinOperate Voltage Range 90~264VacFinInput Frequency 50~60HzPoOutput Power 36wVoOutput Voltage 24VDC +/-5%IoOutput Current 1.5AIiIInput Current Low LineIo=Full load......
Send Inquiry
Product Description

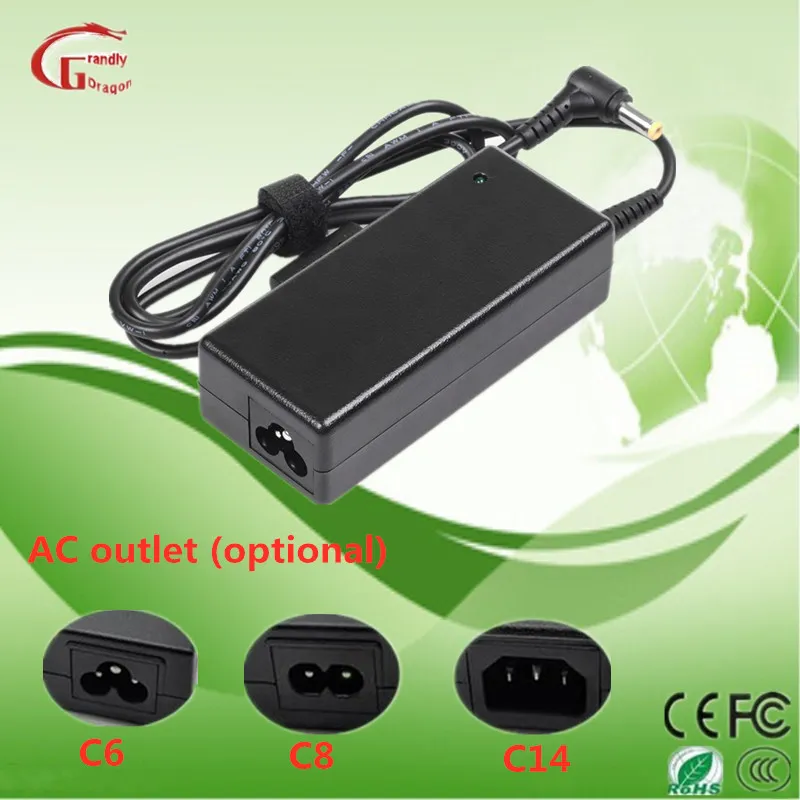

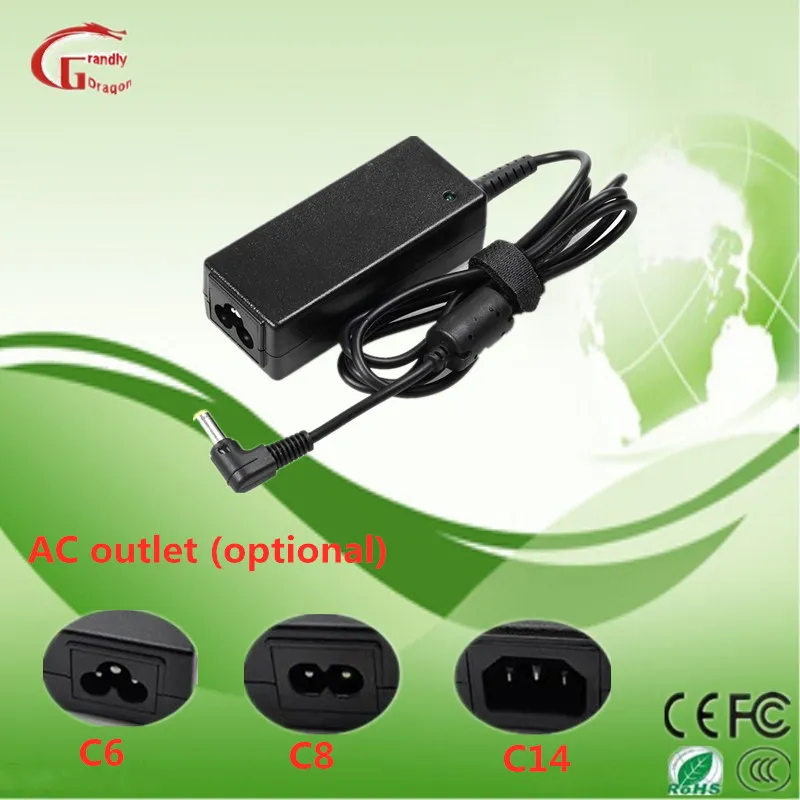

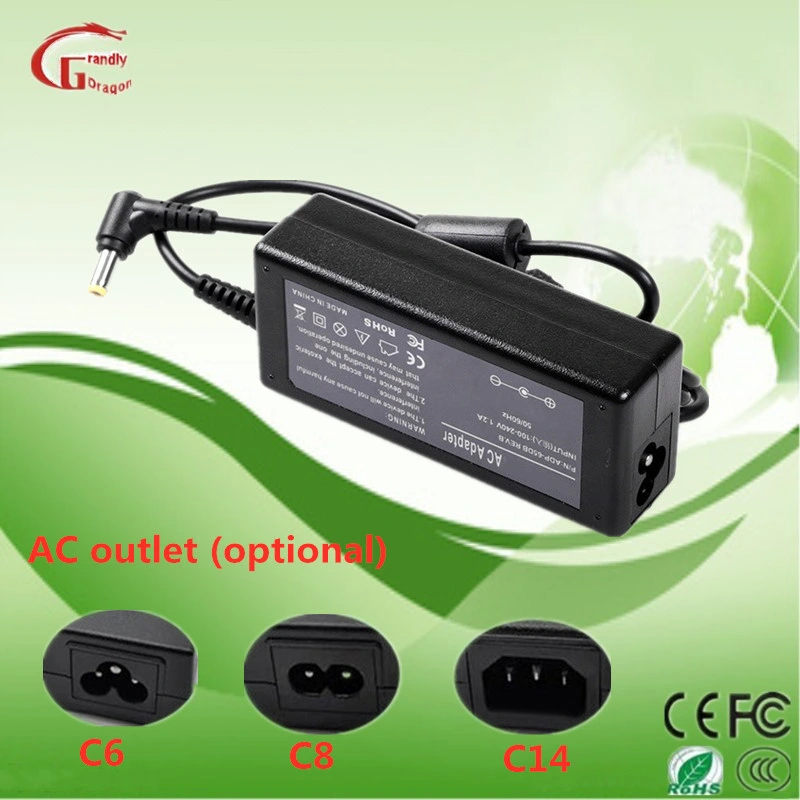

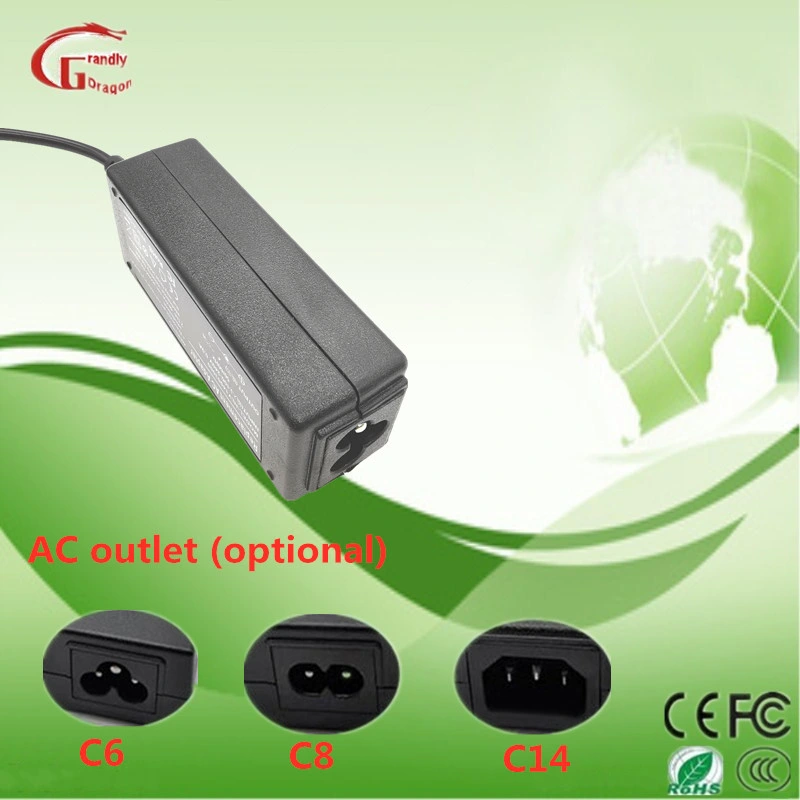

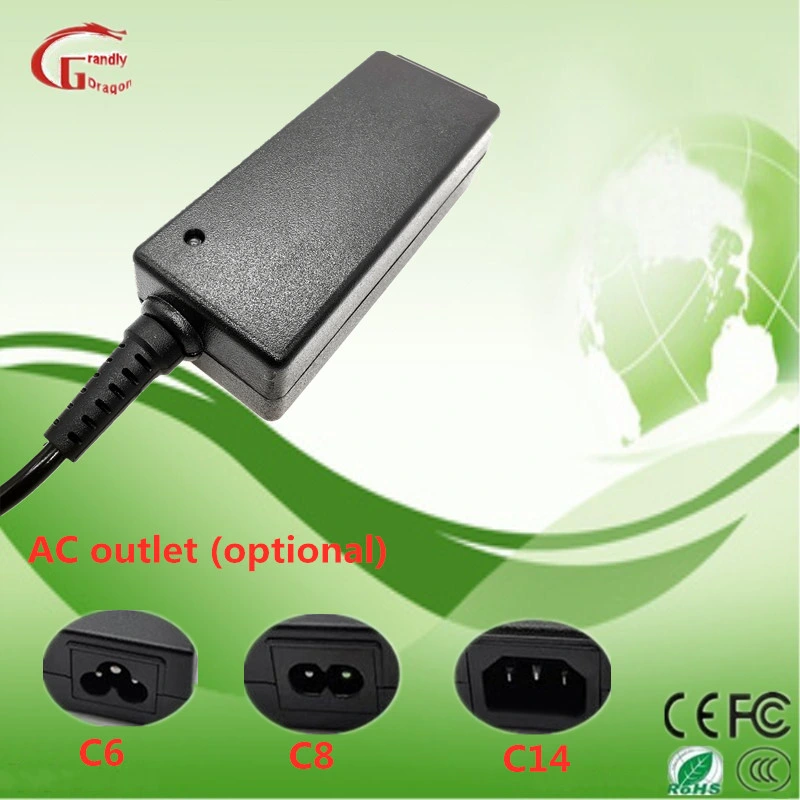

Factory Price 36W AC DC Adapter 24V 1.5A AC/DC Power Supply Power Charger
Specifications:
Specifications:
| Safety Approvals Input Voltage Range | 100~240Vac | ||
| Vin | Operate Voltage Range | 90~264Vac | |
| Fin | Input Frequency | 50~60Hz | |
| Po | Output Power | 36w | |
| Vo | Output Voltage | 24VDC +/-5% | |
| Io | Output Current | 1.5A | |
| IiI | Input Current Low Line | Io=Full load, Vin=100VAC | 2.5A |
| Iih | Input Current High Line | Io=Full load, Vin=240VAC | 1.2A |
| Ir | Inrush Current Low Line | Io=Full load, 25ºC ,Cool start,Vin=115Vac | 30A |
| Inrush Current High Line | Io=Full load, 25ºC ,Cool start,Vin=230Vac | 40A | |
| Eff | Efficiency | Io=Full load,Vin=230Vac | 88% |
| REG-i | Line Regulation | Io=Full load | 0.5~2% |
| REG-o | Load Regulation | Vin=230Vac | 4~5% |
| OCP | Over Current Protection | Auto recovery | 120~150% |
| Ttr | Time of Transient Response | Io=Full load to Hakf Load, Vin=100Vac | 4mS Max. |
| Th | Hold-up Time | Io=Full load, Vin=110Vac | 10mS Min. |
| Ts | Start Up Time | Io=Full load, Vin=100Vac | 3S Max. |
| Vp-p | Ripple & Noise Peak to Peak | Io=Full load, Vin=90Vac | 1% Max. |
| Ilk | Safety Ground Leakage Current | Vin=240Vac/60Hz | 0.75A Max. |
| TC | Temperature Coefficinet | All output | +/-0.04%/ºC |
| Pno | No-Load Power Consumption | No load, Vin=230Vac | 0.21W |
| Vps | Dielectric Withstanding Voltage | Primary to secondary | 3750Vac Min./3S |
