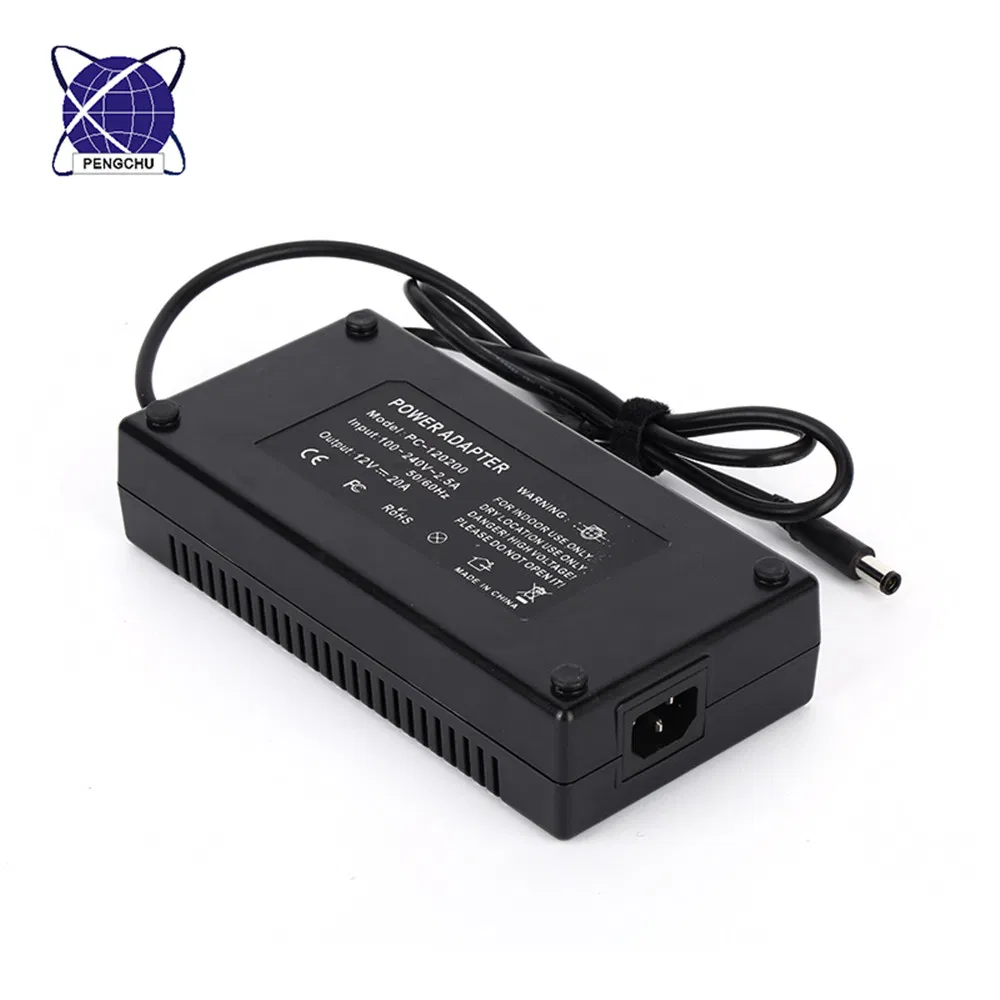

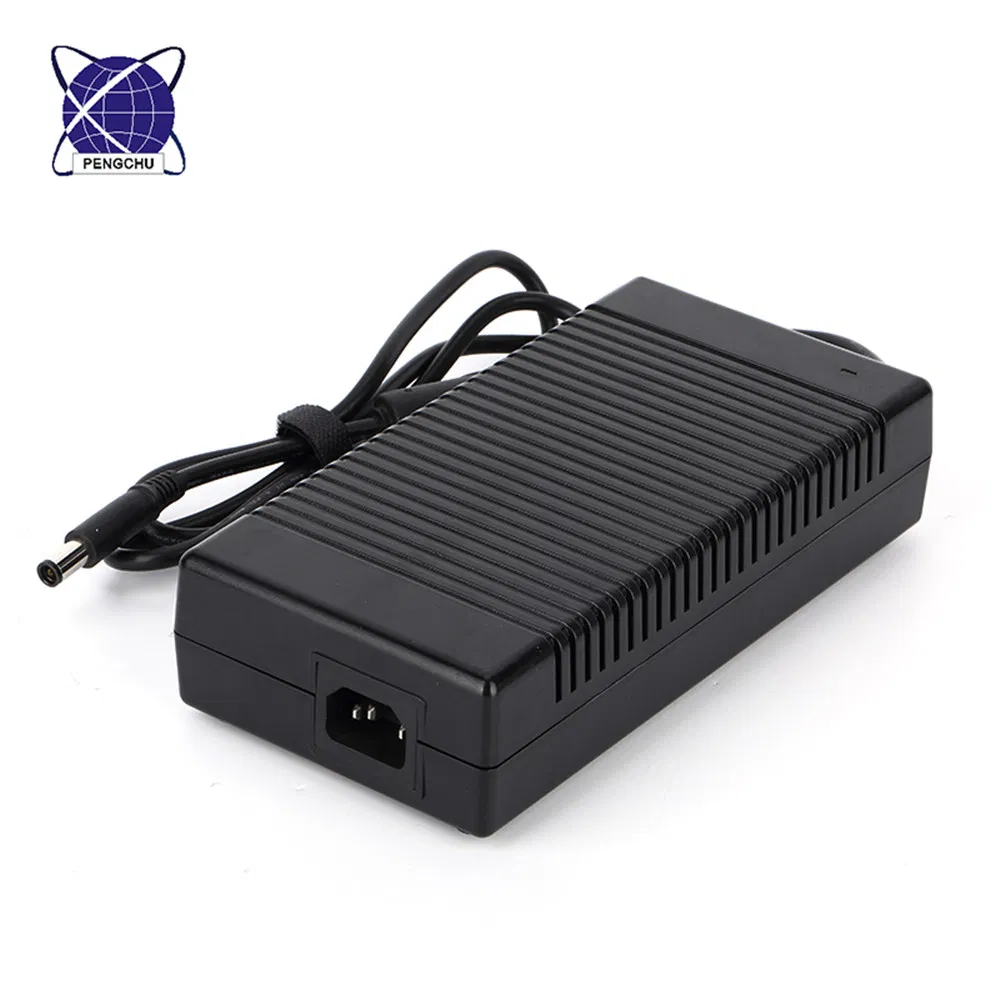

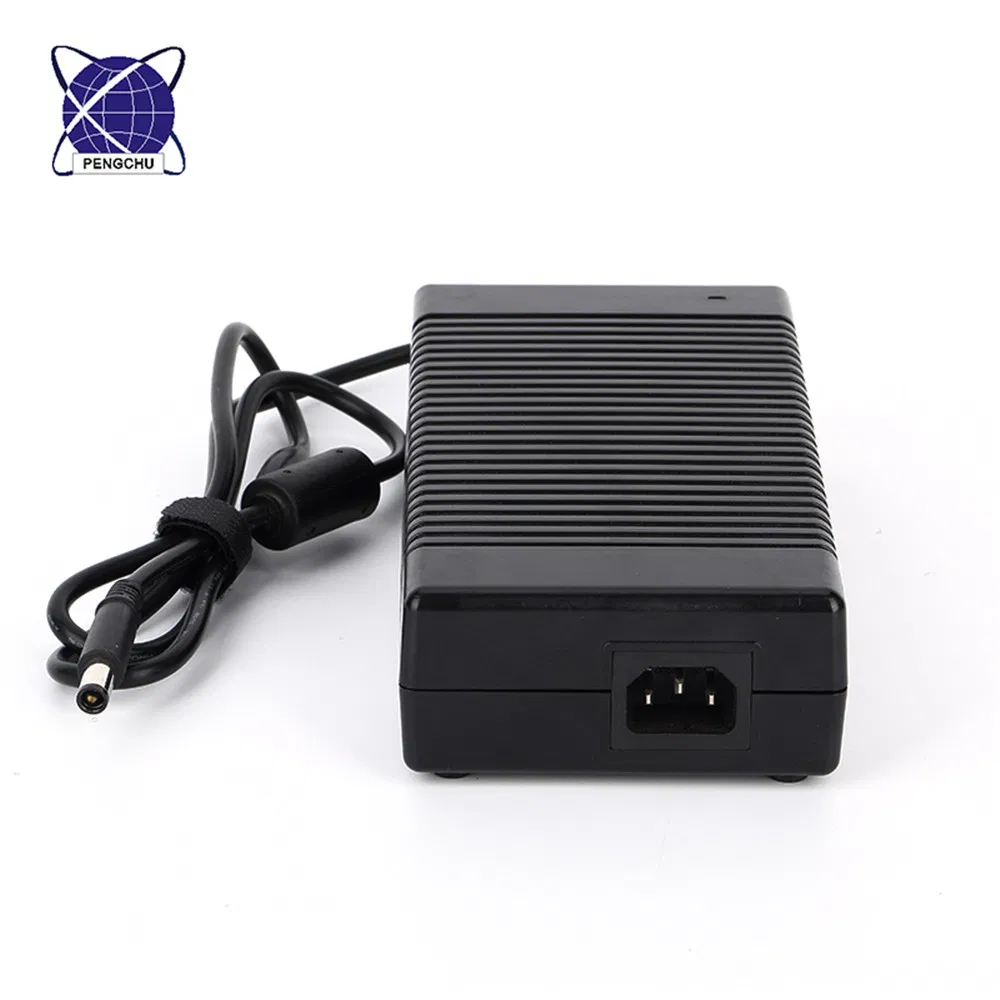

DOE Level VI standard UL approval 12V 15A 150W LED switching power supply
DoE Level VI standard UL approval 12v 15a 150w led switching power supply Features:Universal AC input/Full range(up to 264Vac)Protection: Short circuit/Overload/Over temperatureHigh efficiency, long life and hign reliaility100% full load burn-in testMeet DoE Level VI standard CE UL approvedOne year ......
Send Inquiry
Product Description
DoE Level VI standard UL approval 12v 15a 150w led switching power supply
Product Description
Features:
- Universal AC input/Full range(up to 264Vac)
- Protection: Short circuit/Overload/Over temperature
- High efficiency, long life and hign reliaility
- 100% full load burn-in test
- Meet DoE Level VI standard
- CE UL approved
- One year warranty
- Class 1 design
Product Description
| Specifications | |
| Model number | PC-120150 |
| AC input | |
| Nominal input voltage | 100-240VAC |
| Input voltage range | 95-265VAC |
| Input frequency | 50/60Hz |
| DC output | |
| Output voltage | 12V |
| Output current | 15A |
| Output power | 180W |
| DC connector size | 5.5*2.5mm or 4 PIN connector |
| Voltage tolerance | ±5% |
| Line regulation | ±1% |
| Load regulation | ±5% |
| Ripple and noise | <120mVp-p |
| Insulation-resistance | 100ohms |
| Dielectric withstand voltage (hi-pot) | 100% of line products of this adapter shall be applied 3000V AC or 4242V DC for a minimum of 1 minute between AC input terminals and output terminals Cut-off current is specified as 10mA |
| Efficiency | >88% |
| DC cable length | 1.2m/1.5m/1.8m or customized |
| Environment | |
| Operating temperature | -10 to 50°C (±10°C) |
| Operating humidity | 20-90%RH |
| Storage temperature | -40 to 80°C (±10°C) |
| Storage humidity | 20-90%RH |
| Protection | |
| Over load protection | Over current protection |
| Over current protection | Over temperature protection |
| Certifications | |
| CE, RoHS Directive-compliant, FCC, CB, GS, TuV, UL, CUL, CCC, PSE | |

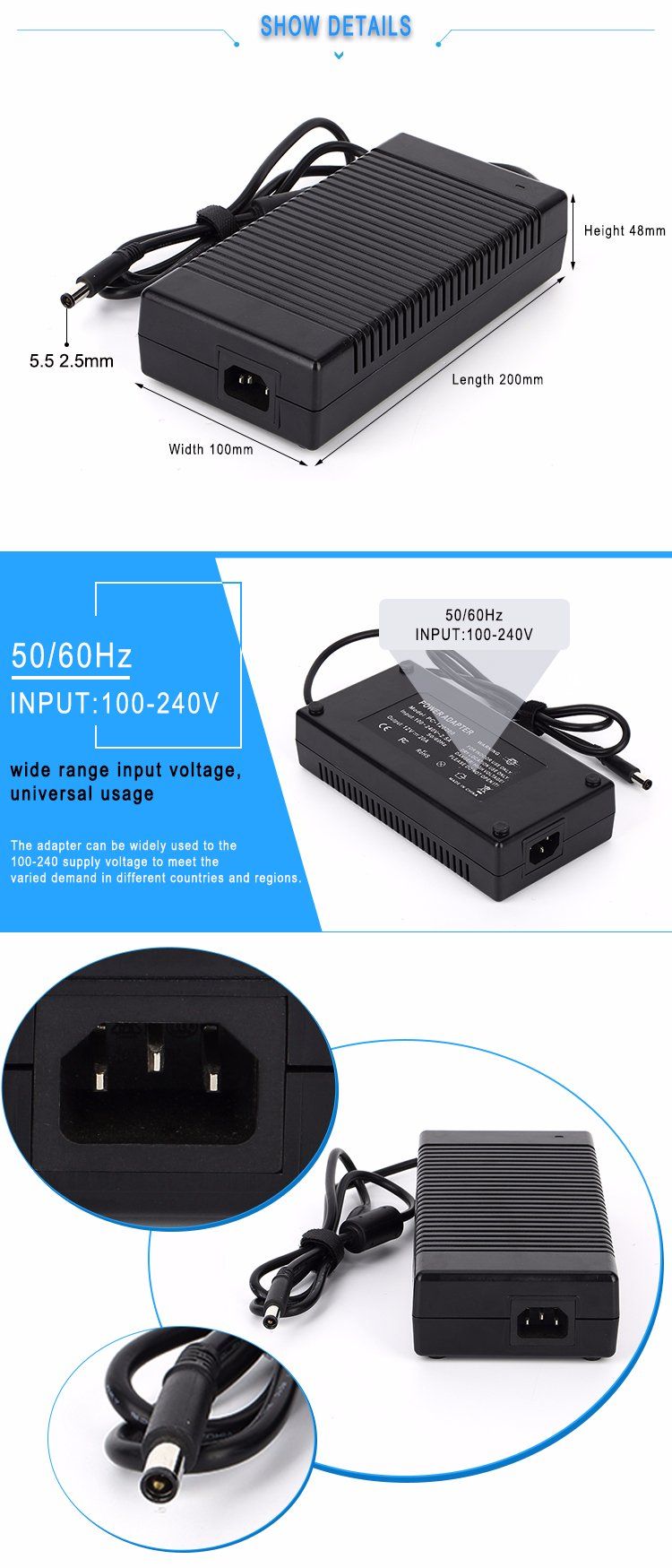

| Dimensions | |
| Adapter size | 200*100*48mm |
| Adapter weight | 0.92KGS |
| Pieces/carton | 20pieces |
| Outer carton size | 55*35*34.8CM |
| Gross weight/carton | 22.5kg |
| Package | |
| Inner box | Normally brown box or customized requirements |
| Outer carton | Normally standard export carton or customized requirements |
| Warranty | |
| Warranty | 1 year |
| Terms and conditions | |
| Minimum order quantity | 100PCS |
| Payment Terms | T/T, PayPal, Western Union, Alibaba Assurance Trade |
| Delivery Time | 7-9 working days |
| Manufacturing process | |
| 1. Set-up→2. Hand insertion→3. Wave soldering→4. Touch-up→5. V/I→6. ICT→7. INT→8. Apply glue→9. Q/A→10. Entering stock→11. Assembly→12. Power on test→13. Hi-pot Test→14. Burn-in→15. Hi-pot test→16. All fun test→17. Packing→18. OQC→19. Shipping | |
| Test Procedures | |
| 1. No-load output voltage test→2. Input power load test→3. No-load output ripple test→4. Full load open test→5. Full load output voltage test→6. Full load output ripple test→7. Full load input power test→8. Half load output voltage test→9. Half load output ripple test→10. Over load test→11. Over current protection test →12. Short circuit protection test (above test is under both 110V and 230V.)→13. High-voltage test→14. Burn-in test→15. Turn on delay time test→16. Rise time test→17. Hold time test→18. Overshoot test | |
Certification:
Why Choose US:
- Professional team for after-sale service 7*24
- 11 years Alibaba Gold supplier
- Experienced R & D team and profesional sales team
- OEM & ODM service, we will evaluate, design and produce your customized products
- Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
Trade Term:
- Payment term: PayPal, Western Union, T/T
- Leading time:7-9 working days
- Sample: 3-5 working days after payment confirmed
- Freight cost: Customers's shipping agent or our forwarder
FAQ:
Q1: WAHT'S YOUR MOQ:
A1: Usually MOQ is 100pcs, we also can accept trail order to support new customers, 1000pcs for customized units
Q2: WHAT'S YOUR WARRANTY?
A2: One year warranty.
Q3: HOW ABOUT THE LEADING TIME?
A3: For samples, leading time is 3-5 working days.
For mass cargo, leading time will be 7-9 working days
