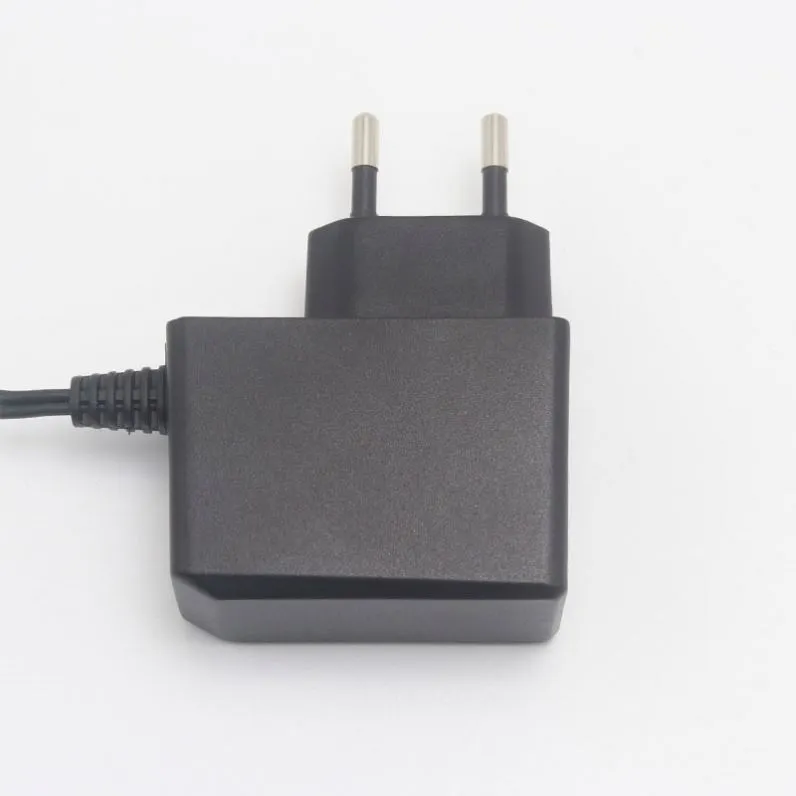

China 12V 500mA Power Adapter Power Adapter 24V 250mA with RoHS Approval
China 12V 500Ma Power Adapter Power Adapter 24V 250mA With ROHS ApprovalProduct DescriptionInput:100-240VAC 50/60HzOutput Voltage: 5V-24V DCRated Power :6W maxApprovals: UL/CUL/CB/FCC/TUVFeatures :1. Univeral AC input/ Full range2. Energy efficiency level VI3. Leakage Current: <0.25mA4. Extremely......
Send Inquiry
Product Description

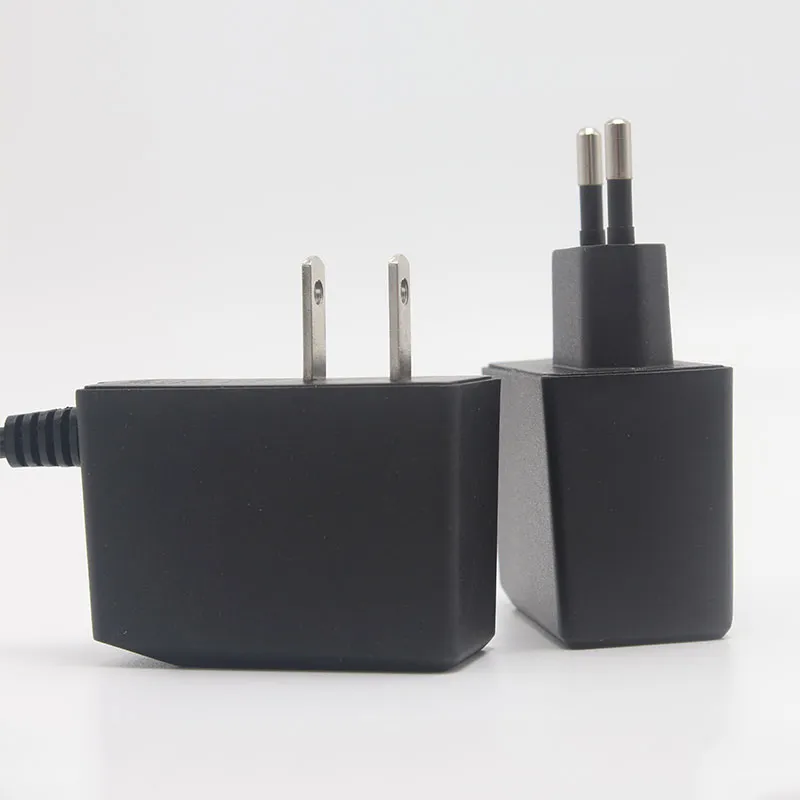

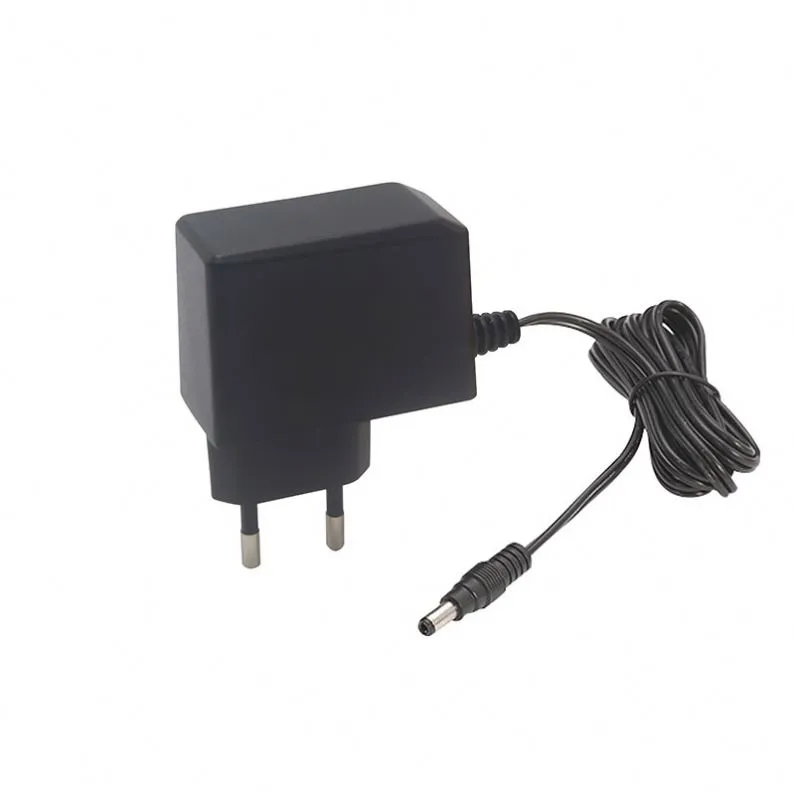

China 12V 500Ma Power Adapter Power Adapter 24V 250mA With ROHS Approval
Input:100-240VAC 50/60Hz
Output Voltage: 5V-24V DC
Rated Power :6W max
Approvals: UL/CUL/CB/FCC/TUV
Features :
1. Univeral AC input/ Full range
2. Energy efficiency level VI
3. Leakage Current: <0.25mA
4. Extremely low leakage current
5. Protection:Over load/Over voltage/Short circuit 6. Withstand voltage : 3KV
7. Life Warranty: 3 years
Applications:
- Liposuction machine
- Patient monitors
- Blood oxygen monitors
- Deep vein thrombosis
- Low-frequency therapy device
Model: | YS6V-0501200 | YS6V-0601000 | YS6V-0750800 | YS6V-0900660 | YS6V-1200500 | YS6V-2400250 |
Power: | 6W max | |||||
Input: | AC100-240V | |||||
Output Voltage: | 5V DC | 6V DC | 7.5V DC | 9V DC | 12V DC | 24V DC |
Output Current: | 0-1.2A | 0-1A | 0-0.8A | 0-0.66A | 0-0.5A | 0-0.25A |
Inrush Current: | 65 Amps max. at 240VAC/50Hz,full load | |||||
Leakage Current: | <0.25mA/240VAC | |||||
No Load Power Consumption : | <0.5W | |||||
Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection | |||||
Short Circuit Protection (SCP): | Protection to Zero Voltage | |||||
Over Voltage Protection (OVP): | ≤Vout*150% | |||||
Over Current Protection (OCP): | 110%-180% | |||||
Withstand voltage: | I/P-O/P 3kVAC | |||||
Working TEMP.: | -20°C-50°C | |||||
EMC standards: | UL62368-1,EN62368-1,CSA22.2,EAC TP TC004 approved | |||||
Safety standards: | FCC part15 class B,EN55032 class B,EN61000-4-2,3,4,5,6,8,11,EN610003-2,3 | |||||
Dimension: | 58*26*74mm | |||||
