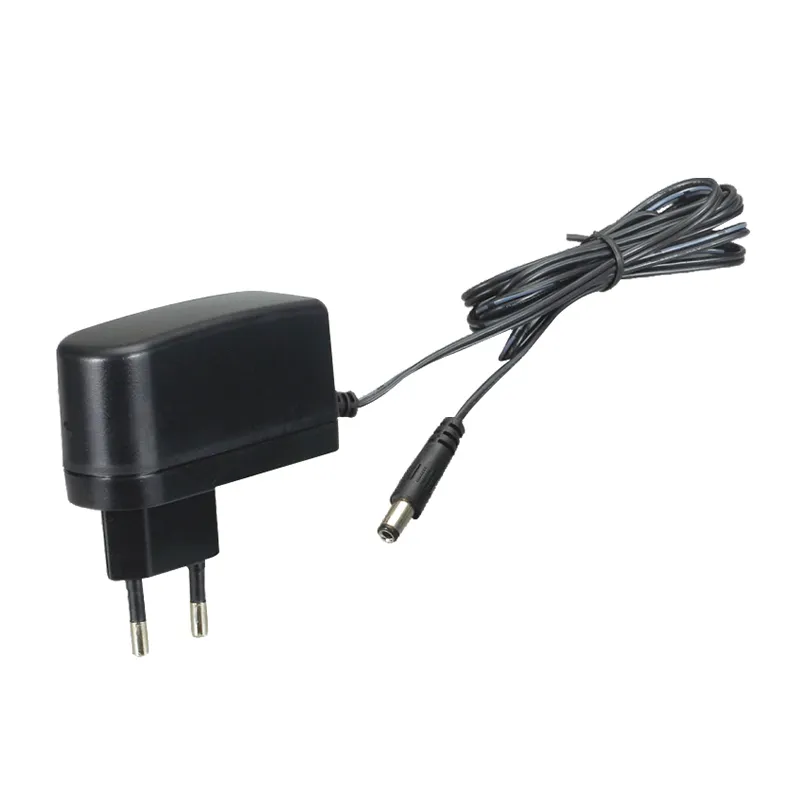

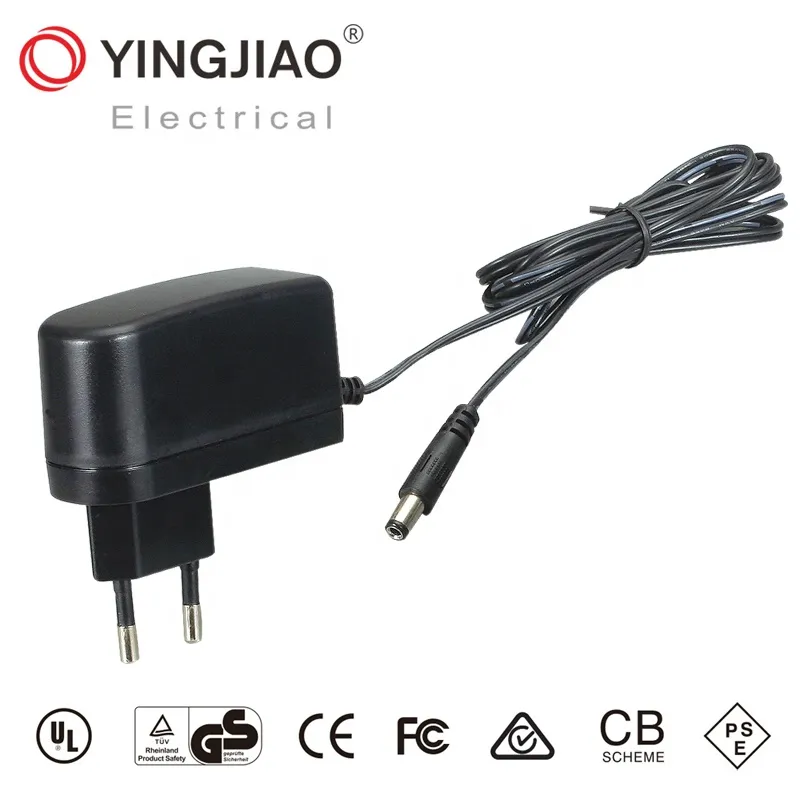

CE RoHS Approval Wall Mount EU Us UK Au Plug AC DC Adapter 24V 0.5A Power Adapter 12V 12 Volt Power Supply Adaptor
CE RoHS Approval Wall Mount EU US UK AU Plug AC DC Adapter 24V 0.5A Power Adapter 12V 12 Volt Power Supply AdaptorBrand:Yingjiao (or OEM)Model:YS12ERated Power:12WInput:100V~240V, 50~60HzOutput:DC 5V/2A 6V/2A 7.5V/1.5A 9V/1.3A 12V/1A 15V/0.8A 24V/0.5A 36V/0.35AInrush Current:65 Amps max. at 230VAC/5......
Send Inquiry
Product Description
CE RoHS Approval Wall Mount EU US UK AU Plug AC DC Adapter 24V 0.5A Power Adapter 12V 12 Volt Power Supply Adaptor
Brand: | Yingjiao (or OEM) |
Model: | YS12E |
Rated Power: | 12W |
Input: | 100V~240V, 50~60Hz |
Output: | DC 5V/2A 6V/2A 7.5V/1.5A 9V/1.3A 12V/1A 15V/0.8A 24V/0.5A 36V/0.35A |
Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
Leakage Current: | <50μA |
No Load Power Consumption: | <0.5W |
Working TEMP.: | -20~-50 |
Protections: | Short Circuit /Over Current /Over Voltage |
EMC Standards: | EN55011 class B,EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN60601-1-2 medical level,FCC Part 15 class B, EAC TP TC 020 |
Safety Standards: | ANSI/AAMI ES60601-1/ES60601-1-11,CAN/CSA-C22,TUV EN60601-1-11,EAC TP TC 004 approved |
Plugs: | US/EU/AU/UK available |
Color: | Black |
Size: | 69*27*38mm |

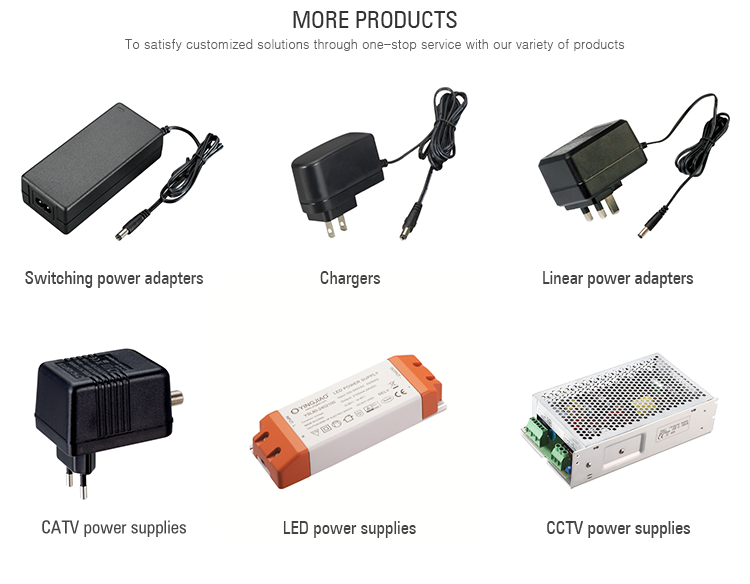

MORE PRODUCTS
ABOUT YINGJIAO

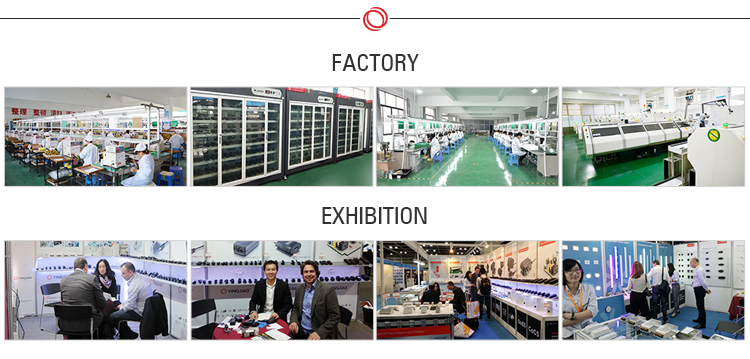

FACTORY&EXHIBITION
CERTIFICATE

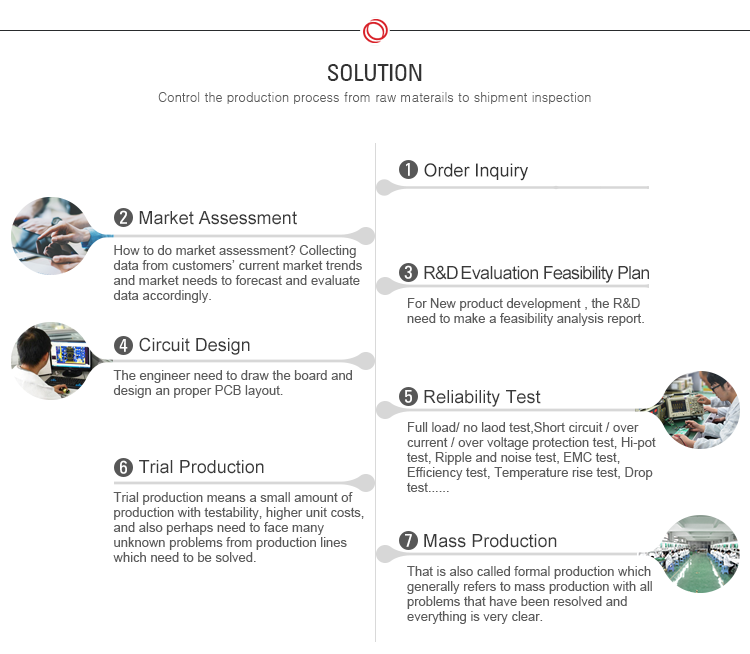

SOLUTION
