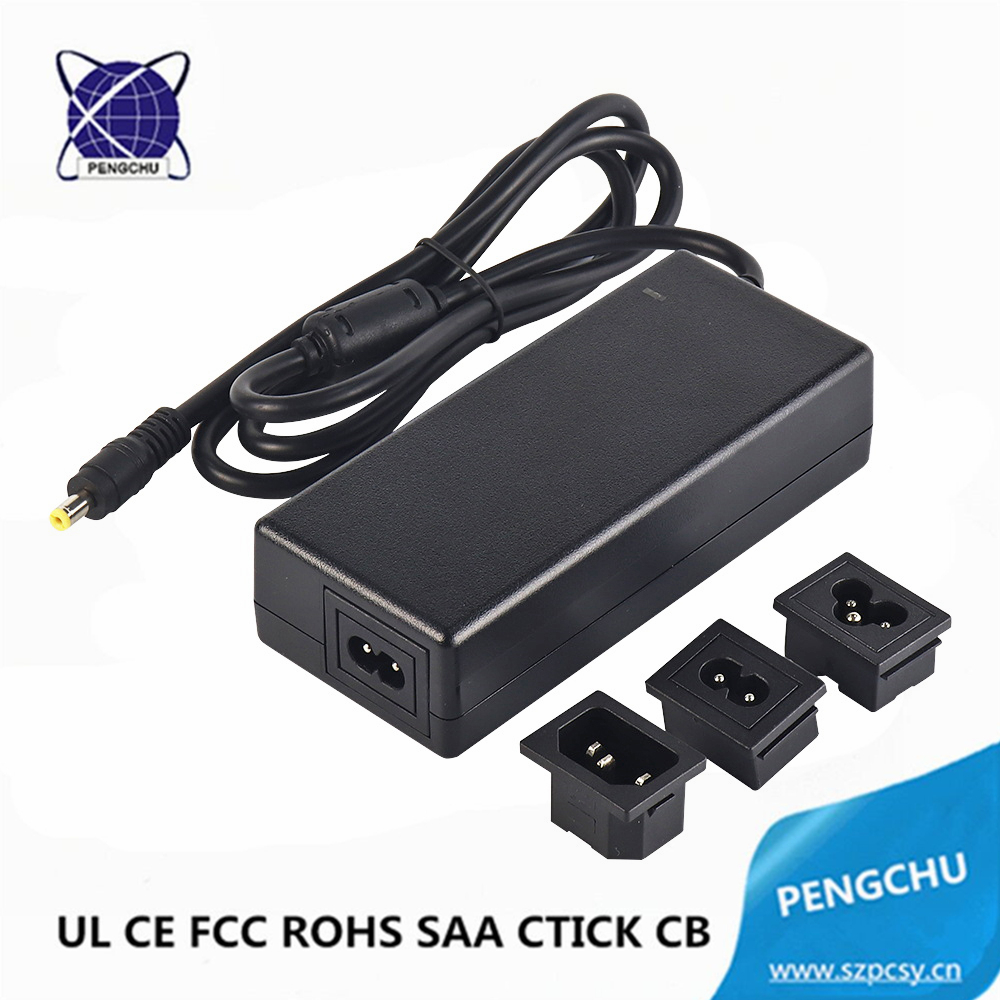

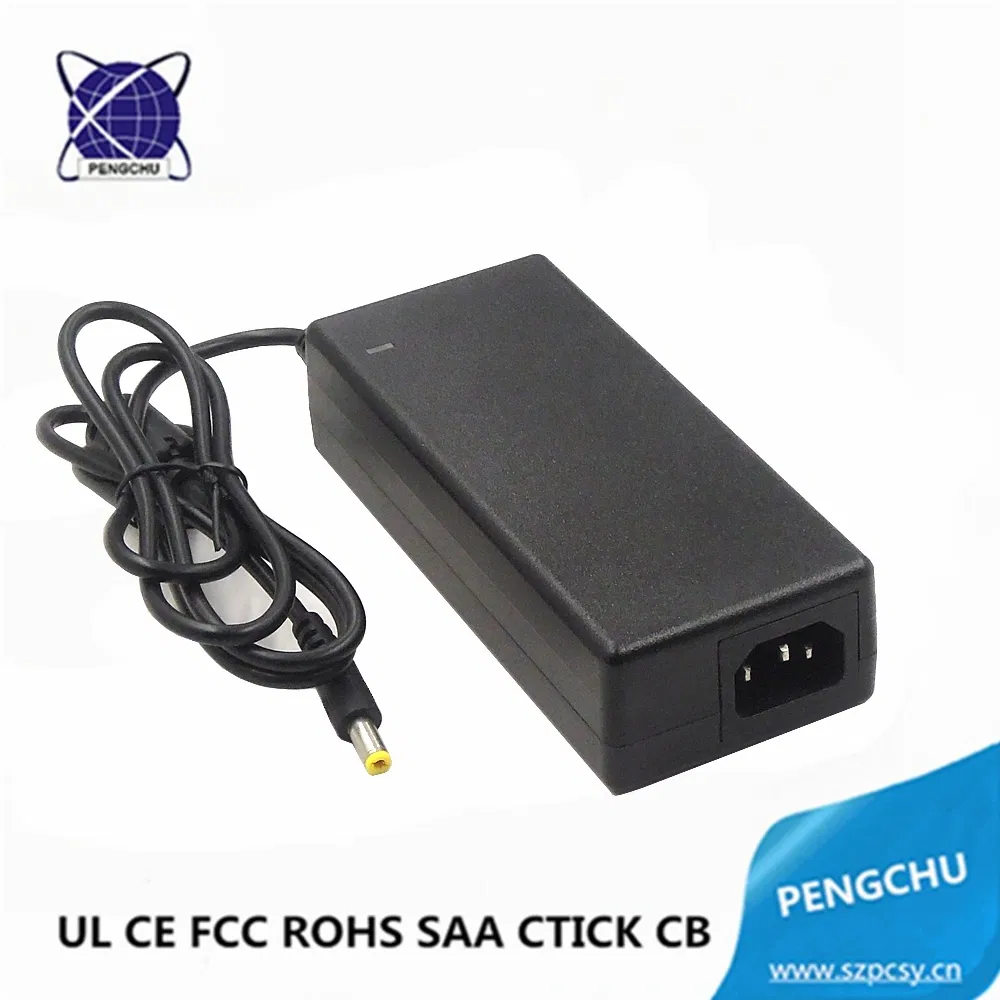

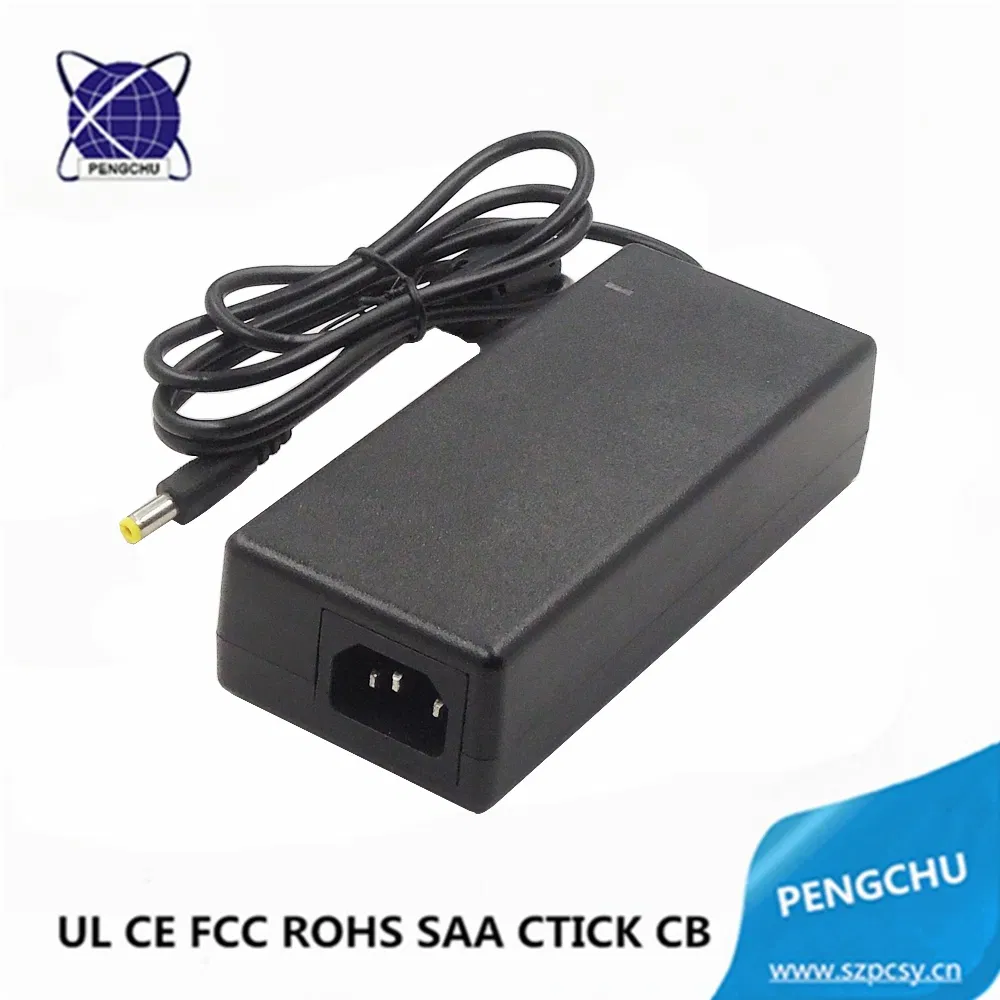

72W Switch Power Supply 24V 3A AC DC Desk Power Adapter
72W Switch Power Supply 24V 3A AC DC Desk Power AdapterFeatures:UL ETL CE FCC RoHS SAA C-tick CB PSE Certificatesflyback+PFC+synchronous rectification functionUniversal AC input/Full range(up to 264Vac)Protection: Short circuit/Overload/Over temperature/Over currentHigh efficiency, long life and hig......
Send Inquiry
Product Description
Features:
- UL ETL CE FCC RoHS SAA C-tick CB PSE Certificates
- flyback+PFC+synchronous rectification function

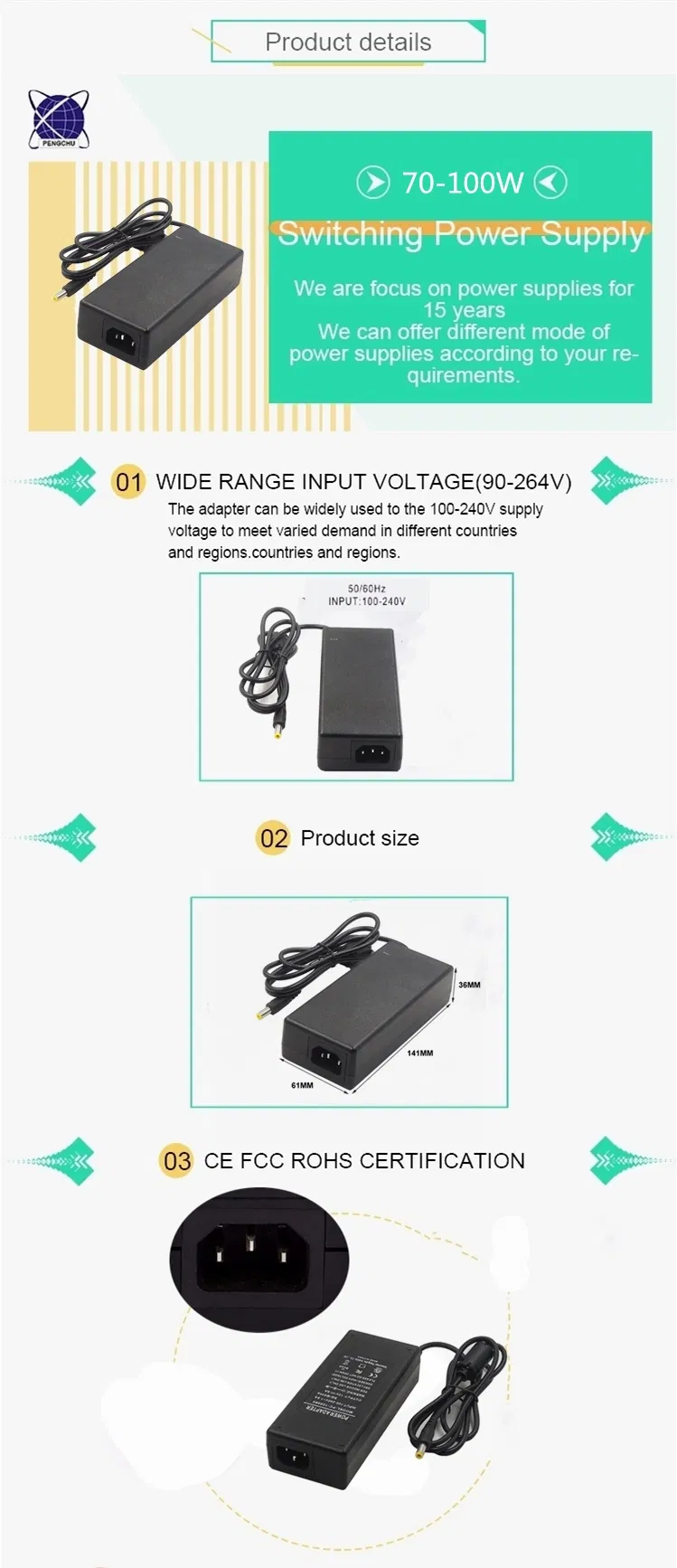

- Universal AC input/Full range(up to 264Vac)
- Protection: Short circuit/Overload/Over temperature/Over current
- High efficiency, long life and hign reliaility
- 100% full load burn-in test
- Two years warranty
- Class 1 design
| 72W Switch Power Supply 24V 3A AC DC Desk Power Adapter | |
| Part NO. | PC-240030 |
| DC Voltage | 24V |
| Rate Current | 3.0A |
| Current range | 0~3.0A |
| Rate power | 72W |
| Voltage tolerance | ±5% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| AC Input | 100~240Vac 50/60Hz max: 90~264Vac 47/63Hz |
| Efficiency | >88% |
| Short Circuit Protection | Shall be protected when any output operation in circuit shortcondition,and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%-150% |
| Over Voltage Protection | 115%-135% |
| Operating Temperature | -10-50ºC (±10ºC) |
| Relative Humidity | 20%-90% RH |
| Storage Temperature | -40-80ºC (±10ºC) |

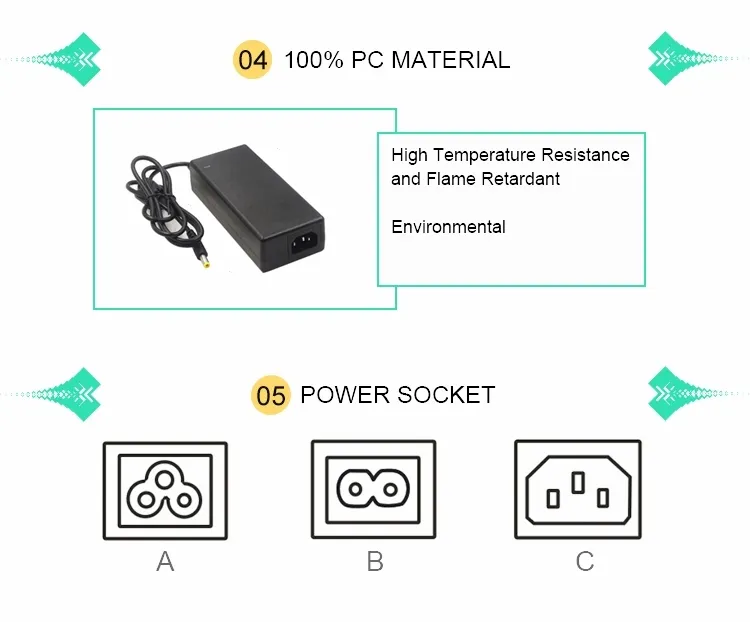

| DC Connector | 5.5*2.5mm or 5.5*2.1mm or 4 PIN connector (Customized Available) |
| DC Cable | 1.2m/1.5m/1.8m(Customized Available) |

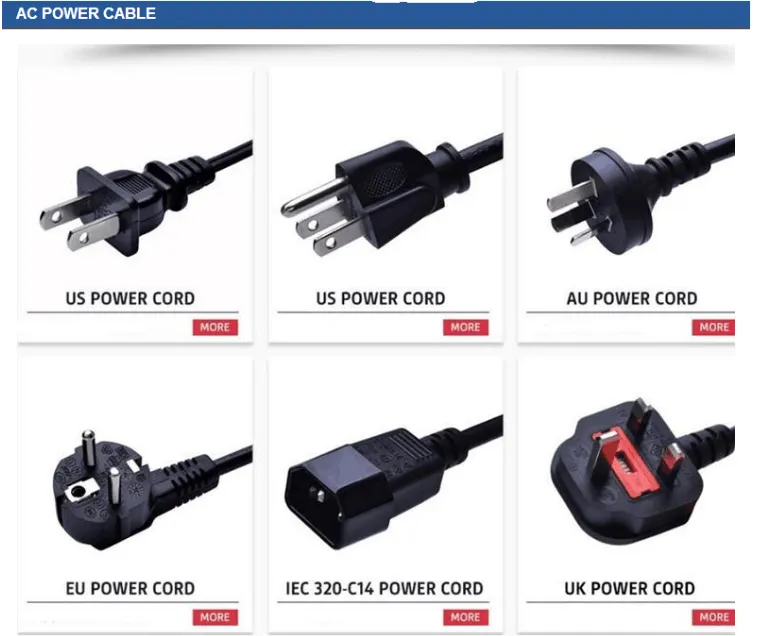

| AC Cable | 1.2m ac power cord with USA/UK/EU/AU/India plugs |
Certification:
Why Choose US:
- Professional team for after-sale service 7*24
- 11 years Alibaba Gold supplier
- Experienced R & D team and profesional sales team
- OEM & ODM service, we will evaluate, design and produce your customized products
- Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
Trade Term:
- Payment term: PayPal, Western Union, T/T
- Leading time:7-9 working days
- Sample: 3-5 working days after payment confirmed
- Freight cost: Customers's shipping agent or our forwarder
FAQ:
Q1: WAHT'S YOUR MOQ:
A1: Usually MOQ is 100pcs, we also can accept trail order to support new customers, 1000pcs for customized units
Q2: WHAT'S YOUR WARRANTY?
A2: One year warranty.
Q3: HOW ABOUT THE LEADING TIME?
A3: For samples, leading time is 3-5 working days.
For mass cargo, leading time will be 7-9 working days
