5VDC 500mA Power Adaptor with SAA, Rcm, C-Tick Approval
5VDC 500mA Power Adaptor with SAA, RCM, C-tick approvalPower Adaptor1) Input: 100-240V AC, 50/60Hz2) Output: 5VDC 500mA 2.5W3) AC plug: Available types for USA, Europe, UK, Australia, Japan etc4) RoHS, PAHs, REACH, WEEE compliant5) Energy efficiency: VI6) Input current: 0.15A Max, 100/240VAC7) Inrus......
Send Inquiry
Product Description

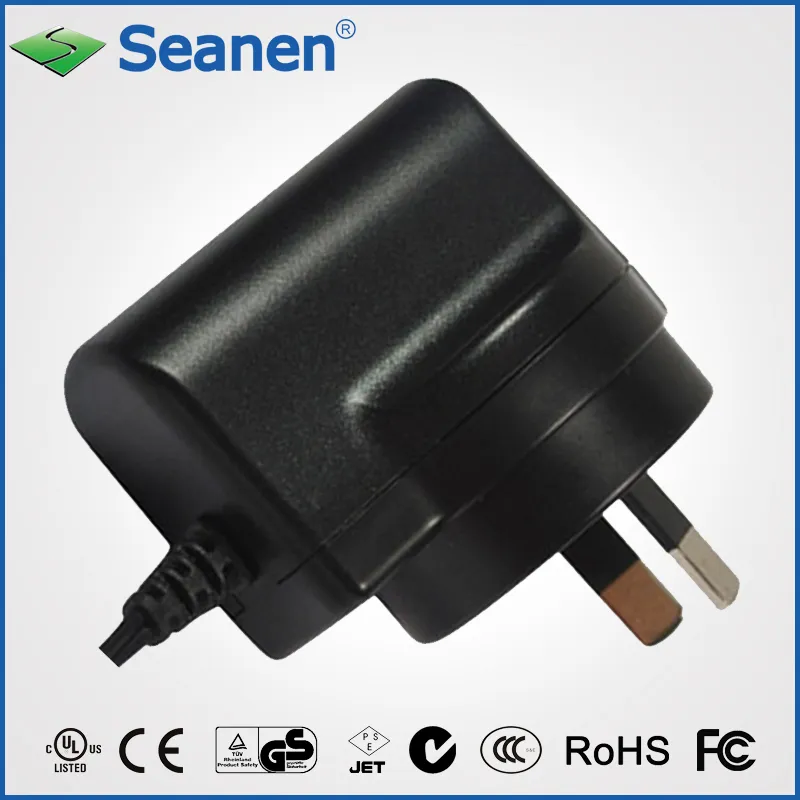

5VDC 500mA Power Adaptor with SAA, RCM, C-tick approval
Power Adaptor
1) Input: 100-240V AC, 50/60Hz
2) Output: 5VDC 500mA 2.5W
3) AC plug: Available types for USA, Europe, UK, Australia, Japan etc
4) RoHS, PAHs, REACH, WEEE compliant
5) Energy efficiency: VI
6) Input current: 0.15A Max, 100/240VAC
7) Inrush current: 15A Max, 120VAC at max load, 30A Max 240VAC at max load
8) Leakage Current: 0.25mA max
9) Load regulation: ± 5%
10) MTBF: 50K hours at 25'C
11) LED indicator: Optional
12)Size: 54*24*40.5mm
13) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH.
Company Brief Introduction:
Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.
Our standard products cover the full range items,
from 0.5W to 120W output power,
safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.
Seanen, your reliable power partner.
Power Adaptor
1) Input: 100-240V AC, 50/60Hz
2) Output: 5VDC 500mA 2.5W
3) AC plug: Available types for USA, Europe, UK, Australia, Japan etc
4) RoHS, PAHs, REACH, WEEE compliant
5) Energy efficiency: VI
6) Input current: 0.15A Max, 100/240VAC
7) Inrush current: 15A Max, 120VAC at max load, 30A Max 240VAC at max load
8) Leakage Current: 0.25mA max
9) Load regulation: ± 5%
10) MTBF: 50K hours at 25'C
11) LED indicator: Optional
12)Size: 54*24*40.5mm
13) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH.
| SPECIFICATION | ||
| Input | Input voltage | 90-264VAC |
| Frequency range | 47-63Hz | |
| Inrush current | 50A Max, 120VAC at max load, 80A Max 240VAC at max load | |
| Leakage Current | 0.25mA max | |
| Energy efficiency | VI | |
| Output | Voltage | Available from 3VDC to 18VDC |
| Current | Available from 10mA to 700mA | |
| Power | 1-3.5W | |
| Load regulation | +/-5% | |
| Hold-up time | 10ms minimun at 115V AC / full load | |
| Connector | DC cable | 2468 2C 6FT or others |
| DC plug | Per customer request | |
| Protections | Short circuit protection | Yes |
| Over voltage protection | Yes | |
| Over current protection | Yes | |
| Envionmental requirements | Operating Temperature | 0-40° C |
| Storage Temperature | -20-80oC | |
| Operating Relative humidity | 10-90% RH | |
| Others | MTBF | 50K hours at 25' C |
| Led indicator | Optional | |
| Size | ||
| Safety Approvals | UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/EMC/FCC | |
| Standards | UL60950-1, IEC/EN60950-1, AS/NZS60950-1, J60950, FCC part 15 class B | |
| Compliance | RoHS, PAHS, REACH, WEEE | |
Company Brief Introduction:
Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.
Our standard products cover the full range items,
from 0.5W to 120W output power,
safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.
Seanen, your reliable power partner.
