36W 24W UK Plug External Universal 5V 9V 8V SMPS 12V Single Output AC DC Adapter 24V Wall Transformer 36V 12volt Medical Grade Switching Mode Power Supply Unit
36W 24W UK Plug External Universal 5V 9V 8V SMPS 12V Single Output AC DC Adapter 24V Wall Transformer 36V 12Volt Medical Grade Switching Mode Power Supply UnitFeatures: 100-240VAC Universal Input 2 x MOPP Compliance, IEC/EN60601-1 Approval LPS Compliance Protections: Short circuit / Over voltage ......
Send Inquiry
Product Description
Features:
Product Specification:
•Power range: 16~36W
•Universal AC input 100 to 240 VAC
•Frequency: 50 to 60Hz
•AC plug:U: USA, E: EU, K: UK, A:SAA
•Output voltage available from 5 to 48 VDC
•Safety: UL/cUL UL60601, TUV EN60601,CB 60601, CE, FCC
•All models meet RoHS and WEEE
•Dimensions (L x W x H): 76L x 43W x 30H (mm)
•Weight:200 grams
Application:
For Diagnostic equipment and systems
For Therapy equipment and systems
For Monitoring and display
For Home patient care
For Surgical devices
For Medical printers
For Biolife science
For X-ray

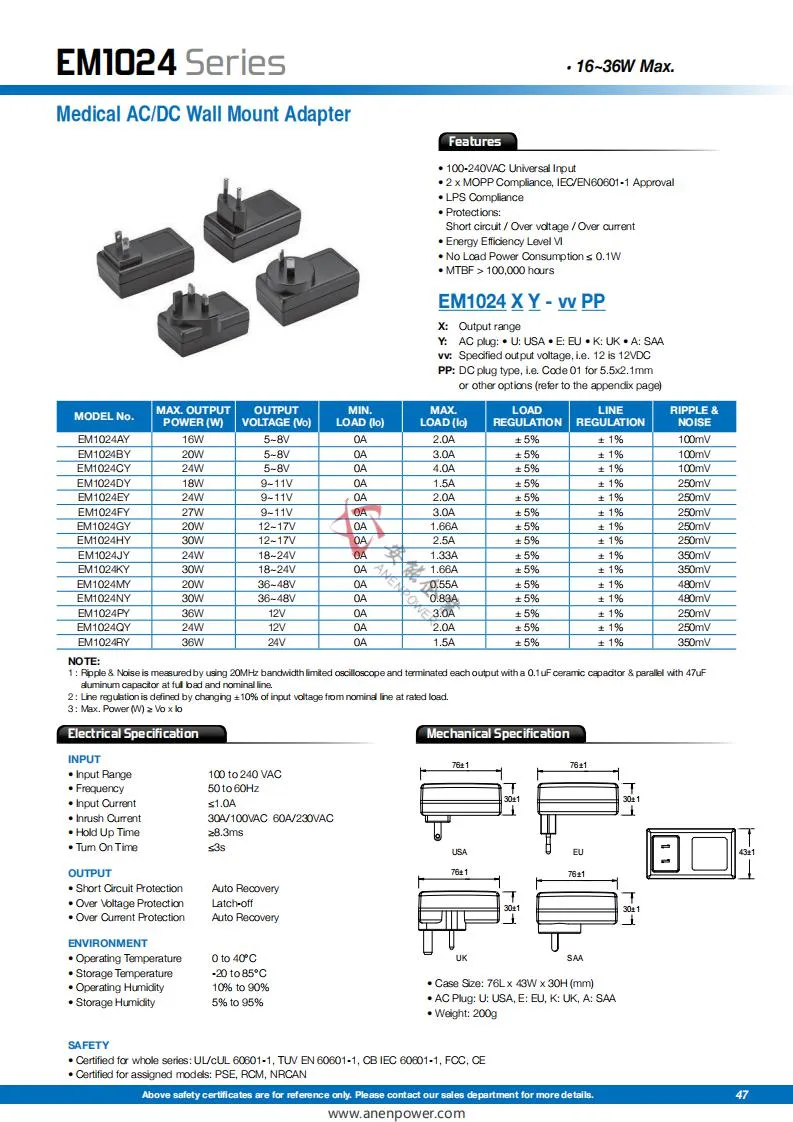

| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| EM1024AR | 16W | 5-8V | 0A | 2.0A | ±5% | ±1% | 100mV |
| EM1024BR | 20W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| EM1024CR | 18W | 5-8V | 0A | 4.0A | ±5% | ±1% | 100mV |
| EM1024DR | 24W | 9-11V | 0A | 1.5A | ±5% | ±1% | 250mV |
| EM1024ER | 27W | 9-11V | 0A | 2.0A | ±5% | ±1% | 250mV |
| EM1024FR | 20W | 9-11V | 0A | 3.0A | ±5% | ±1% | 250mV |
| EM1024GR | 30W | 12-17V | 0A | 1.66A | ±5% | ±1% | 250mV |
| EM1024HR | 24W | 12-17V | 0A | 2.5A | ±5% | ±1% | 250mV |
| EM1024JR | 30W | 18-24V | 0A | 1.33A | ±5% | ±1% | 350mV |
| EM1024KR | 30W | 18-24V | 0A | 1.66A | ±5% | ±1% | 350mV |
| EM1024MR | 20W | 36-48V | 0A | 0.55A | ±5% | ±1% | 480mV |
| EM1024NR | 30W | 36-48V | 0A | 0.83A | ±5% | ±1% | 480mV |
| EM1024PR | 36W | 12V | 0A | 3.0A | ±5% | ±1% | 250mV |
| EM1024QR | 24W | 12V | 0A | 2.0A | ±5% | ±1% | 250mV |
| EM1024RR | 36W | 24V | 0A | 1.5A | ±5% | ±1% | 350mV |
Advantages:
1, Custom designed power supply developed and manufactured by us, Our main products including: Medical Power Supplies, Battery Chargers, Switching Power Supplies, AC/DC Adapters, LED Power Supplies, USB-C PD Chargers, etc.
2, Strictly following ISO 9001 & ISO 14001 quality management systems & ERP system.
3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.
4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.
5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.
6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.
FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.
2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.
3. What's your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.
4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it's usually in a week.
5. What's your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong
6. How long is the warranty?
It's 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.
Contact Us:
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us.
