Home > Products > Power Adaptor > 25W Series AC Adapter with UL/cUL/GS/CE/CB/C-Tick/CCC/PSE/FCC Approval

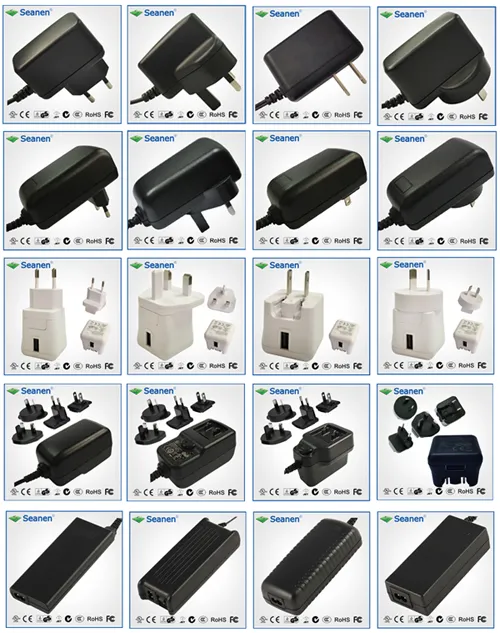

25W Series AC Adapter with UL/cUL/GS/CE/CB/C-Tick/CCC/PSE/FCC Approval
25W Series AC Adapter with UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC approvalAC Adapter1) High quality, High efficiency, extra safe design2) I/P: 100-240VAC 50/60Hz, O/P: 3-24V, 0.1-8A, 1-120W3) RoHS, REACH, PAHs compliant4) UL, GS, CE, C-TICK, PSE, FCC approved5) Energy efficiency: CEC VIAC adapter 25W s......
Send Inquiry
Product Description
25W Series AC Adapter with UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC approval
AC Adapter
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 3-24V, 0.1-8A, 1-120W
3) RoHS, REACH, PAHs compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved
5) Energy efficiency: CEC VI
AC adapter 25W series Specification
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 3VDC to 24VDC
4) Output current: Available from 50mA to 4A
5) Output power: 30W max
6) RoHS, PAHs, REACH, WEEE compliant
7) 6P, NP available
8) Energy efficiency: V (CEC, EUP, ERP, MEPS)
9) Input current: 0.8A Max 120/240VAC
10) Inrush current: 30A Max 120VAC at max load, 60A Max 240VAC at max load
11) Leakage Current: 0.25mA max
12) Load regulation: ± 5%
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 93*47*34.2mm
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
Company Brief Introduction:
Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.
Our standard products cover the full range items,
from 0.5W to 120W output power,
safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.
Seanen, your reliable power partner.
AC Adapter
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 3-24V, 0.1-8A, 1-120W
3) RoHS, REACH, PAHs compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved
5) Energy efficiency: CEC VI
AC adapter 25W series Specification
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 3VDC to 24VDC
4) Output current: Available from 50mA to 4A
5) Output power: 30W max
6) RoHS, PAHs, REACH, WEEE compliant
7) 6P, NP available
8) Energy efficiency: V (CEC, EUP, ERP, MEPS)
9) Input current: 0.8A Max 120/240VAC
10) Inrush current: 30A Max 120VAC at max load, 60A Max 240VAC at max load
11) Leakage Current: 0.25mA max
12) Load regulation: ± 5%
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 93*47*34.2mm
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
| SPECIFICATION | ||
| Input | Input voltage | 90-264VAC |
| Frequency range | 47-63Hz | |
| Inrush current | 50A Max, 120VAC at max load, 80A Max 240VAC at max load | |
| Leakage Current | 0.25mA max | |
| Energy efficiency | VI | |
| Output | Voltage | Available from 5VDC to 24VDC |
| Current | Available from 50mA to 4A | |
| Power | 1-25W | |
| Load regulation | +/-5% | |
| Hold-up time | 10ms minimun at 115V AC / full load | |
| Connector | DC cable | 2468 2C 6FT or others |
| DC plug | Per customer request | |
| Protections | Short circuit protection | Yes |
| Over voltage protection | Yes | |
| Over current protection | Yes | |
| Envionmental requirements | Operating Temperature | 0-40° C |
| Storage Temperature | -20-80oC | |
| Operating Relative humidity | 10-90% RH | |
| Others | MTBF | 50K hours at 25' C |
| Led indicator | Optional | |
| Size | ||
| Safety Approvals | UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/EMC/FCC | |
| Standards | UL60950-1, IEC/EN60950-1, AS/NZS60950-1, J60950, FCC part 15 class B | |
| Compliance | RoHS, PAHS, REACH, WEEE | |
Company Brief Introduction:
Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.
Our standard products cover the full range items,
from 0.5W to 120W output power,
safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.
Seanen, your reliable power partner.
