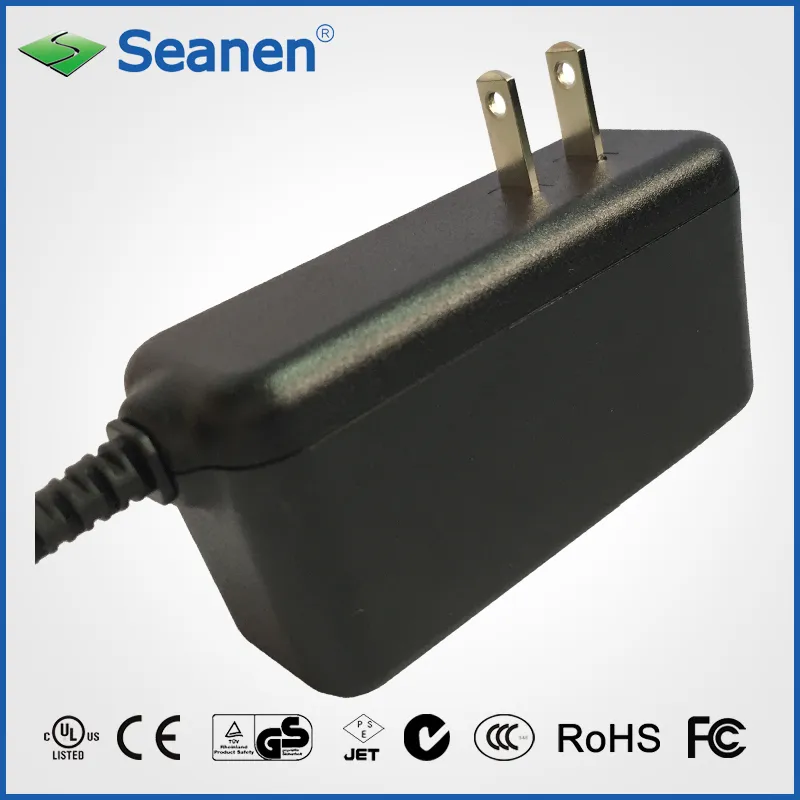

24W Us Power Adapter (RoHS, efficiency level VI)
24W US Power Adapter1) High quality, High efficiency, extra safe design2) I/P: 100-240VAC 50/60Hz, O/P: 9-24V, 0.1-2.5A, 1-24W3) RoHS, REACH, PAHs, CEC VI compliant4) UL, GS, CE, C-TICK, PSE, FCC approvedSpecification1) Rated Input: 100-240V AC, 50/60Hz2) Operating range: 90-264V AC, 47-63Hz3) Outp......
Send Inquiry
Product Description
24W US Power Adapter
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 9-24V, 0.1-2.5A, 1-24W
3) RoHS, REACH, PAHs, CEC VI compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved
Specification
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 9VDC to 24VDC
4) Output current: Available from 10mA to 2.5A
5) Output power: 24W max
6) Power consumption (no loading):Max. 0.1W
7) RoHS, PAHs, REACH, WEEE compliant
8) 6P, NP available
9) Energy efficiency: VI
10) Ripple and noise: 150 mVp-p Max
11) Inrush current: 50A Max, 120VAC at max load, 80A Max 240VAC at max load
12) Power consumption (no loading): 0.1W Max
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 89*33*44.5mm (L*W*H)
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 9-24V, 0.1-2.5A, 1-24W
3) RoHS, REACH, PAHs, CEC VI compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved
Specification
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 9VDC to 24VDC
4) Output current: Available from 10mA to 2.5A
5) Output power: 24W max
6) Power consumption (no loading):Max. 0.1W
7) RoHS, PAHs, REACH, WEEE compliant
8) 6P, NP available
9) Energy efficiency: VI
10) Ripple and noise: 150 mVp-p Max
11) Inrush current: 50A Max, 120VAC at max load, 80A Max 240VAC at max load
12) Power consumption (no loading): 0.1W Max
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 89*33*44.5mm (L*W*H)
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
| SPECIFICATION | ||
| Input | Input voltage | 90-264VAC |
| Frequency range | 47-63Hz | |
| Inrush current | 50A Max, 120VAC at max load, 80A Max 240VAC at max load | |
| Power consumption (no loading) | 0.1W max | |
| Energy efficiency | VI | |
| Output | Voltage | Available from 9VDC to 24VDC |
| Current | Available from 10mA to 2.5A | |
| Power | 1-24W | |
| Load regulation | +/-5% | |
| Hold-up time | 7ms minimun at nominal input AC voltage and full load | |
| Ripple and noise | 150 mVp-p Max | |
| Connector | DC cable | 2468 2C 6FT or others |
| DC plug | Per customer request | |
| Protections | Short circuit protection | Yes |
| Over voltage protection | Yes | |
| Over current protection | Yes | |
| Envionmental requirements | Operating Temperature | 0-40° C |
| Storage Temperature | -20-80oC | |
| Operating Relative humidity | 10-90% RH | |
| Others | MTBF | 50K hours at 25' C |
| Led indicator | Optional | |
| Size | 89*33*44.5mm(L*W*H) | |
| Safety Approvals | UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/EMC/FCC | |
| Standards | UL60950-1, IEC/EN60950-1, AS/NZS60950-1, J60950, FCC part 15 class B | |
| Compliance | RoHS, PAHS, REACH, WEEE | |
