China Waterproof Type Lpv 150W SMPS 15V DC Switching Power Supply

Product Description

150W Waterproof 15V SMPS LPV-150W-15V LED Switching Power Supply

Lpv30W Waterproof Type 24V 30W LED Switching Power Supply SMPS

Feature:

1. Low price and high reliability of LED switching power supply
2.105 degree output capacitor
3. AC input power suitable for the world
4. High efficiency and low operation temperature
5. Soft-start current can reduce the AC input impact effecticly
6. Compact size, light weight
7.100% full-load bum-in test
8.24hours testing
9. Installed with EMI filter, minimum wave.
10. Waterproof level: IP67
Size: 240*69*43mm 20pcs/ctn 1.2kg

Details

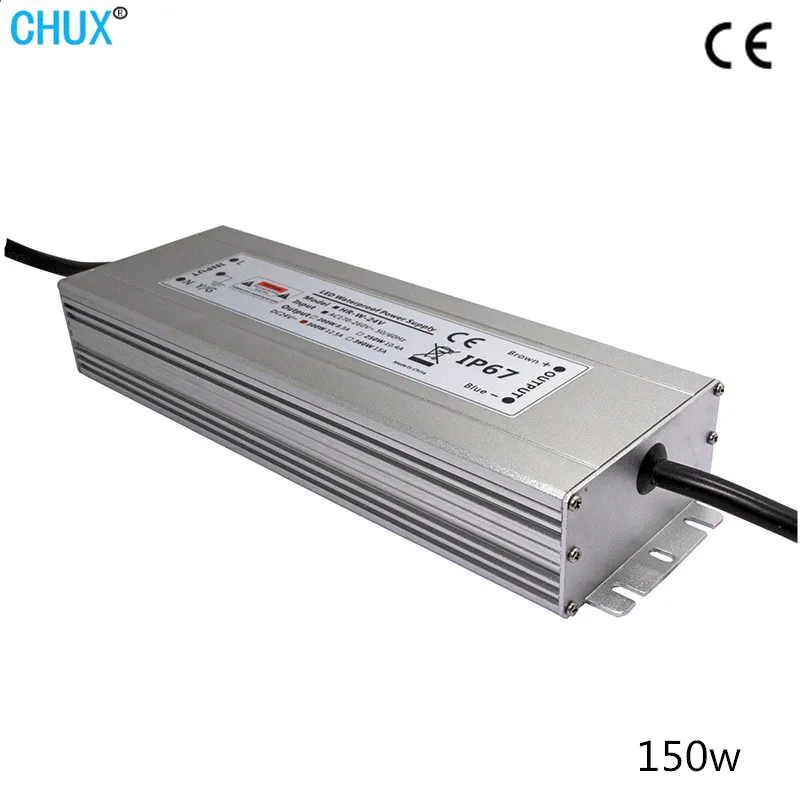

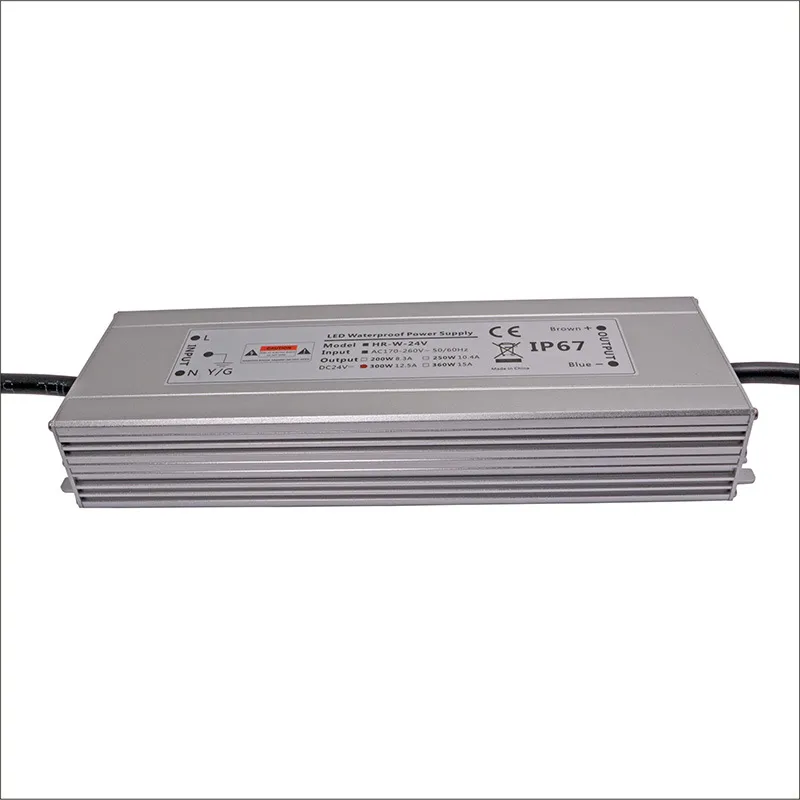

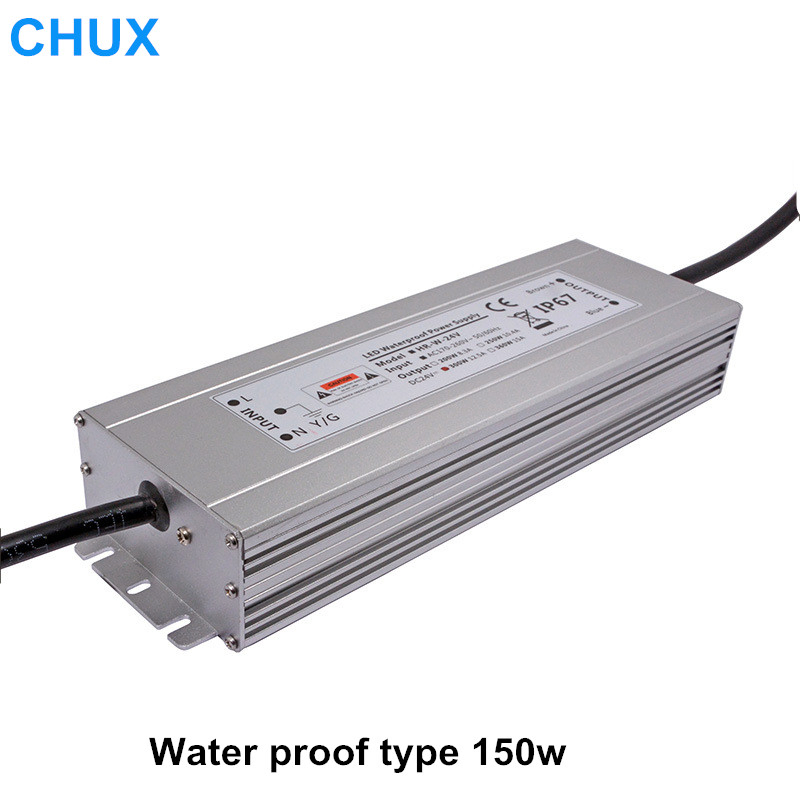

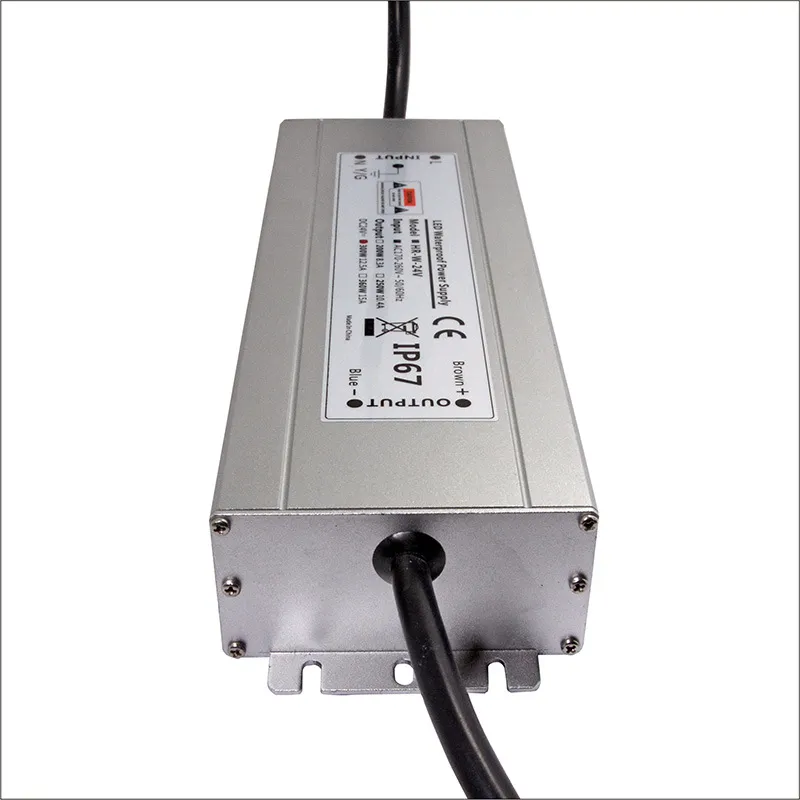

LPV-150W LED driver water-proof power supply
Model NO.	OUTPUT	Tolerance	range	efficiency
LPV-150-12	12V, 0-12.5A	± 1%	150mV	85%
LPV-150-15	15V, 0-10.0A	± 1%	150mV	86%
LPV-150-24	24V, 0-6.25A	± 1%	150mV	87%
LPV-150-48	48V, 0-3.1A	± 1%	150mV	88%
AC input voltage range		170-260vac 47-63hz
input current		1.6A/230V
AC inrush current		Cold-start current 60A/230V
Leakage current		< 3.5mA/240VAC
DC adjustable range		± 10% rated output voltage
Over load protection		105-150%cut down output, auto-recovery
Water-proof degree		IP67
set up, rise, hold up time:		200ms, 50ms 20ms
withstand voltage:		I/P-O/P: 1.5KVAC 1Minutes I/P-FG: 1.5KVAC 1MInutes O/P-FG: 0.5VAC 1minutes
working temperature		-20~+60° C, 20-90%RH
weight/packing:		1.37kg
Size		2406843MM
certificate		CE ISO9001 ROHS
Warranty year		1 year

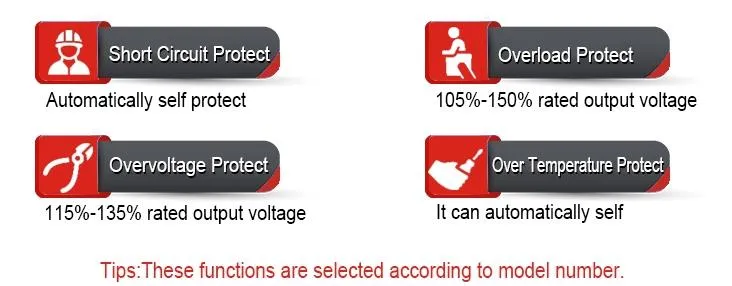

Protections		Short circuit / Over load / Over voltage
