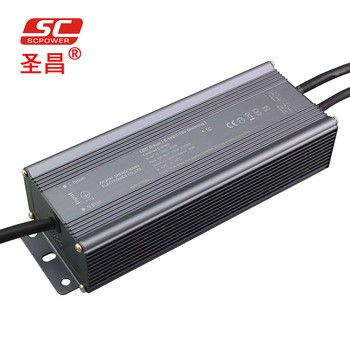

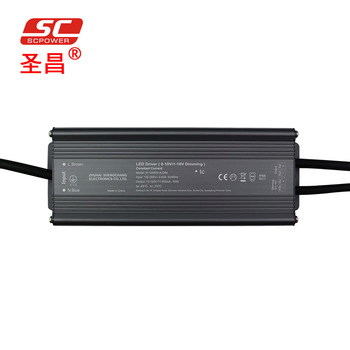

Waterproof LED Driver IP67 0-10V 1-10V Dimming 85V 700mA 60W Power Supply for LED Strip

Product Description

waterproof led driver ip67 0-10V 1-10V DIMMING 85v 700ma 60w power supply for led strip

Feature

· Output constant current

· Universal AC input:100-265VAC

· Built-in active PFC function

· High efficiency up to 86%

· Protections:Short circuit/Over current/Over loading

· Cooling by free air convection

· IP66 design for indoor or outdoor installation

· Class 1 power unit

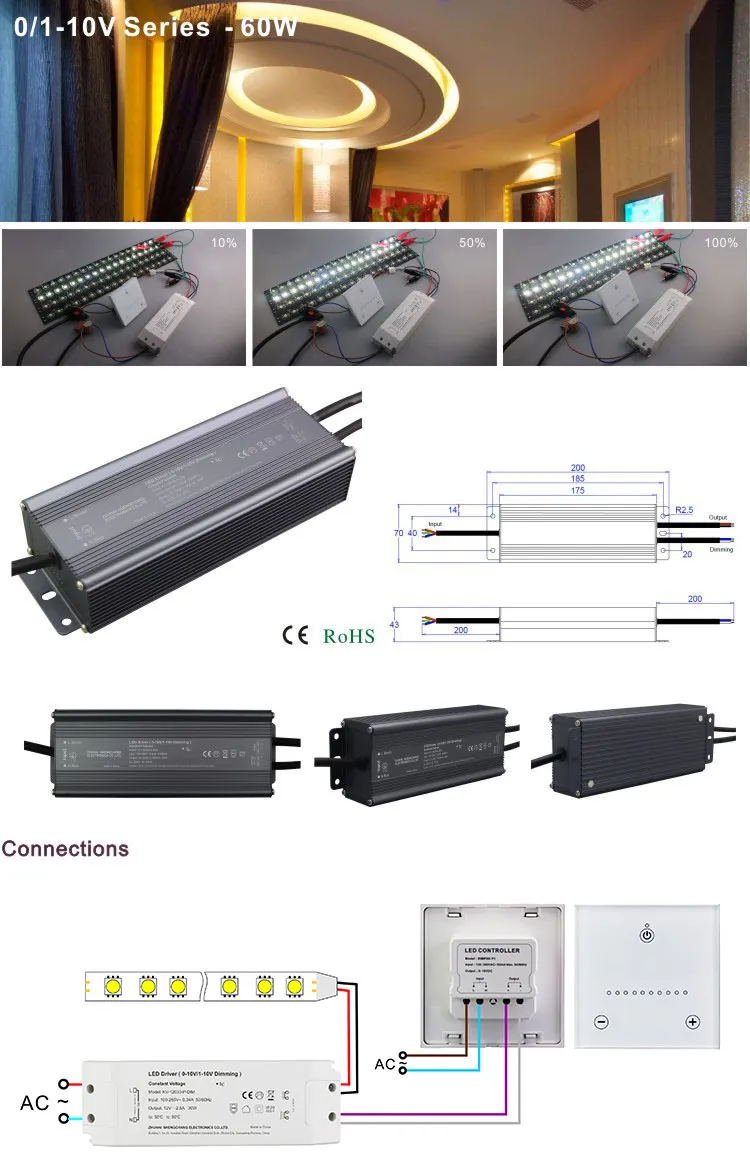

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)

· Dimming range: 0-100%

· Suitable for LED lighting and moving sign applications

· Compliance to worldwide safety regulations for lighting

· Three years warranty

Specification

Model		KI-120500-A-DIM	KI-85700-A-DIM	KI-70900-A-DIM	KI-601050-A-DIM
Output	DC Current	500mA	700mA	900mA	1050mA
	Current Tolerance	±5%
	Output voltage range	72-120V	51-85V	42-70V	36-60V
	Rated power	60W	59.5W	63W	63W
	Open circuit voltage(Max)	125V	90V	75V	65V
Input	Voltage Range	100~265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.95/120VAC PF≥0.90/230VAC PF≥0.85/265VAC(Full loading)
	Efficiency(Typ.)	86%	86%	86%	86%
	AC Current(Max.)	0.63A	0.63	0.66A	0.66A
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Loading	≤120%
	Over temperature	100ºC±10ºC, Shut down o/p voltage, recovers automatically after temp. goes down.
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry Level Criteria A
Others	Net.Weight	0.95Kg
	Size	2007043mm(LWH)
	Packing	310240165mm 10PCS /CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. 2. Tolerance:includes set up tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
