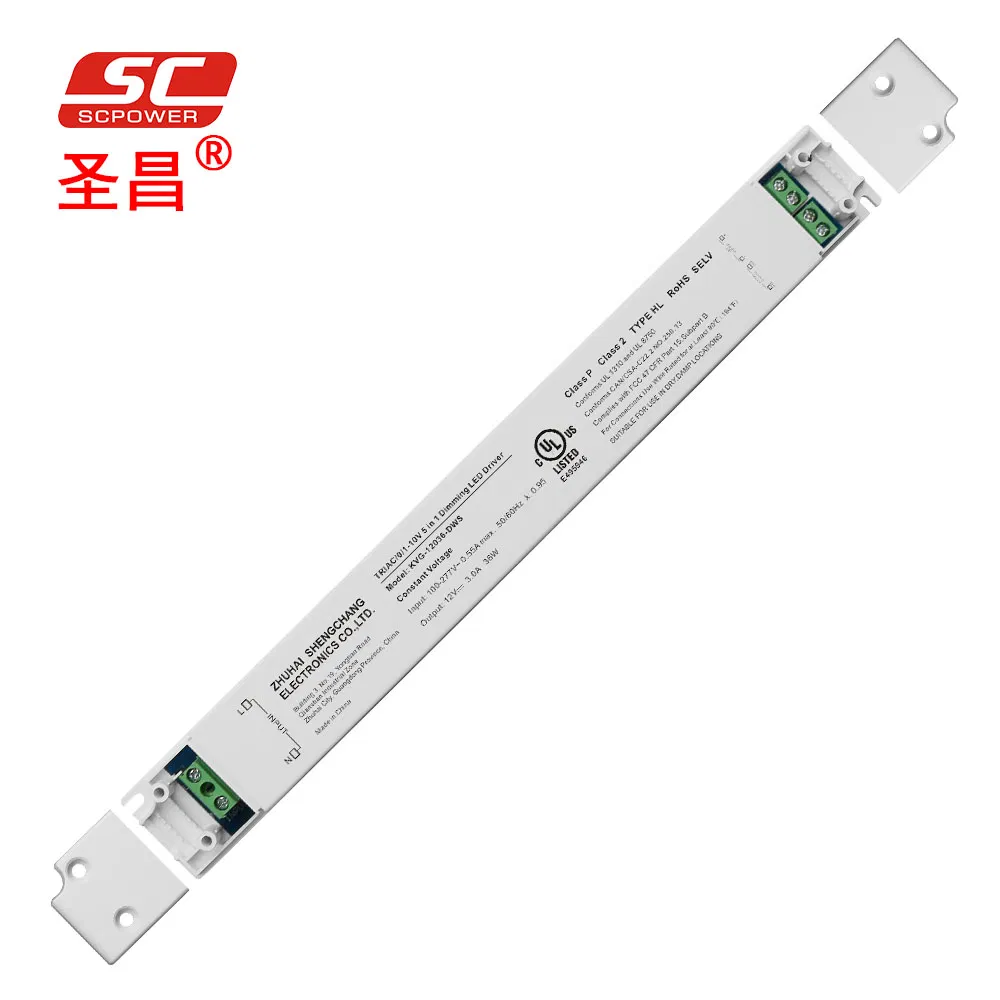

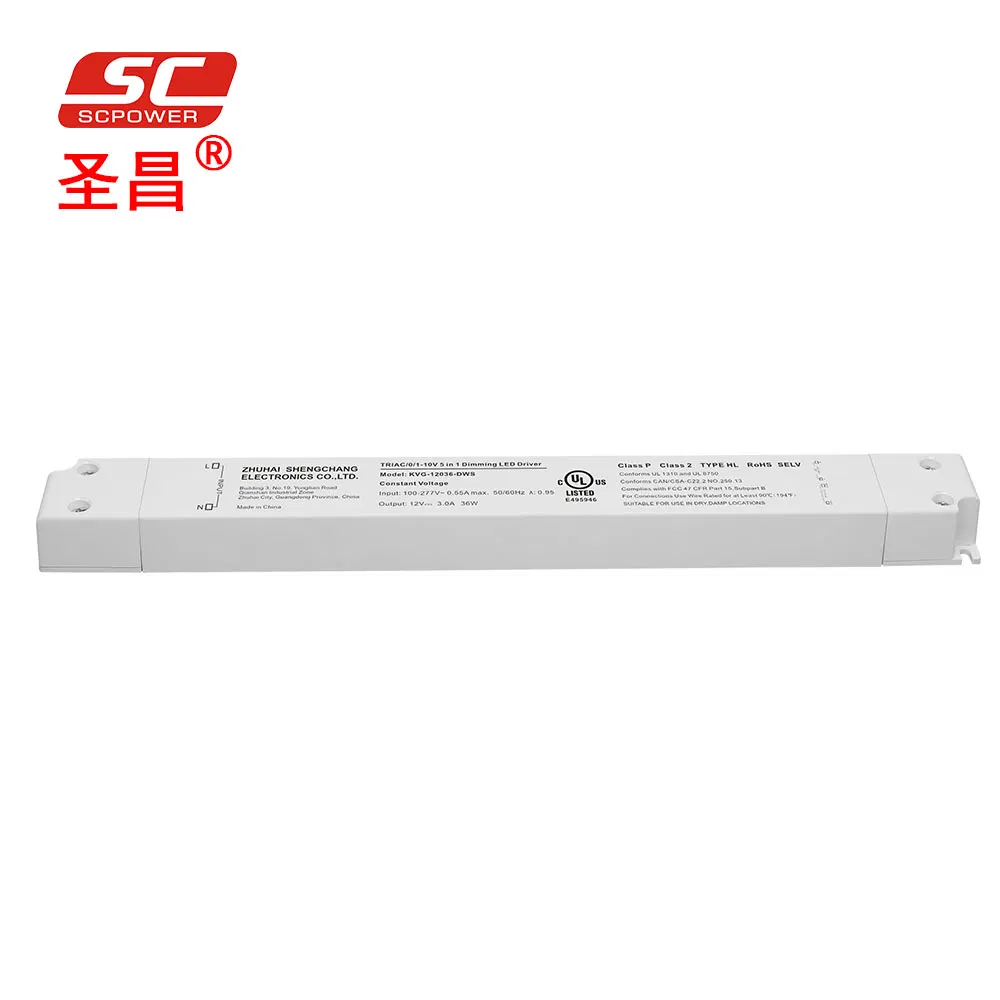

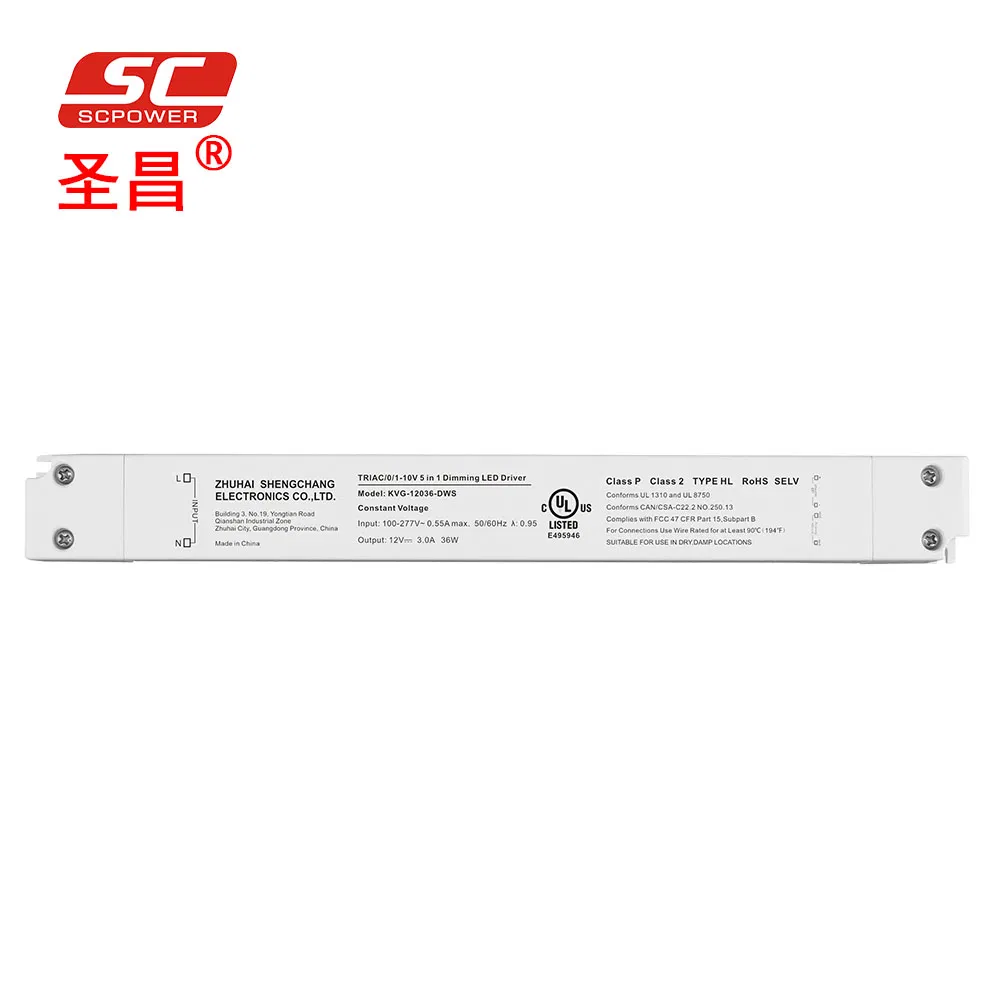

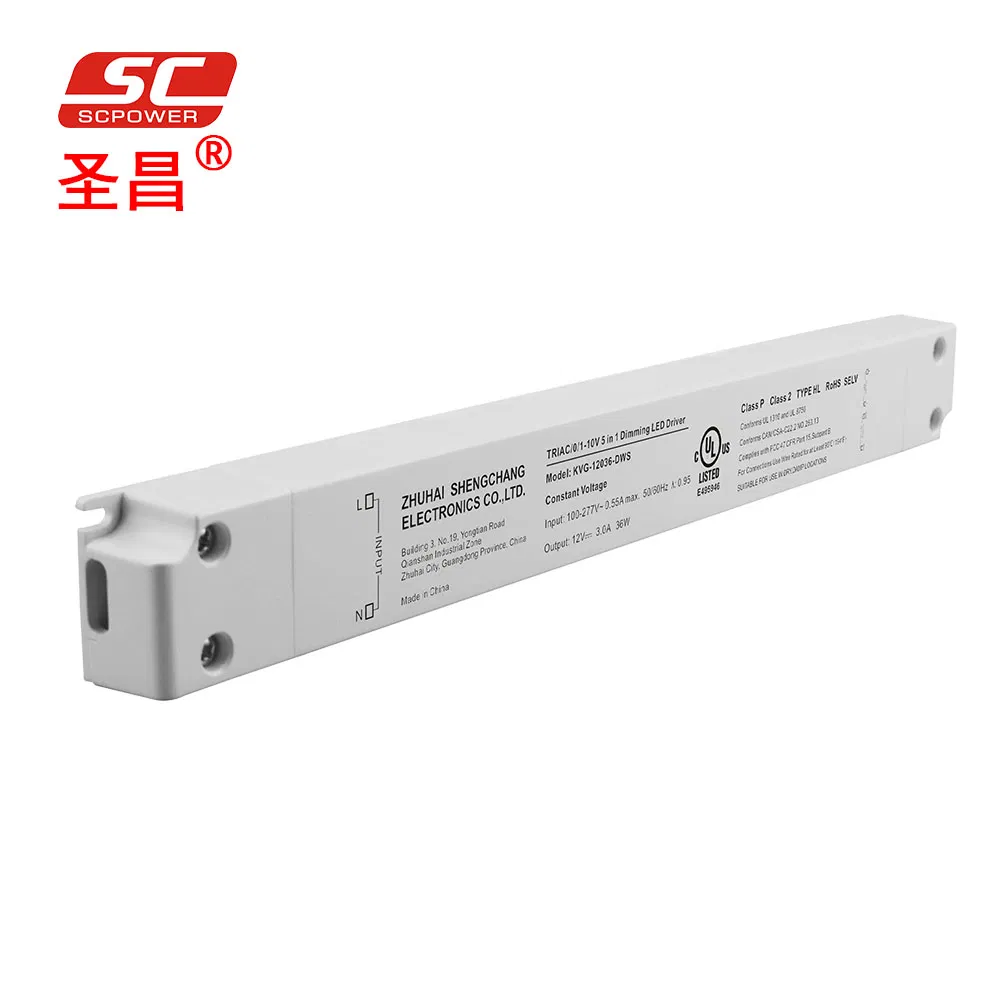

UL cUL FCC Class 2 36W LED Driver 3A Output LED Mirror 24V Driver Triac 0-10V Dimmable LED Driver

Product Description

UL cUL FCC Class 2 36w led driver 3a output Led Mirror 24v driver triac 0-10v dimmable led driver

Feature

··Output constant Voltage
·Range: 100-277VAC
·Built-in active PFC function
·Efficiency up to 80%
·Protections: short circuit/over load/ over temperature
·Cooling by free air convection
·Full protection plastic housing, for dry, damp location
·Dimming function:
·Phase dimming: work with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Dimming range: 0-100%
· Suitable for LED lighting and moving sign applications

Specification

Model		KVG-12036-DWS	KVG-24036-DWS
Output	DC Voltage	12V	24V
	Voltage Tolerance	±0.5V
	Voltage Regulation	±0.5%
	Rated current	3A	1.5A
	Rated power	36W
	Load Regulation	±1%
Input	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor(Typ.)@ full load	0.99@120VAC 0.98@277VAC
	THD(Typ. ) @ full load	<10%@120VAC <15%@277VAC
	Efficiency(Typ.)@ full load	79%@120VAC 80%@277VAC
	AC Current(Max.)	0.55A	0.55A
	Inrush Current (Typ.)	13A
	Leakage current	<0.5mA
Protection	Short Circuit	120VAC Hiccup mode,recovers automatically after fault condition is removed 277AVC shut down o/p voltage, re-power on to recover after fault condition removed
	Over Load	≤120% Hiccup mode,recovers automatically after fault condition is removed
	Over temperature	100ºC±10ºC shut down o/p voltage, automatically recover after cooling.
Environment	Working TEMP.	-40~+60ºC (see below derating curve)
	Working Humidity	20 - 95%RH,non-condensing
	Storage TEM.,Humidity	-40 - +80ºC,10 - 95%RH
	TEMP.coefficient	±0.03%/ºC(0 - 50ºC)
	Vibration	10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC	Safety standards	UL8750 +UL1310,CAN/CSA-C22.2 No.250.13
	Withstand voltage	I/P-O/P:1.88KVac
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25ºC/70%RH
	EMC Emission	FCC 47 CFR Part 15 ,Subpart B
Others	Net Weight	0.35Kg

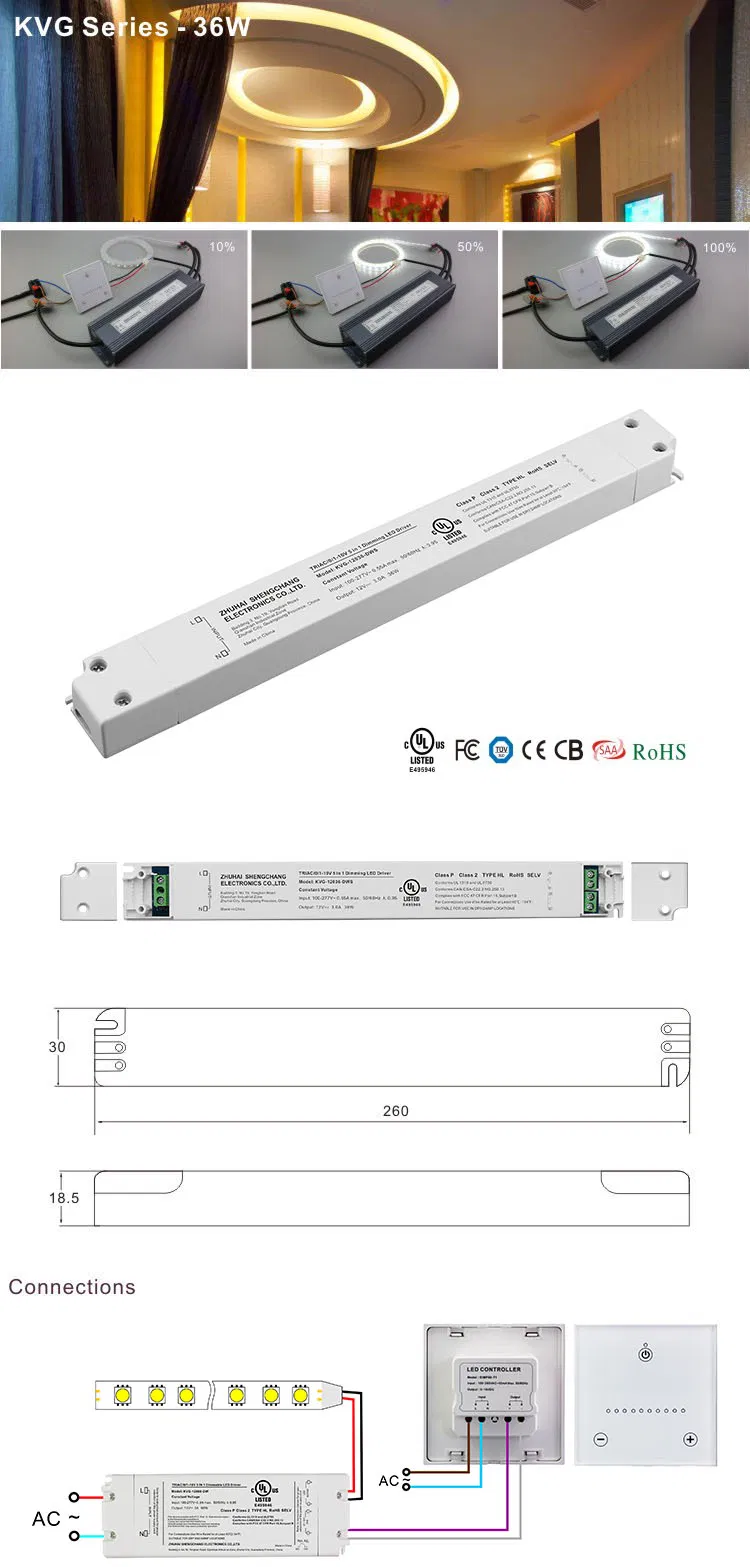

	Dimension	2603018.5mm(LWH)
	packing	330270130mm 50pcs /CTN
Notes	All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25ºCof ambient temperature. Tolerance: includes set up tolerance, line regulation and load regulation . The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
