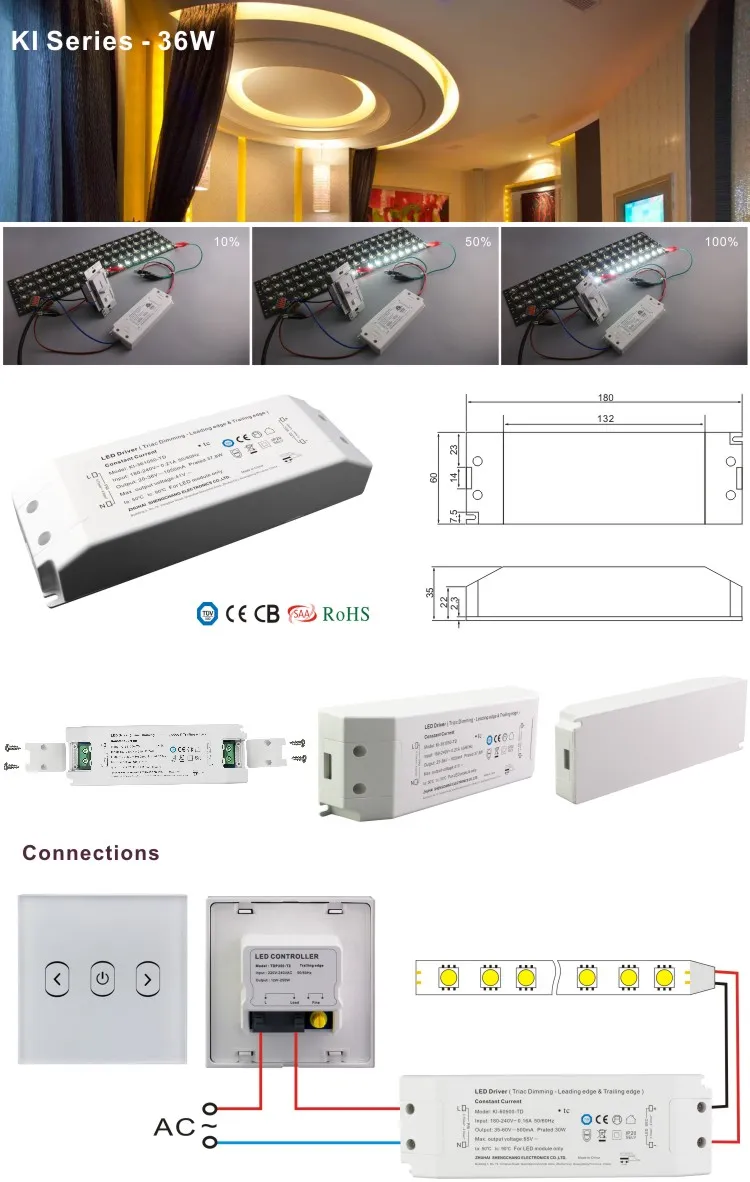

Triac Dimming LED Transformer 230VAC to 36V DC 38W 1050mA Constant Current LED Driver for LED Pendant Light
Product DescriptionTriac Dimming LED Transformer 230VAC to 36V DC 38W 1050mA Constant Current LED Driver for led pendant lightFeature ·Output constant Current ·Range AC input :180-240VAC ·Built-in active PFC function ·Efficiency up to 86% &middo......
Send Inquiry
Product Description
Triac Dimming LED Transformer 230VAC to 36V DC 38W 1050mA Constant Current LED Driver for led pendant light
Feature
·Output constant Current
·Range AC input :180-240VAC
·Built-in active PFC function
·Efficiency up to 86%
·Protections:short circuit/over loading/over voltage
·Full protection plastic housing easy installation
·IP20 design for indoor installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
· Suitable for LED lighting and moving sign applications
·Suitable for dry locations
Specification
Model | KI-55700-TD | KI-42900-TD | KI-42830-TD | KI-361050-TD | KI-251400-TD | KI-201750-TD | |
Output | Rated current | 700mA | 900mA | 830mA | 1050mA | 1400mA | 1750mA |
Current Tolerance | ±5% | ||||||
Voltage Range | 30-55V | 25-42V | 25-42V | 20-36V | 15-25V | 12-20V | |
Rated power | 38.5W | 37.8W | 34.86W | 37.8W | 35W | 35W | |
Input | Voltage Range | 180-240VAC | |||||
Frequency Range | 47-63HZ | ||||||
Power Factor | PF≥0.95/180VAC PF≥0.92/230VAC PF≥0.92/240VAC(Full loading) | ||||||
Full Load Efficiency(Typ.) | 86% | 86% | 86% | 86% | 85% | 85% | |
AC Current(Max.) | 0.27A | 0.26A | 0.24A | 0.26A | 0.25A | 0.25A | |
Leakage current | <0.50mA | ||||||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |||||
Over Load | ≤120% | ||||||
Protection Class: | II | ||||||
Others | Net.Weight | 0.45KG | |||||
Size | 180*60*35mm(L*W*H) | ||||||
packing | 185*65*45mm(inner box) 355*215*215mm/20 pcs /CTN | ||||||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºCof ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again | ||||||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
