Sc Ki- 70900 -Td LED Driver IP66 60W 900mA

Product Description

SC KI-70900-TD LED Driver ip66 60W 900MA

Feature

·Output constant Current

·Range AC input :180-240VAC

·Built-in active PFC function

·Efficiency up to 86%

·Range AC input :180-240VAC

·Built-in active PFC function

·Efficiency :up to 86%

·Protections:short circuit/over loading/over voltage over temperature

·Full protection aluminum housing easy installation

·IP66 design for outdoor installation

·Cooling by free air convection

·Work with leading edge and trailing edge TRIAC dimmers

·Suitable for LED lighting and moving sign applications

Specification

Model		KI-421400-TD	KI-361750-TD
Output	Rated current	1400mA	1750mA
	Current Tolerance	±5%
	Voltage Range	25-42V	20-36V
	Rated power	58.8W	63W
Input	Voltage Range	180-240VAC
	Frequency Range	47-63HZ
	Power Factor	PF≥0.95/180VAC PF≥0.92/230VAC PF≥0.92/240VAC(Full loading)
	Full Load Efficiency(Typ.)	86%	86%
	AC Current(Max.)	0.42A	0.46A
	Leakage current	<0.50mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Load	≤120%
	Over Voltage	≤47V	≤41V
	Protection Class:	I
	Over temperature	100ºC±10ºCshut down o/p voltage ,re-power on to recover
Others	Net.Weight	0.95 Kg

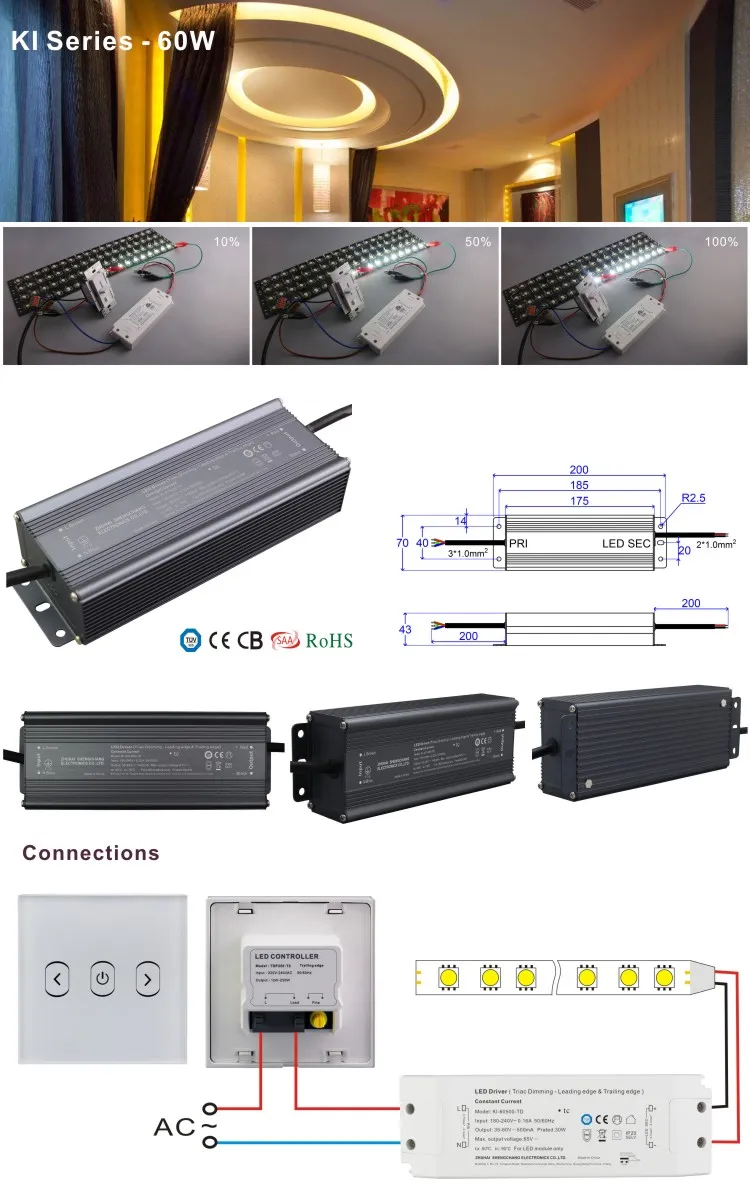

	Size	2007043mm ( LWH)
	packing	2047358mm inner box 310240165mm / 10PCS/ CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºCof ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
