Product Description

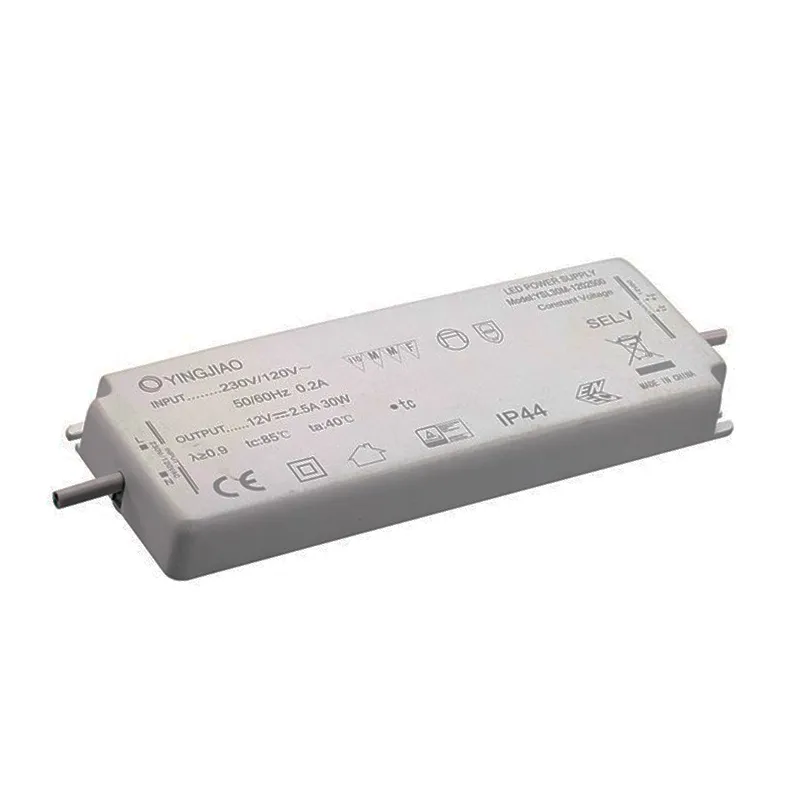

Rainproof Led Lighting Power Supply IP44 Waterproof Led Driver 12V 24V Super Thin/Flat LED Driver Constant Voltage/Current
With the developing of ultra-thin lights especially for mirror lights ,cabinet lights and the other lights in narrow place , a super slim series IP44 led driver come out. We design and devloped a series of super slim IP44 drivers from 6-30W, YSL6M 6W series, YSL12M 12W series, YSL15M 15W series,YSL20M 20W series,YSL30M 30W to satisfy the market demand. Both constant voltage and constant current are available.
Product features:
- YSL30M 30W series
- Universal Input:120/230VAC 50/60HZ
- Compliance to worldwide safety regulations for lighting
- Compliance to ERP Directive
- Isolation class II
- 100 % full load burn-in test
- Approved for installation directly on wood
- High Efficiency&low power consumption
- Short circuit,over current, over voltage protection
- IP44 protection rating
Application:
- LED Cabinet Light
- LED Mirror Light
- LED Ceiling Light
- LED Wardrobe Light
- LED Curtain Wall Light
Constant Voltage Series:
Model: | Power (max) | Input Voltage | Output Voltage | Output Current | PF | Efficiency | L*W*H | IP Rating |
YSL30M-1202500 | 30W | 120/230V AC | 12VDC | 2.5A | ≥0.9 | 88% | 158*51*18mm | IP44 |
YSL30M-2401250 | 30W | 120/230V AC | 24VDC | 1.25A | ≥0.9 | 88% | 158*51*18mm | IP44 |
Constant Current Series:
Model: | Power (max) | Input | Output Voltage | Output current | PF | Effiency | L*W*H | IP Rating |
YSL30M-0420700 | 30W | 120/230V AC | 42.8VDC | 700mA | ≥0.9 | 88% | 158*51*18mm | IP44 |
YSL30M-0301000 | 30W | 120/230V AC | 30VDC | 1000mA | ≥0.9 | 88% | 158*51*18mm | IP44 |
Characterstics:
Max. Output Wattage | 30W |
Input voltage | 120/230V AC |
Frequency(Hz) | 50/60HZ |
Start-up time | <1S |
Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection |
Short Circuit Protection (SCP): | Protection to Zero Voltage |
Over Voltage Protection (OVP): | ≤Vout*150% |
Over Current Protection (OCP): | 110%-180% |
Withstand voltage: | I/P-O/P 3000V |
safety specification: | IEC61347-1,IEC61347-2-13 ,EMI According to EN55015,EMS According to EN61000-3-2; EN61000-3-3; EN61547, EMF According to EN62493-2010,ERP According to EN1194-2012 |
