Product Description

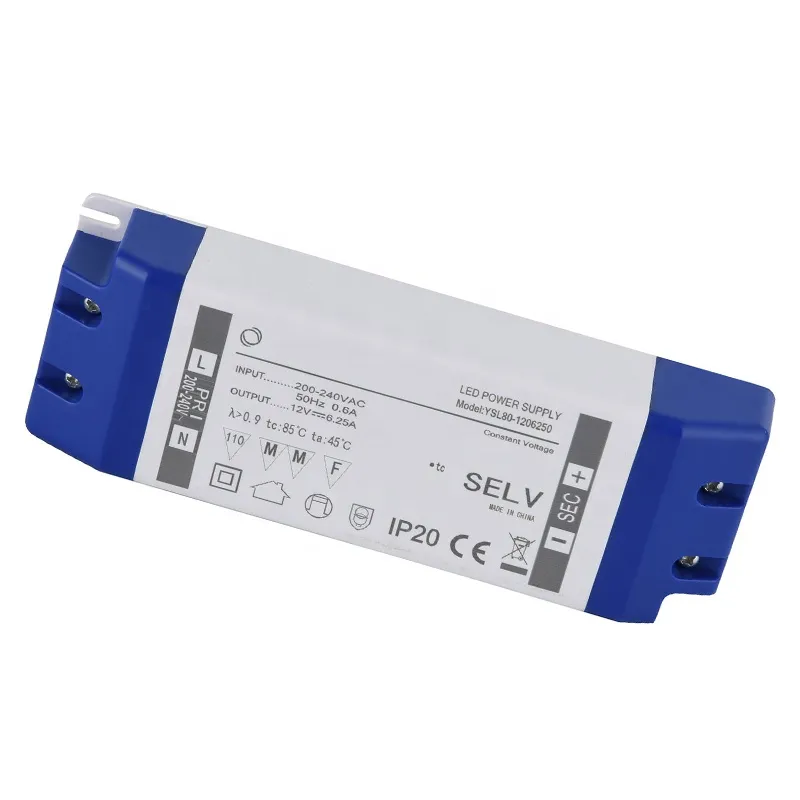

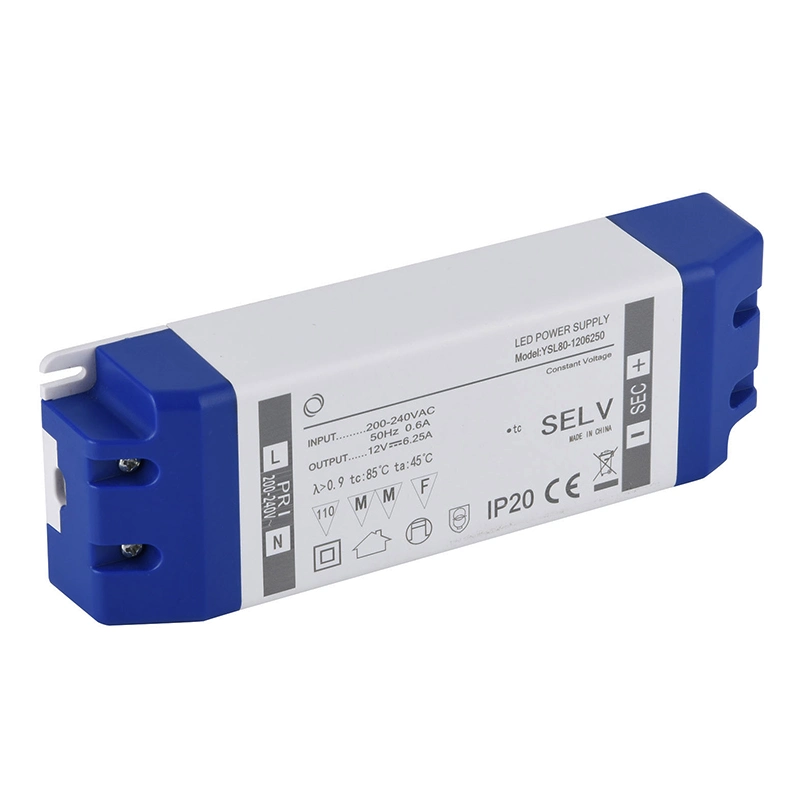

OEM ODM DC Power Supply 80W 36V 24V 12V Constant Voltage 2400mA 2100mA 1400mA 1050mA Constant Current Led Driver

Product Description

Model:	YSL80 constant voltage
Power:	80W max.
Input:	100-240VAC 50/60Hz
Output Voltage:	8-48V
Output Current:	100MA-6600MA
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	2.5mA Max. at 264VAC input
No Load Power Consumption :	<0.5W
Protections:	Short Circuit /Over Current /Over Voltage/over temperature protection
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals:	TUV-GS CB
EMI EMISSION:	Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11
MTBF:	100000 hours minimum at full load at 25 ambient
Life:	3-5 years alternative
Dimension:	1705732mm
Weight:	280g
Packing:	50PCS/CTN,37.53521.5cm

Details:

Model:	YSL80-1206600	YSL80-2403125	YSL80-3602200
DC Voltage:	12V	24V	36V
Rated Current:	6.67A	3.33A	2.22A
Current Range:	0-6.67A	0-3.33A	0-2.22A
Rated Power:	80W	80W	80W
voltage Ripple & Noise(max.):	<1%	<1%	<1%
Voltage Tolerance:	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%
Efficiency:	92%	92%	92%
Setup,Rise time	1 second max./40 MS max.
