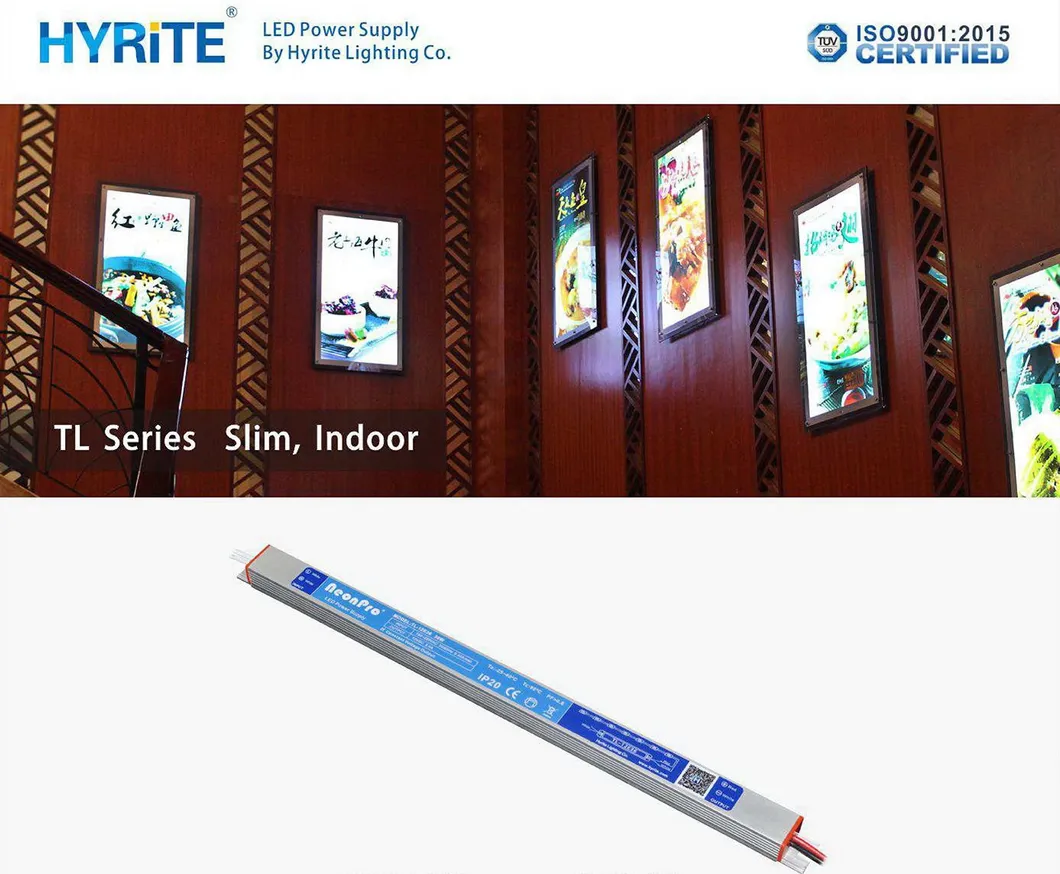

Neonpro Brand Tl Series Slimline IP20 12V 20W Small LED Driver
Hyrite Lighting 20W 24V 220V Slim Size Indoor LED Driver1.Features of LED Driver-Super Slim body,special design for application with narrow space.-Constant Voltage output-For Indoor use only2. Technical Specification of LED DriverModel no.TL-24E20Input voltage185-264VAC 50Hz/60HzMax. power20W maxOut......
Send Inquiry
Product Description
Hyrite Lighting 20W 24V 220V Slim Size Indoor LED Driver
1.Features of LED Driver
-Super Slim body,special design for application with narrow space.
-Constant Voltage output
-For Indoor use only
2. Technical Specification of LED Driver

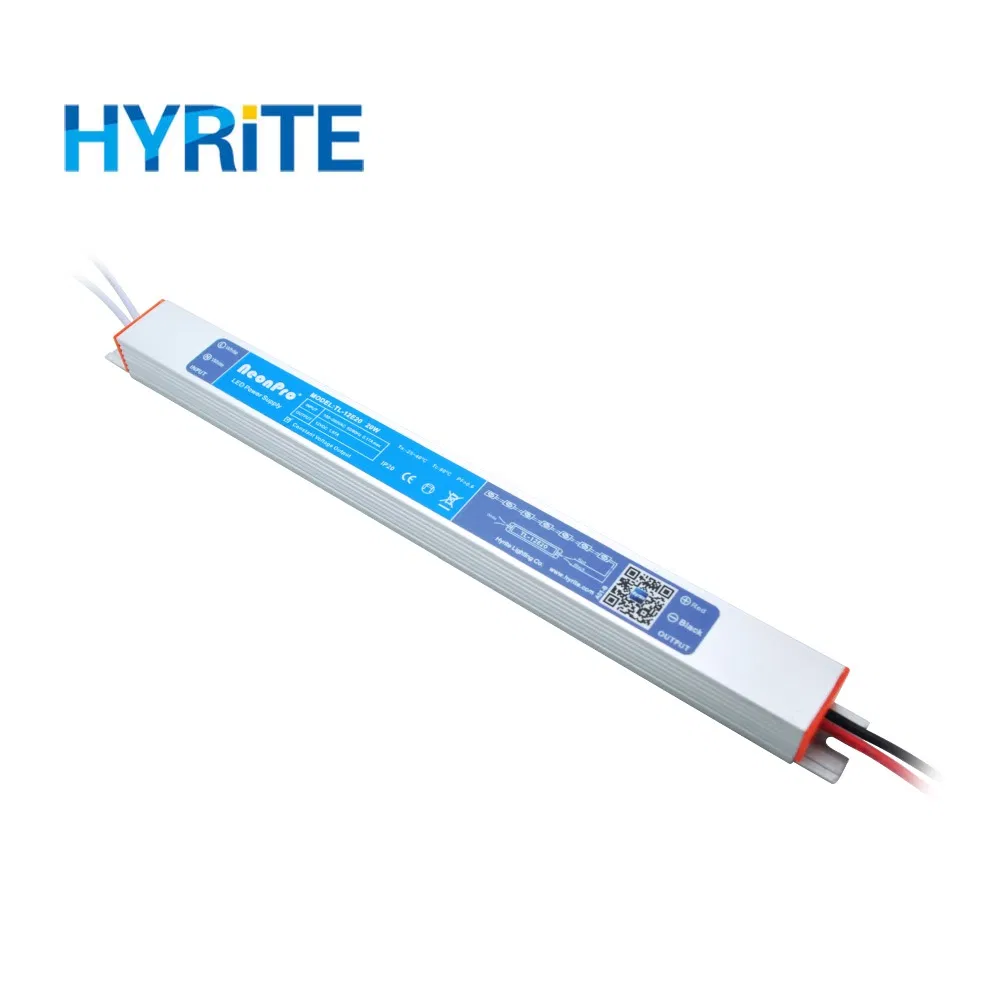

3. Detail pictures of LED Driver
4. Applications for LED Driver
slim LED light box
Display cabinet lighting
5. Factory History
Hyrite lighting company, also known as Neonpro Co. has more than 28 years experience in deigning and manufacturing electronic power supplies.
In the pass years, we successfully created our brand of LED supplies and LED modules.
At the same time, OEM and ODM service can be offered to our partners.
Our company is a Sino-foreign join venture with a 15000 square meter factory in Foshan city, Guangdong province, China and offices in USA .
6. Exhibition

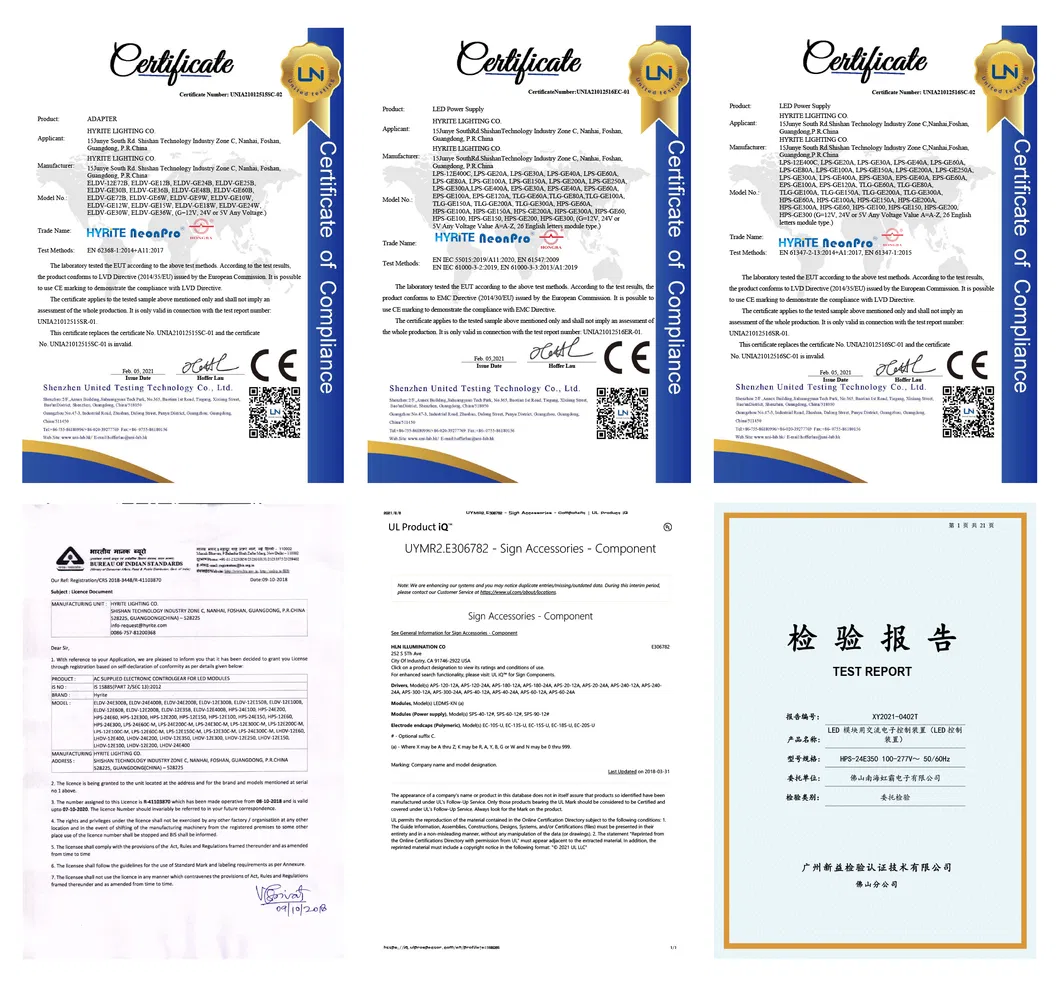

7. Certificates
FAQ
Q1. Can I have a sample order for led power supply?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 15-20 working days.Q3. Do you have any MOQ limit for led power supply order?
Q4. How do you ship the goods and how long does it take to arrive?
Q5. How to proceed an order for led power supply?
Q6. Is it OK to print my logo on led power supply product?
Q7: How to deal with the faulty?
1.Features of LED Driver
-Super Slim body,special design for application with narrow space.
-Constant Voltage output
-For Indoor use only

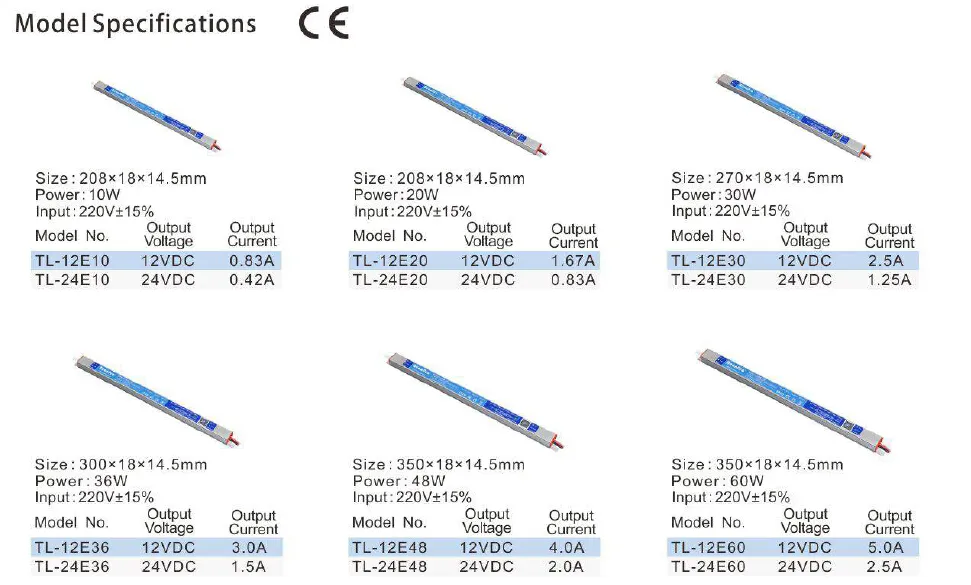

2. Technical Specification of LED Driver
| Model no. | TL-24E20 |
|---|---|
| Input voltage | 185-264VAC 50Hz/60Hz |
| Max. power | 20W max |
| Output type | Constant voltage |
| Efficiency | 75% |
| AC inrush current(max.) | Cold start, 40A@230VAC |
| Output voltage | 24VDC ± 5% |
| Output current | 0.83A max |
| Overload protection | 110-150% hiccup mode, auto-recovery |
| Over voltage protection | 115-150% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -10~+60,100%Pout@0~45, 60%@60 , 80%@-10 |
| Installation | Indoor |
| IP rating | IP 20 |
| Cooling | Free air convection |
| Connection input/output | Terminal |
| Weight(kg) | 0.2000 |

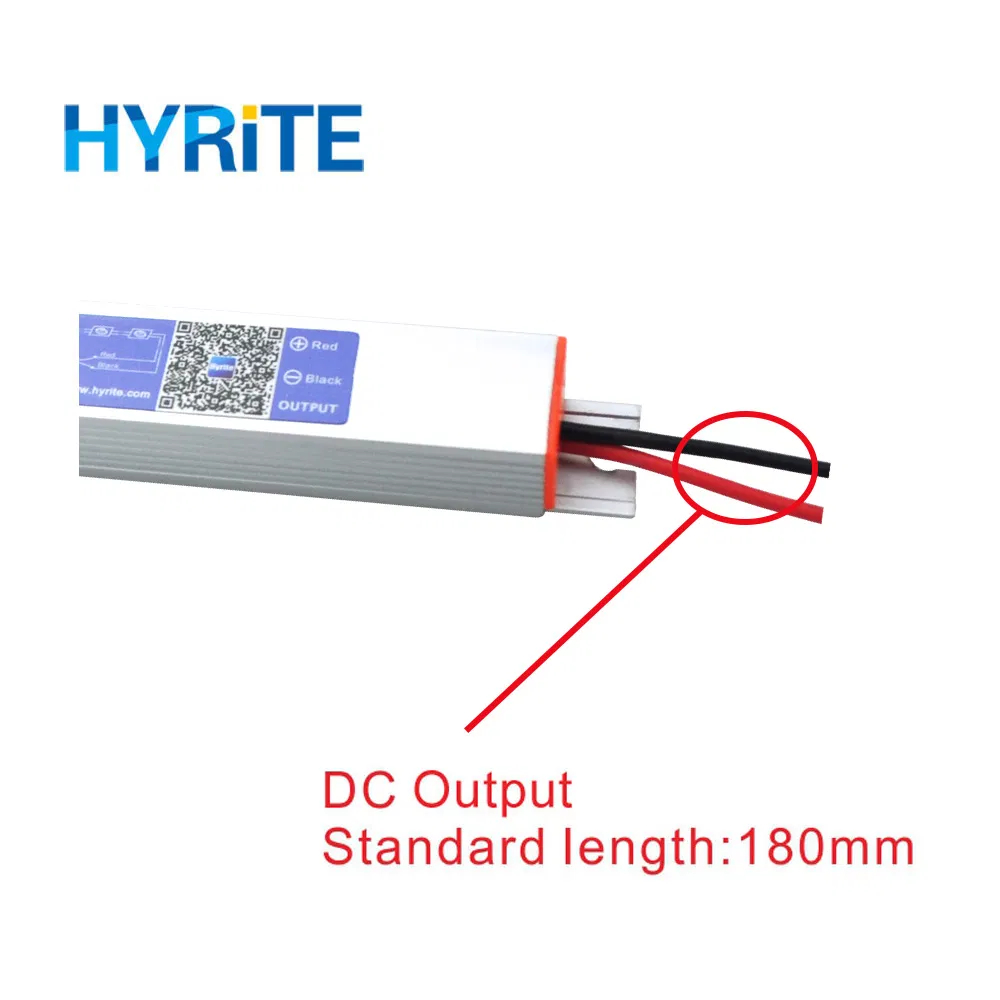

3. Detail pictures of LED Driver
4. Applications for LED Driver
slim LED light box
Display cabinet lighting

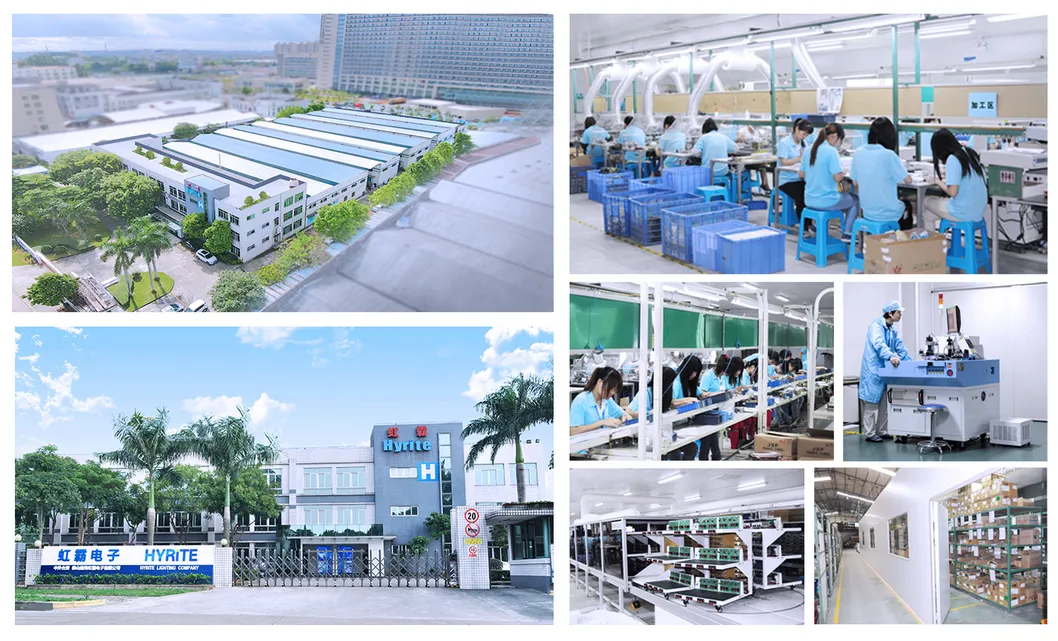

5. Factory History
Hyrite lighting company, also known as Neonpro Co. has more than 28 years experience in deigning and manufacturing electronic power supplies.
In the pass years, we successfully created our brand of LED supplies and LED modules.
At the same time, OEM and ODM service can be offered to our partners.
Our company is a Sino-foreign join venture with a 15000 square meter factory in Foshan city, Guangdong province, China and offices in USA .
6. Exhibition
7. Certificates
FAQQ1. Can I have a sample order for led power supply?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 15-20 working days.
Q3. Do you have any MOQ limit for led power supply order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led power supply?
A:1. please let us know your product's requirements
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on led power supply product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the faulty?
A: 1. Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
2. During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them
and resend them to you or we can discuss the solution including re-call according to real situation.
