Product Description

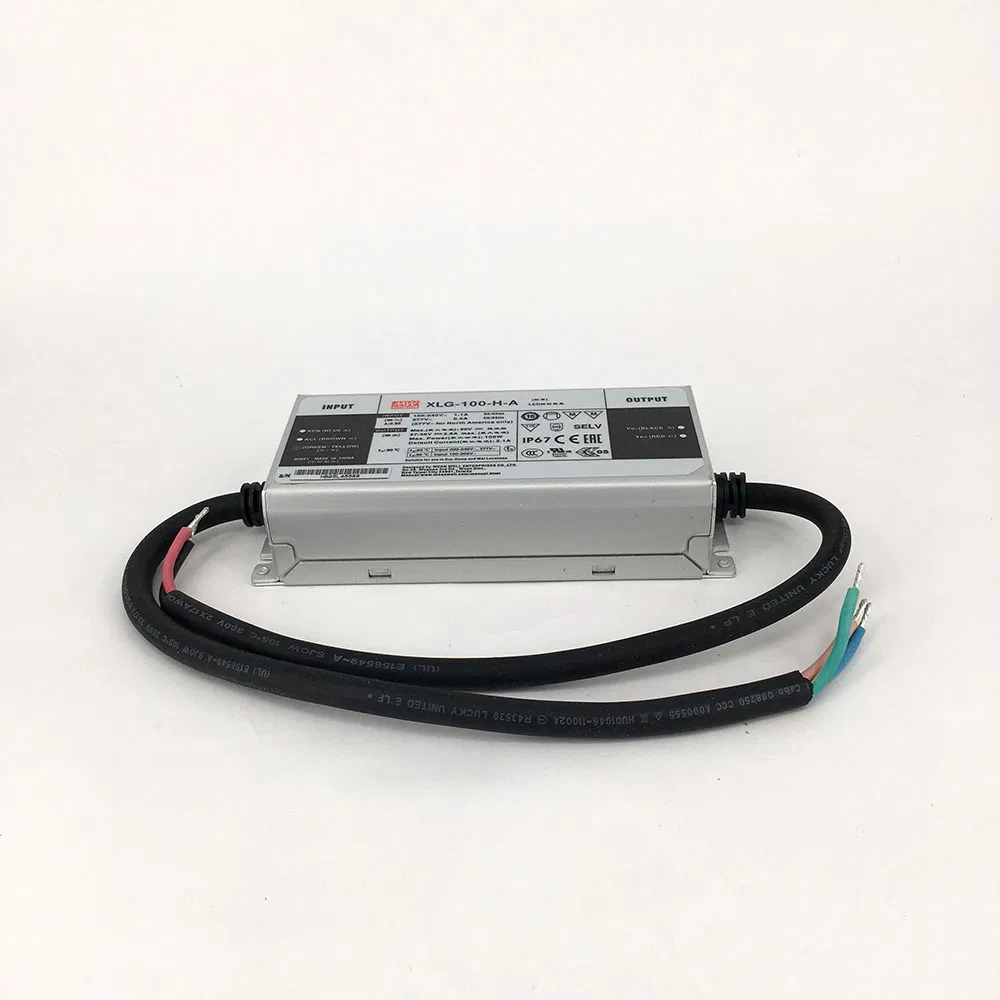

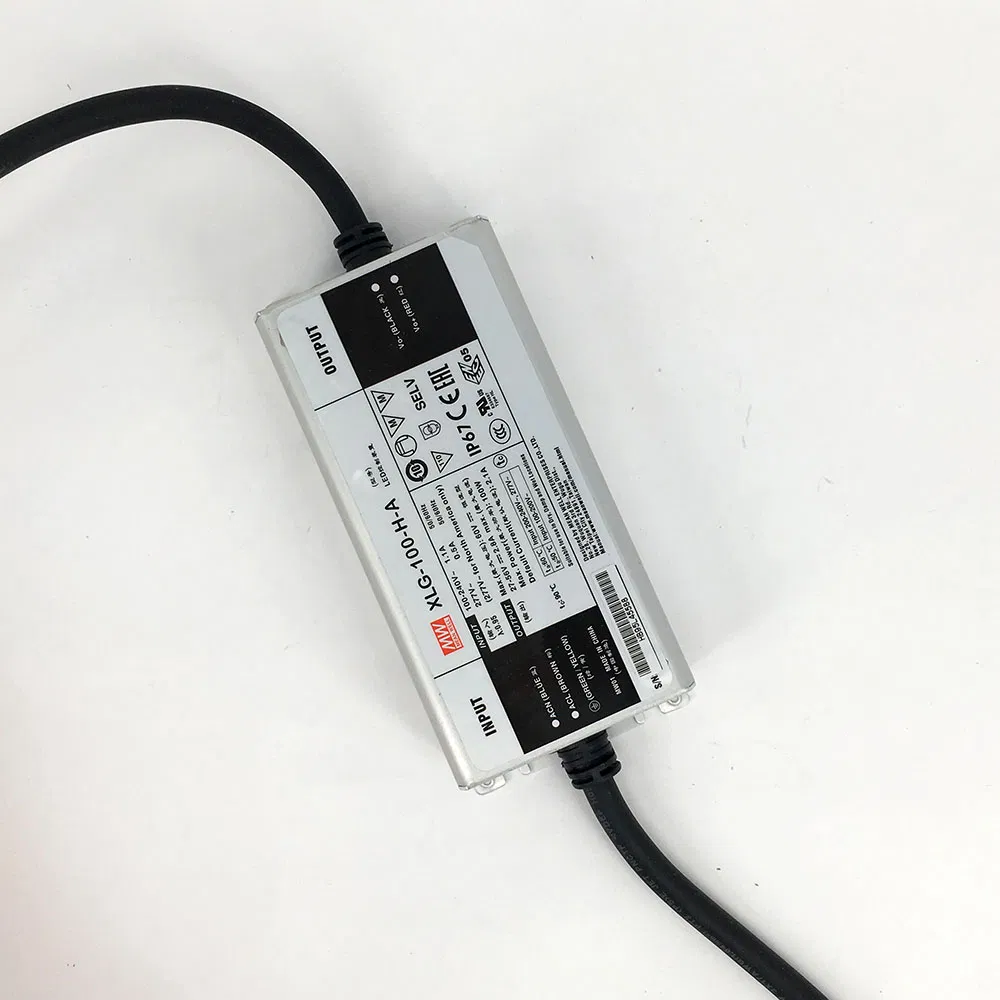

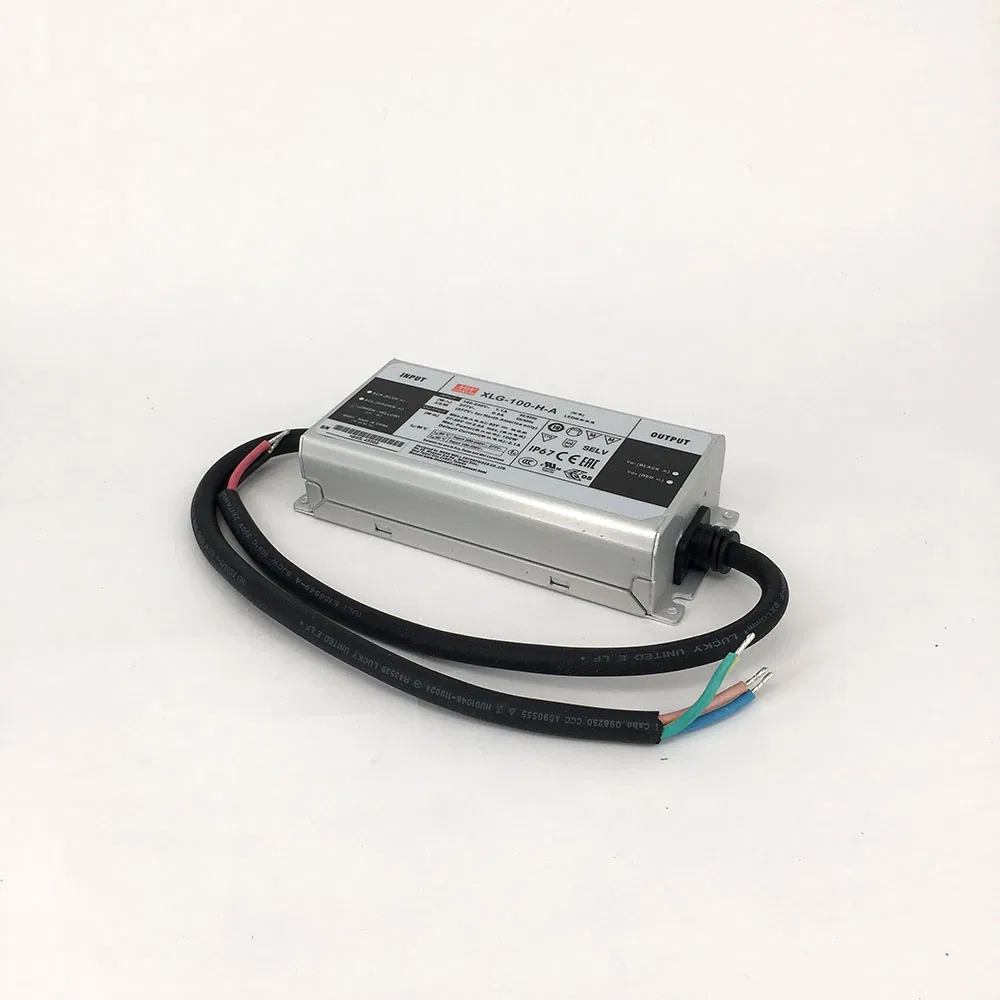

Meanwell 100W Constant Power Mode LED Driver XLG-100

Features

Wide input range 100 ~ 305VAC
Full power at 70~100% max current (Constant Power )
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Applications

LED bay lighting
LED stage lighting
LED spot lighting

Description

XLG-100 series is a 100W LED AC/DC driver featuring the constant power mode and high voltage output. XLG-100 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 8000mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40ºC~+90ºC case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

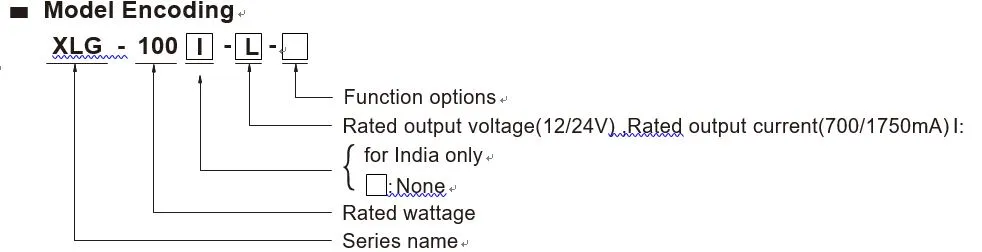

Model Encoding

Meanwell 100W Constant Power Mode LED Driver Xlg-100

Type	Function	Note
A	Io adjustable via built-in potentiometer	In Stock
AB	Io adjustable via built-in potentiometer + 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)	In Stock

MODEL		XLG-100-12-	XLG-100-24-
OUTPUT	DC VOLTAGE	12V	24V
	CONSTANT CURRENT REGION Note.2	8.4~ 12V	16.8~ 24V
	RATED CURRENT	8A	4A
	RATED POWER	96W	96W
	RIPPLE & NOISE (max.) Note.3	150mVp-p	240mVp-p
	VOLTAGE TOLERANCE Note.4	±3.0%	±2.0%
	LINE REGULATION	±0.5%	±0.5%
	LOAD REGULATION	±2%	±1%
	SETUP, RISE TIME Note.6	500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
	HOLD UP TIME (Typ.)	10ms/ 230VAC 10ms/ 115VAC
INPUT	VOLTAGE RANGE Note.5	100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR	PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC@full load
	TOTAL HARMONIC DISTORTION	THD< 10%(@load>=50%/115VC,230VAC; @load>=75%/277VAC)
	EFFICIENCY (Typ.)	90%	92%
	AC CURRENT	1.2A / 115VAC 0.55A / 230VAC 0.5A/277VAC
	INRUSH CURRENT(Typ.)	COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
	NO LOAD / STANDBY POWER CONSUMPTION	No load power consumption <0.5W
PROTECTION	OVER CURRENT	95 ~ 108%
		Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	13.5 ~ 18V	27 ~ 34V
		Shut down output voltage, re-power on to recover
	INPUT OVER VOLTAGE Note.7	320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage)
		can survive input voltage stress of 440Vac for 48 hours
	OVER TEMPERATURE	Shut down output voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	Tcase=-40 ~ +90ºC (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
	MAX. CASE TEMP.	Tcase=+90ºC
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +90ºC, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/ºC (0 ~ 60ºC)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
EMC SAFETY &	SAFETY STANDARDS	UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1,GB19510.14; IP67 approved
	WITHSTAND VOLTAGE	I/P-O/P:4.2KVAC I/P-FG:2.1KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/ 70% RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 Class C (@load>=50%) ; EN61000-3-3;
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV)
OTHERS	MTBF	K hrs min. Telcordia SR-332 (Bellcore) ; Khrs min. MIL-HDBK-217F (25ºC)
	DIMENSION	1406332mm (LWH)
	PACKING	Kg; pcs / Kg / 2CUFT
NOTE	All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25ºC of ambient temperature. Please refer to "DRIVING METHODS OF LED MODULE". Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. Tolerance : includes set up tolerance, line regulation and load regulation. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time. Only for XLG-100 I series The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70ºC or less. Please refer to the warranty statement on MEAN WELL's website
