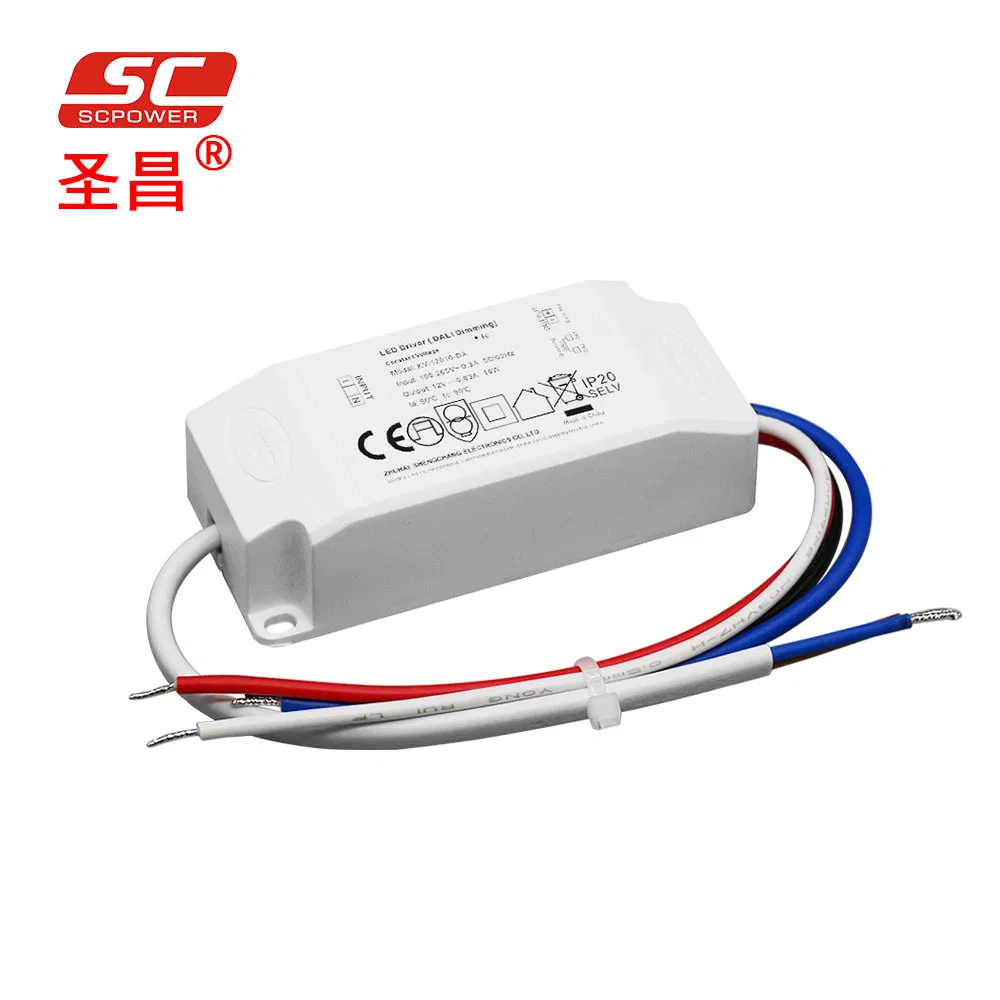

China Low Voltage CV Driver 10W 24V/12 V 0.42A Dali Dimmable Plastic Shell Mini LED Driver for Down Light

Product Description

Low voltage CV driver 10W 24V/12 V 0.42A DALI Dimmable Plastic shell Mini LED Driver for down light

Feature

·Output constant voltage

·Range 100-265V AC

·Builtin active PFC function

·Efficiency 80%

·Protections: short circuit/over load/ over current

·Cooling by free air convection.

·IP20 design for indoor installation .

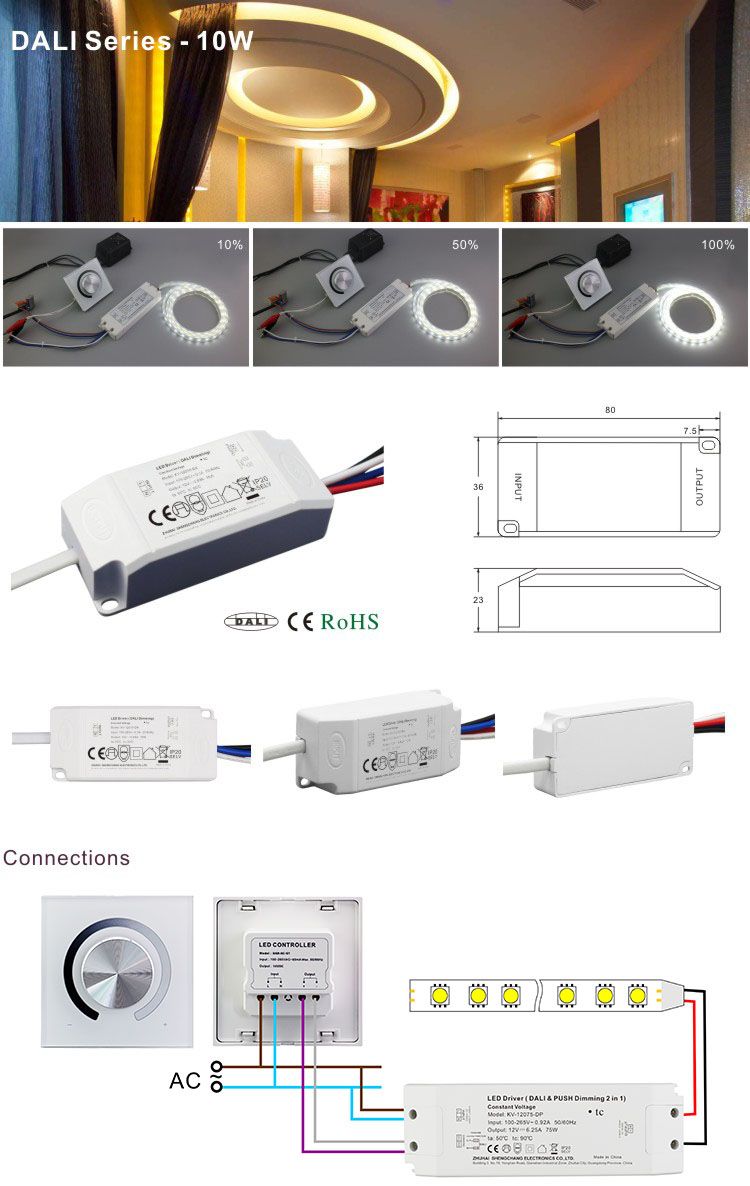

·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386;

·Dimming range from 0.1% to 100%

·Suitable for intelligent LED lighting.

·Compliance to worldwide safety regulations for lighting.

·Suitable for dry locations.

Specification

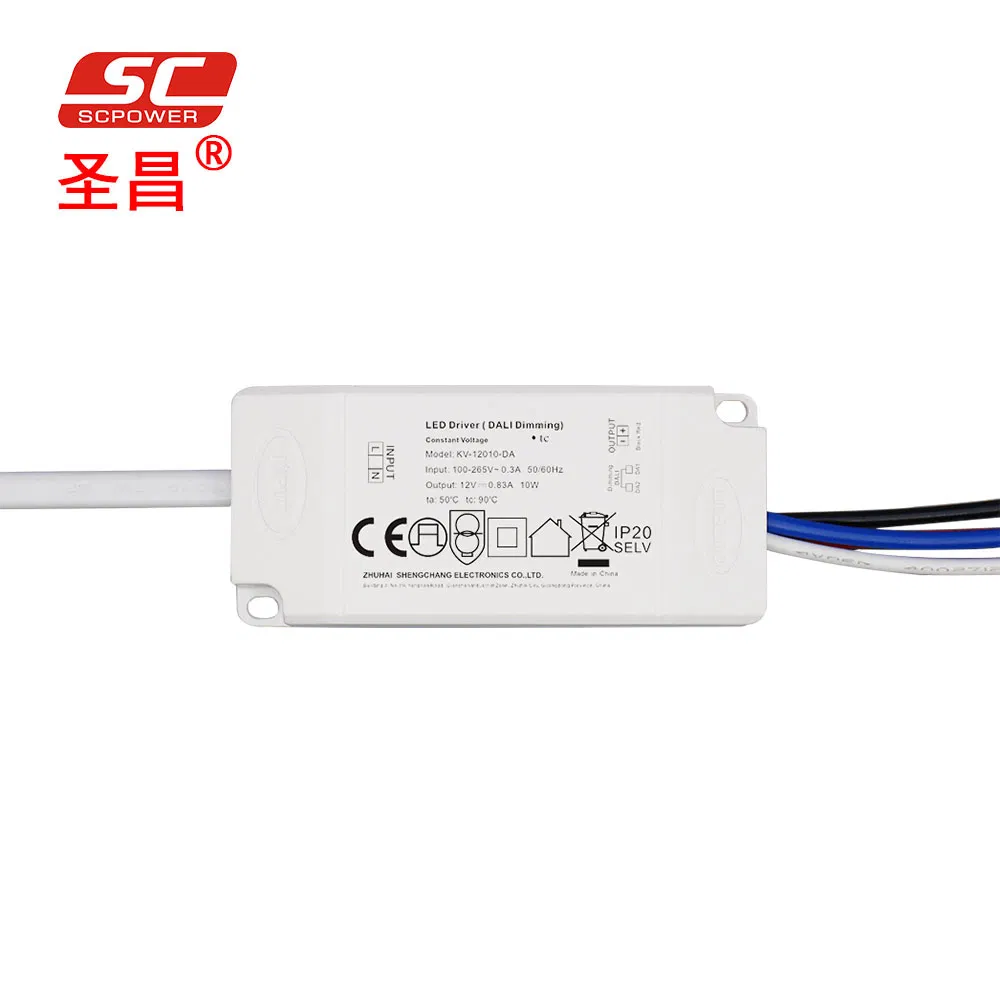

Model		KV-12010-DA	KV-24010-DA
Output	DC Voltage	12V	24V
	Voltage Tolerance	± 0.5V
	Rated current	0-0.83A	0-0.41A
	Rated power	10W	10W
Input	Voltage Range	100-265V AC
	Frequency Range	47-63HZ
	Power Factor	PF≥0.65/120VAC PF≥0.65/230VAC PF≥0.65/265VAC(Full loading)
	Full Load Efficiency(Typ.)	78%	80%
	AC Current(Max.)	0.3A	0.3A
	Leakage current	<0.5mA
Protection	Short Circuit	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Load	≤120%
Environ -ment	Working TEMP.	40-+60ºC
	Working Humidity	20-90%RH,non-condensing
	Storage TEM.,Humidity	40-+80ºC,10-95%RH
	TEMP. coefficient	±0.03%/ºC(0-50ºC)
	Vibration	10-500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN613471 EN61347-2-13
	Withstand voltage	I/PO/P:3.75KVAC
	Isolation resistance	I/PO/P:100MΩ/500VDC/25ºC/70%RH
	EMC EMISSION	EN55015,EN6100032,3 (≥50% load)
	EMC IMMUNITY	EN6100042,3,4,5,6,11
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºCof ambient temperature. 2.Tolerance:includes set us tolerance, line regulation and load regulation . 3.The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be qualify EMC Directive on the complete installation again
