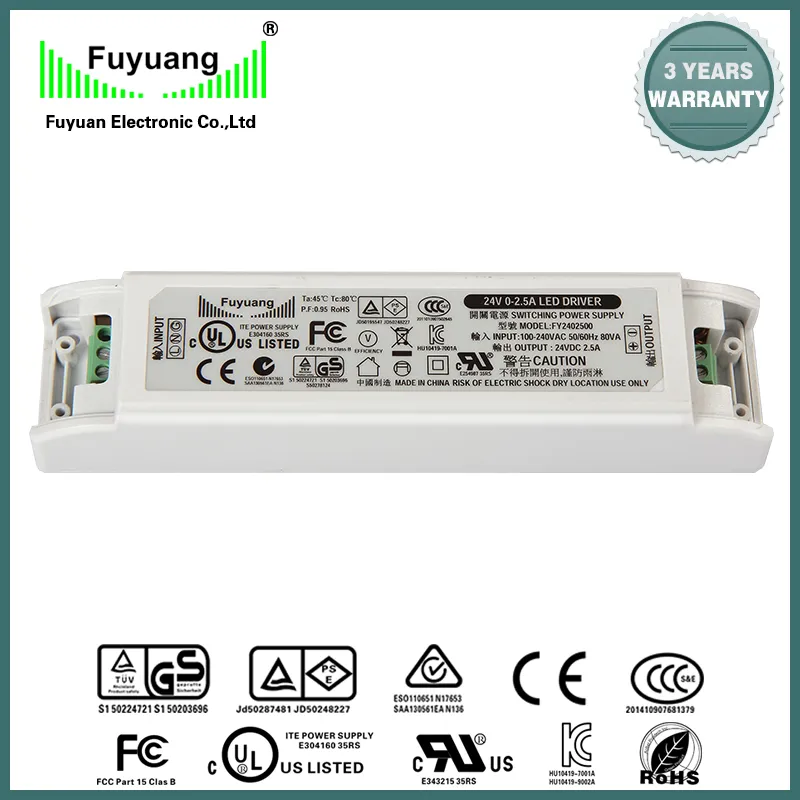

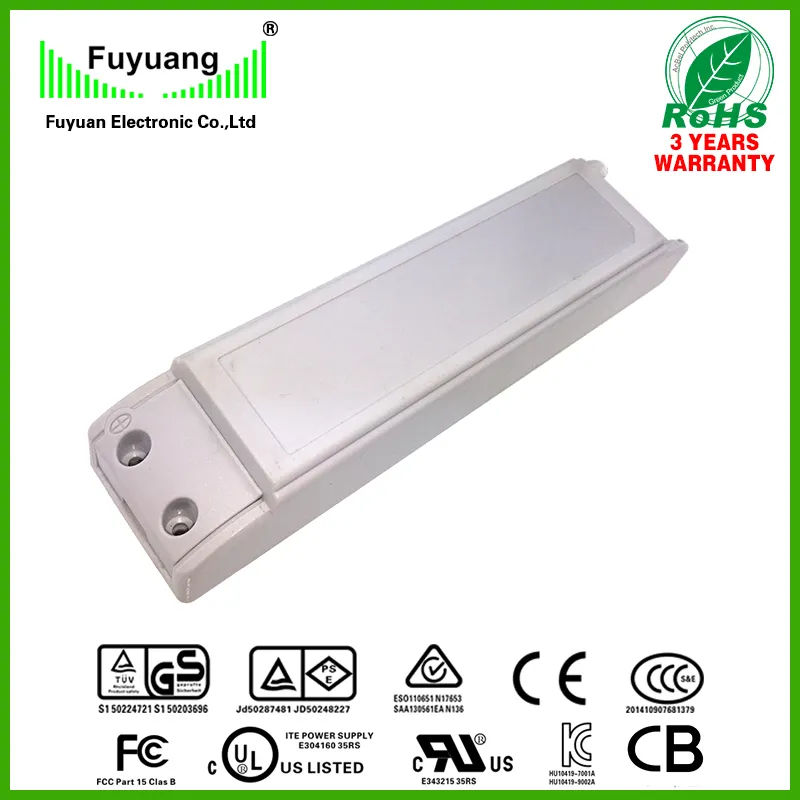

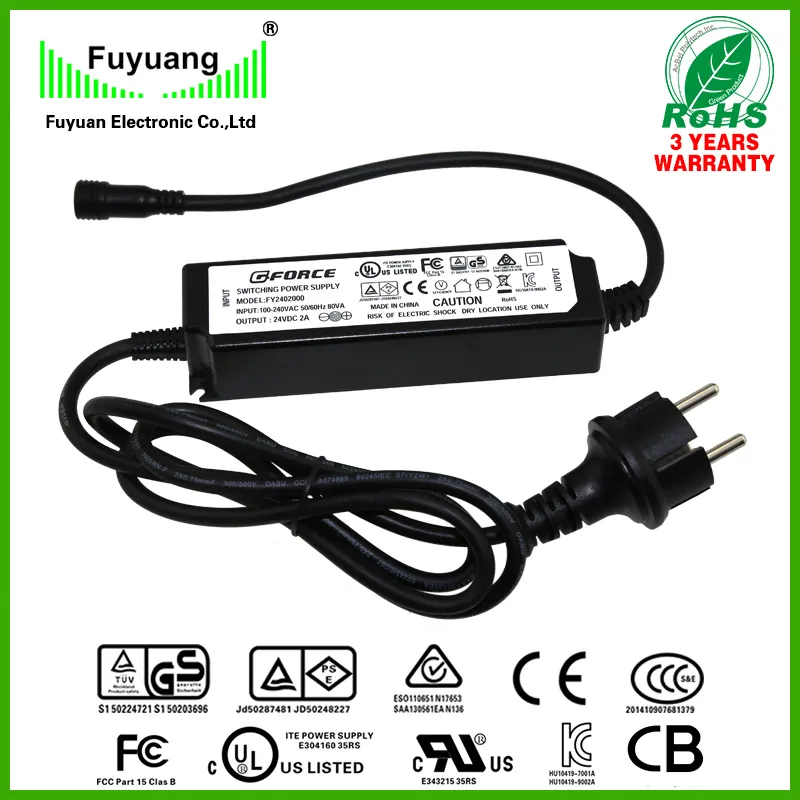

LED Driver 24V2a LED Power Supply (FY2402000)
Features/ FunctionsRegulated output with low rippleSensing and following rated voltage of LED stripsConstant output currentPower on LED indicatorModified and custom designsComply with CEC, MEPS, EuPCertifications: UL, cUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHSGeneral SpecificationsInp......
Send Inquiry
Product Description
Features/ Functions
Regulated output with low ripple
Sensing and following rated voltage of LED strips
Constant output current
Power on LED indicator
Modified and custom designs
Comply with CEC, MEPS, EuP
Certifications: UL, cUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS
General Specifications
Input: 100-240VAC, 50/60Hz
Output voltage: 24 VDC
Output current: 2000 mA
Ripple: 350 MVP-p Max.
Inrush current: Limited 15A for a cold start
No load standby power ≤ 0.5W
Efficiency: 85% the Min.
Operating temperature: -29ºC~+45.5ºC
Storage temperature: -40ºC~+75ºC
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load at 25ºC
Case dimension: 188*44*34mm
Inspection: MIL-STD-105D II AQL: CRI 0; MAJ 0.25; NIN 2.5
Regulated output with low ripple
Sensing and following rated voltage of LED strips
Constant output current
Power on LED indicator
Modified and custom designs
Comply with CEC, MEPS, EuP
Certifications: UL, cUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS
General Specifications
Input: 100-240VAC, 50/60Hz
Output voltage: 24 VDC
Output current: 2000 mA
Ripple: 350 MVP-p Max.
Inrush current: Limited 15A for a cold start
No load standby power ≤ 0.5W
Efficiency: 85% the Min.
Operating temperature: -29ºC~+45.5ºC
Storage temperature: -40ºC~+75ºC
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load at 25ºC
Case dimension: 188*44*34mm
Inspection: MIL-STD-105D II AQL: CRI 0; MAJ 0.25; NIN 2.5
