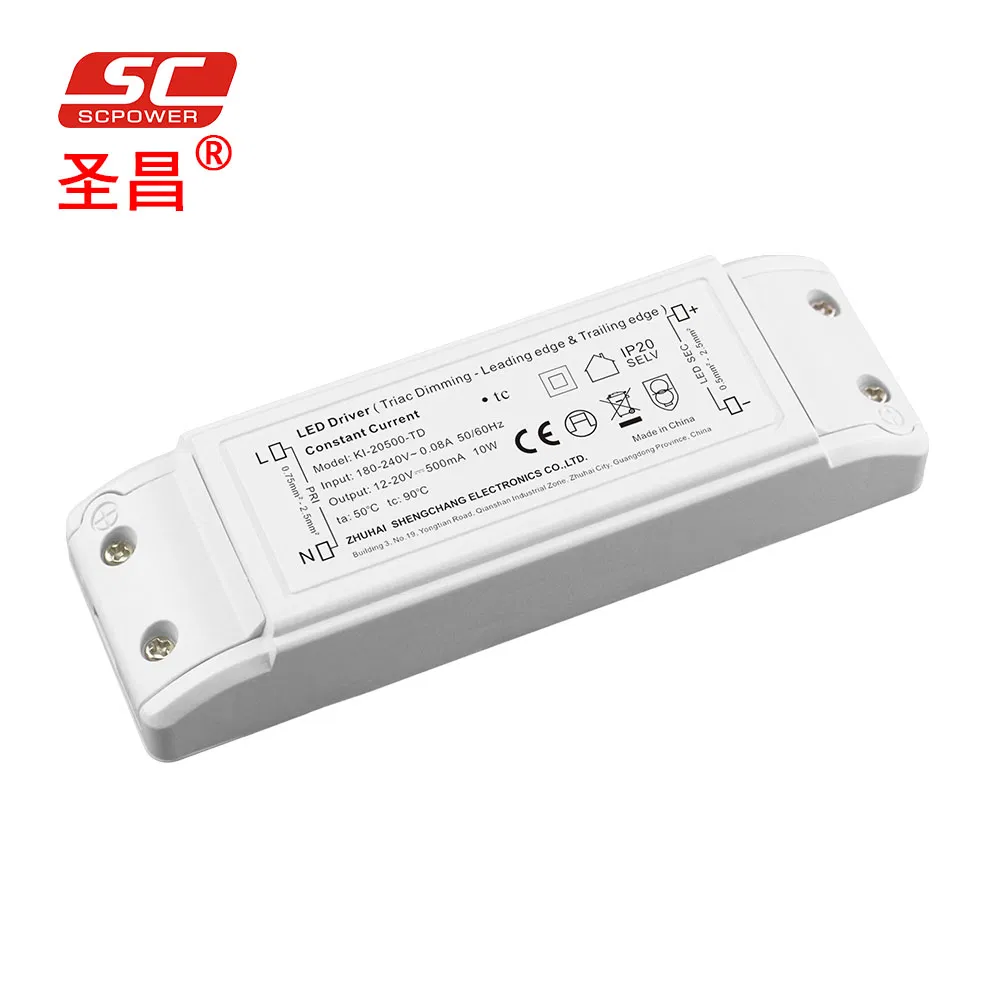

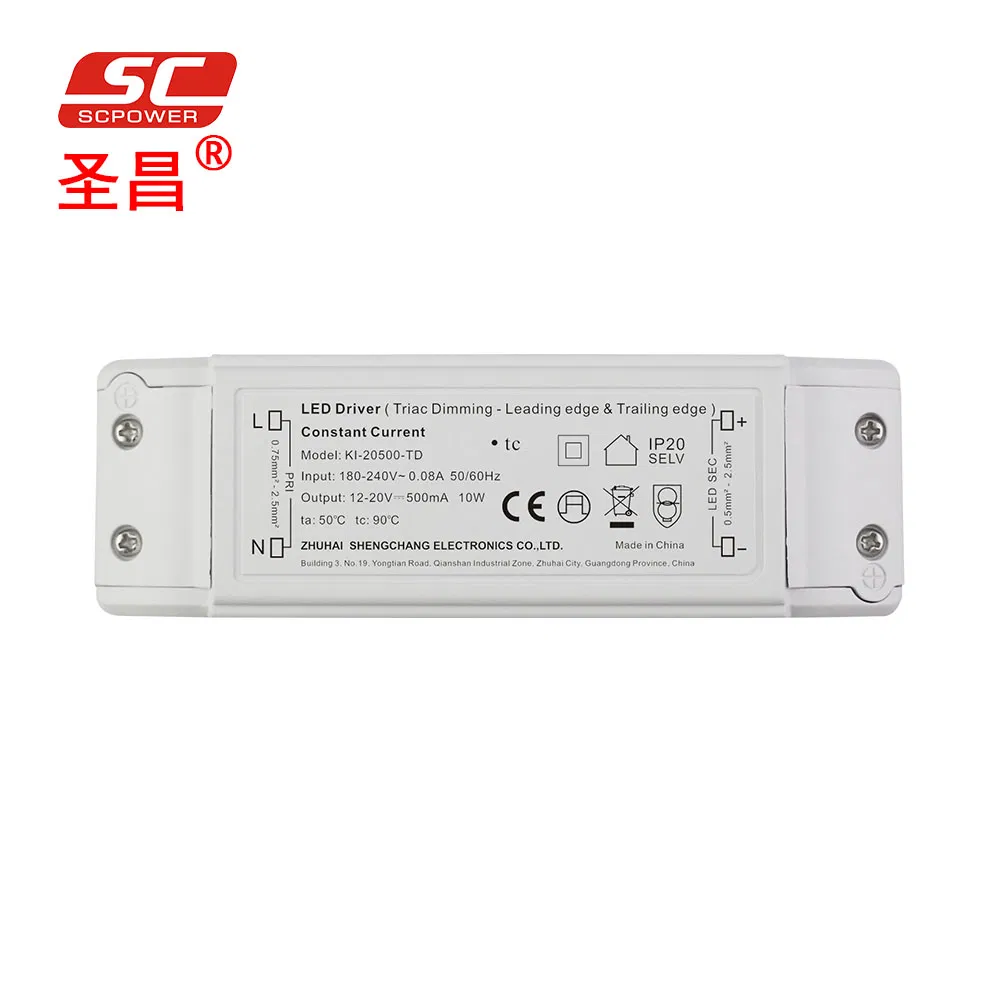

Ki -20500-Td LED Power Supply 500mA 10W Triac Dimmable for Downlight
Product DescriptionKI-20500-TD led power supply 500ma 10w triac dimmable for downlightFeature ·Output constant Current ·Range AC input :180-240VAC ·Built-in active PFC function ·Efficiency up to 75% ·Protections:short circuit/over loading......
Send Inquiry
Product Description
KI-20500-TD led power supply 500ma 10w triac dimmable for downlight
Feature
·Output constant Current
·Range AC input :180-240VAC
·Built-in active PFC function
·Efficiency up to 75%
·Protections:short circuit/over loading/over current

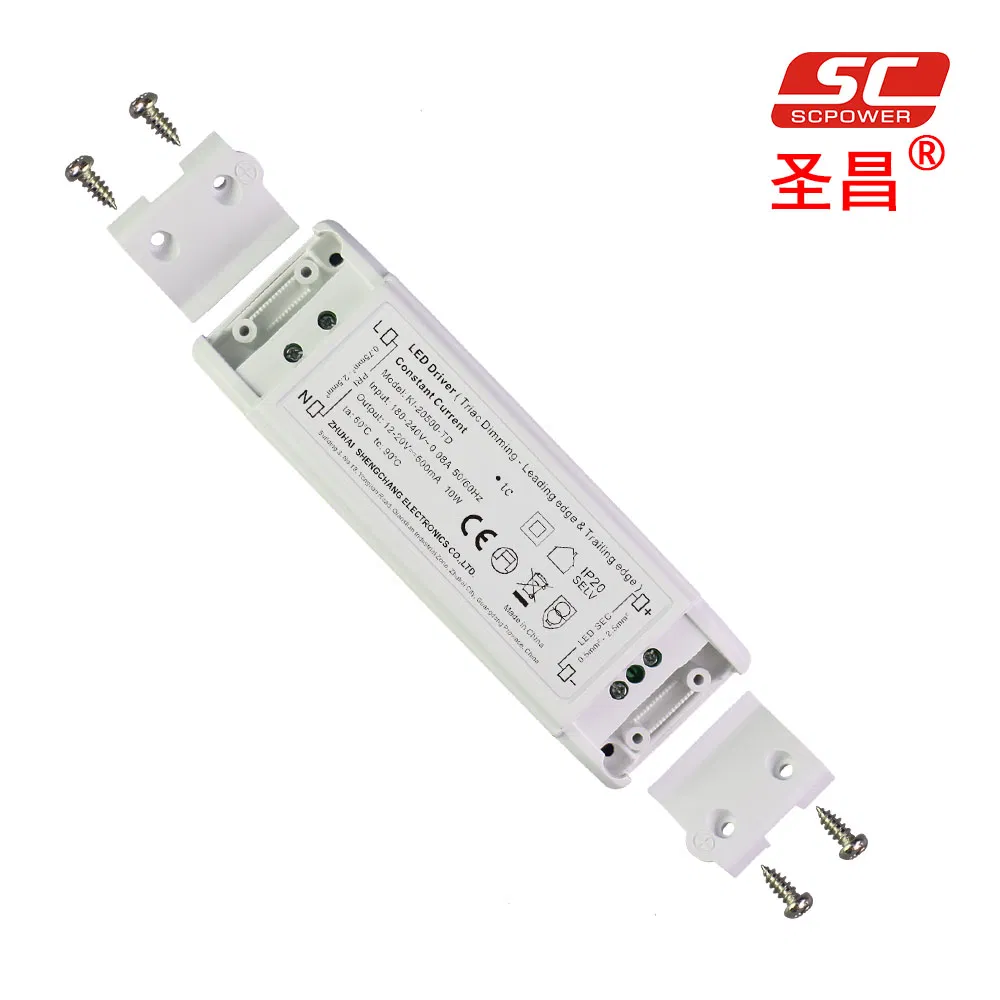

·Full protection plastic housing easy installation
·IP20 design for indoor installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
Specification
Model | KI-42300-TD | KI-36250-TD | KI-30350-TD | KI-20500-TD | KI-15700-TD | KI-12900-TD | |
Output | Rated current | 300mA | 250mA | 350mA | 500mA | 700mA | 900mA |
Current Tolerance | ±5% | ||||||
Voltage Range | 26-42V | 22-36V | 18-30V | 12-20V | 9-15V | 7-12V | |
Rated power | 12.6W | 9W | 10.5W | 10W | 10.5W | 10.8W | |
Input | Voltage Range | 180-240VAC | |||||
Frequency Range | 47-63HZ | ||||||
Power Factor | PF≥0.95/180VAC PF≥0.92/230VAC PF≥0.92/240VAC(Full loading) | ||||||
Full Load Efficiency(Typ.) | 75% | 73% | 73% | 73% | 68% | 68% | |
AC Current(Max.) | 0.11A | 0.08A | 0.09A | 0.09A | 0.1A | 0.1A | |
Leakage current | <0.50mA | ||||||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |||||
Over Load | ≤120% | ||||||
Over Voltage | ≤47V | ≤41V | ≤35V | ≤25V | ≤20V | ≤17V | |
Protection Class: | II | ||||||
Others | Net.Weight | 0.19Kg | |||||

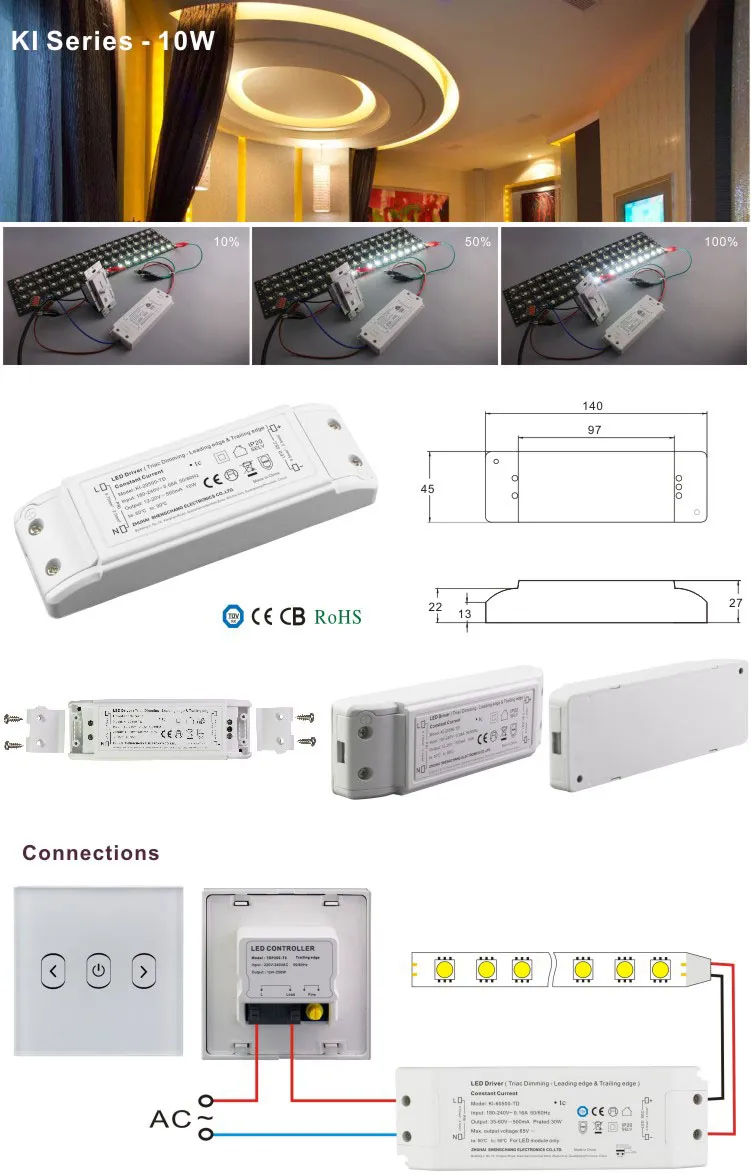

Size | 140*45*22mm(L*W*H) | ||||||
packing | 145*50*36mm inner box 320*280*215mm/ 50PCS/ CTN | ||||||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºCof ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . | ||||||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
