Inventronics Eud-600s740dt 600W Smart Controlled Waterproof LED Driver for Aquaculture Lighting

Product Description

Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number (6)
Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	120Vac	220Vac	Model Number (6)
0.11-1.40A	1.10-1.40A	1.4 A	90~305Vac/ 127~300Vdc	214 ~ 545Vdc	600W	95.0%	0.99	0.96	EUD-600S140DT
0.136-1.70A	1.36-1.70A	1.7A	90~305 Vac/ 127~300 Vdc	176 ~ 441Vdc	600W	94.0%	0.99	0.96	EUD-600S170DT
0.168-2.10A	1.68-2.10A	2.1A	90~305 Vac/ 127~300 Vdc	143 ~ 357Vdc	600W	94.5%	0.99	0.96	EUD-600S210DT
0.224-2.80A	2.24-2.80A	2.8A	90~305 Vac/ 127~300 Vdc	108 ~ 268Vdc	600W	95.0%	0.99	0.96	EUD-600S280DT
0.336-4.20A	3.36-4.20A	4.2A	90~305 Vac/ 127~300 Vdc	72 ~ 178Vdc	600W	94.5%	0.99	0.96	EUD-600S420DT
0.448-5.60A	4.48-5.60A	5.6A	90~305 Vac/ 127~300 Vdc	54 ~ 134Vdc	600W	94.5%	0.99	0.96	EUD-600S560DT
0.592-7.40A	5.92-7.40A	7.0A	90~305 Vac/ 127~300 Vdc	41 ~ 101Vdc	600W	94.0%	0.99	0.96	EUD-600S740DT (4)
0.784-9.80A	7.84-9.80A	9.8A	90~305 Vac/ 127~300 Vdc	31 ~ 76Vdc	600W	94.0%	0.99	0.96	EUD-600S980DT (4)
1.0 - 12.5A	10-12.5 A	12.5A	90~305 Vac/ 127~300 Vdc	24 ~ 60Vdc	600W	94.0%	0.99	0.96	EUD-600S12ADT (4)

Notes: (1) Output current range with constant power at 600W.

(2) Certified input voltage range: UL, FCC 100-277Vac or 127-300Vdc; otherwise 100-240Vac or 127-250Vdc.

(3) Measured at 100% load and 220Vac input (see below "General Specifications" for details).

(4) SELV output.

Fetaures:
Ultra High Efficiency (Up to 95.0%)

Full Power at Wide Output Current Range (Constant Power)

Thermal Sensing and Protection for LED Module

Isolated 0-10V/PWM/3-Timer-Modes Dimmable

Digital Dimming

Dim-to-Off with Standby Power ≤ 0.5 W

Always-on Auxiliary Power: 12Vdc, 200mA (Transient Peak Current up to 400mA)

Output Lumen Compensation

Input Surge Protection: DM 6kV, CM 10kV

All-Around Protection: OVP, SCP, OTP

IP67 and UL Dry / Damp / Wet Location

SELV Output

TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location

7 Years Warranty

Descriptions:

The EUD-600SxxxDT series is a 600W, constant-current, programmable LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast, aquaculture and sports, etc. It provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

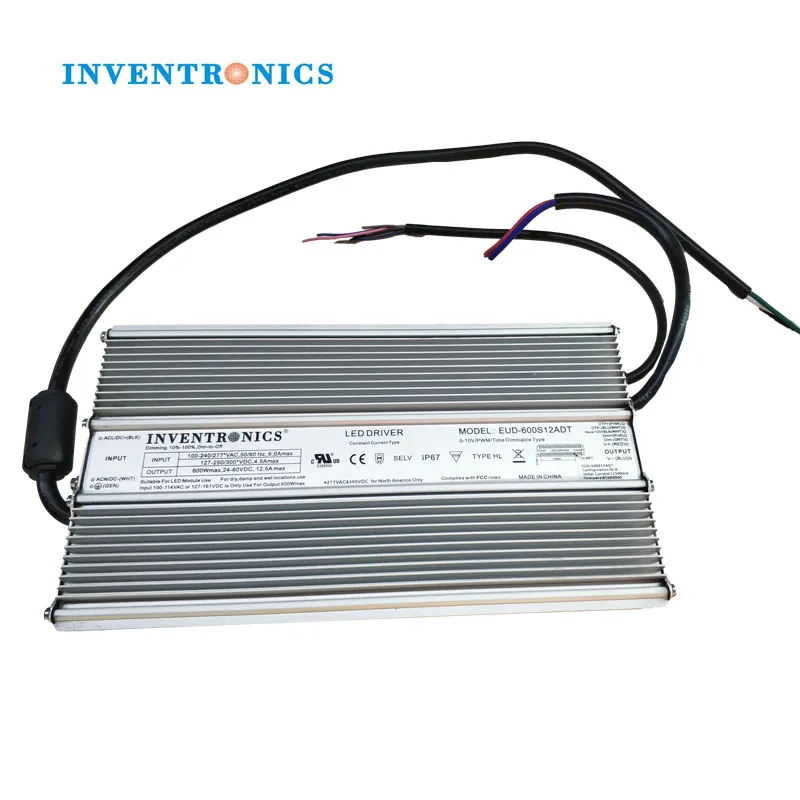

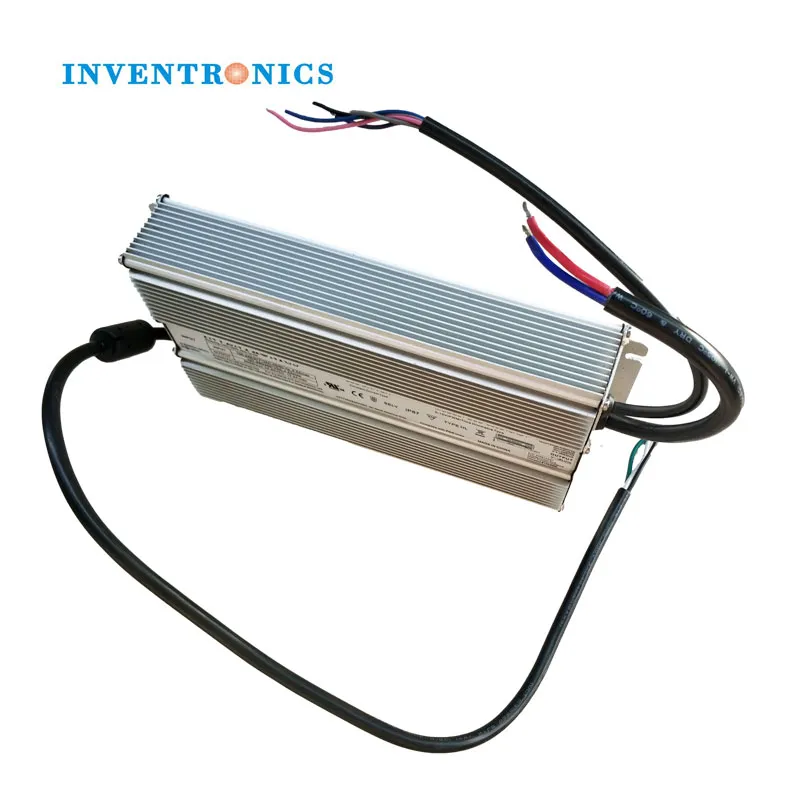

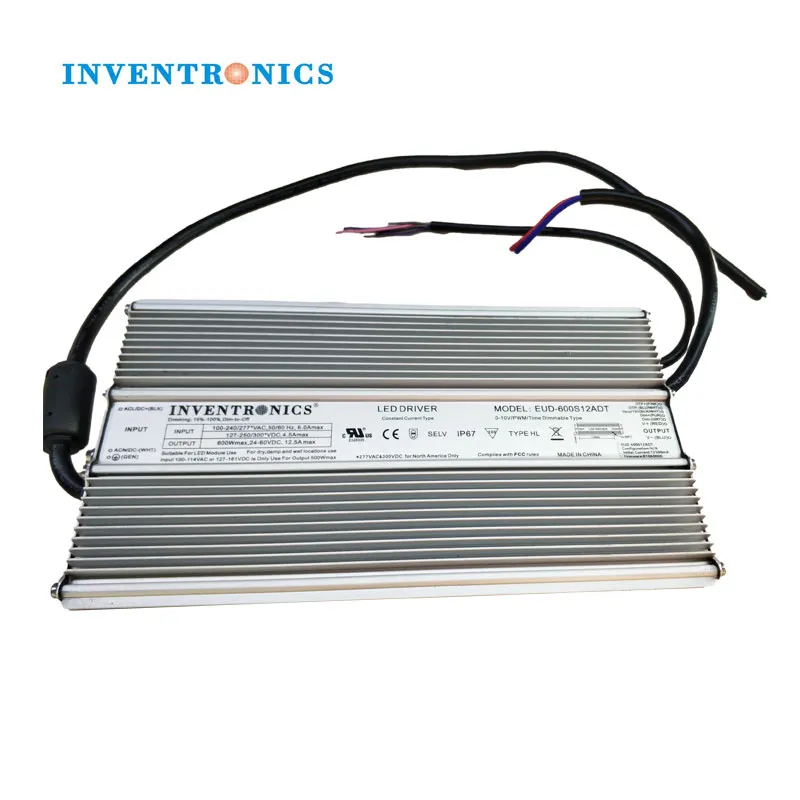

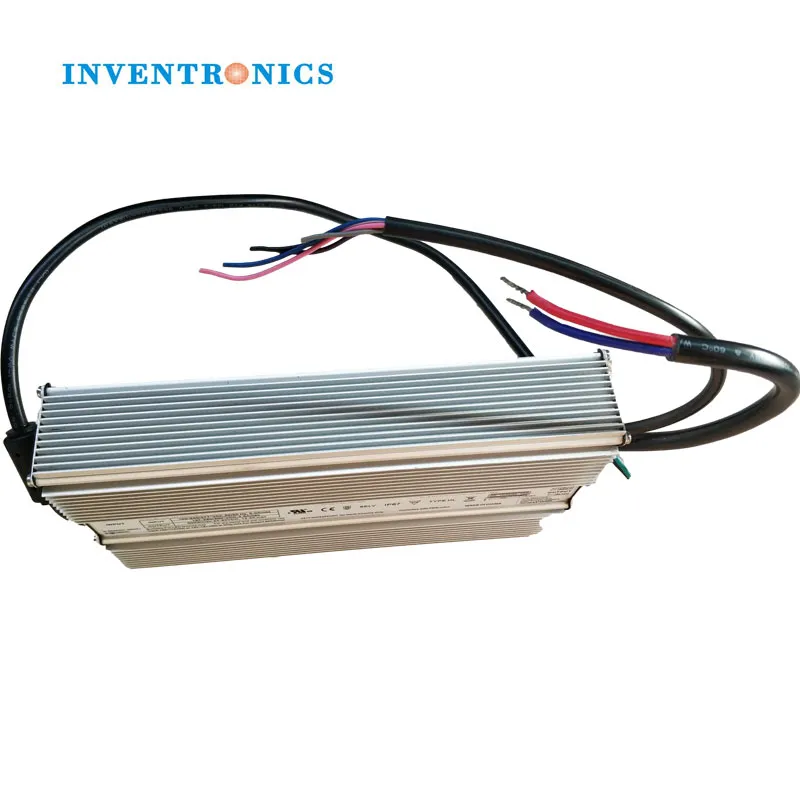

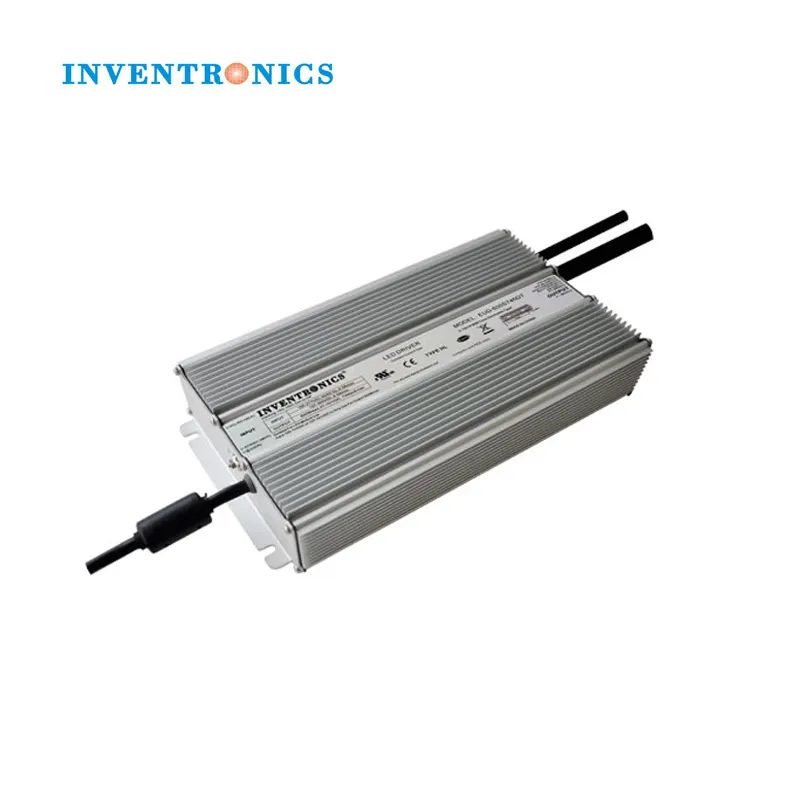

Product Pictures:
Inventronics Eud-600s740dt 600W Smart Controlled Waterproof LED Driver for Aquaculture Lighting
