Inventronics 240W Smart- Controlled 0-10V PWM Timer Dimming COB LED Grow Light Driver

Product Description

Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number (6)
Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	120Vac	220Vac	Model Number (6)
70-1050mA	700-1050mA	700 mA	90~305 Vac/ 127~300 Vdc	115~343Vdc	240W	94.0%	0.99	0.96	EUM-240S105Mx
105-1500mA	1050-1500mA	1050 mA	90~305 Vac/ 127~300 Vdc	80~229 Vdc	240W	93.5%	0.99	0.96	EUM-240S150Mx
215-3500mA	2150-3500mA	2150 mA	90~305 Vac/ 127~300 Vdc	35~111 Vdc	240W	93.0%	0.99	0.96	EUM-240S350Mx (4)
420-6700mA	4200-6700mA	4900mA	90~305 Vac/ 127~300 Vdc	18~57 Vdc	240W	92.5%	0.99	0.96	EUM-240S670Mx (4)

Notes: (1) Output current range with constant power at 240W

(2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac.

(3) Measured at 100% load and 220Vac input (see below "General Specifications" for details).

(4) SELV output.

(5) x = G are UL Recognized, ENEC and CCC, etc. models; x = T are UL Class P models.

Fetaures:

Full Power at Wide Output Current Range (Constant Power)

Adjustable Output Current (AOC) with Programmability

Isolated 0-10V/PWM/3-Timer-Modes Dimmable

INV Digital Dimming, UART Based Communication Protocol

Dim-to-Off with Standby Power ≤ 0.5 W

Always-on Auxiliary Power:

12Vdc, 250mA, 3W (Transient Peak Power up to 10W)

Output Lumen Compensation

End-of-Life Indicator

Input Surge Protection: DM 6kV, CM 10kV

All-Around Protection: IUVP, IOVP, OVP, SCP, OTP

IP66 / IP67 and UL Dry / Damp / Wet Location

TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location

5 Years Warranty

Descriptions:

The EUM-240SxxxMx series is a 240W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. Created for smart lighting application, this family provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V dimming as well as two-way communication via Digital Dimming, a UART based communication protocol. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature.

Product Pictures:

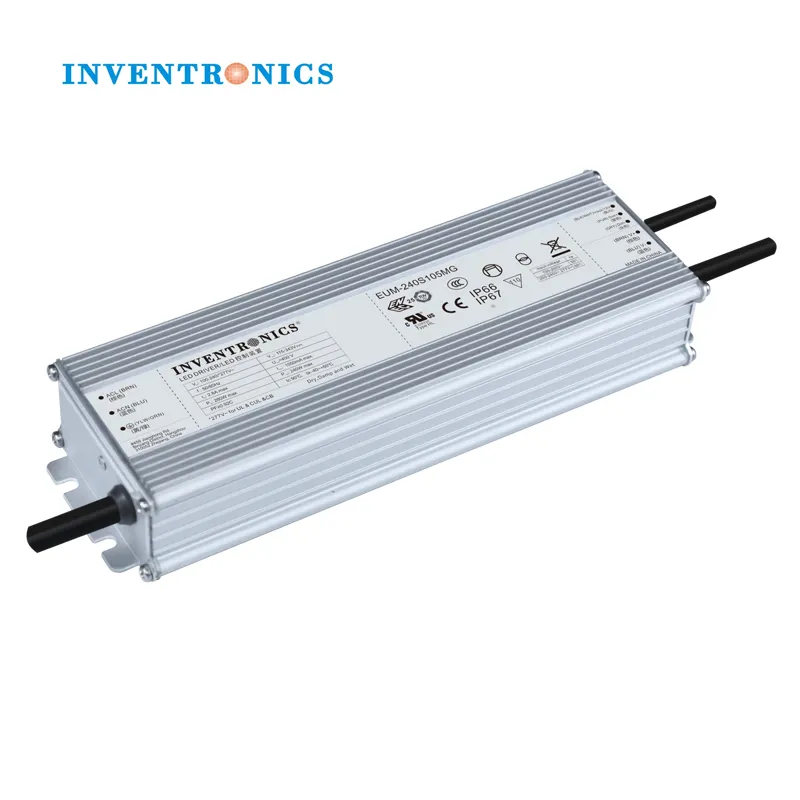

Inventronics 240W Smart-Controlled 0-10V PWM Timer Dimming COB LED Grow Light Driver
