Hvh-20n Single Output Waterproof Power Supply

Product Description

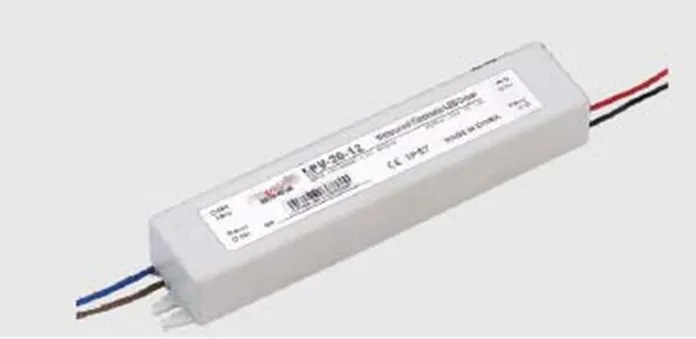

Single Output Waterproof Power Supply (HVH-20N)
Features:
High effectiency, High reliability, Low cost
Protections: Short circuit/ Over load/ Over voltage/ High temperature
Waterproof grade: IP67
Working Frequncy: 65KHz
Suitable for LED lighten and moving sign applications.
I year warranty

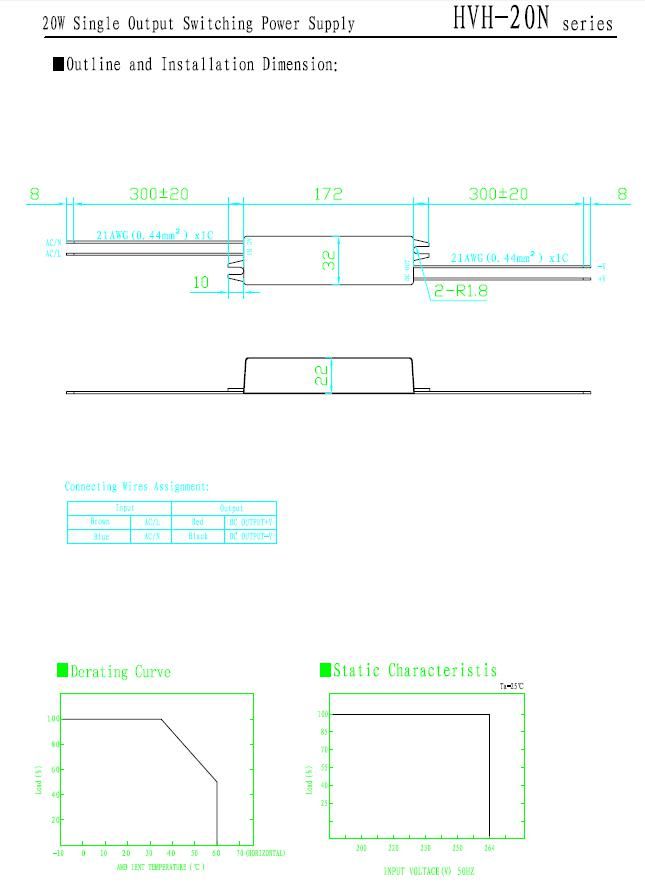

Dimensions: 172*32*22mm(L*W*H)
Hvh-20n Single Output Waterproof Power Supply

Hvh-20n Single Output Waterproof Power Supply

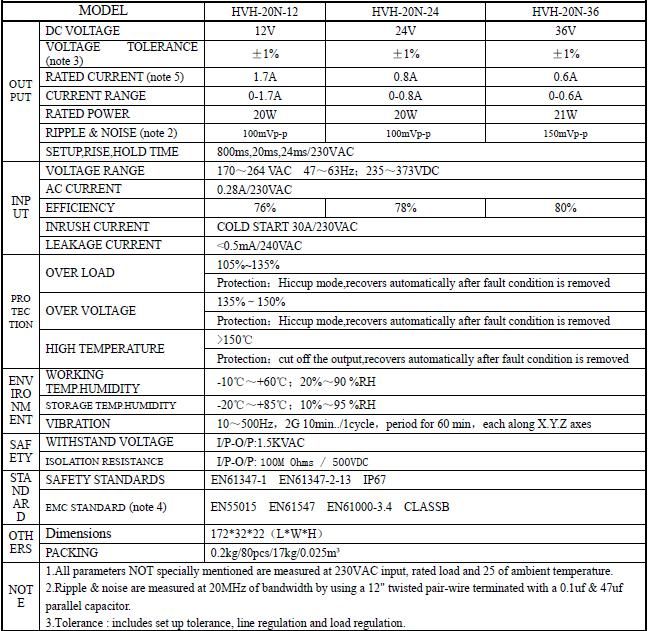

	MODEL	HVH-20N-12	HVH-20N-24	HVH-20N-36
OUTPUT	DC VOLTAGE	12V	24V	36V
	VOLTAGE TOLERANCE(note3)	±1%	±1%	±1%
	RATED CUTTENT(note5)	1.7A	0.8A	0.6A
	CURRENT RANGE	0-1.7A	0-0.8A	0-0.6A
	RATED POWER	20W	20W	21W
	RIPPLE&NOISE(note2)	100mVp-p	100mVp-p	150mVp-p
	SETUP,RISE,HOLD TIME	800ms,20ms,24ms/230VAC
INPUT	VOLTAGE RANGE	170~264VAC 47~63Hz;235~373VDC
	AC CURRENT	0.28A/230VAC
	EFFICIENCY	76%	78%	80%
	INRUSH CURRENT	COLD START 30A/230VAC
	LEAKAGE CURRET	<0.5mA/240VAC
PROTECTION	OVER LOAD	105%~135%
		Protection:Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	135~150%
		Protection:Hiccup mode, recovers automatically after fault condition is removed
	HIGH TEMPERATURE	>150degrees celsius
		Protection:cut off the output, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.HUMIDITY	-10degrees celsius ~ + 60degrees celsius; 20%~90%RH
	STORAGE TEMP.HUMIDITY	-20degrees celsius ~ + 85degrees celsius; 10%~95%RH
	VIBRATION	10~500Hz,2G 10min../1cycle, period for 60 min, each along X.Y.Z. axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC
	ISOLATION RESISITANCE	I/P-O/P:100M Ohms / 500VDC
STANDARD	SAFETY STANDARDS	EN61347-1 EN61347-2-13 IP67
	EMC STANDARD(note4)	EN55015 EN61547 EN61000-3.4 CLASSSB
OTHER	Dimensions	1723222mm(LWH)
	PACKING	0.2kg/80pcs/17kg/0.025M³
NOTE	1. All parameters NOT specially mentioned are measured at 230VAD input, rated load and 25 of ambiet temperature.
	2.Ripple & noise are measured at 20 MHZ of bandwidth by using a 12" twisted
	pair-wire terminated with a 0.1 uf&47uf parallel capacitor.
	3.Tolerance:includes set up tolerance, line regulation and load regulation.
