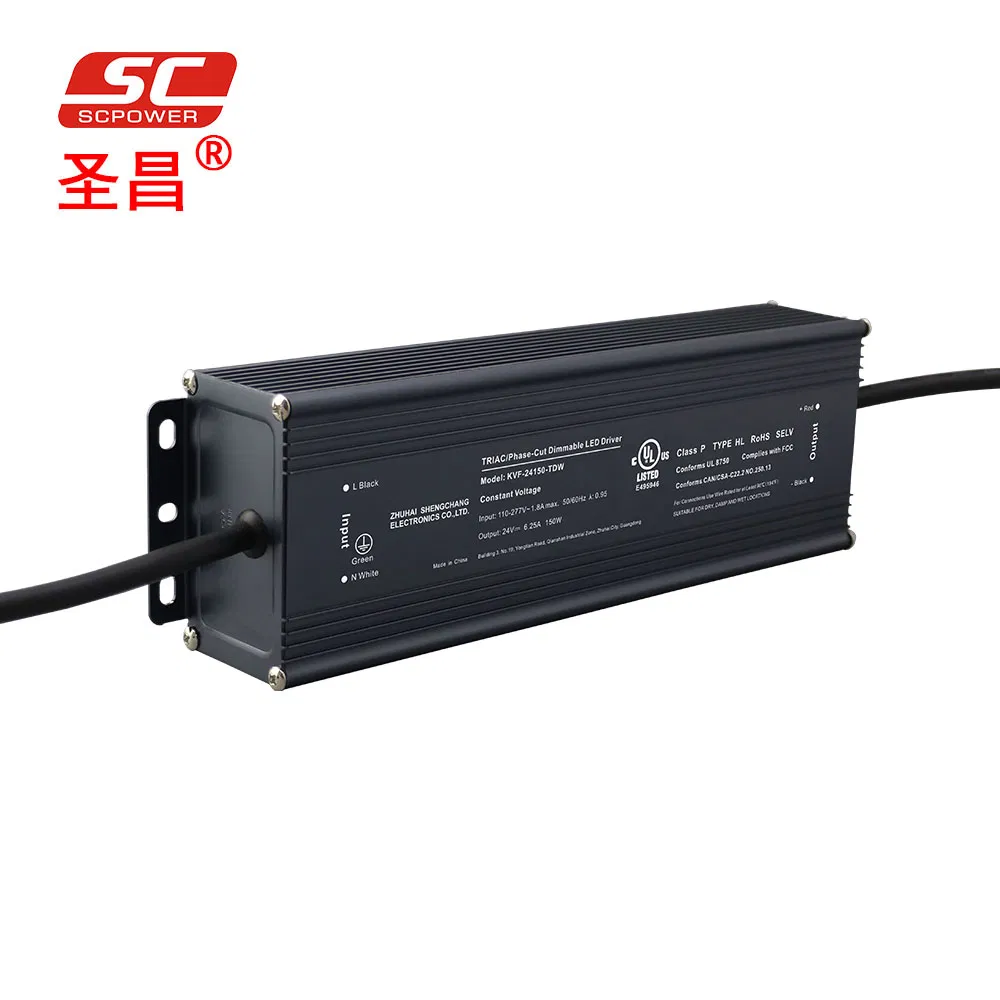

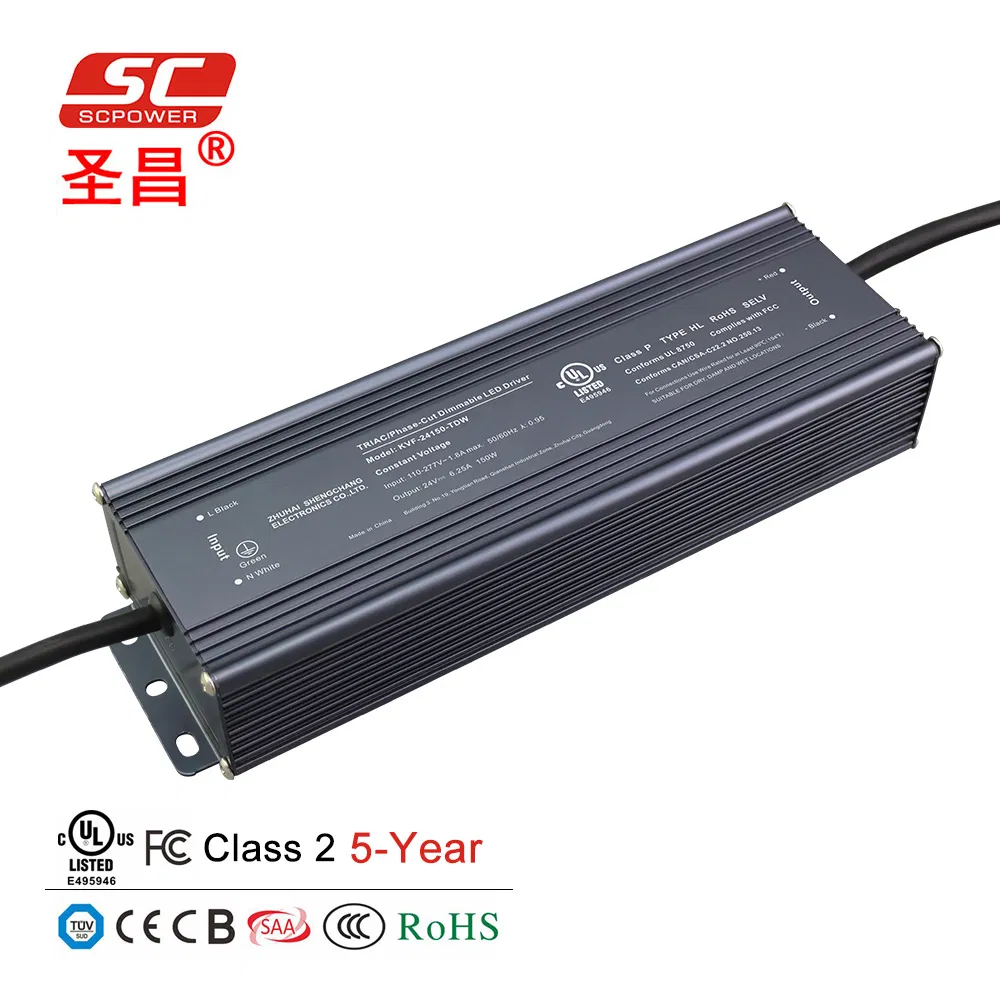

High Quality 6250mA 150W 24V Power Supply Triac Dim Linear Aluminum LED Driver
Product Descriptionhigh quality 6250ma 150w 24v power supply triac dim linear aluminum led power supply Feature ·Output constant voltage·UL, cUL listed, Class 2, Class P, Type HL·Universal AC input: 100-277VAC.Power Factor: up to 0.99·High efficiency : up ......
Send Inquiry
Product Description
Product Description
high quality 6250ma 150w 24v power supply triac dim linear aluminum led power supply
Feature
·Output constant voltage
·UL, cUL listed, Class 2, Class P, Type HL
·Universal AC input: 100-277VAC
.Power Factor: up to 0.99
·High efficiency : up to 91%
·Dimming range: 0-100%
·Load: 10-100%
·Protection:short circuit/over loading/ Over temperature
·PWM output, does not change the color index
·Full protection aluminum case, for dry , damp and wet locations
·Flicker-free
·Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications
Specification
Model | KVF-12150-TDWL | KVF-24150-TDWL | |
Certificates | FCC UL cUL | FCC UL cUL | |
Output | DC Voltage | 12V | 24V |
Rated Current | 12.5A | 6.25A | |
Rated Power | 150W | ||
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input | Voltage Range | 100-277VAC | |
Frequency Range | 47-63Hz | ||
Power Factor(Typ.)@ full load | 0.99@120VAC 0.95@277VAC | 0.99@120VAC 0.97@277VAC | |
THD(Typ.)@ full load | <20% | ||
Efficiency(Typ.)@ full load | 89% | 91% | |
AC Current(Max.) | 1.9A@100VAC | ||
Inrush Current (Typ.) | 59.2A/212us@50%Ipeak | ||
Leakage current | <0.50mA | ||
Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
Over temperature | 100ºC±10ºC shut down o/p voltage, automatically recover after cooling.
| ||
Environment | Working TEMP. | -40~+60ºC (see below derating curve) | |
Working Humidity | 20~90%RH, non-condensing | ||
Storage TEMP. Humidity | -40~+80ºC,10~95%RH | ||
TEMP .coefficient | ±0.03%/ºC(0~50ºC) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
| ||
Safety& EMC | Safety standards | UL8750, CAN/CSA-C22.2 No.250.13 | |
Withstand voltage | I/P-O/P:1.88KVac | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25ºC/70%RH | ||
EMC EMISSION | FCC 47 CRF Part 15, Subpart B | ||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
