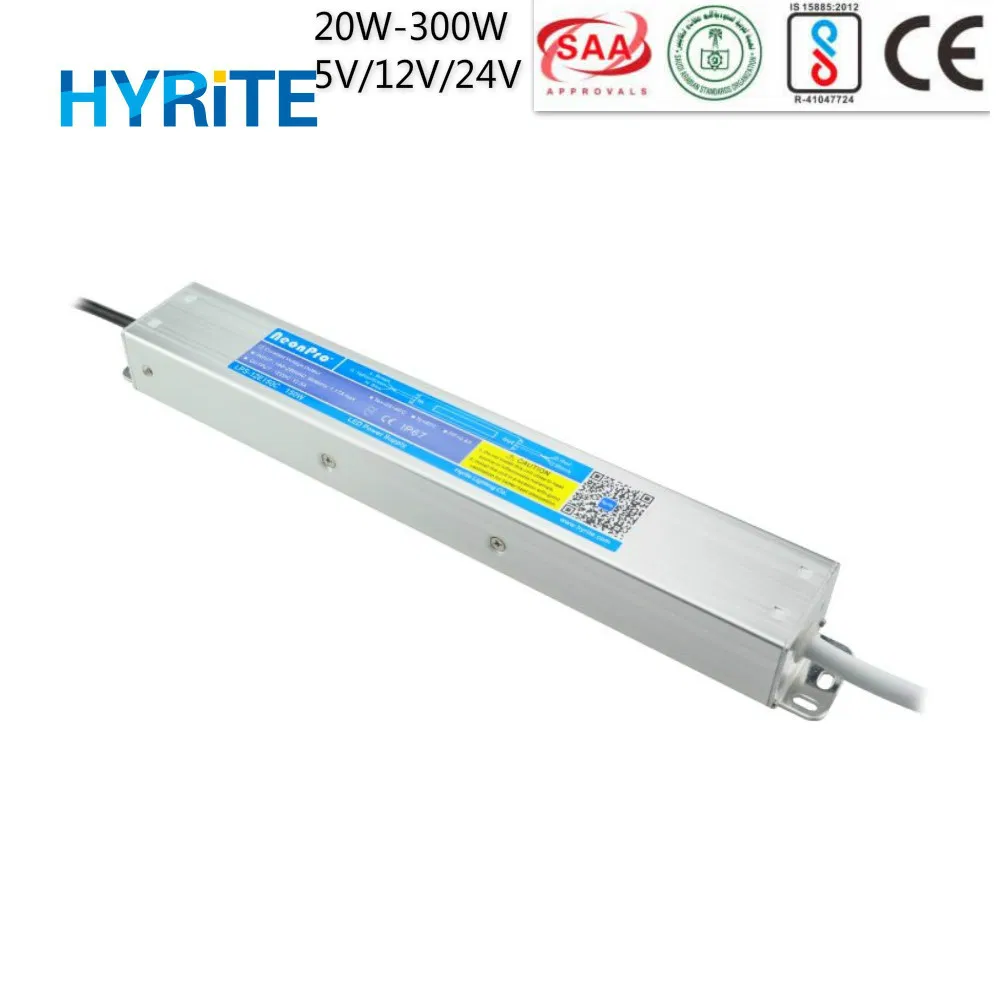

Ce Bis Certified Waterproof 12V/24V 150W Waterproof LED Transformer
Ce Bis Certified Waterproof 12V/24V 150W Waterproof LED Transformer 1. Brief Introduction of LED Transformer:*Fully sealed&waterproof, IP67 External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...*Slim body design for application wit......
Send Inquiry
Product Description
Ce Bis Certified Waterproof 12V/24V 150W Waterproof LED Transformer
1. Brief Introduction of LED Transformer:
*Fully sealed&waterproof, IP67 External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Slim body design for application with narrow space, such as ceiling LED Strip back light, LED light box...(Size:312*43*34mm)
*Weight is only 0.85KG,it is much lighter the normal 150W one(1.85KG).
*Constant Voltage output;100% burn-in test
*24V is available,Price is the same as 12V.
*Efficiency>0.9, CE TUV
2. Technical Specs of LED Transformer:
3. Applications of switching Power Supply:
*Office lighting, Artwork lighting, Display case
*Home lighting
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Hotel, Restaurant lighting
*Other public lighting
4. Important Parameter of LED Power Supply:
Store Temperature: -25~75° C
Working Temperature: -25~50° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP23/customized
5.Product photo:
Shipping Pictures of Slim Indoor Power Supply:
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 15-20 working days.
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A:1. please let us know your product's requirements
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: 1. Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
2.During the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
1. Brief Introduction of LED Transformer:
*Fully sealed&waterproof, IP67 External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Slim body design for application with narrow space, such as ceiling LED Strip back light, LED light box...(Size:312*43*34mm)
*Weight is only 0.85KG,it is much lighter the normal 150W one(1.85KG).
*Constant Voltage output;100% burn-in test
*24V is available,Price is the same as 12V.
*Efficiency>0.9, CE TUV
2. Technical Specs of LED Transformer:
| Model no. | LPS-12E150C |
| Input voltage | 185-264VAC 50/60 Hz |
| Max. power | 150 W max |
| Output type | Constant voltage |
| Efficiency | 90% |
| AC inrush current(max.) | Cold start, 40A@230VAC |
| Output voltage | 24VDC ± 5% |
| Output current | 6.25A max |
| Overload protection | 105% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -25~50 ºC |
| Installation | Outdoor waterproof |
| IP rating | IP 67 |
| Cooling | Free air convection |
| Certificates/standards | CE,BIS |

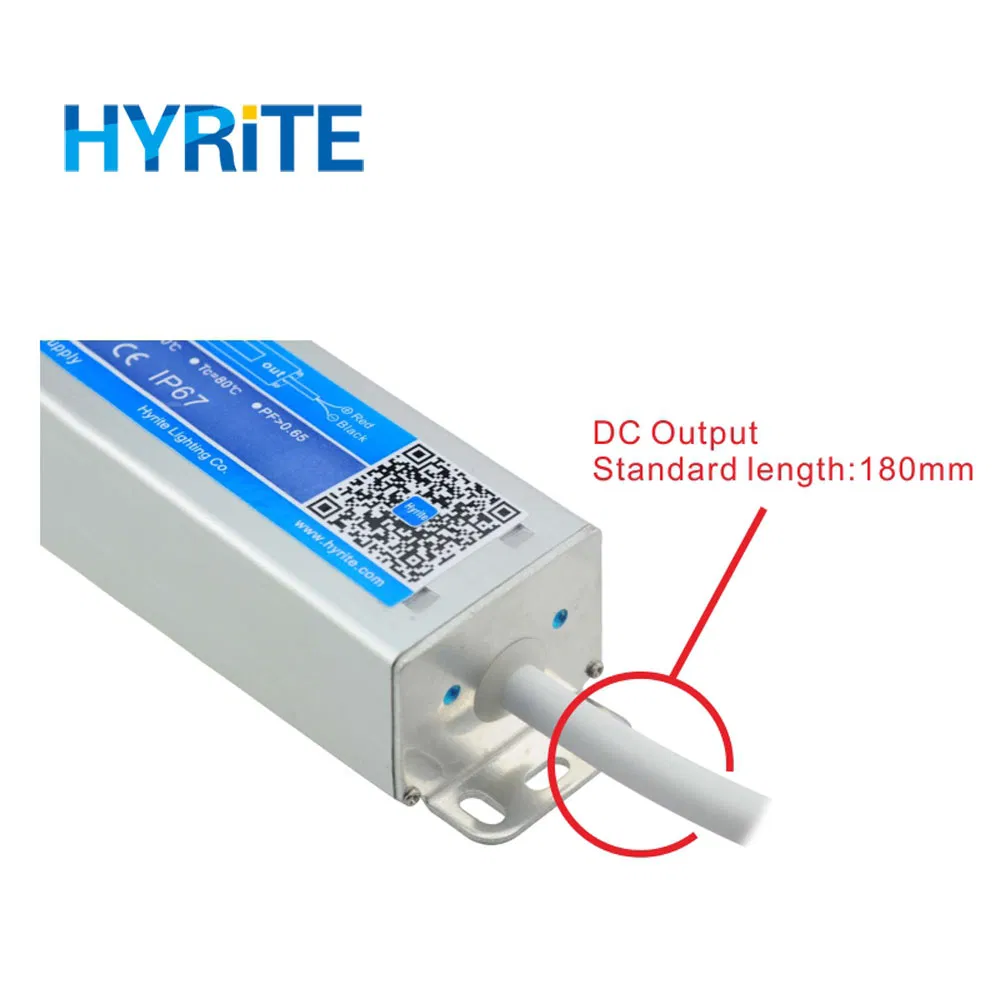

| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm) |

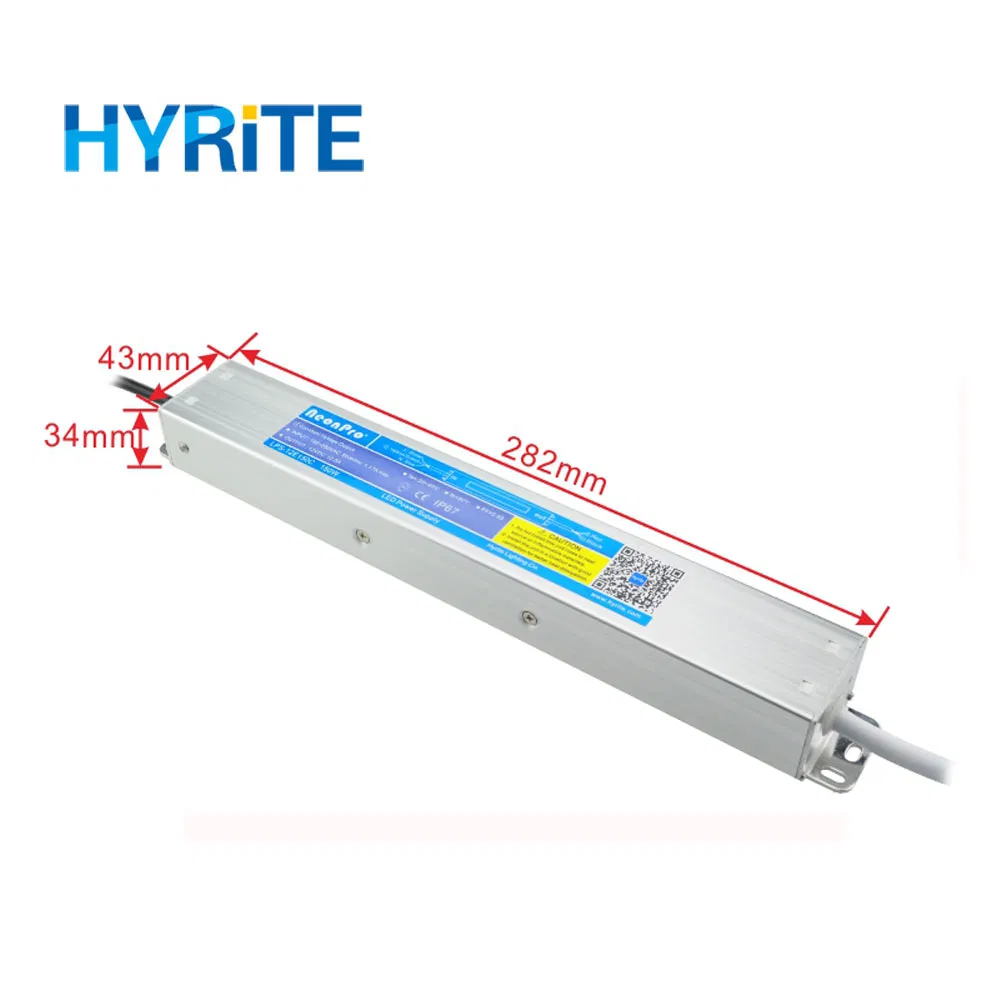

| Dimensions(L*W*H) | 312*43*34mm |
| Weight(kg) | 0.85 |
| Packing information | 10 Pcs/ Carton, G.W 9.00KG |
3. Applications of switching Power Supply:
*Office lighting, Artwork lighting, Display case
*Home lighting
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Hotel, Restaurant lighting
*Other public lighting
4. Important Parameter of LED Power Supply:
Store Temperature: -25~75° C
Working Temperature: -25~50° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP23/customized

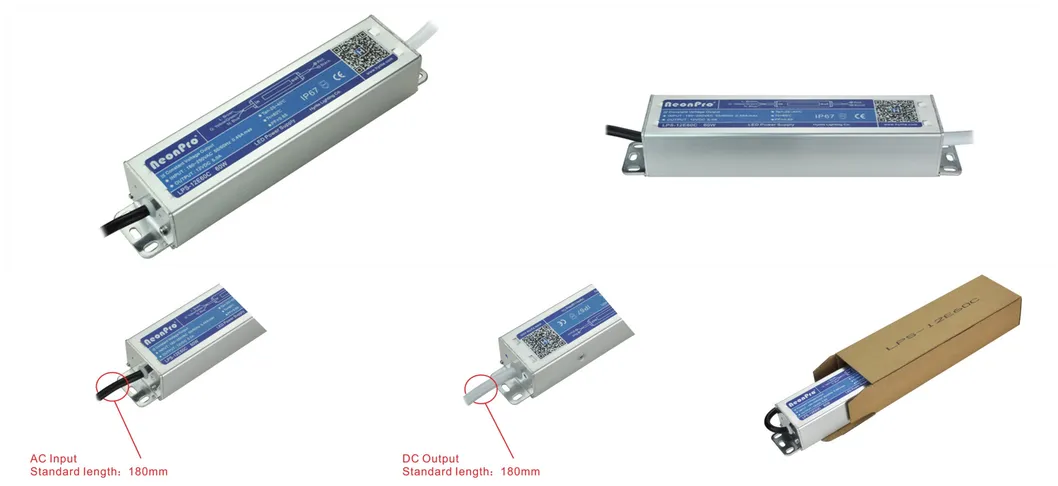

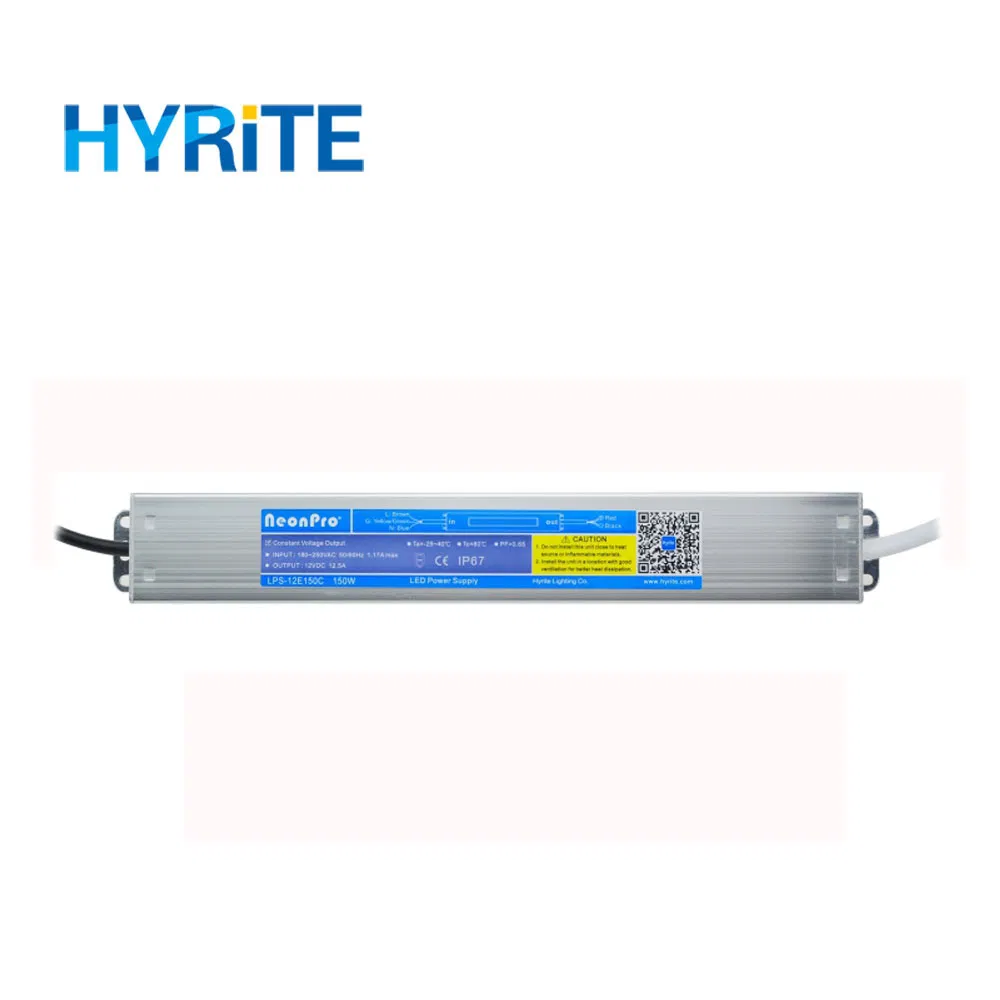

5.Product photo:
Shipping Pictures of Slim Indoor Power Supply:
FAQ
Q1. Can I have a sample order for led Transformer ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 15-20 working days.
Q3. Do you have any MOQ limit for led Transformer order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led Transformer ?
A:1. please let us know your product's requirements
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on led Transformer product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the faulty?
A: 1. Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
2.During the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
