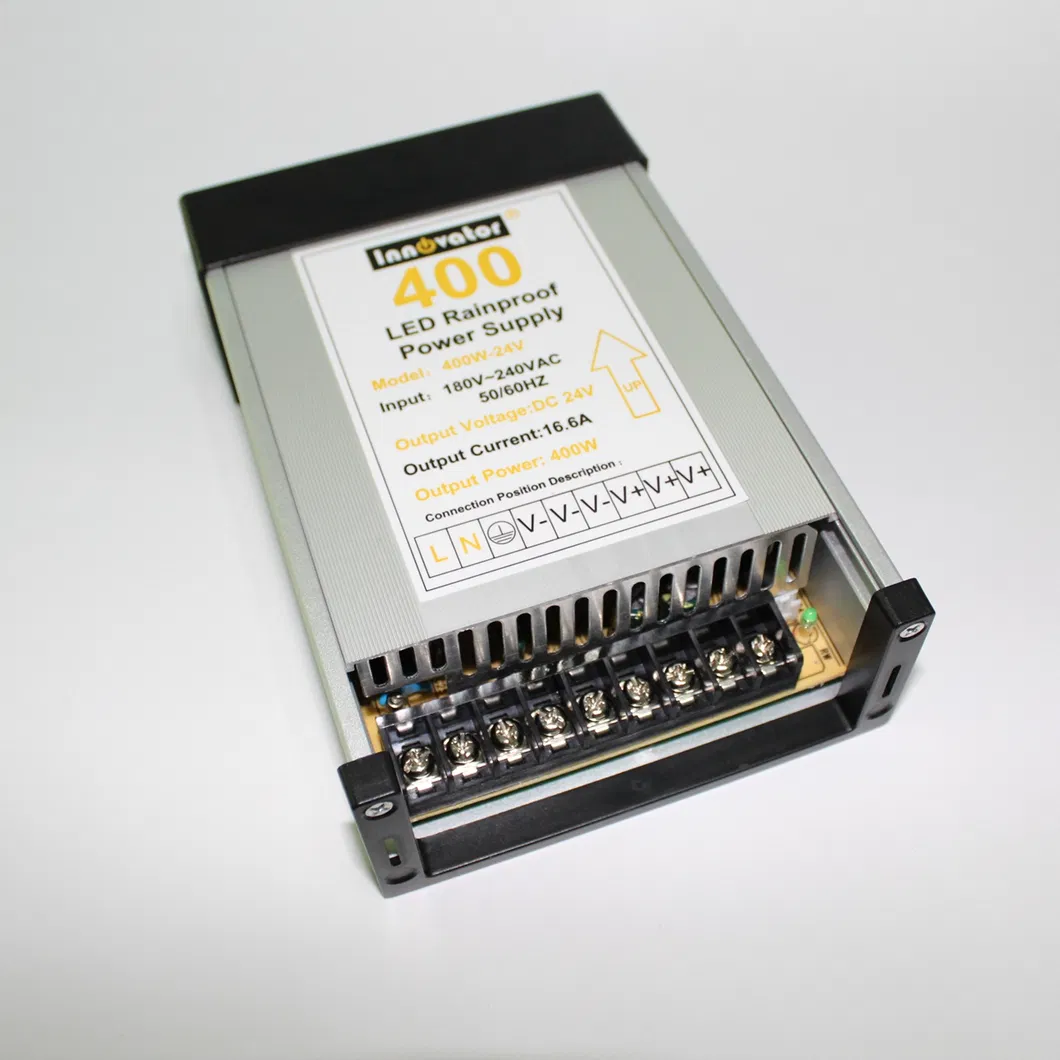

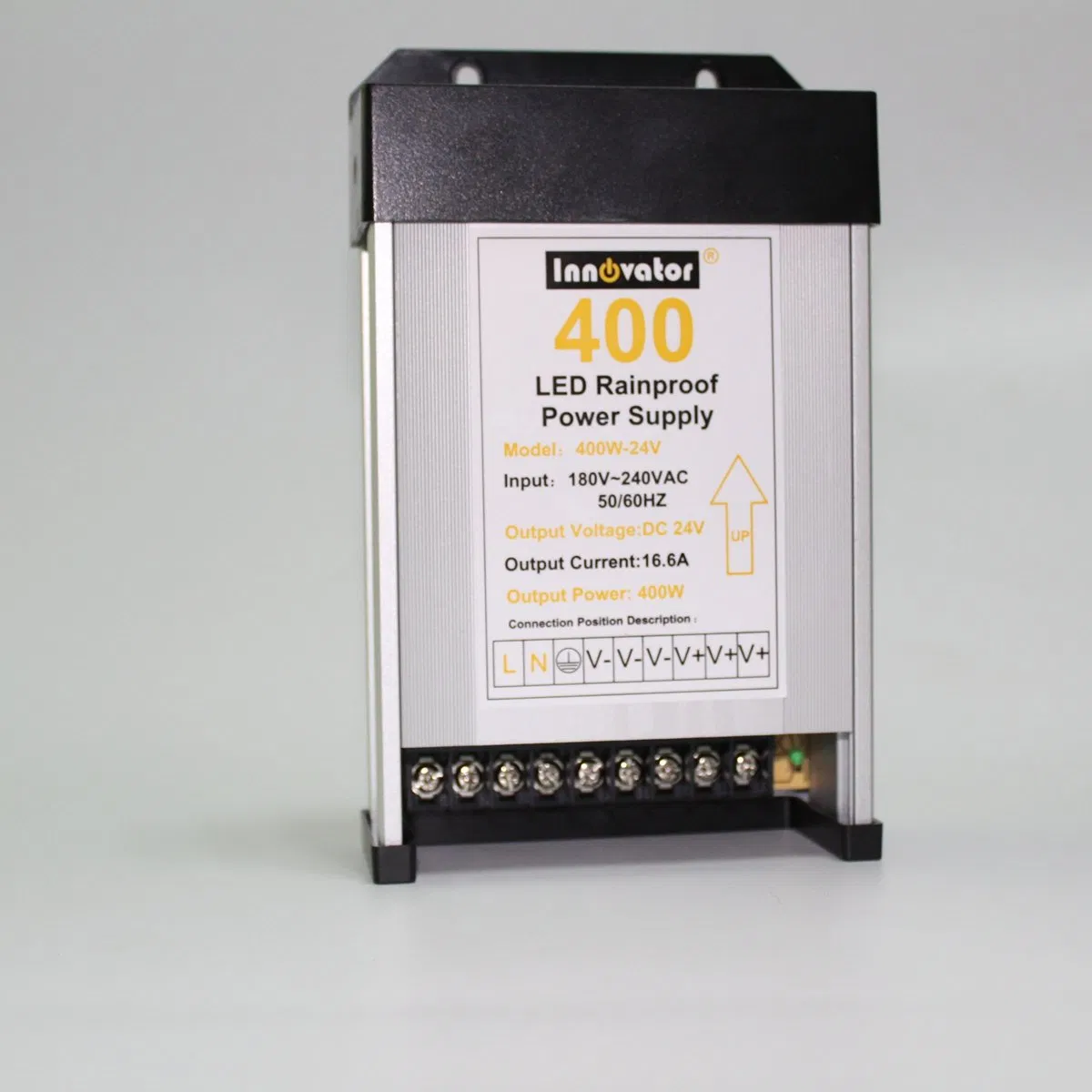

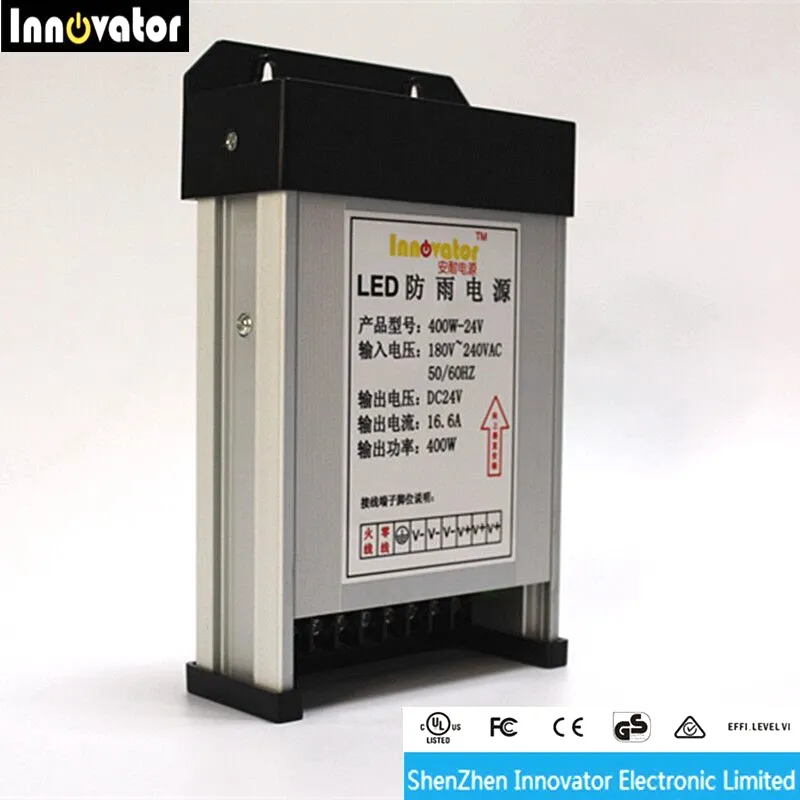

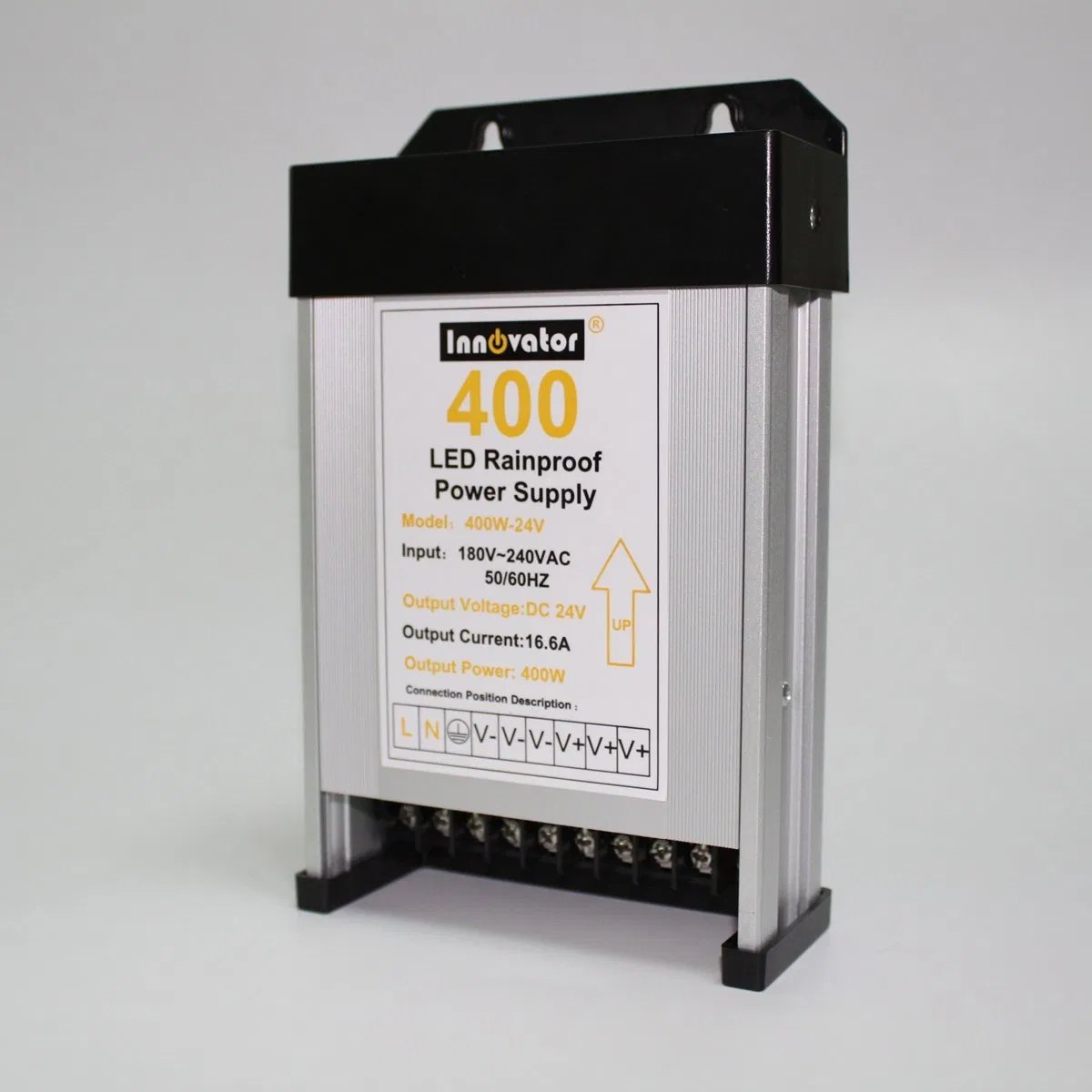

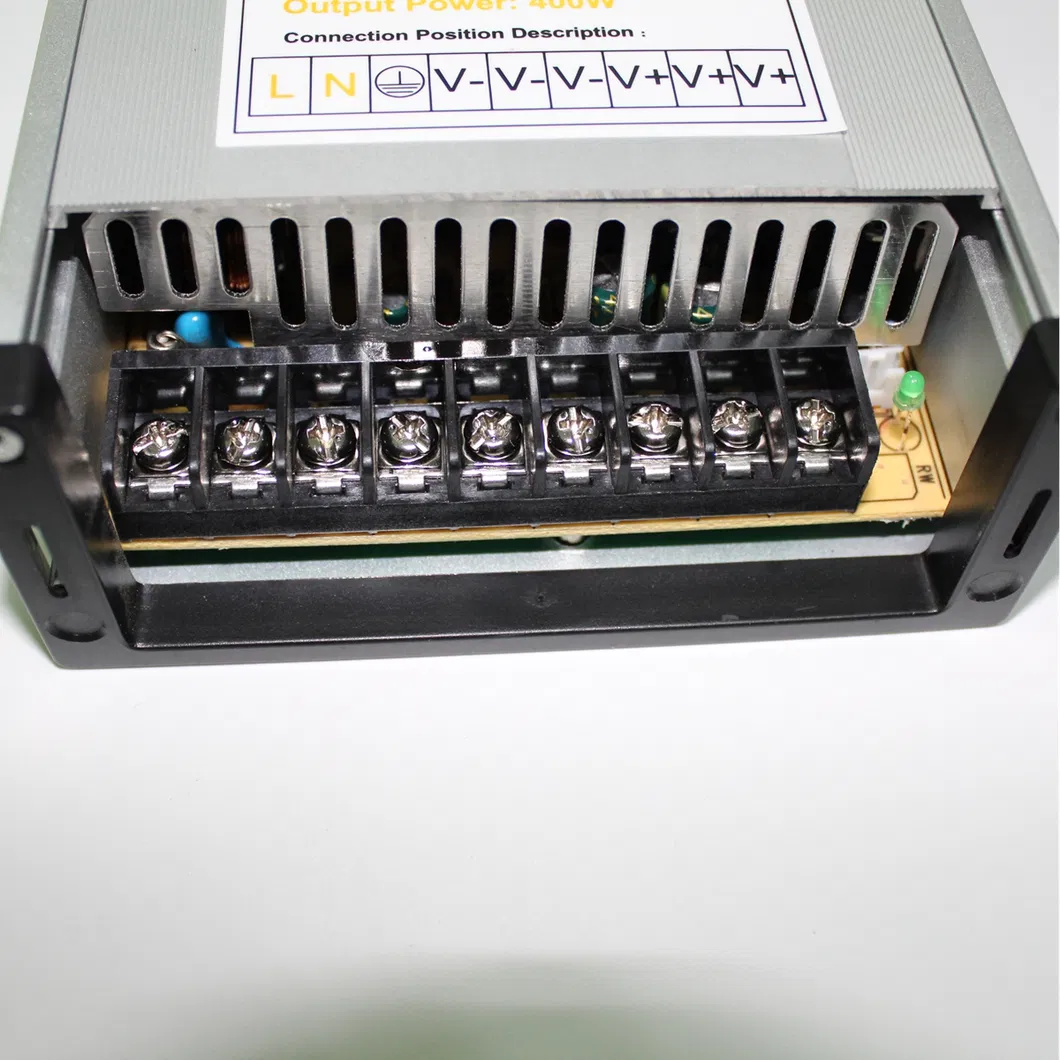

400W Rainproof Power Supply for LED Light

Product Description

Product Description:

Features:

1.Built-in EMI filter

2.100% full load burn-in test

3.Low output ripple and noise

4.Protection:Over load/Over voltage/Short circuit

specifications

24V 400W Rainproof LED Light

Output
DC Voltage			24V
Rated Current			16.6A
Current Range			0~16.6A
Rated Power			400W
Ripple Wave			200mVp-p(oscilloscope probe with a 0.1uF ceramic and a 10uF electrolytic capacitor)

Voltage Accuracy			±1%
Line Regulation Rate			±0.5%
Load Regulation Rate			±1%
Start / Rise Time (Max)			1000mS/40mS
Maintain Time			10mS min
Input
Voltage Range			180~240Vac
Frequency Range			47~63HZ
Efficiency(max)			more then 80%
Surge Current(max)			Cold start current 60A/230V
Leakage Current(max)			5mA
Protection
Overvoltage protection			greater than 17V less than 19V
			Constant current mode, output voltage drop after overload
short circuit			Septum protection, Auto recovery after normal
Environment
Operating Temp/Hum			-30ºC~+55ºC /20~90%RH
Storage Temp/Hum			-40ºC~+85ºC/10~95%RH
Safety rules and electromagnetic compatibility
safety specification			Reference to UL60950-1, TUE EN60950-1 standard design
withstand voltage			I/P-O/P:0.5KVAC;I/P-FG:0.5KVAC;O/P-FG:500VDC
Insulation impedance			I/P-O/P,I/P-FG:100M Ohms/500VDC
EMI(RE,CE)			Reference to EN55002 Class B standard design
harmonic current			Reference to EN61000-3-2, Class A standard design
Electromagneti immunity(RS,CS)			Reference to IEC61000-4-6, IEC61000-4-3 standard design

others
Single weight			558g
Size			19812053mm
Package			42 Pcs/box

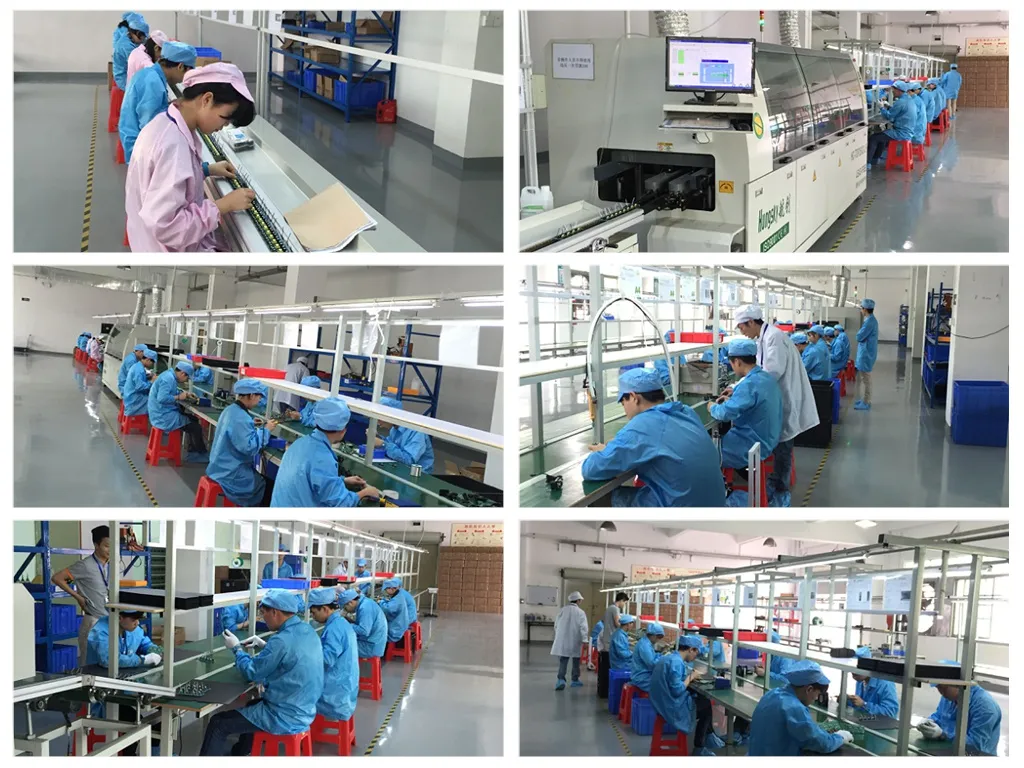

Shenzhen Innovator Electronic Limited was found in the year 2015, since then, we are focusing only on producing Power supply/Adapter/ Charger/LED rainproof power supply relative products and become as one of the major power supply products manufacturers in China. LED Power Supply, adapter, charger, These products are widely used in all kinds of LED strip, CCTV camera, STB, Audio, Telecommunication, UAV and Intelligent robot etc., and wall lights in large shopping malls or hotels, billboards, glowing fonts. Both the low watt or large watt power supply  products are available for customers to provide them more options. With our strict quality control system and efficient production process, we can do our best in terms of good quality and price!

Our Advantages
As a manufacturer, we have the ability to produce competitive products because we just concentrate on doing one thing at a time. With every passing year, we are manufacturing better power supply related products as compared to the previous goods. Some of the factors that keeps us ahead from the competitors is innovation, stable raw material supply chain, superb producing flow & quality control system, talented workforce etc. Due to all this, we are able to maintain consistency in the quality along with cost minimization. In addition, we have provided laptop adapter products in various specifications, so that our clients can find the right model within our product range. We stick to the principle of"quality first, service first, continuous improvement and innovation to meet customers" for the management and "zero defect, zero complaints"as the quality objective.
Application of Products

With quality being of utmost priority, our company leaves no stone unturned when it comes to providing its patrons with the best of LED power supply, Power adapter and other similar goods.Giving you a great deal of convenience. The various aspects in which our products are used include-

-- Billboards
--LED Lighting
--Display screen
--Printer
--CCTV camera
--Laptop
--Audio
-- Telecommunication
--STB
-- Intelligent robot
