400W Rainproof Power Supply 12V Output Voltage LED Driver
400W RainProof Power Supply 12V Output Voltage LED Driver Advantages of Rainproof LED Driver:Not only the power supply has obtained the BIS certificate, but also the cables of the products have passed the latest BIS standard.Now we properly adjusted and optimized the design for the aluminum case of ......
Send Inquiry
Product Description
400W RainProof Power Supply 12V Output Voltage LED Driver
Here list you the advantages as follows.
1. New design with slide cover, more convenient for wire connection;
2. Built-in loading indicator light, green for normal, red for overload, over temp, short circuit.
Specfication of Rainproof LED Driver:
Features of Rainproof LED Driver:
*Rainproof, for outdoor
*Constant voltage output
*Low cost, high reliability, long life
*Short circuit and overload protection
*Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock
*100% full load burn-in test
*2 years warranty
*BIS certified
Product Pictures of Rainproof LED Driver:
Applications of Rainproof LED Driver:
*LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc...
*Designed for indoor signage, decoration or lighting applications.
About our Hyrite Factory & Workshops
Certificate & Packing & Shipping Pictures for Waterproof led driver
FAQ
A: Low MOQ, 1pc for sample checking is available
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
than 0.1%.
2.During the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
Advantages of Rainproof LED Driver:
Not only the power supply has obtained the BIS certificate, but also the cables of the products have passed the latest BIS standard.
Now we properly adjusted and optimized the design for the aluminum case of it.Here list you the advantages as follows.
1. New design with slide cover, more convenient for wire connection;
2. Built-in loading indicator light, green for normal, red for overload, over temp, short circuit.
Specfication of Rainproof LED Driver:
| Model no. | LHDV-12E400 |
| Input voltage | 180-250 VAC 50/60 Hz |
| Max. power | 400W max |
| Output type | Constant voltage |
| Certificate | CE, RoHS, ISO 9001:2015, BIS |
| Warranty | 2 years |
| Efficiency | >85% |
| Output voltage | 12VDC ± 5% |
| Output current | 33.3A max |
| Operating temperature | -25ºC~+40ºC |
| Installation | Outdoor rainproof |
| IP rating | IP 23 |
| Cooling | Free air convection |

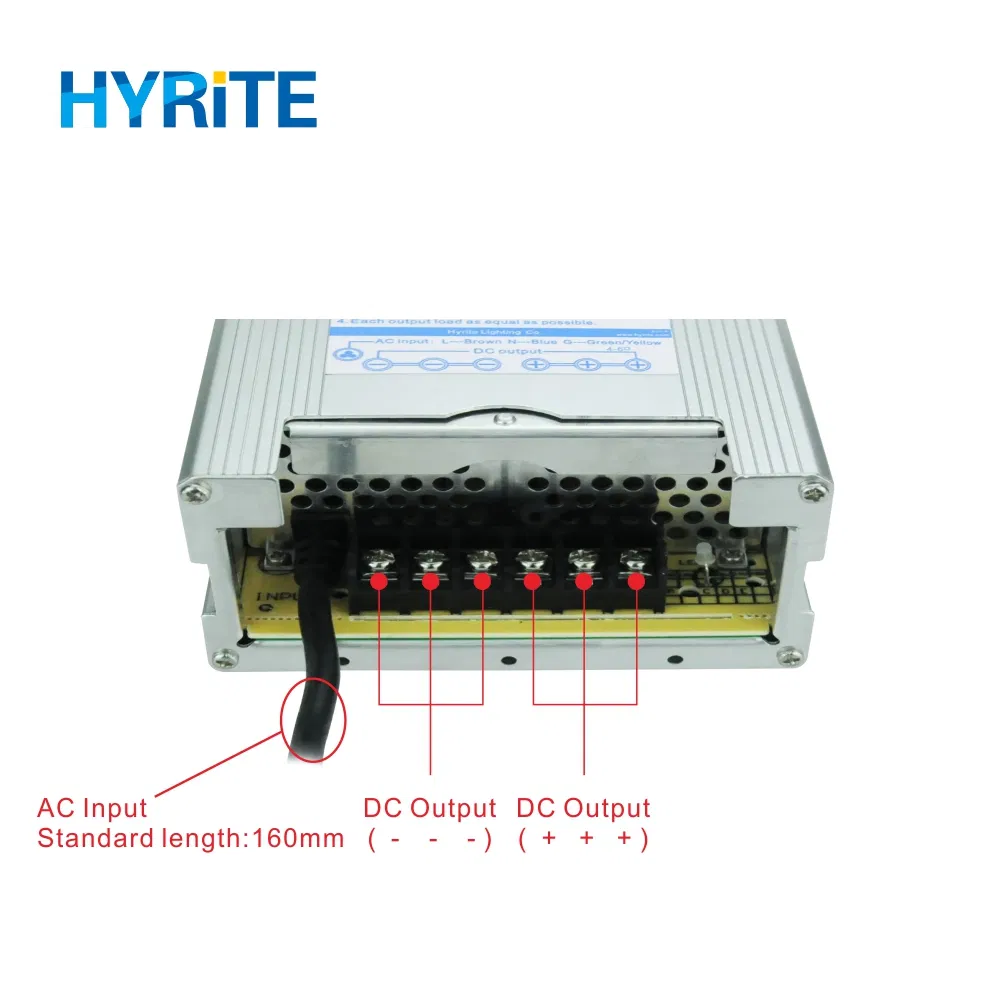

| Connection input/output | Input:18AWG*3(30cm) Output: terminal(six) |

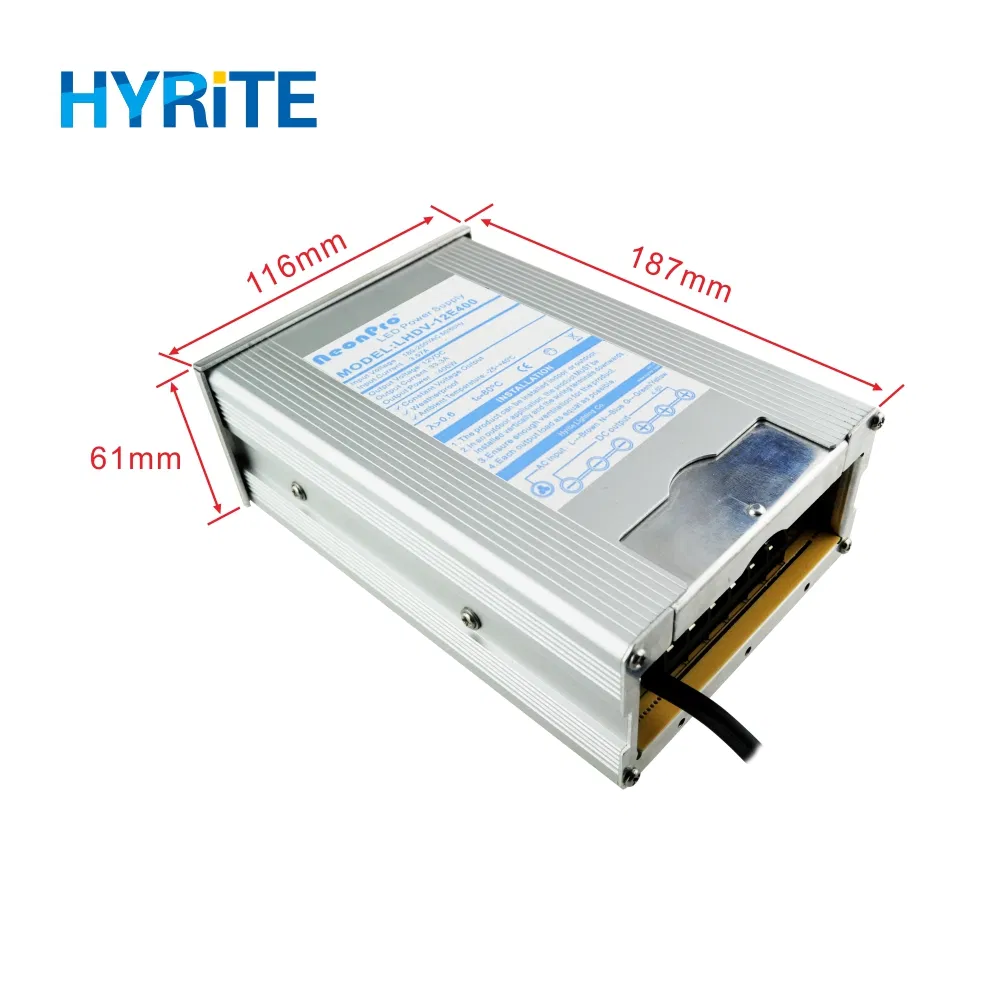

| Dimensions(L*W*H) | 187*116*61 mm |
| Weight(kg) | 0.7 KG |
| Packing information | 20 PCS/Carton, G.W 15 KG |
| Packing Dimensions(L*W*H) | 400x328x260 mm |
Features of Rainproof LED Driver:
*Rainproof, for outdoor
*Constant voltage output
*Low cost, high reliability, long life
*Short circuit and overload protection
*Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock
*100% full load burn-in test
*2 years warranty
*BIS certified
Product Pictures of Rainproof LED Driver:
Applications of Rainproof LED Driver:
*LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc...
*Designed for indoor signage, decoration or lighting applications.
About our Hyrite Factory & Workshops

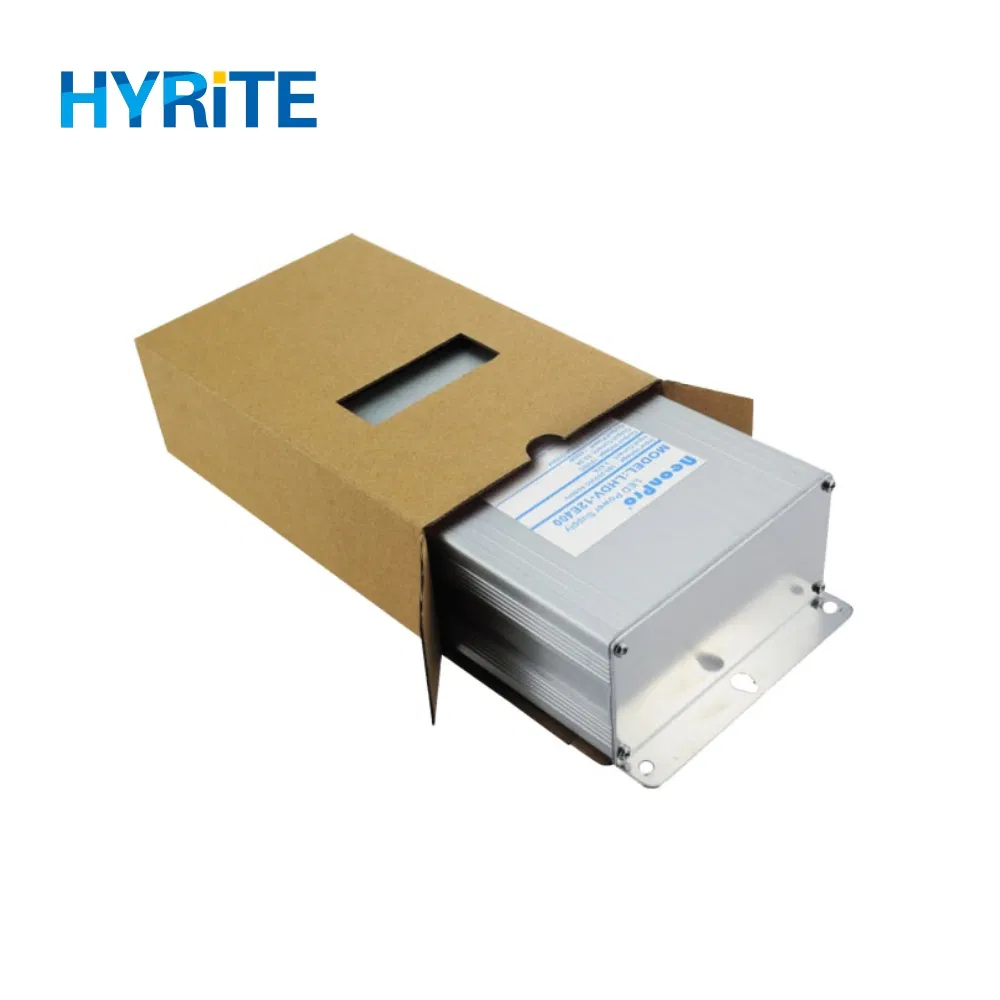

Certificate & Packing & Shipping Pictures for Waterproof led driver
FAQ
Q1. Can I have a sample order for LED Driver?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 15-20 working days.Q3. Do you have any MOQ limit for LED Driver order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.Q5. How to proceed an order for LED Driver?
A:1. please let us know your product's requirements2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on LED Driver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.Q7: How to deal with the faulty?
A: 1. Our products are produced in strict quality control system and the defective rate will be lessthan 0.1%.
2.During the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
