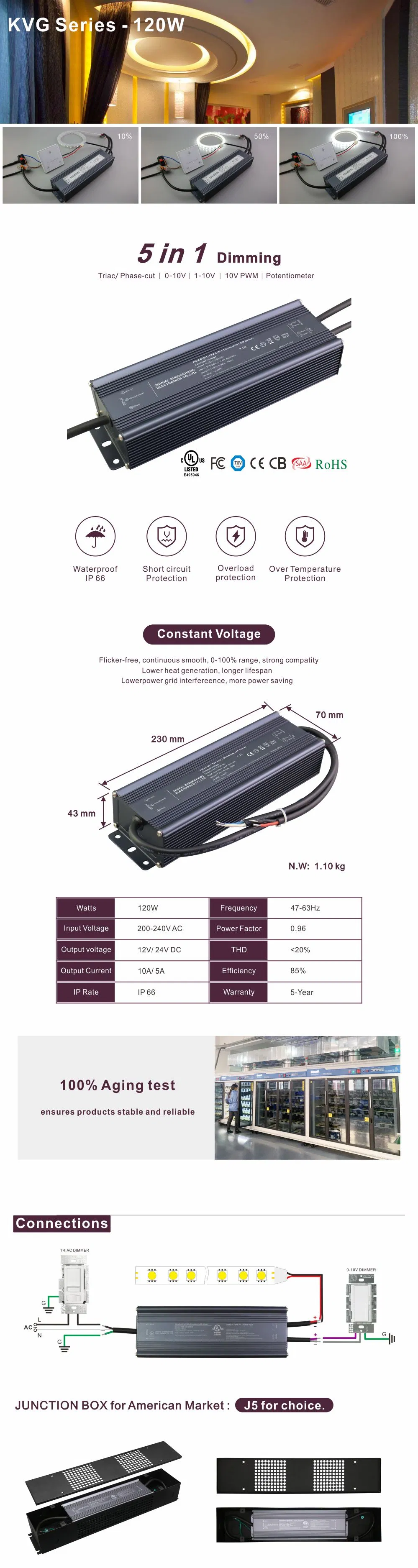

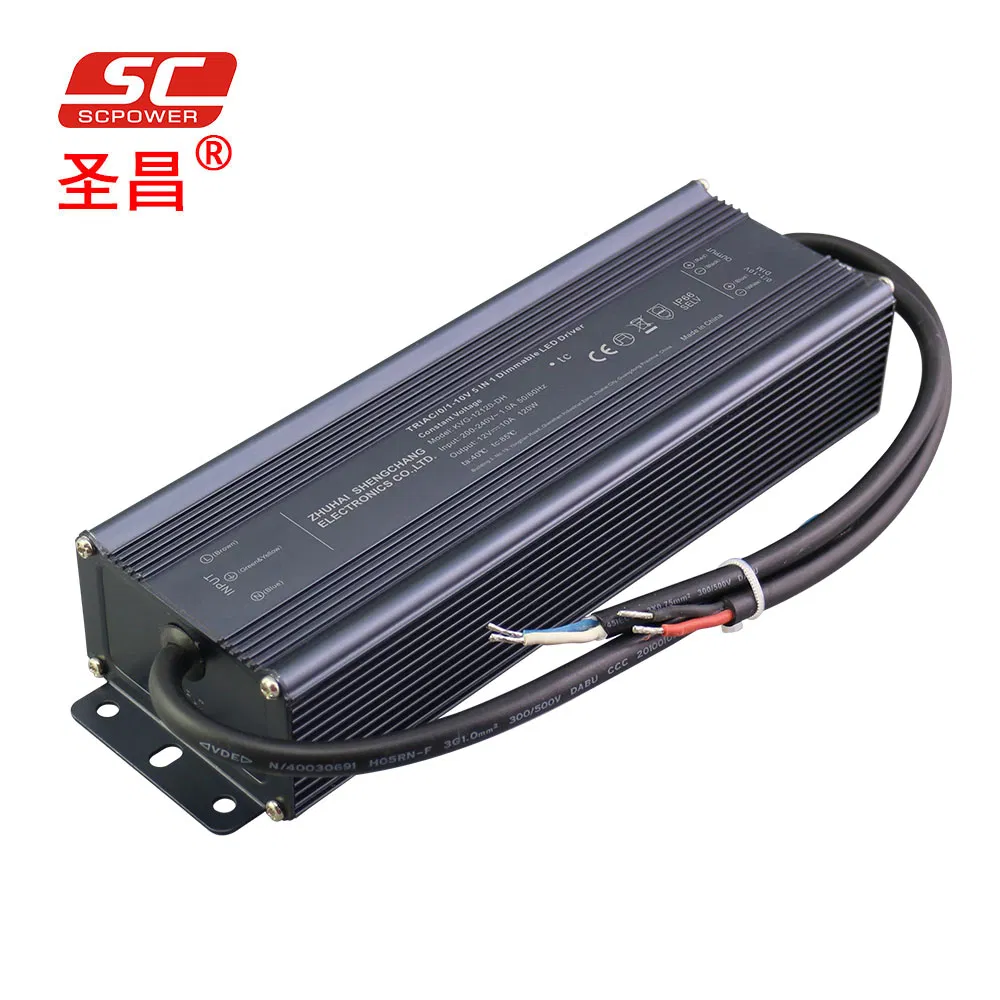

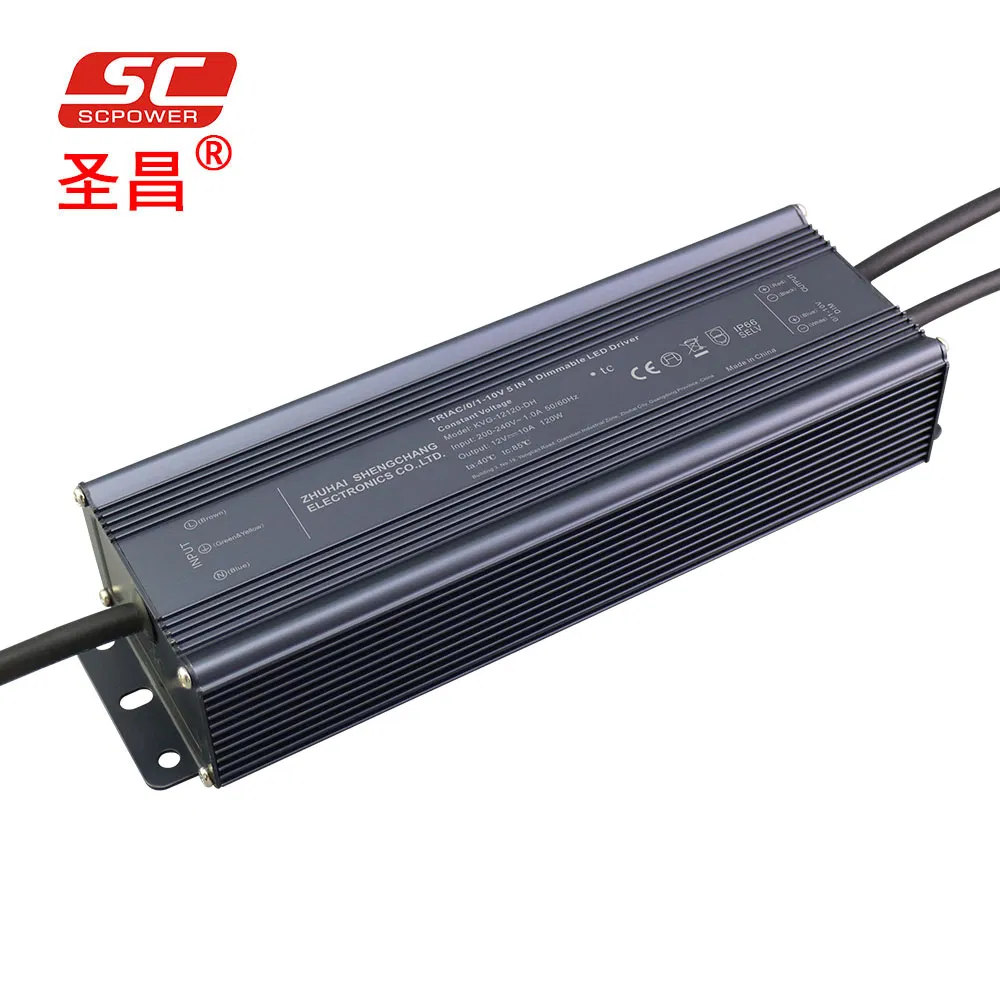

200V-240V AC LED Dimming 120W DC PWM Multiple Output 12 Volt 10A LED Strip Light Driver

Product Description

200V-240V AC LED Dimming 120W DC PWM Multiple Output 12 Volt 10A LED strip light driver

Features:

·Output constant voltage

·AC input: 200-240VAC

.Power Factor: up to 0.96

·High efficiency : up to 85%

·Load: 10-100%

·Protection:short circuit/over loading/ Over temperature

·PWM output, does not change the color index

·IP66 waterproof in metal case

·Flicker-free

·Dimming function: Phase/Triac dimming: work with leading edge ,and trailing edge TRIAC dimmers 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1

· Dimming range: 0-100%

·Suitable for LED lighting and moving sign applications

Specification:

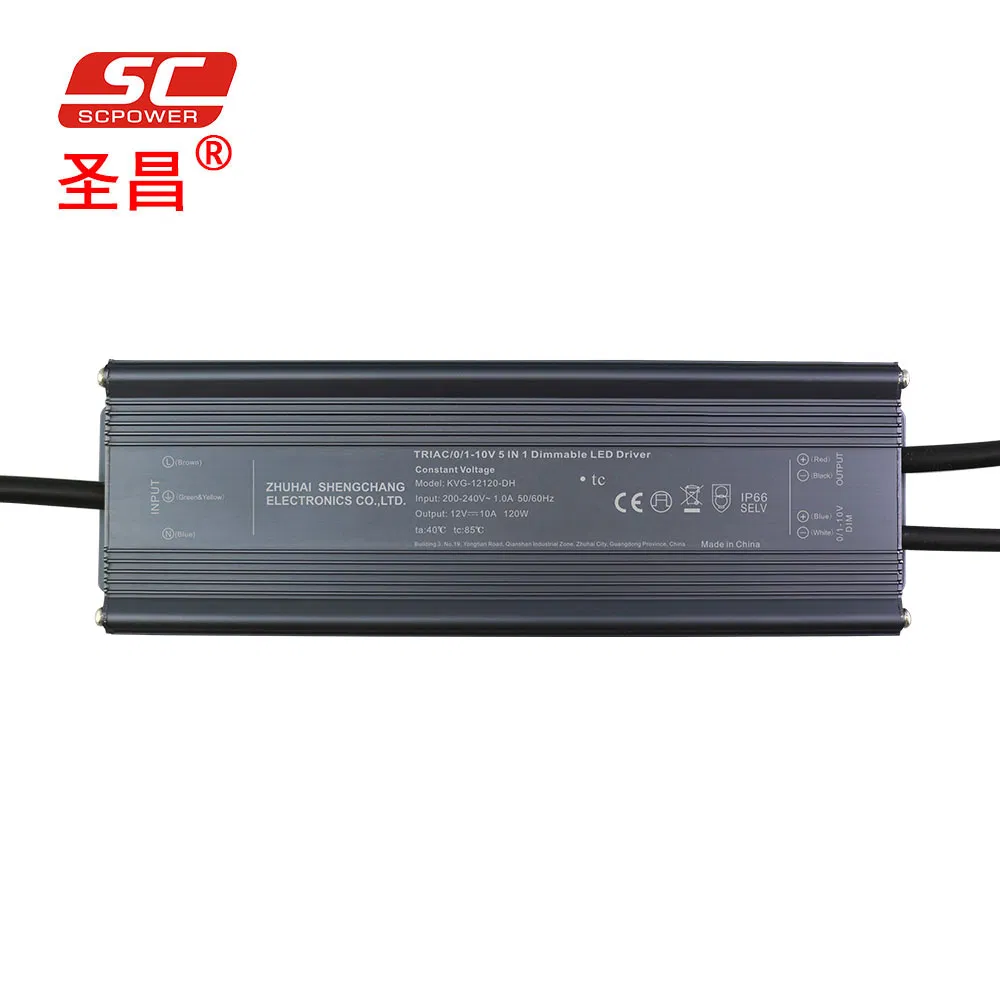

Model		KVG-12120-DH		KVG-24120-DH
Certificates		CE, ROHS
Output	Out put DC Voltage Range	12V		24V
	Rated Current	10A		5A
	Rated Power	120W		120W
	Voltage Tolerance	±0.5V
	Voltage Regulation	±0.5%
	Load Regulation	±2%
Input	Voltage Range	200-240VAC
	Frequency Range	47-63Hz
	Power Factor(Typ.)@ full load	0.96@230VAC
	THD(Typ.)@ full load	<20%
	Efficiency(Typ.)@ full load	84% @230VAC	85%@230VAC
	AC Current(Max.)	0.74A@200VAC	0.74A@200VAC
	Inrush Current (Typ.)	49.5A, 50%, 490us @230VAC
	Leakage current	<0.50mA
Protection	Short Circuit	shut down o/p voltage, re-power on to recover after fault condition is removed
	Over Loading	≤120% constant current limiting, auto-recovery
	Over temperature	100ºC±10ºC shut down o/p voltage, automatically recover after cooling.
others	Net. Weight	1.1Kg
	Size	2307043mm (LWH)
	packing	10pcs/CTN SIZE: 340275170mm (LWH)
Notes	1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25ºCof ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage.
