150W 12V 24V Slim Size Switching LED Power Supply
150W 12v 24v slim size switching led power supply Product Description-Super Slim body,special design for application with narrow space.-Constant Voltage output-For Indoor and Outdoor use,IP68 waterproof typeProduct ParametersModel no.TLG-12E150CInput voltage185-264VAC 50Hz/60HzMax. power150W maxOutp......
Send Inquiry
Product Description

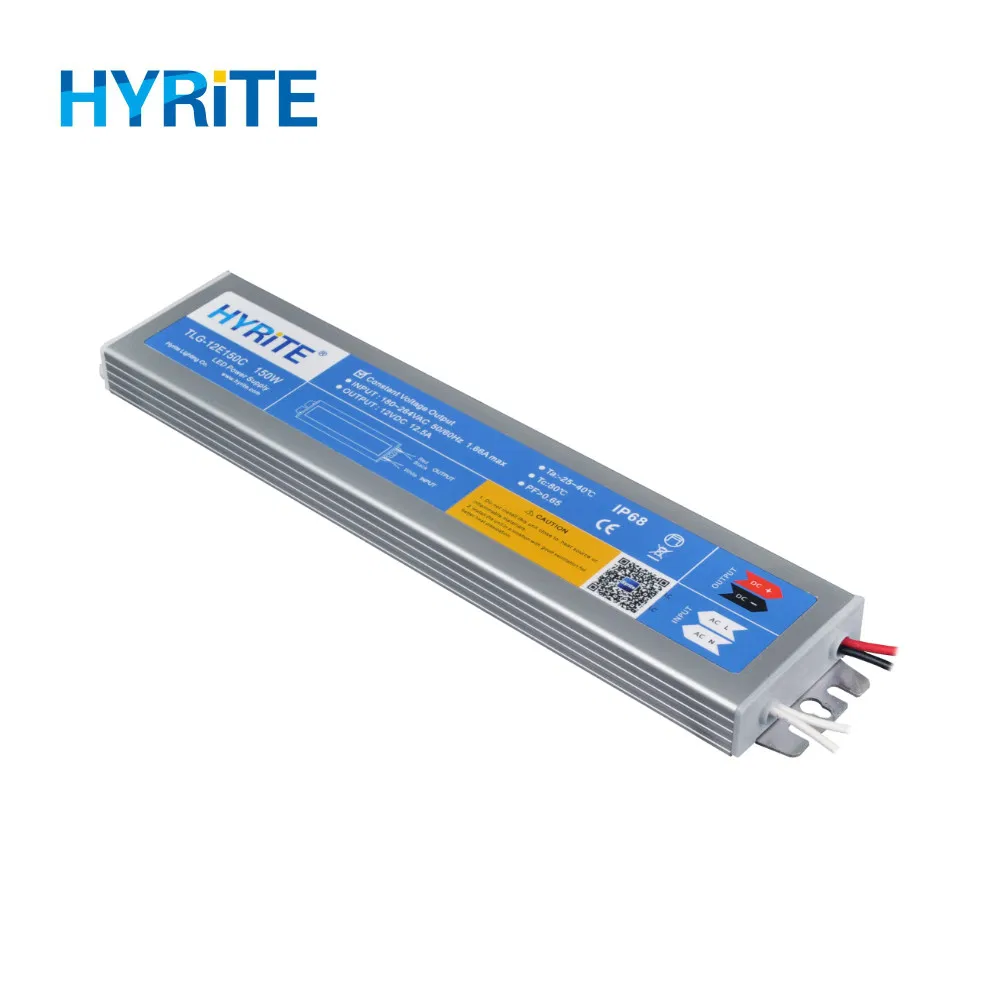

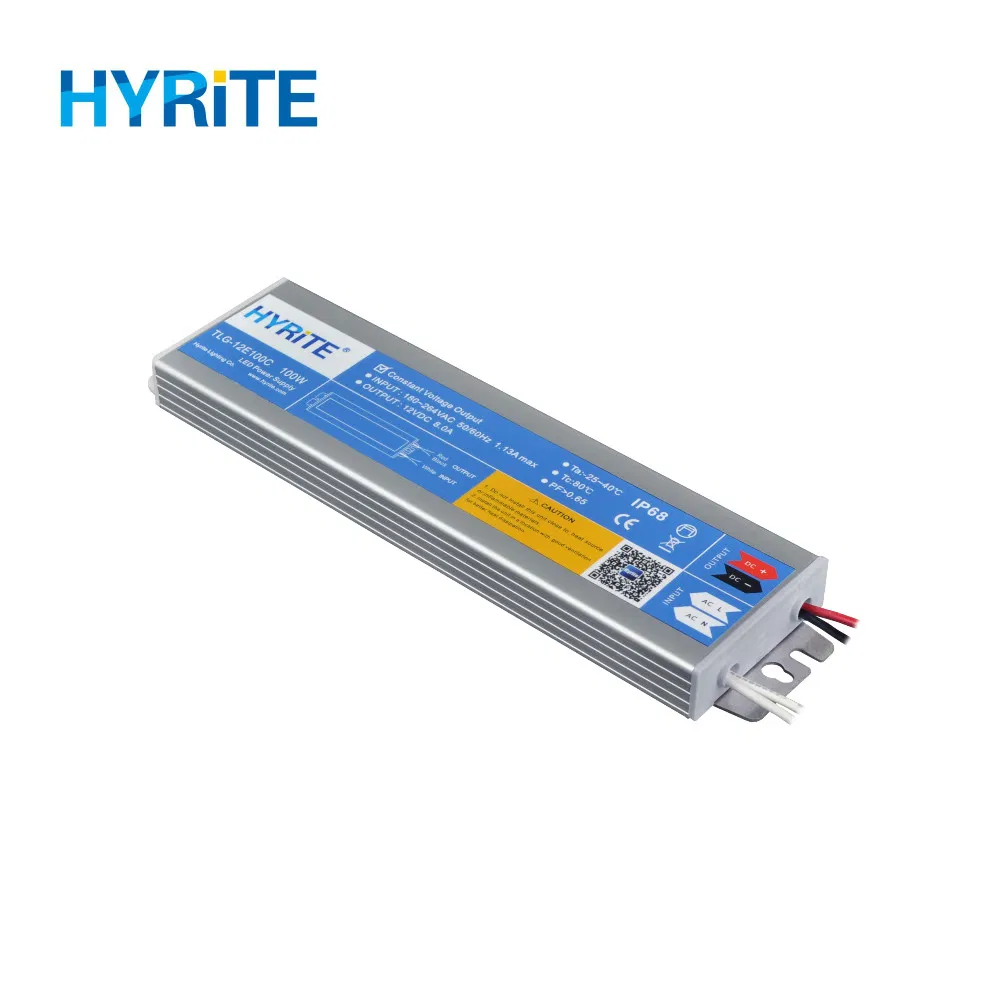

150W 12v 24v slim size switching led power supply
-Super Slim body,special design for application with narrow space.
-Constant Voltage output
-For Indoor and Outdoor use,IP68 waterproof type
| Model no. | TLG-12E150C |
|---|---|
| Input voltage | 185-264VAC 50Hz/60Hz |
| Max. power | 150W max |
| Output type | Constant voltage |
| Efficiency | 86% |
| AC inrush current(max.) | Cold start, 40A@230VAC |
| Output voltage | 12VDC ± 5% |
| Output current | 12.50A max |
| Overload protection | 110-150% hiccup mode, auto-recovery |
| Over voltage protection | 115-150% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -10~+60,100%Pout@0~45, 60%@60 , 80%@-10 |
| Installation | Indoor/Outdoor |
| IP rating | IP 68 |
| Cooling | Free air convection |
| Connection input/output | Terminal |
| Weight(kg) | 0.400 |
Slim LED light box;
Display cabinet lightingProjects around the world:
Our projects covering banks, shops and buildings all over the world.
LED Power Supply suitable for Office lighting, Artwork lighting, Display case
Home lighting
Commercial lighting, such as down light, underground lamp, Panel light, Spotlight, Wall washer, etc.
Hotel, Restaurant lighting
Other public lighting
Hyrite is a professional manufacturer of LED power supply and LED module. We have more than 27 years experience in design, development and manufacturing of electronic power supplies. Including waterproof /rainproof/indoor LED power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
(1) Office showWe have more then 300 staffs in our company and cover an area of 15000 in Guangdong, China with additional office in the USA
(2)Professionnal testing machine: SMT, Burn-in test machine...

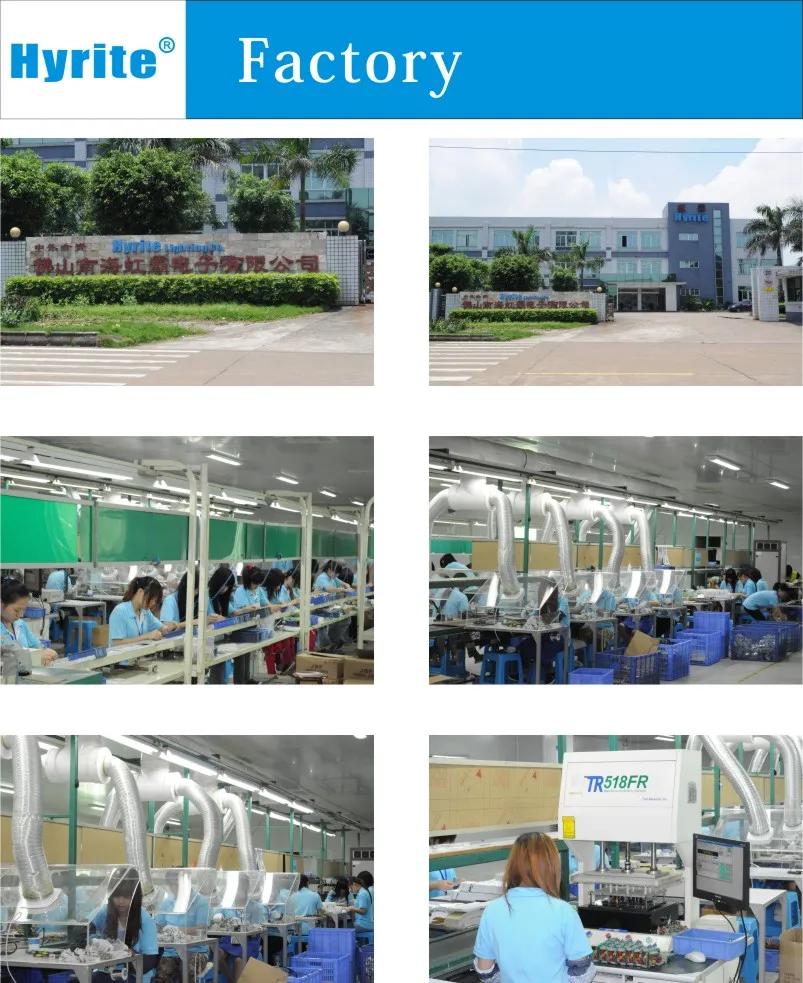

(3) Production lines:
There are 12 production lines in our factory.
Our Exhibitions:
Sign China; LED China; Guangzhou International Lighting Exhibition; Shanghai Int'l Lighting Expo; Light India; Hong Kong International Lighting Fair; Euroshop 2017;Light Middle East
Q1. Can I have a sample order for led power supply?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 15-20 working days.
Q3. Do you have any MOQ limit for LED Power Supply order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LED Power Supply?
A:1. please let us know your product's requirements
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on LED Power Supply product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the faulty?
A: 1. Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
2.During the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
