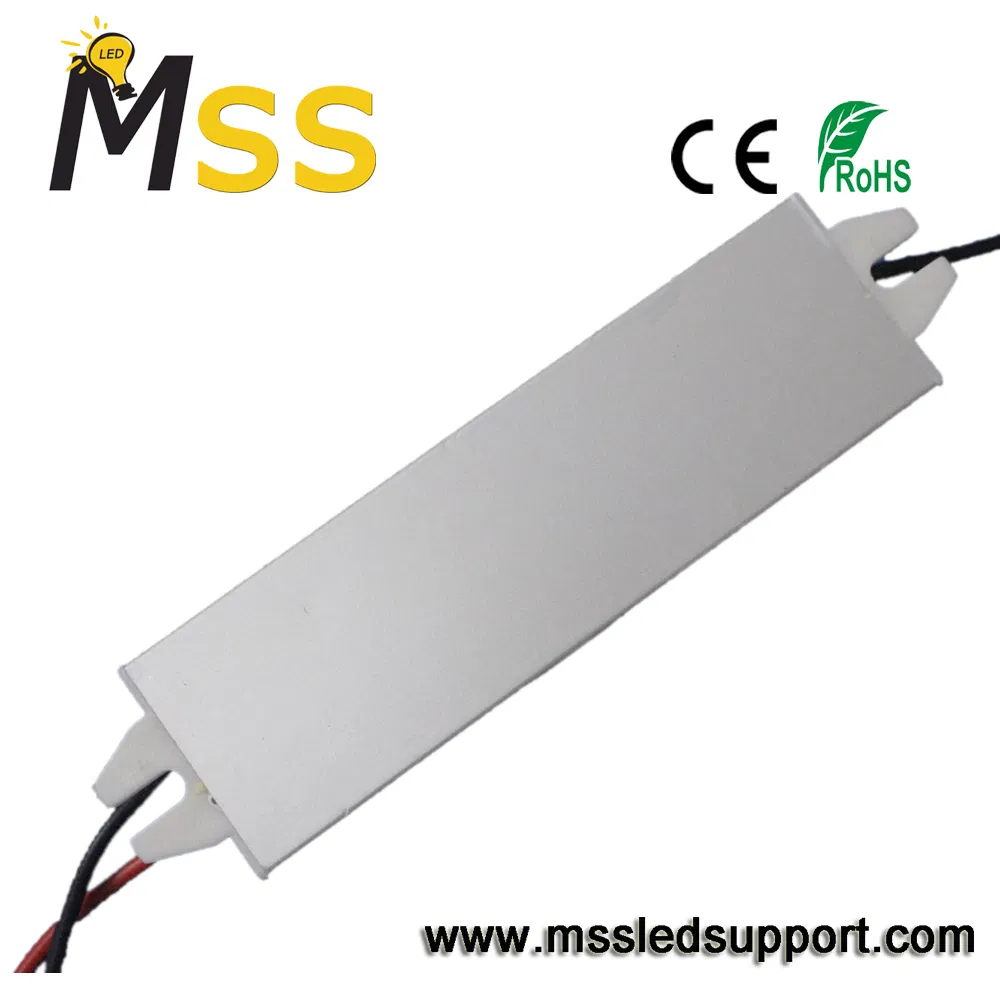

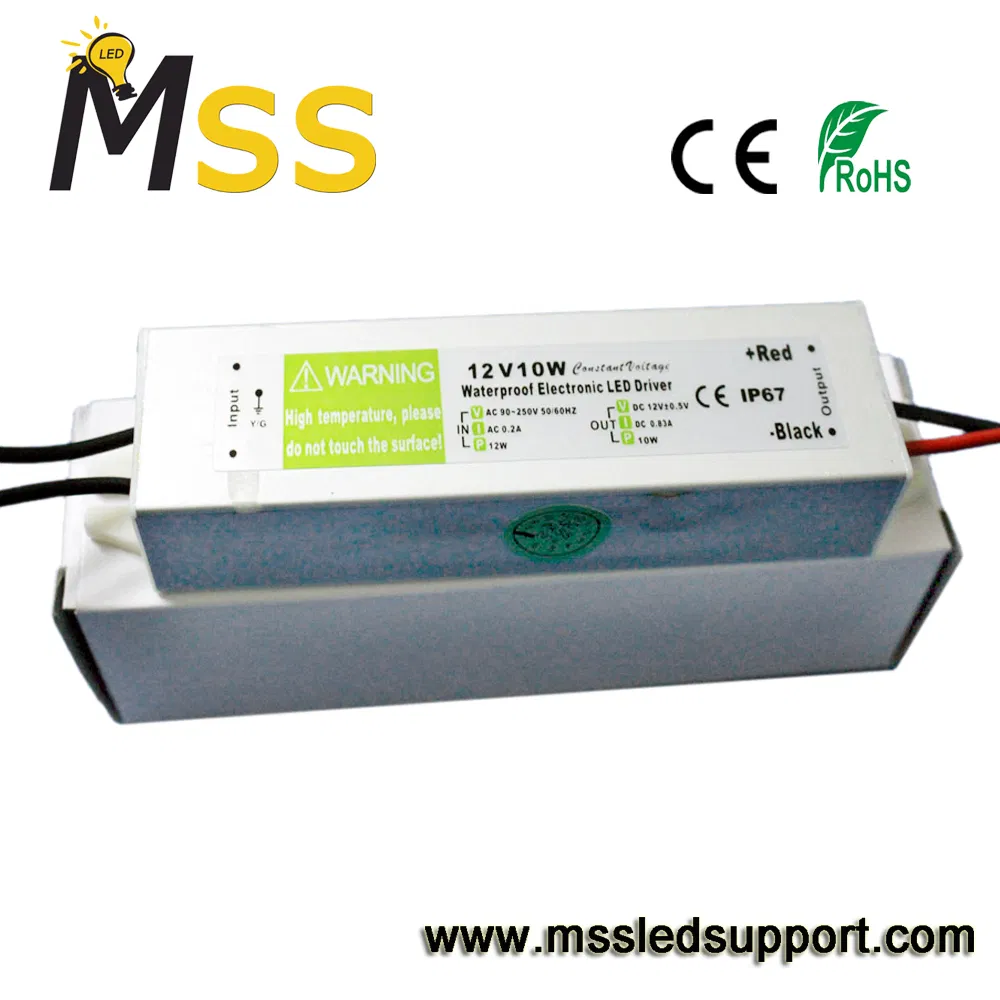

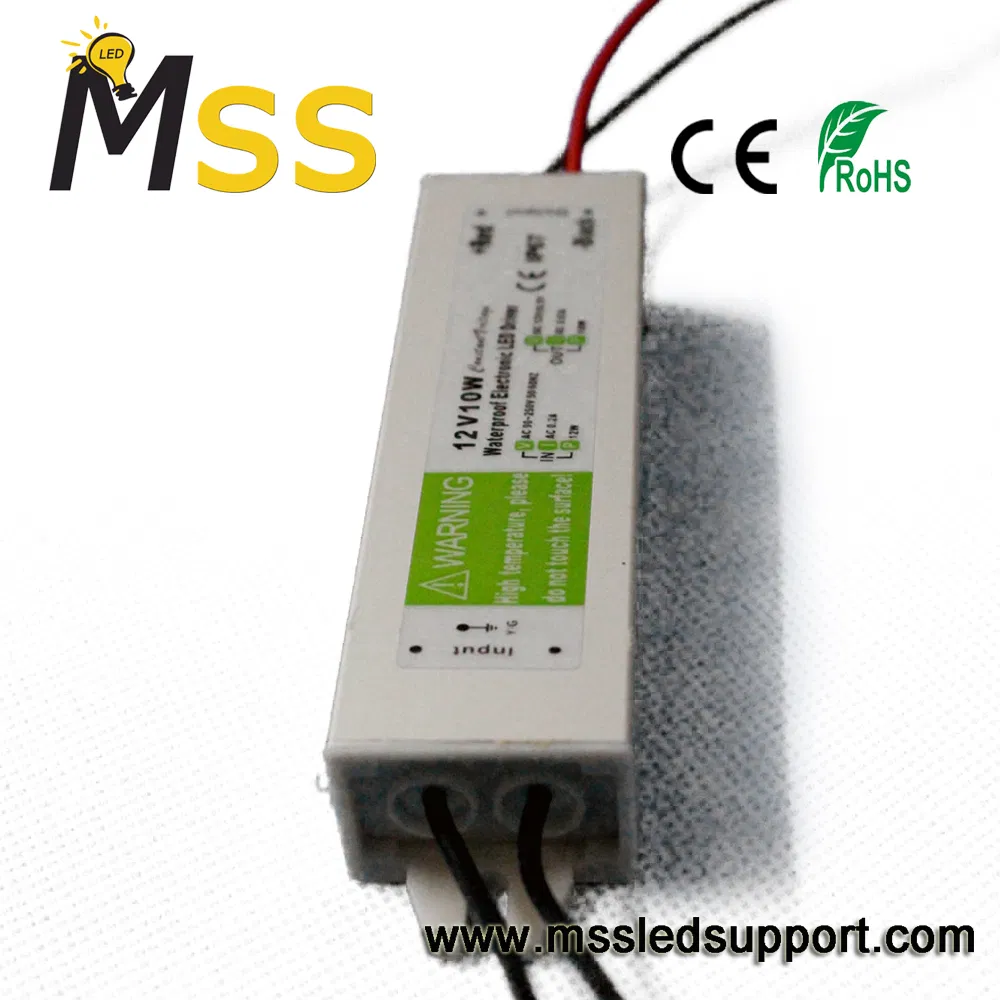

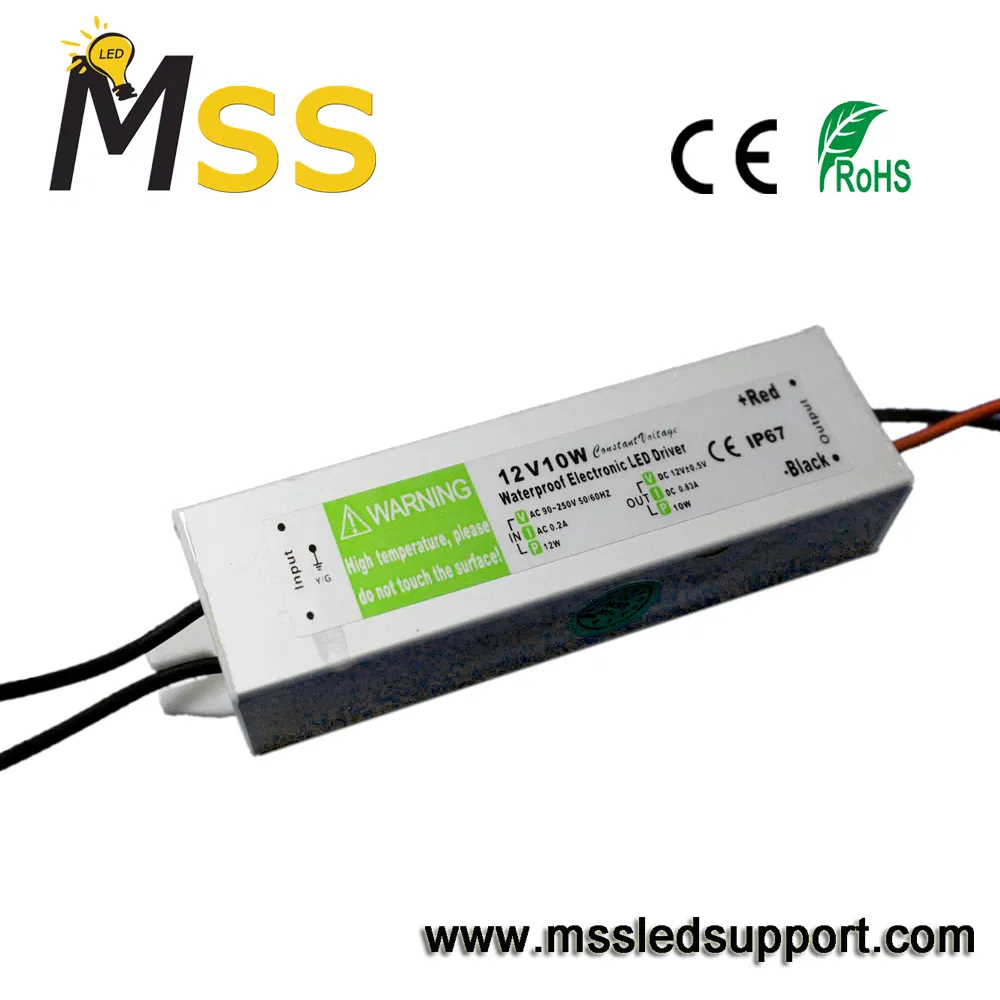

10W AC/DC Single Output LED Switching Power Supply with Ce RoHS
Features:-12V 10W Waterproof LED power supply, constant voltage.-Epoxy encapsulated, IP67. Suitable for outdoor lighting application.-Automated protection for over load and over temperature-Aluminum housing, good for heat dissipation-Cooling by free air convection. -Application: LED display, LED sig......
Send Inquiry
Product Description
Features:
-12V 10W Waterproof LED power supply, constant voltage.
-Epoxy encapsulated, IP67. Suitable for outdoor lighting application.
-Automated protection for over load and over temperature
-Aluminum housing, good for heat dissipation
-Cooling by free air convection.
-Application: LED display, LED sign, LED channel letter, LED underwater light, LED outdoor decorative lighting.
Specification:
| AC Input | Voltage | 90-264V AC(universal input voltage) |
| Frequency | 47-63 Hz | |
| AC Current | 0.1A @220V | |
| Efficiency | 83% | |
| DC Output | Voltage | 24±0.5V |
| Current | 0-0.41A | |
| Rated Power | 10W | |
| Protection | Over Load | 20% exceed in short time is allowed |
| Short Circuit | Auto recovery | |
| Over Voltaqge | ≤280V | |
| Over Temperature | ≤85°C | |
| Others | Store Temperature | - 40--85°C |
| Wokring Temperature | - 25--55°C | |
| Dimension/Weight | 95x30x20mm / 105g (Aluminium Housing) | |
| Packing/Carton Size | 100PC/CTN 38×26×20cm | |
| Input Cable | 0.5mm2 wire (120mmx2) | |
| Output Cable | 0.5mm2 wire (120mmx2) | |
| Certificate | CE | Compliant to EN 60950-1:2006; EN61000-6-3:2001; EN 55022:2006+A1:2007; EN61000-4-2/-3; EN61000-6-1:2001; EN55024:1998+A1:2000+A2:2003 |
| RoHs | Free from lead, Cadmium, Mercury, Hexavalent Chromium and/or PBB &PBDE |

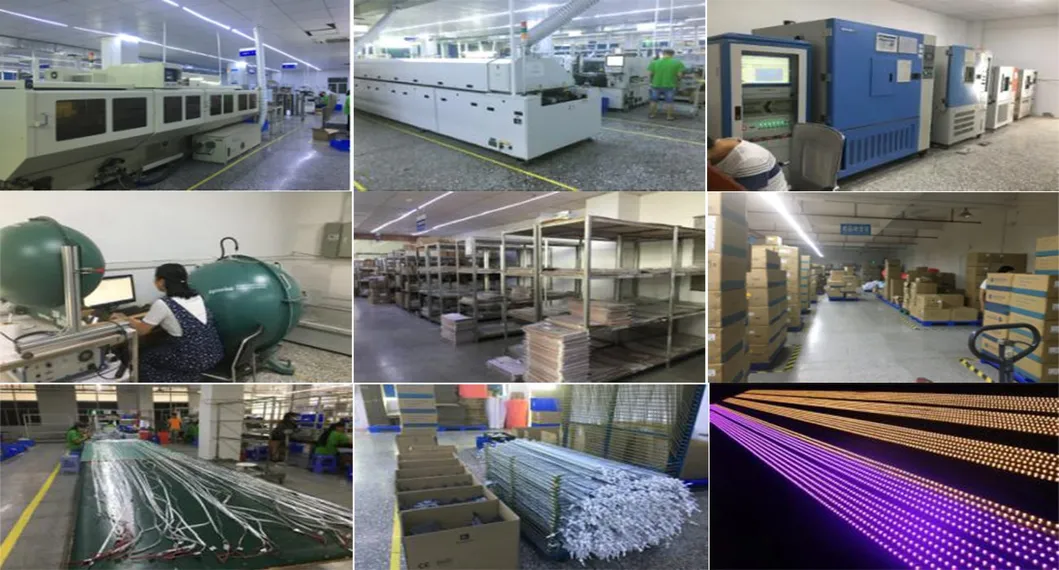

Company Profile :
MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
