0-10V Dimming LED Drivers Constant Current 350mA 230VAC to 30V DC LED Transformer for LED Pendant Light
0-10v dimming led drivers constant current 350ma 230vac to 30v dc led transformer for led pendant lightFeatureOutput current is constant, Input range 100-265 VAC Efficiency up to 86% Protections: Short circuit / over current / over temperature natural air cooling Dimming: 0-10V 1-10V/Potentiometer/1......
Send Inquiry
Product Description

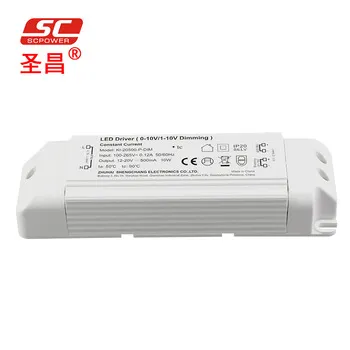

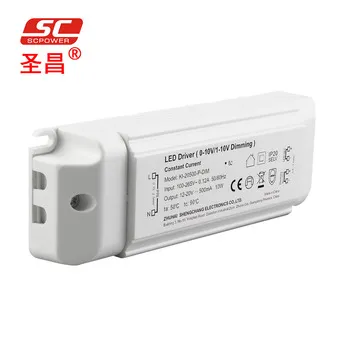

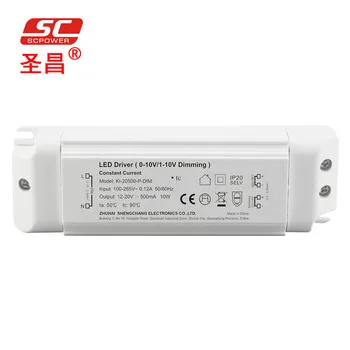

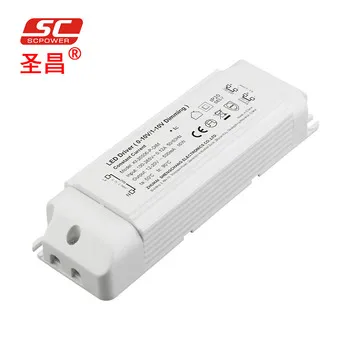

0-10v dimming led drivers constant current 350ma 230vac to 30v dc led transformer for led pendant light
Feature
Output current is constant,
Input range 100-265 VAC
Efficiency up to 86%
Protections: Short circuit / over current / over temperature
natural air cooling
Dimming: 0-10V 1-10V/Potentiometer/10V PWM (3in1)
Dimming range: 0-100%
Suitable for a variety of needs dimming LED lighting applications
Comply with safety norms World Lighting
Specification

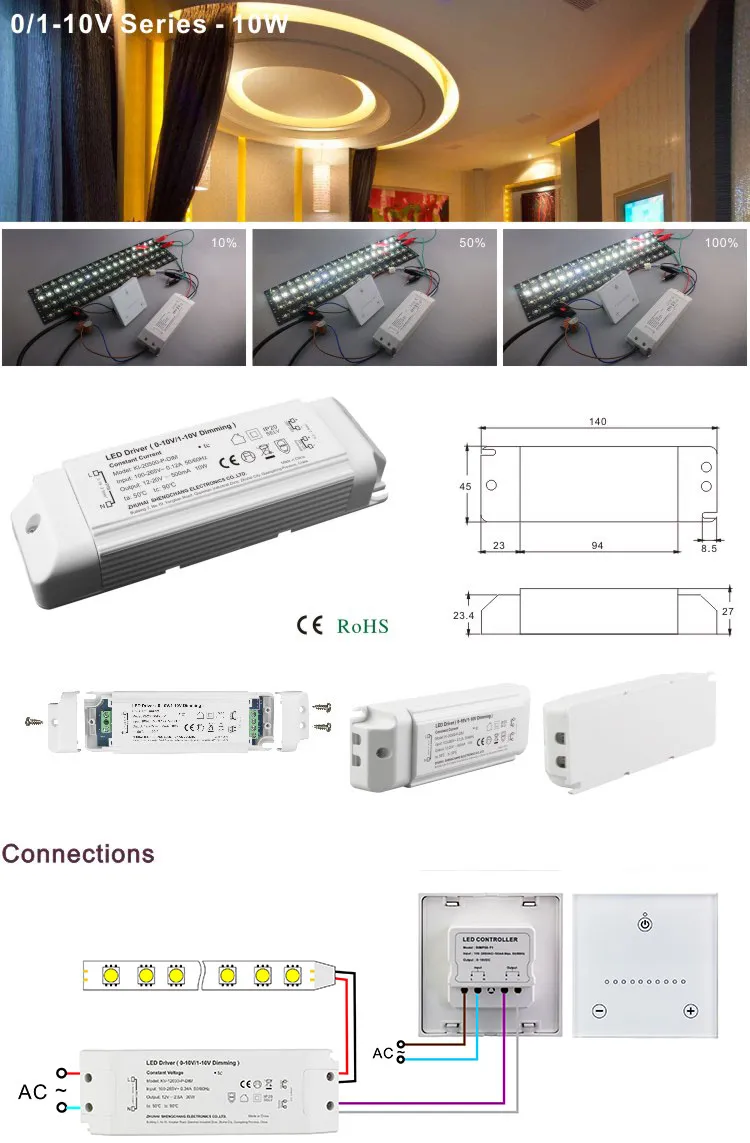

Model | KI-30350-P-DIM | KI-20500-P-DIM | KI-15700-P-DIM | KI-12900-P-DIM | |
Output | DC Current | 350mA | 500mA | 700mA | 900mA |
Current Tolerance | ±5% | ||||
Output voltage range | 18-30V | 12-20V | 9-15V | 8-12V | |
Rated power | 10.5W | 10W | 10.5W | 10.8W | |
Open circuit voltage(Max) | 35V | 25V | 20V | 16V | |
Input | Voltage Range | 100~265VAC | |||
Frequency Range | 47~63HZ | ||||
Power Factor | PF≥0.92/120VAC PF≥0.92/230VAC PF≥0.92/265VAC (Full loading) | ||||
Efficiency(Typ.) | 80% | 80% | 80% | 80% | |
AC Current(Max.) | 0.13A | 0.12A | 0.13A | 0.13A | |
Leakage current | <0.5mA | ||||
Protection | Short Circuit | Hiccup mode ,recover automatically after fault condition is removed | |||
Over Loading | ≤120% | ||||
Others | Net.Weight | 0.2Kg | |||
Size | 140*45*27mm(L*W*H) | ||||
Packing | 320*280*215mm/50pcs /CTN | ||||
